In-ceiling

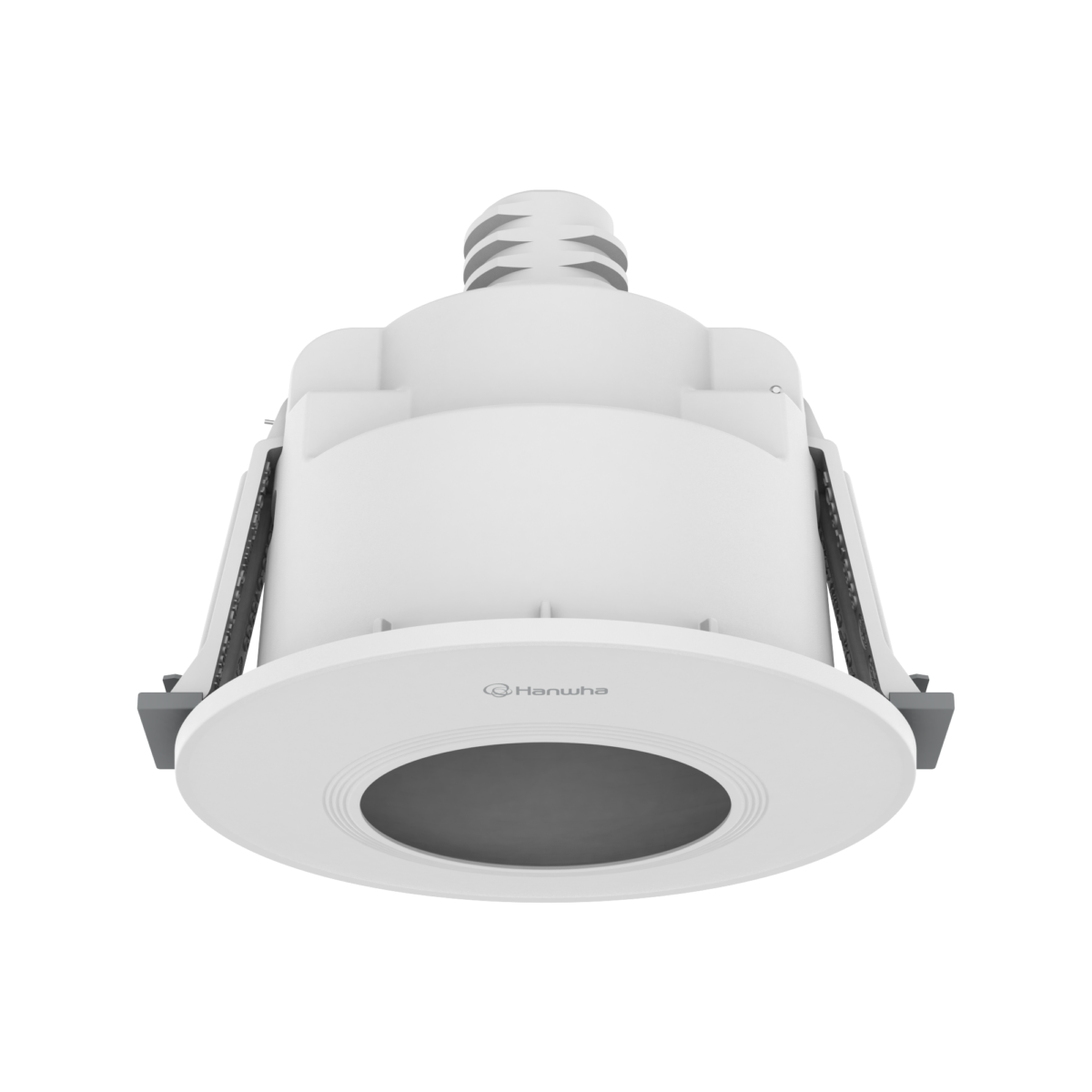

SHD-1200FW

In-ceiling Mount

Key Features

• Color: White
• Material : PC(Polycarbonate)
• Dimensions : 175x162x147mm (6.89x6.38x5.79")
※ Ceiling hole size : ø140mm (ø5.51")
• Weight : 275g (0.61lb)
• Max. load : 0.6kg (1.32lb)
※ Maximum load of ceiling board : 3kg (6.61lb)

["installation-solution","mount","in-ceiling"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Mechanical
ColorWhite
MaterialPC(Polycarbonate)
RAL codeRAL9003
Product dimensions / weight175x162x147mm(6.89x6.38x5.79") / 275g(0.61lb)
Tile thickness10~60mm(0.4~2.4")
Max. load0.6kg(1.32lb) ※ Maximum load of ceiling board: 3kg(6.61lb)
Supported productsQNV-C8013R, QNV-C8023R ※ For further compatible models, please visit our website or use Toolbox
