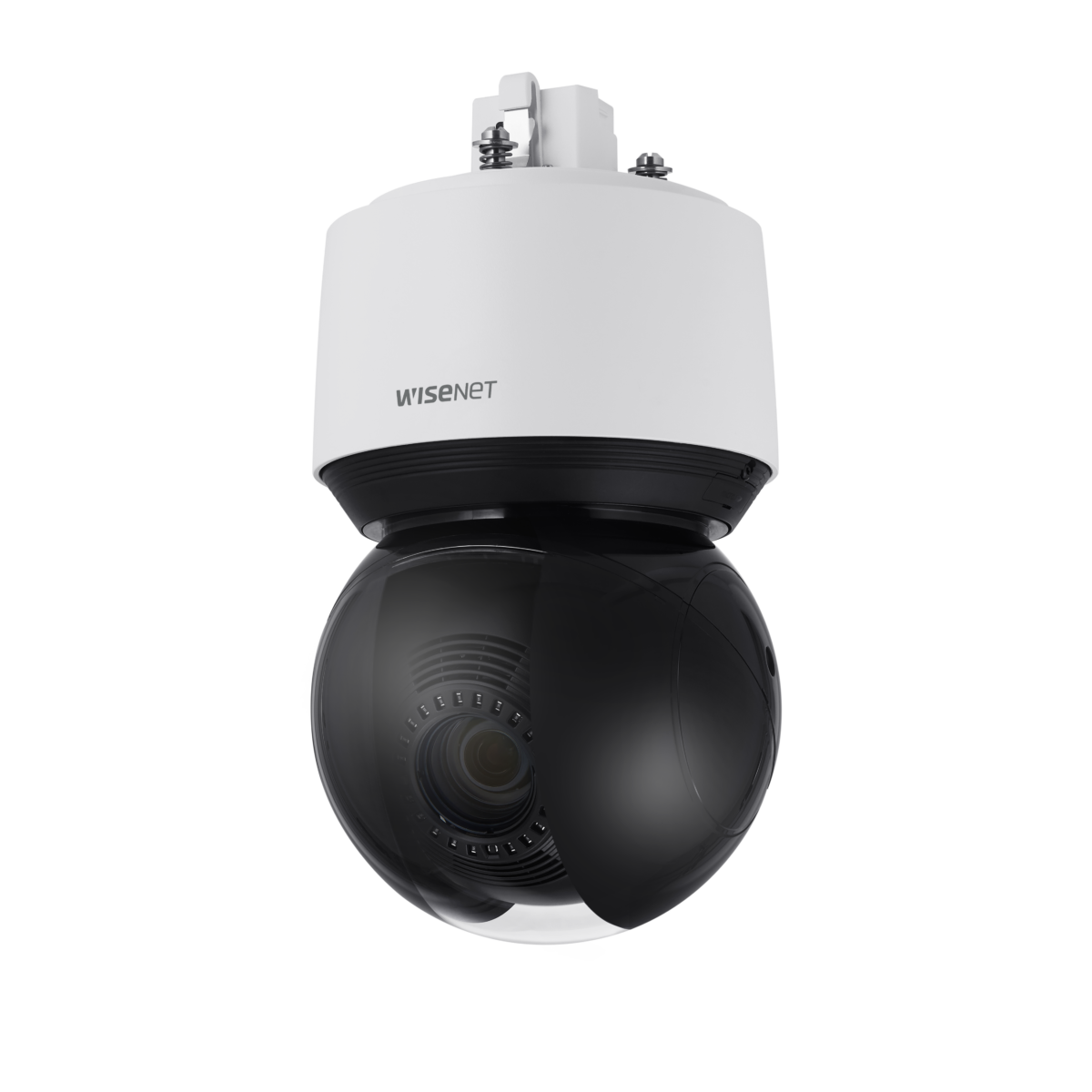

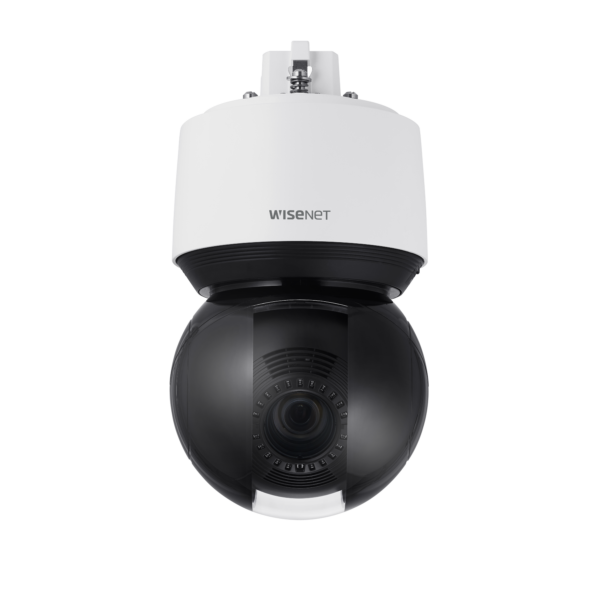

QNP-6250R
2MP 25x IR PTZ Camera
Key Features
• Max. 2MP resolution
• 4.44~111mm (25x) lens
• Max. IR viewable length 100m (328.08ft)
• Day & Night (ICR), WDR, DIS (Built-in gyro sensor)
• Intelligent Analytics
• H.264, H.265, MJPEG codec, WiseStreamII
• Micro SD/SDHC/SDXC 1slot 256GB
• IP66, IK10, NEMA4X
• 4.44~111mm (25x) lens
• Max. IR viewable length 100m (328.08ft)
• Day & Night (ICR), WDR, DIS (Built-in gyro sensor)
• Intelligent Analytics
• H.264, H.265, MJPEG codec, WiseStreamII
• Micro SD/SDHC/SDXC 1slot 256GB
• IP66, IK10, NEMA4X
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
QNP-6250R
2MP 25x IR PTZ Camera
Key Features
• Max. 2MP resolution
• 4.44~111mm (25x) lens
• Max. IR viewable length 100m (328.08ft)
• Day & Night (ICR), WDR, DIS (Built-in gyro sensor)
• Intelligent Analytics
• H.264, H.265, MJPEG codec, WiseStreamII
• Micro SD/SDHC/SDXC 1slot 256GB
• IP66, IK10, NEMA4X
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
QNP-6250R
Weight and size reduced up to 55%, better performance, easier installation
New Q series PTZ reduced the weight by up to 55% for the Dome type (QNP-6230RH) and the size became more compact than conventional PTZ cameras. More compact and lighter design significantly reduce the burden of installation.
Moreover, the lightened head increased the speed of Pan/Tilt.
Precise PTZ control
New Q series PTZ supports delicate and precise PTZ control. Conventional PTZ cameras had challenges in offering precise monitoring of moving objects due to its pre-set centered movement. New Q series PTZ provides stable object monitoring using precise PTZ control when a user wants to track moving objects manually.
Widened Tilt angle
QNP-6320R/6250R offers 110º (-20º ~ 90º) of Tilt angle, enabling effective monitoring of objects positioned above the camera level and objects in sloped environment.
Product Specification
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
- DORI (EN62676-4 standard)
-
-
Video Imaging Device 1/2.8" CMOS Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED On)Lens Focal Length (Zoom Ratio) 4.44~111mm(25x) zoom (digital 32x, total 800x zoom) Max. Aperture Ratio F1.6(Wide)~F3.9(Tele) Angular Field of View H: 64.66˚(Wide)~2.99˚(Tele) / V: 38.08˚(Wide)~1.68˚(Tele) Min. Object Distance Wide: 1.5m(4.92ft), Tele: 2m(6.56ft) Focus Control Oneshot AF, Focus save Lens Type DC auto iris Pan / Tilt / Rotate Pan Range 360˚ Endless Pan Speed Preset: 700˚/sec, Manual: 0.024˚/sec~250˚/sec Tilt Range 110˚(-20˚~90˚) Tilt Speed Preset: 300˚/sec, Manual: 0.024˚/sec~250˚/sec Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule Preset Accuracy ±0.2˚ Operational Camera Title Displayed up to 85 characters Direction Indicator Support Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support(built-in gyro sensor) Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, Quadrangle Support
- Color: Grey/Green/Red/Blue/Black/White
- Solid/MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror Analytics Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
* Audio detection(with NW I/O Box)Alarm Triggers Analytics, Network disconnect
* Alarm input(with NW I/O Box)Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
PTZ Preset
Handover
* Alarm output(with NW I/O Box)IR Viewable Length 100m(328.08ft) Auto Tracking Support Network Ethernet Metal shielded RJ-45(10/100BASE-T) Video Compression H.265/H.264,MJPEG Smart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast (128 user)
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek Edge Storage Micro SD/SDHC/SDXC 1slot 256GB Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity Normal : -35°C~+55°(-31°F ~ +131°F)
* Start up should be done at above -30°C
Less than 95% RH(Non-condensing)Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing) Certification IP66, IK10, NEMA4X Input Voltage PoE+(IEEE802.3at, Class4) Power Consumption Typ.14.7W, Max.25.5W Camera only Mechanical Color / Material Body : White / Aluminum
Head : Black / Polycarbontate
Hard-coated domeRAL Code RAL9003 Product Dimensions / Weight Ø158 x 293.3mm (6.22 x 11.55") / 3.1Kg DORI (EN62676-4 standard) Detect (25PPM/ 8PPF) Wide: 60.7m(199.1ft) / Tele: 1471.3m(4827.2ft) Observe (63PPM/ 19PPF) Wide: 24.3m(79.6ft) / Tele: 588.5m(1930.9ft) Recognize (125PPM/ 38PPF) Wide: 12.1m(39.8ft) / Tele: 294.3m(965.4ft) Identify (250PPM/ 76PPF) Wide: 6.1m(19.9ft) / Tele: 147.1m(482.7ft) -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
