PNM-C19183RVTP

5MP 3CH fixed + 4MP 18x PTZ AI Camera

Key Features

• Full coverage All-in-One design (5MP 3CH fixed + 4MP 18x PTZ)
• Compact size (ø250)
• Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion),
• Business intelligence based on AI engine : People/Vehicle counting
• Support Alarm/Audio via optional SPM-4210 I/O box
• Up to 15m IR distance
• Auto calibration
• Support Smart Zoom (Advanced Handover)
• WiseStream (Based on AI engine)
• Secure element (FIPS 140-3 level3, CC EAL6+), SBOM

Contact Sales Datasheet

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

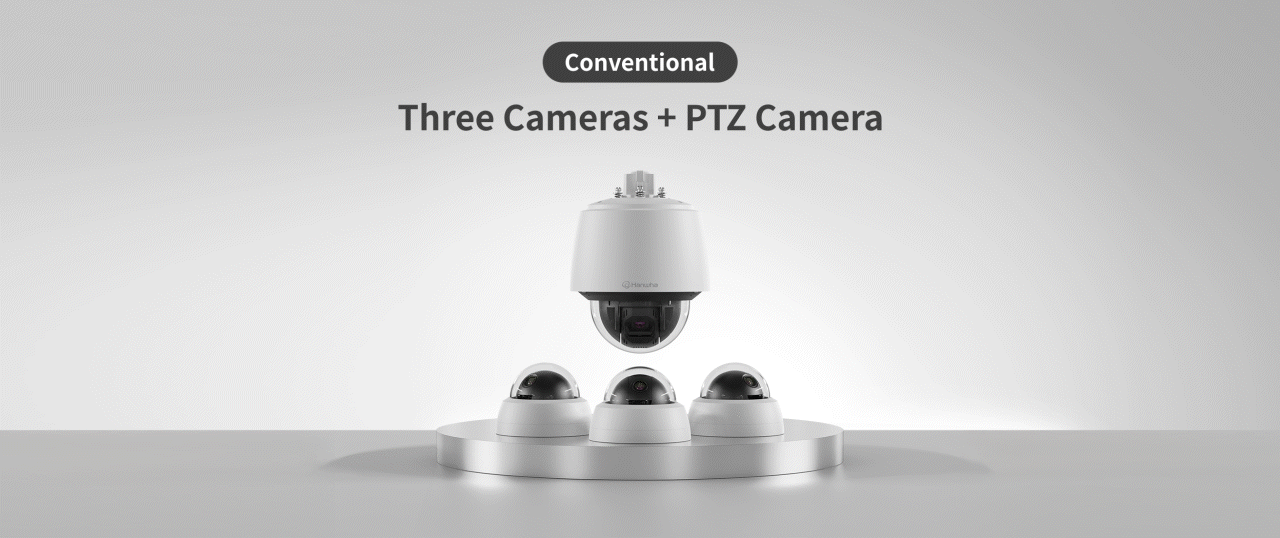

3 Channel Multi-directional PTZ Camera

The PNM-C19183RVTP combines three 5MP fixed lenses and an 18x AI-powered PTZ into a single device for seamless wide-area coverage and zoomed-in detail. Simplify installation, reduce equipment, and capture every angle with one compact camera.

IR Viewable Length

Three independently controlled IR zones provide clear night vision up to 15 meters. Fine-tune each zone to reduce glare and ensure reliable visibility in dark or complex environments.

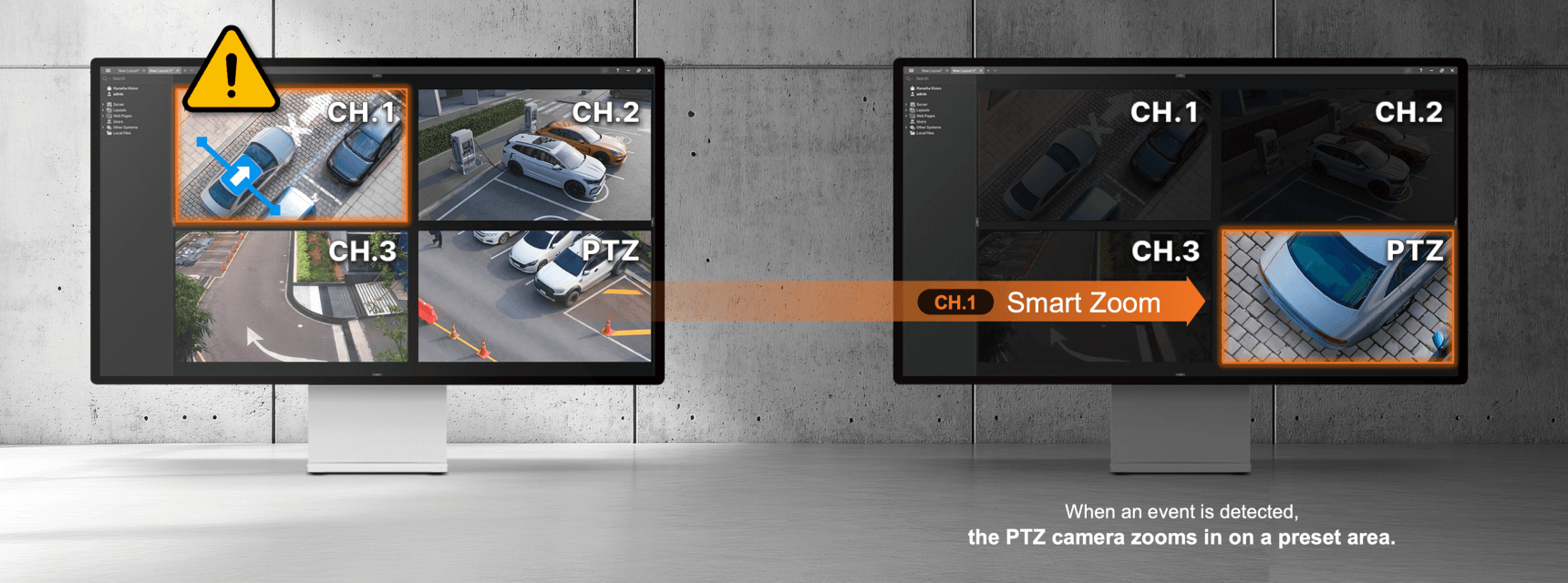

Advanced Handover

Smart handover automatically links the fixed lenses to the PTZ camera when motion is detected. The PTZ zooms in on the event, enabling fast, intelligent tracking of subjects across the scene.

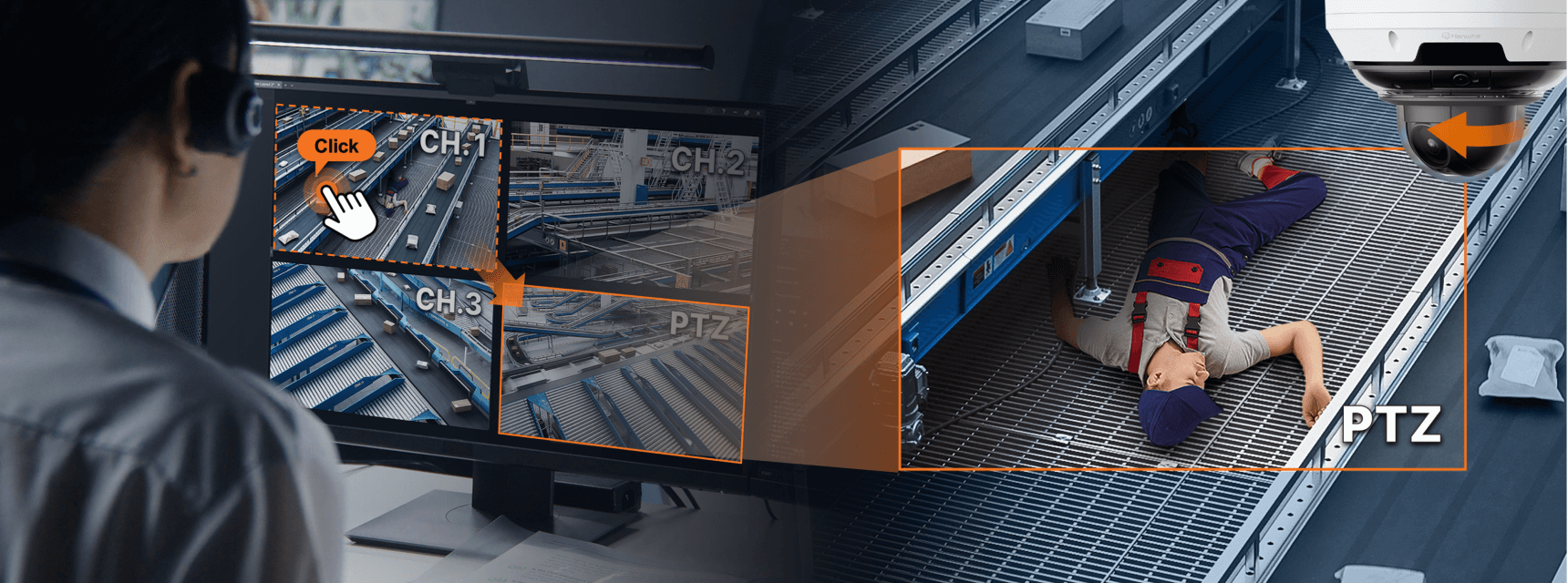

One Click PTZ Action

With one click, operators can trigger the PTZ to focus on a specific area from any fixed view. This eliminates manual repositioning and improves response time during active monitoring.

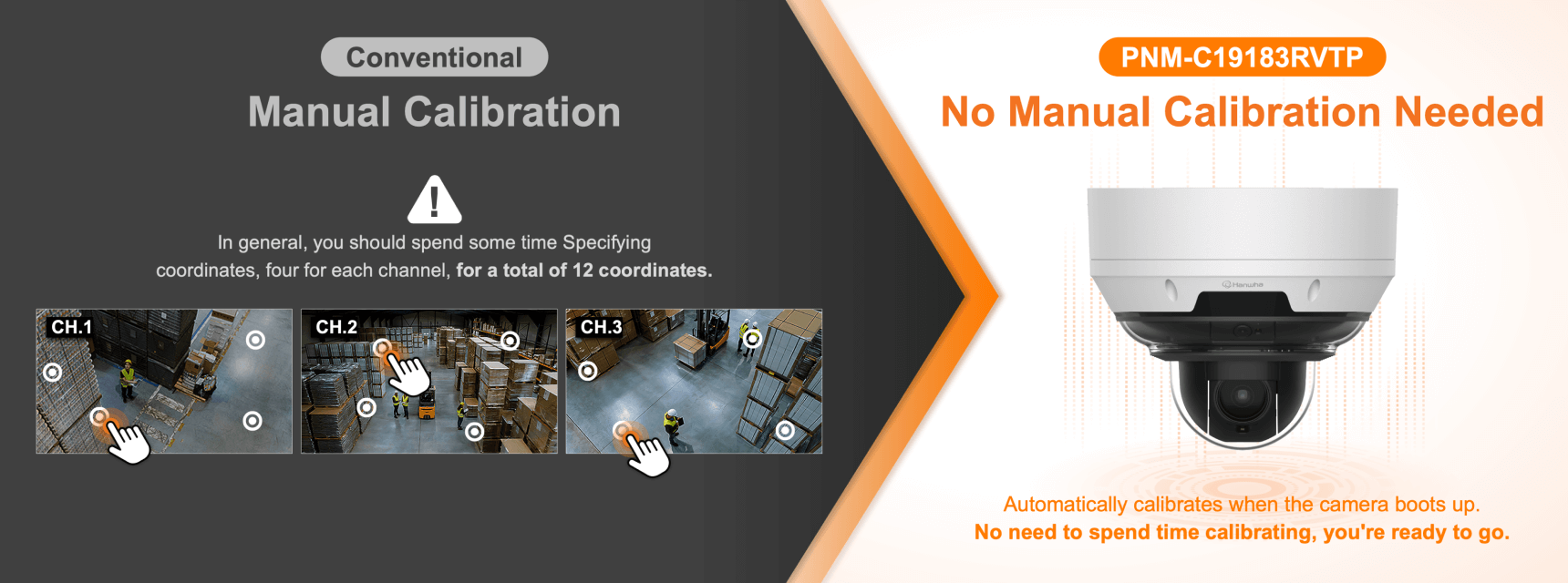

Auto Calibration

The PTZ camera auto-calibrates on boot-up, instantly aligning with the fixed lenses with no manual configuration needed. Save valuable setup time and ensure precise, out-of-the-box performance.

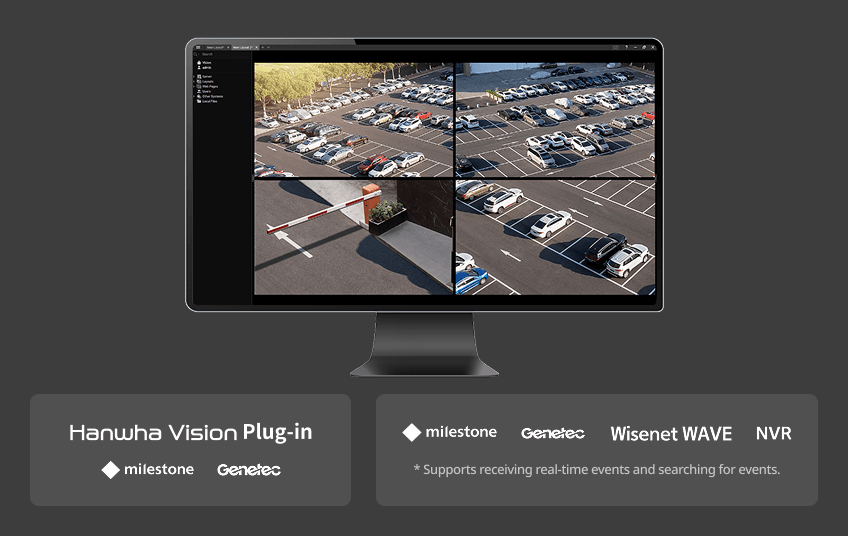

Seamless VMS Integrations

The PNM-C19183RVTP seamlessly integrates with leading Video Management Software (VMS) platforms, including Milestone and Genetec (via Hanwha’s plugin), as well as Wisenet SSM, Wisenet WAVE, and NVRs (Network Video Recorders).

Product Specification

VideoCh 1Ch 2Ch 3PTZ
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x2402592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x2402592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x2402592x1520, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.26430fps30fps30fps30fps
MJPEG30fps(@5MP Max. 5fps)30fps(@5MP Max. 5fps)30fps(@5MP Max. 5fps)30fps(@4MP Max. 5fps)
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.080.080.080.05
BW(1/30sec, 30IRE)0.0080.0080.0080.005
Video OutUSB: Micro USB Type C
LensCh 1Ch 2Ch 3PTZ
Focal Length (mm)2.42.42.45.42~98.29
Zoom RatioOptical18x
Digital32x
Max Aperture Ratio (F number)Wide2.02.02.02.0
Tele3.27
Angular Field of ViewHorizontal123°123°123°53.1°~3.39°
Vertical91°91°91°31.75°~1.98°
Diagonal159°159°159°60.8°~3.92°
Min. Object Distance0.5m(1.64ft)0.5m(1.64ft)0.5m(1.64ft)5.0m(16.4ft)
Focus ControlFixedFixedFixedOneshot AF, Focus save
Lens TypeFixed irisFixed irisFixed irisDC auto iris with hall sensor
Pan / Tilt / RotateCh 1Ch 2Ch 3PTZ
Pan SpeedPresetMax. 600°/sec
Manual0.024°/sec~250°/sec
Tilt SpeedPresetMax. 500°/sec
Manual0.024°/sec~250°/sec
SequencePreset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy±0.2°
OperationalCh 1Ch 2Ch 3PTZ
Direction IndicatorSupport
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDRBLC, WDR, SSDRBLC, WDR, SSDRBLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity12ea12ea12ea32ea
Shape4point Quadrangle zones4point Quadrangle zones4point Quadrangle zones4point Quadrangle zones
Color / OptionGray, Green, Red, Blue, Black, WhiteGray, Green, Red, Blue, Black, WhiteGray, Green, Red, Blue, Black, WhiteGray, Green, Red, Blue, Black, White, Mosaic
Gain ControlLow, Middle, HighLow, Middle, HighLow, Middle, HighOff, Max gain, Manual
White BalanceATW, AWC, Manual, Indoor, OutdoorATW, AWC, Manual, Indoor, OutdoorATW, AWC, Manual, Indoor, OutdoorATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
LDCSupportSupportSupport
Electronic ShutterModeMinimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Speed Range1/5~1/12,000sec
Video RotationFlip, Mirror
Alarm InterfaceOthersSupport alarm I/O via optional I/O box
Alarm TriggersAnalytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, MQTT: publication, Smart zoom
Audio InSupport via optional I/O box
Audio OutSupport via optional I/O box
Light TypeIR LEDIR LEDIR LED
Light Viewable LengthIR15m(49.21ft), 10m(32.8ft) under 3m height installation15m(49.21ft), 10m(32.8ft) under 3m height installation15m(49.21ft), 10m(32.8ft) under 3m height installation
IR Wavelength850nm850nm850nm
Auto TrackingObject auto tracking(Person/Vehicle), Target lock tracking
AnalyticsCh 1Ch 2Ch 3PTZ
Classified Object TypePerson, Face, Vehicle, License plate
AttributesPersonUpper/Lower clothes colorUpper/Lower clothes colorUpper/Lower clothes color
VehicleType(car, bus, truck, motorcycle, bicycle), ColorType(car, bus, truck, motorcycle, bicycle), ColorType(car, bus, truck, motorcycle, bicycle), ColorType(car, bus, truck, motorcycle, bicycle)
ThumbnailBestShotBestShotBestShotDetectionShot
Analytics EventsBased on AI EngineObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detectionObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detectionObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detectionObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
NormalTampering, Audio detection, Virtual area(Appear/Disappear)Tampering, Audio detection, Virtual area(Appear/Disappear)Tampering, Audio detection, Virtual area(Appear/Disappear)Tampering, Fog detection, Audio detection
Business IntelligenceBased on AI EnginePeople counting, Queue management, Heatmap, Vehicle countingPeople counting, Queue management, Heatmap, Vehicle countingPeople counting, Queue management, Heatmap, Vehicle counting
NetworkCh 1Ch 2Ch 3PTZ
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecManual, WiseStream(Based on AI engine)Manual, WiseStream(Based on AI engine)Manual, WiseStream(Based on AI engine)Manual, WiseStreamⅡ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 5 usersUp to 5 usersUp to 5 usersUp to 5 users
MulticastSupportSupportSupportSupport
Multiple StreamingUp to 4 profilesUp to 4 profilesUp to 4 profilesUp to 3 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS)
Application Programming InterfaceONVIFS, G, T, M
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
SecurityCh 1Ch 2Ch 3PTZ
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256), Secure element
Supply Chain SecuritySBOM
Security CertificateSecure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1)
GeneralCh 1Ch 2Ch 3PTZ
MemoryRAM8GB8GB8GB4GB
Flash8GB8GB8GB512MB
Edge StorageMicro SD/SDHC/SDXCMax. 1TB x 2slot(Total 2TB)
Environmental & ElectricalCh 1Ch 2Ch 3PTZ
Operating ConditionTemperature-40°C~+55°C(-40°F~+131°F)
Humidity0~100% RH(condensing)
OthersStart up should be done at above -35°C, Humidity control with AIR vent
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
EPA(Effective Projected Area)0.038㎡
Input VoltagePoE++(IEEE802.3bt type3, Class6)
Power ConsumptionPoE42W
MechanicalCh 1Ch 2Ch 3PTZ
ColorWhite
MaterialAluminum, Hard-coated dome
Material ManagementDeclarationRoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act)
RAL CodeRAL9003
Product Dimensionsø251.4x212mm(ø9.9x8.35")
Product Weight4,800g(10.58lb)
Compatible Conduit Hole19.1mm(3/4")(M25)
Compatible Gang BoxSingle, Double, 4" Octagon, Square
Certifications & StandardsCh 1Ch 2Ch 3PTZ
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
EnvironmentIEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X
DORI (EN62676-4 standard)Ch 1Ch 2Ch 3PTZ
Detect (25PPM/ 8PPF)Wide28.1m(92.35ft)28.1m(92.35ft)28.1m(92.35ft)103.7m(340.38ft)
Tele1751.8m(5474.46ft)
Observe (63PPM/ 19PPF)Wide11.3m(36.94ft)11.3m(36.94ft)11.3m(36.94ft)41.5m(136.15ft)
Tele700.7m(2298.99ft)
Recognize (125PPM/ 38PPF)Wide5.6m(18.47ft)5.6m(18.47ft)5.6m(18.47ft)20.7m(68.08ft)
Tele350.4m(1149.49ft)
Identify (250PPM/ 76PPF)Wide2.8m(9.23ft)2.8m(9.23ft)2.8m(9.23ft)10.4m(34.04ft)
Tele175.2m(574.75ft)
