Dome NEW

PNV-A7082RZ

4MP AI Outdoor Vandal Dome Camera

Key Features

  • Maximum 4MP resolution (1/1.8” sensor)

  • 4.6~9.35mm(2.0x) motorized varifocal

  • Long range WiseIR distance up to 30m (98.43ft)

  • Color: 0.03Lux(F1.3, 1/30sec, 30IRE)

  • BW: 0.003Lux(F1.3, 1/30sec, 30IRE)

  • PRTZ for easy installation

  • 2 times per a day PTRZ preset support

  • Analytics events based on AI engine : Object detection (Person/Face/Vehicle/License plate),
    IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Slip&Fall detection, Face mask detection, Social distancing detection

  • Business intelligence based on AI engine : People/Vehicle/Crowd counting, Queue management, Heatmap

  • Support BestShot and full attributes

  • Support Dynamic Privacy Masking

  • AI-based Image enhancement

  • extremeWDR, WiseNRⅡ(Based on AI engine), WiseStream(Based on AI engine)

  • Support Wisepower(Power monitoring)

  • Device certificate(Hanwha Vision Root CA), Secure storage(Secure element with FIPS 140-3 level3/CC EAL6+ certified), SBOM

  • 2 SD slots edge storage

  • IP66/IP67/IP6K9K, NEMA4X, IK11, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9)


Wisenet 9 WN9 Wisenet9 WN 9

Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

Wisenet 9 SoC-equipped cameras powering the next generation

2nd Generation P series AI cameras are truly powering the next generation, thanks to the advanced Wisenet 9 SoC. The Wisenet 9 chip features a revolutionary Dual NPU architecture, separating AI-based image enhancement and analytics for guaranteed, unimpaired performance. With AI Noise Reduction, the camera delivers crystal-clear images in low light while simultaneously achieving a significant bitrate reduction. Furthermore, the upgraded WDR (extremeWDR) performance ensures sharp, accurate monitoring, capturing critical detail across all challenging scenes.

View detail

Safer and convenient installation and maintenance

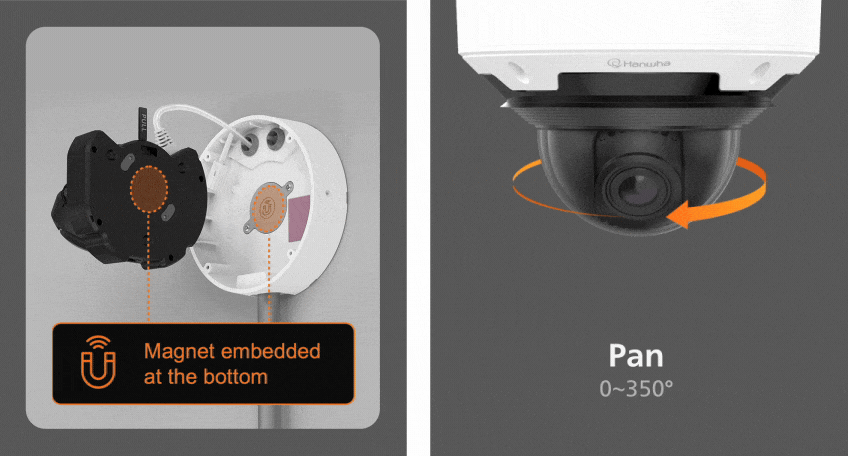

Minimizing on-site work, especially on ladders, is critical for both safety and efficiency. The 2nd Generation P series AI camera solves this with its Magnetic Modular design for fast, secure installation. Worker safety is ensured by the Remote PTRZ function, which removes the need for manual setup on a ladder, drastically reducing Total Cost of Ownership (TCO) for initial deployment and angle changes. Furthermore, the camera offers PTRZ Preset functionality, allowing a single unit to maximize coverage by automatically shifting focus to different key spots based on time. For example, a camera covering a busy gate by day can dynamically switch to monitor a restricted area at night.

Proactive Security Integrity via Tampering Detection

Maintaining security integrity requires preventing malicious acts like data exfiltration or feed disruption. The 2nd Generation P series AI Dome and Bullet cameras proactively mitigate these deliberate security threats using Case Tampering Detection. This feature immediately detects when screws are loosened to open the dome cover.(for the purpose of disconnecting cables)

Product Specification

Video
Imaging DeviceSize1/1.8"
TypeCMOS
Resolution2592x1520, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)(WDR off) / 30fps/25fps(60Hz/50Hz)(WDR on)
MJPEG30fps(@4MP Max. 5fps)
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.03
BW(1/30sec, 30IRE)0.003
Lens
Focal Length (mm)4.6~9.35
Zoom RatioOptical2.0x
Max Aperture Ratio (F number)Wide1.3
Tele2.15
Angular Field of ViewHorizontal105°~47°
Vertical58°~27°
Diagonal128°~55°
Min. Object Distance1.5m(4.92ft)
Focus ControlSimple focus
Lens TypeP iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~350°
Tilt0°~85°
Rotate0°~195°
OthersRemote adjustment(Max. 3,650cycles)
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape8point Polygonal zones
Color / OptionGray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Dynamic Privacy Masking: Color / OptionGray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Gain ControlOff, Max gain, Manual
White BalanceATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDCSupport(Fill/stretch mode)
Electronic ShutterModeMinimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Speed Range2~1/30,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm InterfaceOthersSupport alarm I/O via optional I/O box
Alarm TriggersAnalytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Light TypeIR LED
Light Viewable LengthIRWiseIR 30m(98.43ft)
IR Wavelength850nm
Analytics
Classified Object TypePerson, Face, Vehicle, License plate
AttributesPersonUpper/Lower clothes color, Gender, Bag
VehicleType(car, bus, truck, motorcycle, bicycle), Color
FaceAge, Gender, Face mask, Glasses
ThumbnailBestShot
Analytics EventsBased on AI EngineObject detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear)
NormalDefocus detection, Tampering, Audio detection, Shock detection
Business IntelligenceBased on AI EnginePeople counting, Queue management, Heatmap, Vehicle counting, Crowd counting
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecWiseStream(Based on AI engine)
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 5 profiles, 3 virtual channel support
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog
Application Programming InterfaceONVIFS, G, T, M
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control, MAC-based access control, Auto logout
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256), Secure element
Supply Chain SecuritySBOM
Security CertificateSecure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
General
MemoryRAM4GB
Flash8GB eMMC
Edge StorageMicro SD/SDHC/SDXCMax. 1TB x 2slot(Total 2TB)
Edge Storage(OnCloud)Micro SD/SDHC/SDXCMax. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
Operating ConditionTemperature-50°C~+55°C(-58°F~+131°F)
Humidity0~100% RH(condensing)
Others+74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
EPA(Effective Projected Area)0.017
Input VoltagePoE+(IEEE802.3at, Class4)
Power ConsumptionPoEMax. 15.0W, typical 9.0W
WisepowerPower monitoring
Mechanical
ColorWhite
MaterialAluminum, Hard-coated dome
RAL CodeRAL9003
Product Dimensionsø180x135mm(ø7.09x5.31")
Product Weight2,100g(4.63lb)
Compatible Conduit Hole19.1mm(3/4")(M25)
Compatible Gang BoxSingle, Double, 4" Octagon, Square
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
EnvironmentIEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, ISO 20653 IP6K9K, IEC 62262 IK11, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide39.8m(130.51ft)
Tele119.2m(391.15ft)
Observe (63PPM/ 19PPF)Wide15.9m(52.20ft)
Tele47.7m(156.46ft)
Recognize (125PPM/ 38PPF)Wide8.0m(26.10ft)
Tele23.8m(78.23ft)
Identify (250PPM/ 76PPF)Wide4.0m(13.05ft)
Tele11.9m(39.12ft)
