PNV-A9081RLP

Copy a URL
Copy

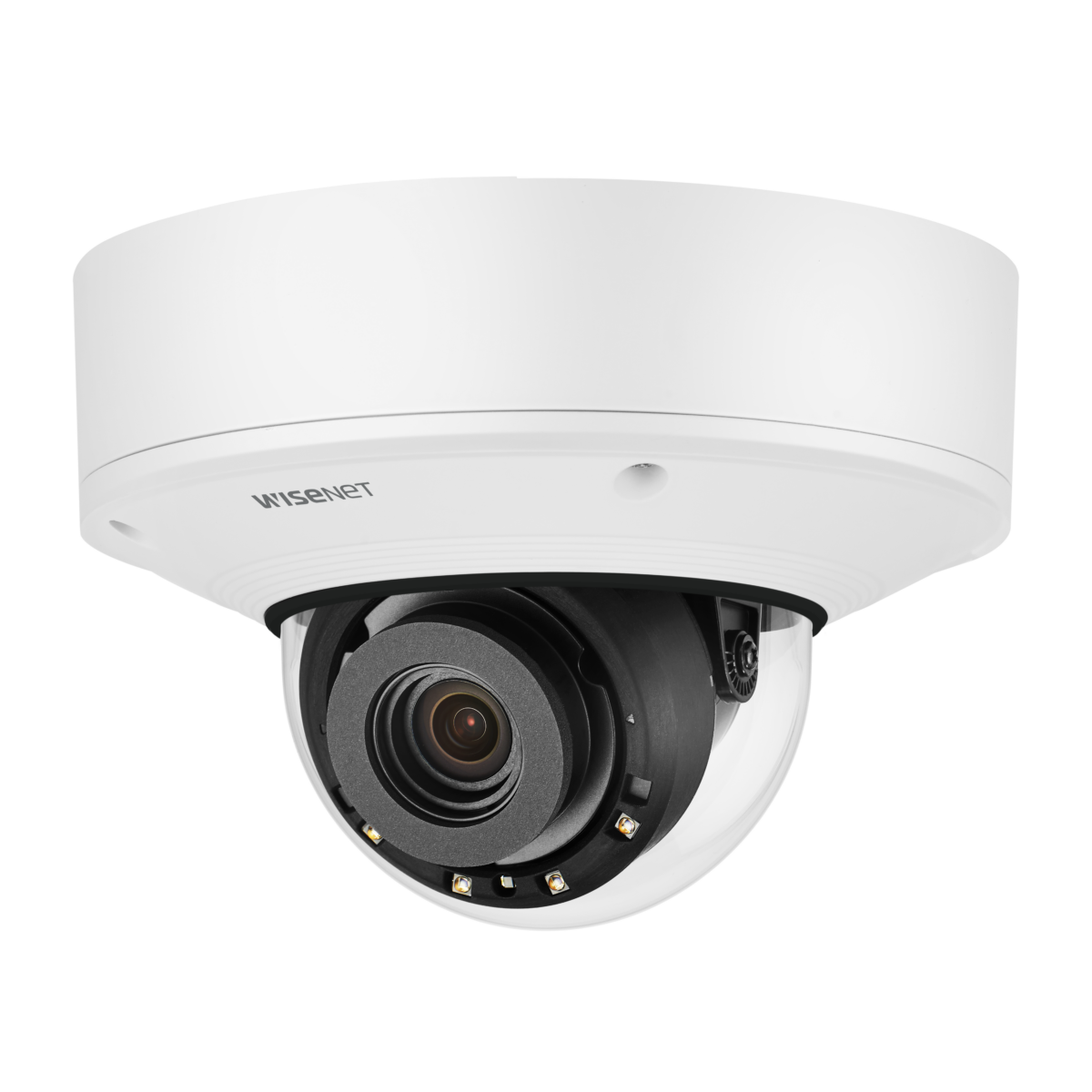

4K LPR/ANPR IR Vandal Dome Camera

Key Features
• Max. 4K resolution
• 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on)
• Day & Night(ICR), WDR(120dB)
• IR Viewable Length 30m (98.42ft)
• H.265, H.264, MJPEG codec, WiseStreamⅡ
• Wisenet Road AI application (Pre-installed)
- License/Number Plate Recognition
- Make/Model/Color Recognition
- Black/White list notification
- Smart Search (LP/NP, Country, brand, model, color)

* Supported features may vary by region. Please contact your regional manager for more details.

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Mouse over image to zoom

Copy a URL
Copy

PNV-A9081RLP

4K LPR/ANPR IR Vandal Dome Camera

Key Features

• Max. 4K resolution
• 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on)
• Day & Night(ICR), WDR(120dB)
• IR Viewable Length 30m (98.42ft)
• H.265, H.264, MJPEG codec, WiseStreamⅡ
• Wisenet Road AI application (Pre-installed)
- License/Number Plate Recognition
- Make/Model/Color Recognition
- Black/White list notification
- Smart Search (LP/NP, Country, brand, model, color)

* Supported features may vary by region. Please contact your regional manager for more details.

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Product Specification

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • Wisenet Road AI LPR/ANPR/MMCR
  • Video PNV-A9081RLP
    Imaging Device 1/1.8" CMOS
    Resolution 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768,
    800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)
    BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focal Length (Zoom Ratio) 4.5~10mm(2.2x) motorized varifocal
    Max. Aperture Ratio F1.6(Wide)~F2.65(Tele)
    Angular Field of View H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele)
    Min. Object Distance 0.5m(1.64ft)
    Focus Control Simple focus
    Lens Type P iris
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0˚~360˚ / -45˚~85˚ / 0˚~355˚
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, WDR, SSDR
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Stabilization Support(built-in gyro sensor)
    Motion Detection 8ea, polygonal zones
    Privacy Masking 6ea, rectangle zones
    - Color: GrayBlack/White
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection
    Alarm I/O Input 1ea / Output 1ea / DC 12V Power(Max. 50mA) 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    Handover
    Audio playback
    Audio In Selectable(mic in/line in/Built in mic)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    IR Viewable Length 30m(98.42ft)
    Network
    Ethernet Metal shielded RJ-45(10/100/1000 BASE-T)
    Video Compression H.265/H.264: Main/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(6 users) / Multicast
    Multiple streaming(Up to 3 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Device Certificate(Hanwha Techwin Root CA)
    Secure boot
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
    Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Pre-installed with 32GB Micro SD to support 10,000 LPR images
    Memory 4096MB RAM, 512MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
    * Start up should be done at above -30°C
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Certification IP66/IP67/IP6K9K, IK10+, NEMA4X
    Input Voltage PoE+(IEEE802.3at), 12VDC
    Power Consumption PoE+: Max 20.00W, typical 17.00W
    12VDC: Max 18.70W, typical 15.00W
    Mechanical
    Color / Material White / Aluminum
    RAL Code RAL9003
    Product Dimensions / Weight Ø180x125mm(7.09x4.92"), Weight : 1.90Kg (4.19lb)
    Compatible Conduit hole / Gangbox 3/4"(M25)
    Single, Double, 4"Octagon, Square
    Hanging Mount (Dome) SBP-187HMW
    Wisenet Road AI LPR/ANPR/MMCR
    Solution Community Traffic Parking Application
    Speed Description Moderate Speed Low speed
    Lane Coverage 1 lane (3.6m/12ft Wide) (with built in IR)
    Speed limit Up to 70kmh (45mph) (with built in IR) Up to 40kmh (25mph) (with built in IR)
    Min. Forward Distance 12m (38ft) 10m (33ft)
    Max. Forward Distance 12m (40ft) (with built in IR) 13m (45ft) (with built in IR)
    Max. Horizontal Angle 25° 30°
    Max. Vertical Angle 25° 30°
    Horizontal Offset Up to 5m (18ft) Up to 7m (24ft)
    Camera Height Up to 5m (18ft) Up to 7m (24ft)
    Vehicle Recognition Make : 70+
    Model : 600+
    Color : 11
    Available Countries Albania, Armenia, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Germany, Hungary, Ireland, Iceland, Italy, Lithuania, Luxembourg, Latvia, Montenegro, North Macedonia, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovenia, Slovakia, Spain, Switzerland, Turkey, United Kingdom, United States of America, Canada, Russian Federation, Azerbaijan, Uzbekistan, Ukraine, Kyrgyzstan, Kazakhstan, Tajikistan, Georgia, Turkmenistan, Australia, New zealand, Indonesia, Vietnam, Bahrain, Kuwait, Oman, Qatar, KSA (Kingdom of Saudi Arabia), UAE, South Africa, Hongkong/Taiwan (MMCR is not available)
  • • The latest product information / specification can be found at hanwha-security.com
    • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
