Box NEW

XNB-A8004B

5MP Remote Head Cam & Lens modules

Key Features

  • Support 5MP resolution

  • Dual NPU for AI-based Image enhancement

  • Analytics events based on AI engine

  • Shock detection, Support USB-C/CVBS, IP3X

  • Support 2 way audio

  • Device certificate(Hanwha Vision Root CA),

  • Secure storage
    (Secure element with FIPS 140-3 level3/CC EAL6+ certified), SBOM

  • Compatible lens: SLA-F1080FA, SLA-F2480A,
    SLA-F2480VA, SLA-F4780A, SLA-F4780VA, SLA-F2480WA,
    SLA-F2480WDA, SLA-F2480BA


Wisenet 9 WN9 Wisenet9 WN 9

Contact Sales Datasheet

["camera","network","box"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

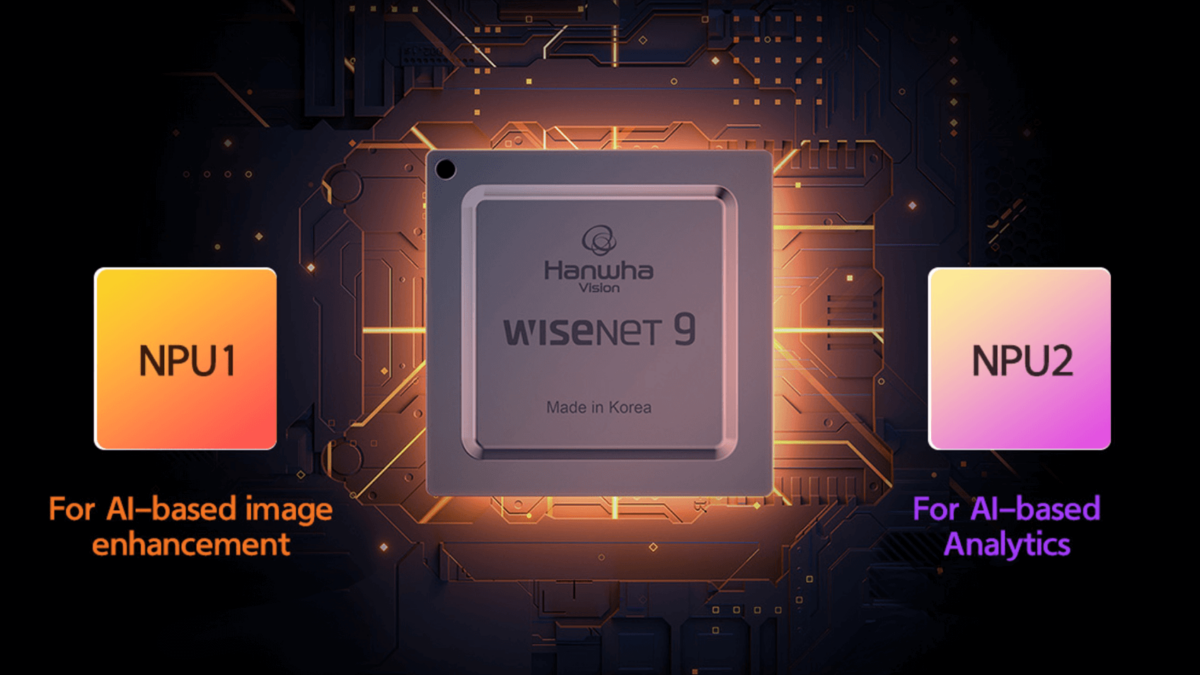

Dual NPU for Seamless Performance

Wisenet 9’s AI engine, powered by a Dual NPU, ensures video quality and analytics have independent resources, preventing one function from impacting the other for ultimate performance.

View more

Compact Design for Covert

The compact size of this 1-channel remote head camera is designed for seamless integration into discreet locations, such as ATMs, self-service kiosks, and bank teller lines.

Clear 5MP Resolution Monitoring

It provides sharp 5MP resolution across a single channel, enhancing video detail and identification capability.

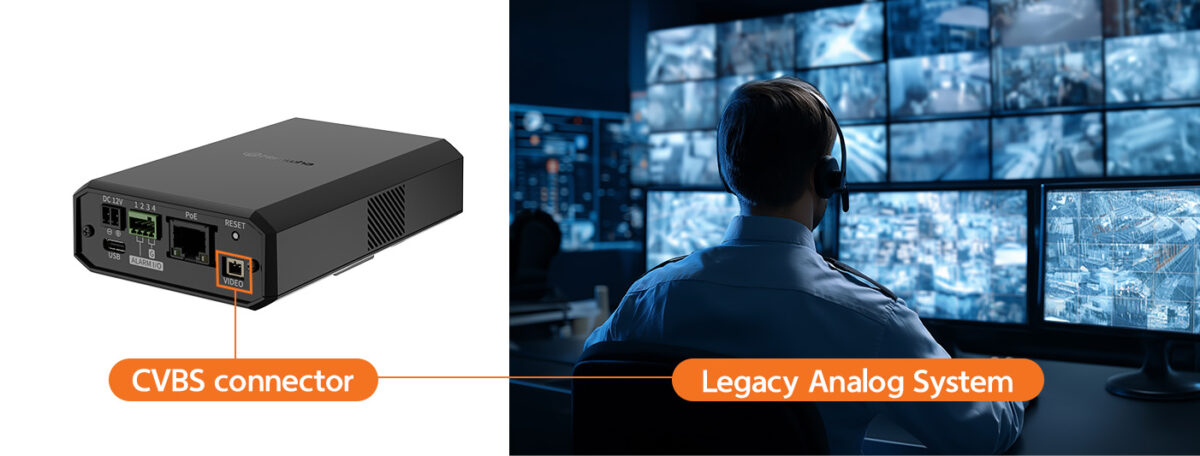

Legacy System Compatibility via CVBS Connector

Installation convenience is maximized with support for both USB-C and Legacy CVBS connectors. The inclusion of the CVBS connector ensures seamless monitoring within existing analog infrastructure.

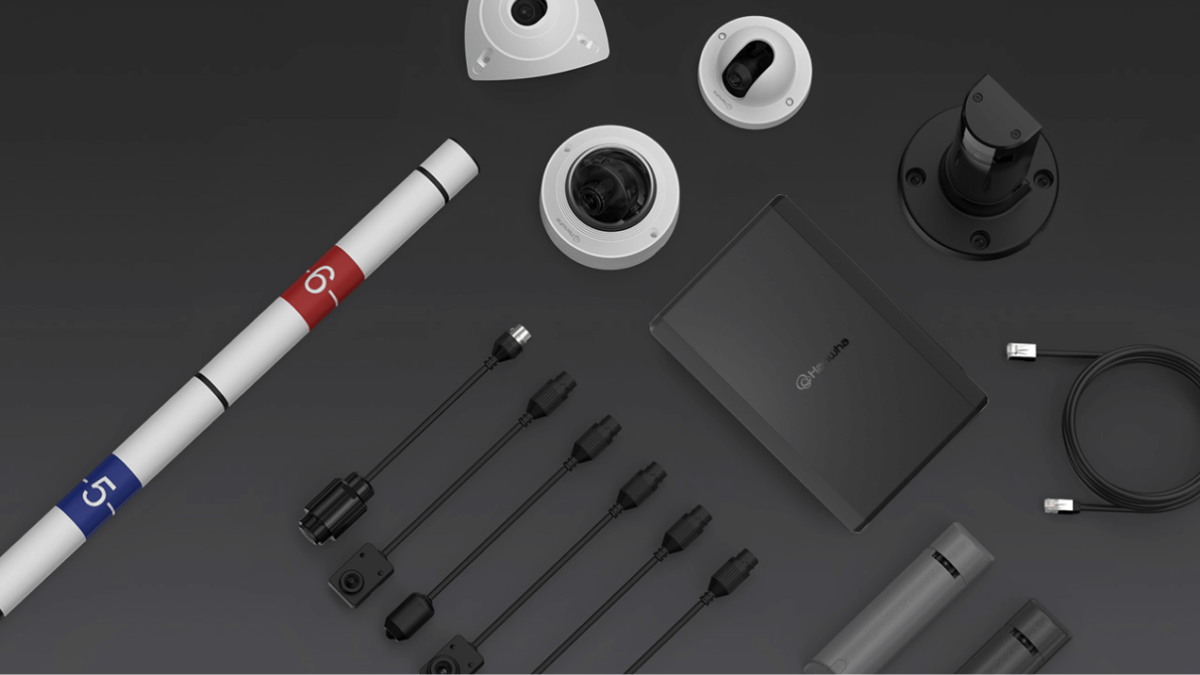

Diverse Lens Options

The XNB-A8004B offers a diverse range of compatible lenses. Users can select the ideal option including standard, fisheye, doorjamb, bandit barrier, and height strip to precisely meet the requirements of environment.

Expandable AI for Analytics and Business Intelligence

Object Classification & Analytics

Offers diverse attributes(color, bag, face mask) and advanced analytics(object counter, slip/fall, crowd detection)

Specialized AI features

Camera’s AI capabilities to meet requirements in various environments. Refer to each product page for supported AI functions.

Dynamic Privacy Masking

This feature allows for the monitoring of numerous objects in urban areas while simultaneously protecting privacy.

Similarity Search on VMS

It enables quick and easy retrieval of identical or similar objects across environments with multiple cameras.

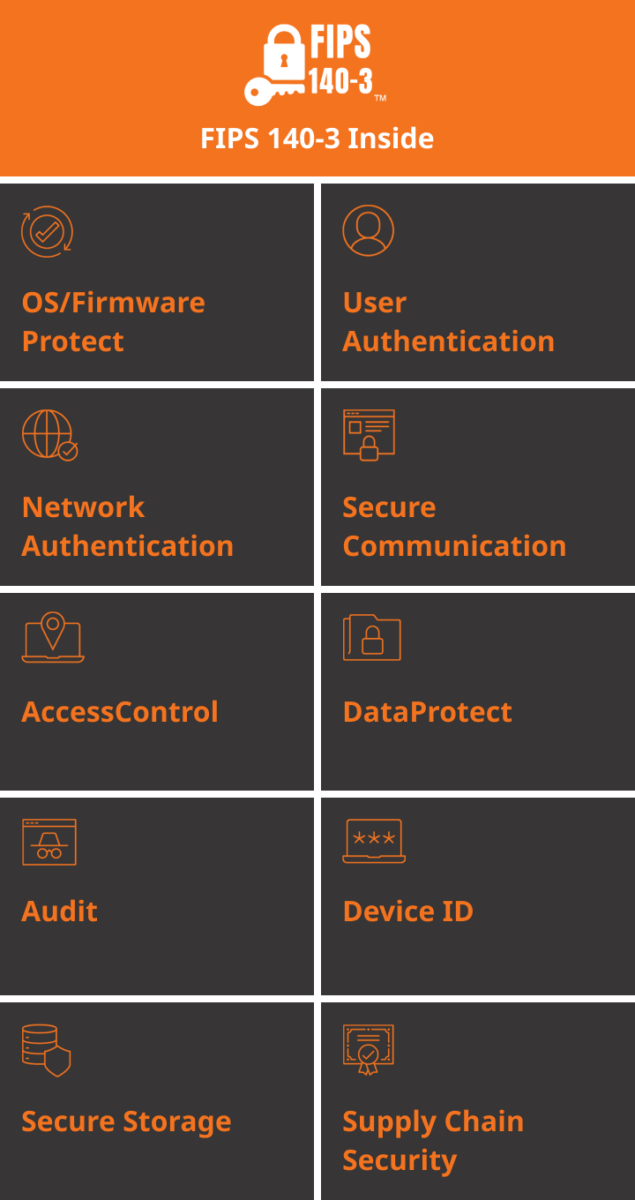

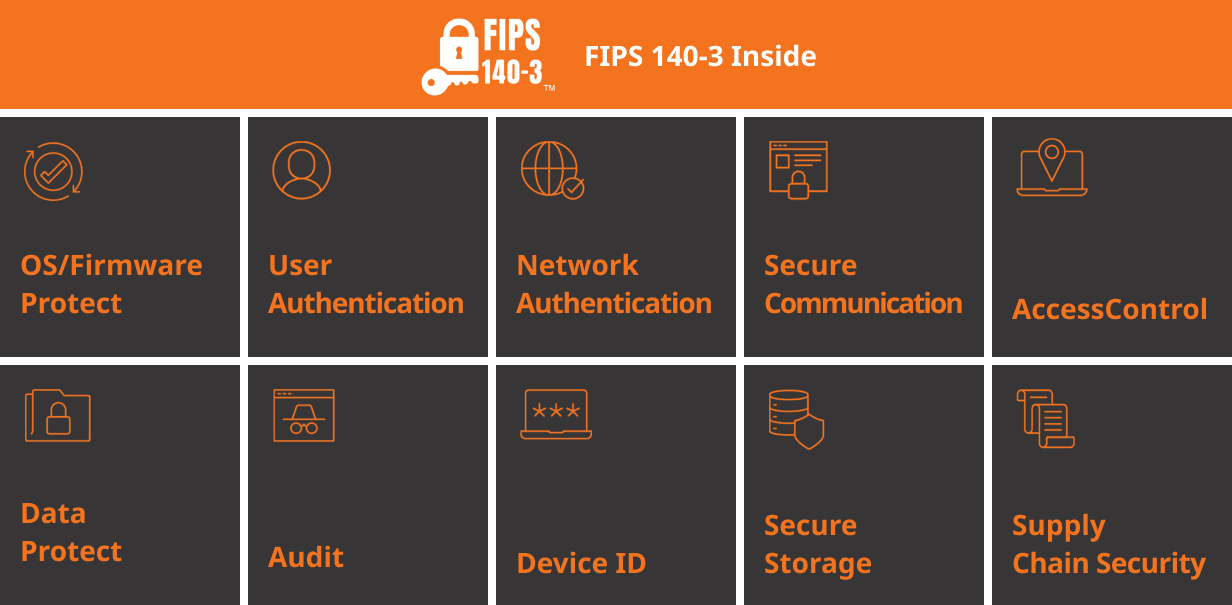

Built-In Cybersecurity and Data Protection

Security is built into every layer, protecting data and meeting the exceptional FIPS 140-3 Level 3 standard.

Product Specification

Video
Resolution2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
Max. FramerateH.265/H.26430fps/25fps(60Hz/50Hz)
MJPEG30fps(@5MP Max. 5fps)
Video OutCVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type C
Lens
Optional LensSLA-F2480A/F2480VA, SLA-F4780A/F4780VA, SLA-F1080FA
Operational
Day & NightAuto(Electrical)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape8point Polygonal zones
Color / OptionGray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Dynamic Privacy Masking: Color / OptionGray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Gain ControlOff, Max gain, Manual
White BalanceATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDCSupport(Not support for fisheye lens)
Electronic ShutterModeMinimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Speed Range2~1/30,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm InterfaceIn/Out2 configurable I/O ports
OthersSupport extra alarm I/O via optional I/O box
Alarm TriggersAnalytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio InSelectable(mic in/line in)
Audio OutLine out
Analytics
Classified Object TypePerson, Face, Vehicle, License plate
AttributesPersonUpper/Lower clothes color, Gender, Bag
VehicleType(car, bus, truck, motorcycle, bicycle), Color
FaceAge, Gender, Face mask, Glasses
ThumbnailBestShot
Analytics EventsBased on AI EngineObject detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear)
NormalDefocus detection, Tampering, Audio detection, Shock detection
Business IntelligenceBased on AI EnginePeople counting, Queue management, Heatmap, Vehicle counting, Crowd counting
Network
EthernetMetal shielded RJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps)
Smart CodecWiseStream(Based on AI engine)
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 5 profiles, 3 virtual channel support
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog
Application Programming InterfaceONVIFS, G, T, M
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control, MAC-based access control, Auto logout
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256), Secure element
Supply Chain SecuritySBOM
Security CertificateSecure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1)
General
SoCTypeWisenet9
Dual NPUSupport
MemoryRAM4GB
Flash8GB eMMC
Edge StorageMicro SD/SDHC/SDXCMax. 1TB x 1slot
Edge Storage(OnCloud)Micro SD/SDHC/SDXCMax. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
Operating ConditionTemperature-10°C~+50°C(+14°F~+122°F)
Humidity0~95% RH(non-condensing)
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3), 12VDC
Power ConsumptionPoEMax. 9.4W, typical 7.0W(TBD)
12VDCMax. 9.4W, typical 7.0W(TBD)
WisepowerPower monitoring
Power Redundance FailoverSupport
Mechanical
ColorBlack
MaterialAluminum, PC(Polycarbonate)
Material ManagementDeclarationRoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act)
RAL CodeRAL9005
Product Dimensions131.1(W)x33.5(H)x86(D)mm(5.16x1.32x3.39")(TBD)
Product Weight420g(0.93lb)(TBD)
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1
EnvironmentIEC/EN 63000, IEC 60529 IP3X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78

Compatible lenses

VideoSLA-F1080FASLA-F2480ASLA-F2480VASLA-F4780ASLA-F4780VASLA-F2480WASLA-F2480WDASLA-F2480BA
Imaging DeviceSize1/2.8"1/2.8"1/2.8"1/2.8"1/2.8"1/2.8"1/2.8"1/2.8"
TypeCMOSCMOSCMOSCMOSCMOSCMOSCMOSCMOS
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.050.080.080.090.090.10.080.08
BW(1/30sec, 30IRE)0.050.080.080.090.090.10.080.08
LensSLA-F1080FASLA-F2480ASLA-F2480VASLA-F4780ASLA-F4780VASLA-F2480WASLA-F2480WDASLA-F2480BA
Focal Length (mm)1.62.452.454.724.722.42.452.45
Max. Aperture Ratio (F number)Wide1.62.02.02.072.072.42.02.0
Tele1.62.02.02.072.072.42.02.0
Angular Field of ViewHorizontal180°122°122°70°70°128°123°123°
Vertical145°90°90°50°50°92°91°91°
Diagonal180°158°158°96°96°172°159°159°
Min. Object Distance0.5m(1.64ft)
Mount TypeRJ12 connected with main unitRJ12 connected with main unitRJ12 connected with main unitRJ12 connected with main unitRJ12 connected with main unitRJ12 connected with main unitRJ12 connected with main unitRJ12 connected with main unit
Focus ControlFixedFixedFixedFixedFixedFixedFixedFixed
Pan / Tilt / RotateSLA-F1080FASLA-F2480ASLA-F2480VASLA-F4780ASLA-F4780VASLA-F2480WASLA-F2480WDASLA-F2480BA
Pan / Tilt / Rotate RangePan0°~350°Flexible panning ±30°
Tilt0°~70°
Rotate0°~355°
Environmental & ElectricalSLA-F1080FASLA-F2480ASLA-F2480VASLA-F4780ASLA-F4780VASLA-F2480WASLA-F2480WDASLA-F2480BA
Operating ConditionTemperature-10°C ~ +55°C (+14°F ~ +131°F)-10°C ~ +55°C (+14°F ~ +131°F)-10°C ~ +55°C (+14°F ~ +131°F)-10°C ~ +55°C (+14°F ~ +131°F)-10°C ~ +55°C (+14°F ~ +131°F)-30°C~+55°C(-22°F~+131°F)-30°C~+55°C(-22°F~+131°F)-10°C ~ +55°C (+14°F ~ +131°F)
Humidity0~95% RH0~95% RH0~95% RH0~95% RH0~95% RH0~95% RH0~95% RH0~95% RH
OthersStart up should be done at above -30°C
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)-50°C~+60°C(-58°F~+140°F)-50°C~+60°C(-58°F~+140°F)-50°C~+60°C(-58°F~+140°F)-50°C~+60°C(-58°F~+140°F)-50°C~+60°C(-58°F~+140°F)-50°C~+60°C(-58°F~+140°F)-50°C~+60°C(-58°F~+140°F)
HumidityLess than 90% RHLess than 90% RHLess than 90% RHLess than 90% RHLess than 90% RHLess than 90% RHLess than 90% RHLess than 90% RH
MechanicalSLA-F1080FASLA-F2480ASLA-F2480VASLA-F4780ASLA-F4780VASLA-F2480WASLA-F2480WDASLA-F2480BA
ColorBlackBlackBlackBlackBlackBlackWhiteBlack
MaterialMetalPlasticPlastic, MetalPlasticPlastic, MetalMetalMetalPlastic
Product Dimensionsø35x68.9mm(ø1.38x2.71"), Cable: 8m(26.2ft)ø24x46.6mm(ø0.94x1.83"), Cable: 8m(26.2ft)30(W)x24.7(H)xD45mm(1.18x0.97x1.77"), Cable: 8m(26.2ft)ø24x44.9mm(ø0.94x1.77"), Cable: 8m(26.2ft)30(W)x20.5(H)xD45mm(1.18x0.81x1.77"), Cable: 8m(26.2ft)Lens: ø35x63.2mm(ø1.38x2.49"), Cable: 8m(26.2ft)ø110.0x77.0mm(ø3.54x2.36"), Cable: 8m(26.2ft)Bandit Barrier: 66.5x46x175~688mm(2.62x1.81x6.89~27.09"), Cable: 8m(26.2ft)
Product Weight108g(0.24 lb), Cable: 350g(0.77lb)35g(0.08lb), Cable: 350g(0.77lb)46.1g(0.1lb), Cable: 350g(0.77lb)34.2g(0.08lb), Cable: 350g(0.77lb)44.4g(0.1lb), Cable: 350g(0.77lb)Lens: 102.3g(0.23lb), Cable: 350g(0.77lb)455g(1.00lb), Cable: 350g(0.77lb)Bandit Barrier: 208~1,310g(0.46~2.89lb), Cable: 350g(0.77lb)
Certification & StandardsSLA-F1080FASLA-F2480ASLA-F2480VASLA-F4780ASLA-F4780VASLA-F2480WASLA-F2480WDASLA-F2480BA
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1UL 62368-1, CAN/CSA C22.2 NO. 62368-1UL 62368-1, CAN/CSA C22.2 NO. 62368-1UL 62368-1, CAN/CSA C22.2 NO. 62368-1UL 62368-1, CAN/CSA C22.2 NO. 62368-1UL 62368-1, CAN/CSA C22.2 NO. 62368-1UL 62368-1, CAN/CSA C22.2 NO. 62368-1UL 62368-1, CAN/CSA C22.2 NO. 62368-1
EnvironmentIEC 60529 IP66, NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78None, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78None, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78None, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78None, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78IEC 60529 IP66, NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78IEC 60529 IP66, NEMA 250 type 4X, IEC 62262 IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78None, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
