Positioning

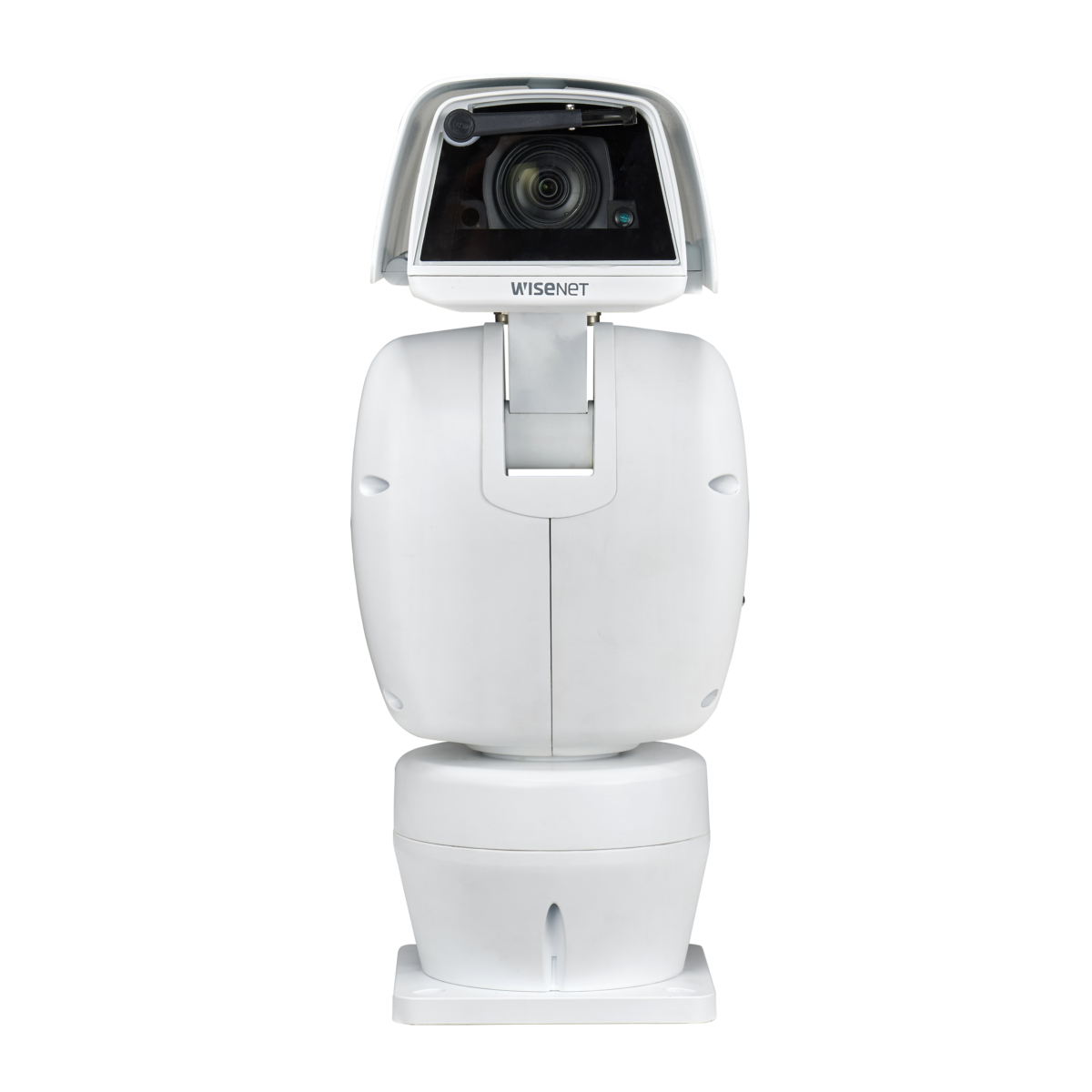

TNU-6321

2MP Positioning Camera

Key Features

• Max. 2megapixel (1920 x 1080) resolution
• 4.44 ~ 142.6mm (32x) varifocal lens
• Max. 60fps@2MP (H.265/H.264), Max. 30fps@2MP (MJPEG)
• H.265, H.264, MJPEG codec support
• Day & Night (ICR), WDR (120dB), Defog
• Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection
• Face detection, Motion detection
• microSD / SDHC / SDXC slot

Contact Sales Datasheet

["camera","network","positioning"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Optimized for harsh outdoor environments and wide area monitoring

Network positioning camera TNU-6321 provides complete monitoring with its ground-to-sky view of -90° to 40° and endless 360° pan.

Equipped with a wiper and defroster to keep the window out of snow, rain, and dust, the camera offers complete visibility, while its waterproof / dustproof certification (IP66) and operation in low & high temperature make it an optimal choice for challenging outdoor conditions.

Detailed remote monitoring
in low-light environment

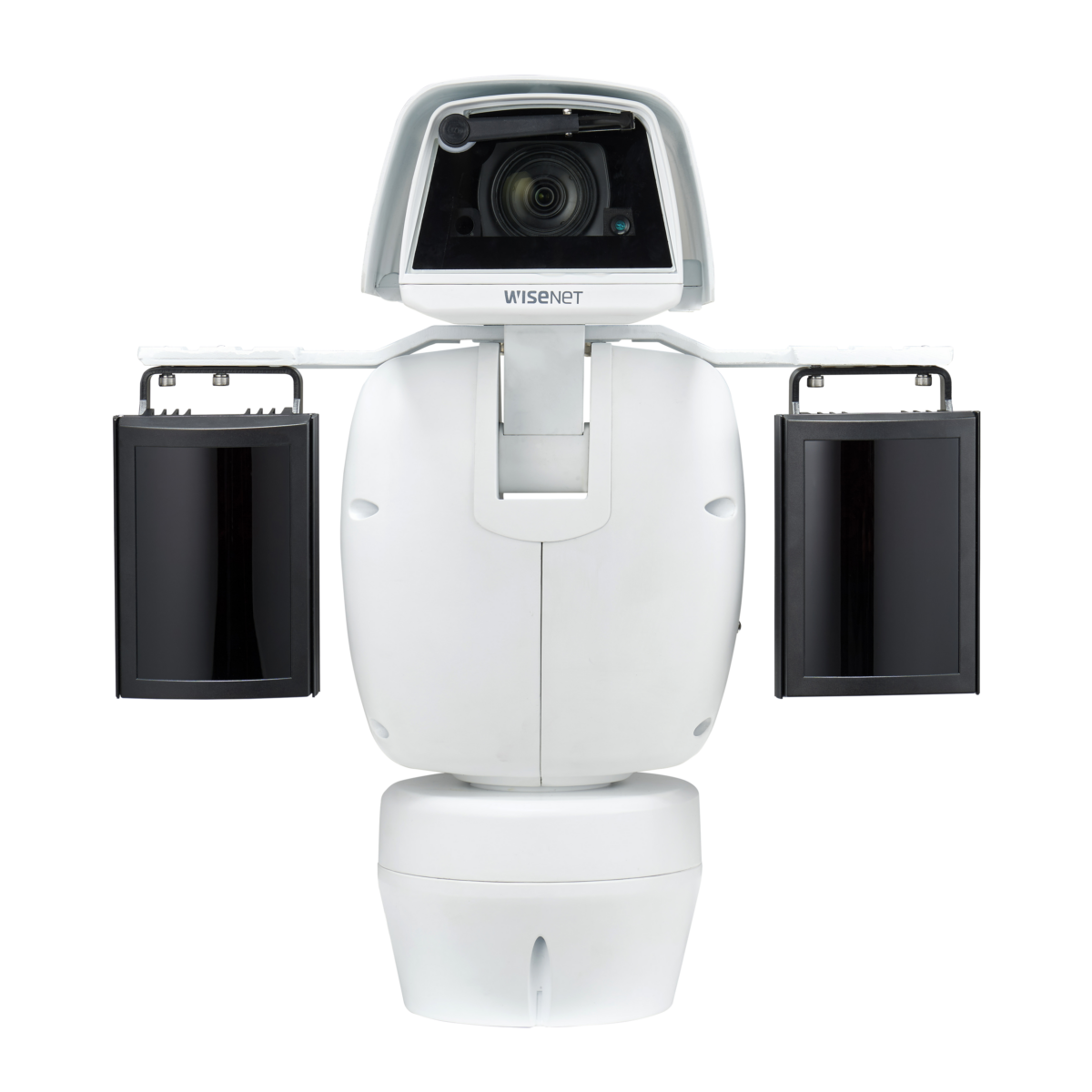

When mounting IR illuminator (SPI-50 available for additional purchase), the camera can secure up to 200 meters of visibility in dark conditions with no light and configure up to 255 pre-set positions, offering tight security monitoring for 24 hours.

A single camera can provide wide-area coverage, which is ideal for various applications such as airports, ports and periphery security monitoring.



Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.05
BW(1/30sec, 30IRE)0.005
Video OutCVBS: 1.0 Vp-p / 75Ω composite for installation
Lens
Focal Length (mm)4.44~142.6
Zoom RatioOptical32x
Max Aperture Ratio (F number)Wide1.6
Tele4.4
Angular Field of ViewHorizontal61.8˚~2.19˚
Vertical36.2˚~1.24˚
Min. Object Distance1.5m(4.92ft)
Focus ControlAuto, Oneshot AF
Lens TypeDC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan360˚ Endless
Tilt-90˚~40˚
Pan SpeedPresetMax. 120°/sec
Manual0.036°/sec~120°/sec
Tilt SpeedPresetMax. 40°/sec
Manual0.012°/sec~40°/sec
SequencePreset(255ea), Swing, Group(6ea), Tour, Auto Run, Schedule
Preset Accuracy±0.3°
Operational
Direction IndicatorSupport
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Gain ControlLow, Middle, High
White BalanceATW, AWC, Manual, Indoor, Outdoor
Electronic ShutterModeMinimum, Maximum, Anti flicker
Speed Range1~1/12,000sec
Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
Audio InSelectable(mic in/line in)
Audio OutLine out
Water RemovalSupport(with Wiper)
Analytics
Analytics EventsNormalDefocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear)
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart CodecManual, WiseStreamⅡ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM
Application Programming InterfaceONVIFS, G, T
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionOptional (needs gateway)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 1slot
Environmental & Electrical
Operating ConditionTemperature-40°C~+55°C(-40°F~+131°F)
Humidity0~90% RH(non-condensing)
Storage ConditionTemperature-40°C~+60°C(-40°F~+140°F)
Humidity0~90% RH(non-condensing)
Input Voltage24VAC
Power Consumption24VACMax. 100W(Heater On), typical 25W(Heater Off)
Mechanical
ColorWhite
MaterialAluminum
RAL CodeRAL9003
Product Dimensions219(W)×528.2(H)×460(D)mm(8.62x20.79x18.11")
Product Weight14,000g(30.86lb)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide64.2m(210.50ft)
Tele2,009.0m(6,591.31ft)
Observe (63PPM/ 19PPF)Wide25.7m(84.20ft)
Tele803.6m(2,636.53ft)
Recognize (125PPM/ 38PPF)Wide12.8m(42.10ft)
Tele401.8m(1,318.26ft)
Identify (250PPM/ 76PPF)Wide6.4m(21.05ft)
Tele200.9m(659.13ft)
