TNM-C2712TDR
Early Fire Detection Bi-spectrum Thermal Camera
• Max. Framerate: Visiable 30fps, Thermal 8fps
• Angular Field of View : Thermal H: 95° / V: 69° / D: 119°
& Visible H: 100° / V: 73° / D: 129°
• Early fire detection (Analytics events based on AI engine)
• Temperature detect range (-10°C~450°C)
,Temperature difference detection
• IP66/IP67, IK09 (except lenses in front)
• PoE: Max 10.8W, typical 6.2W
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Coming out in June
Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.
Learn more

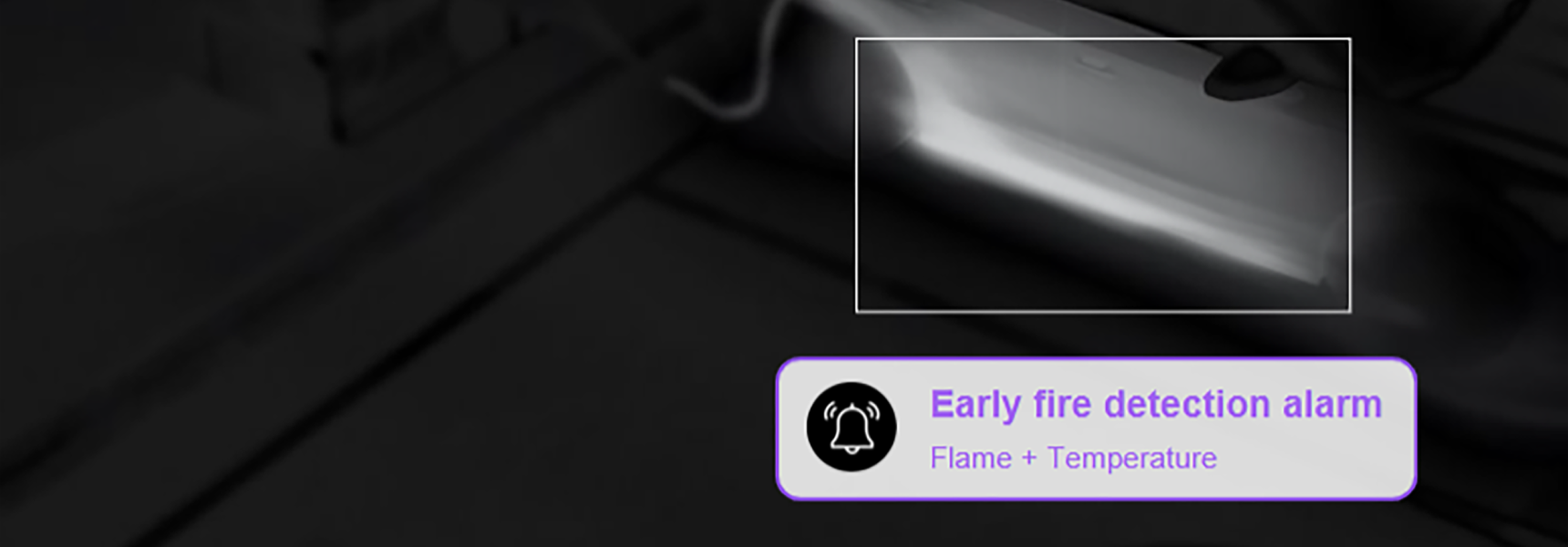

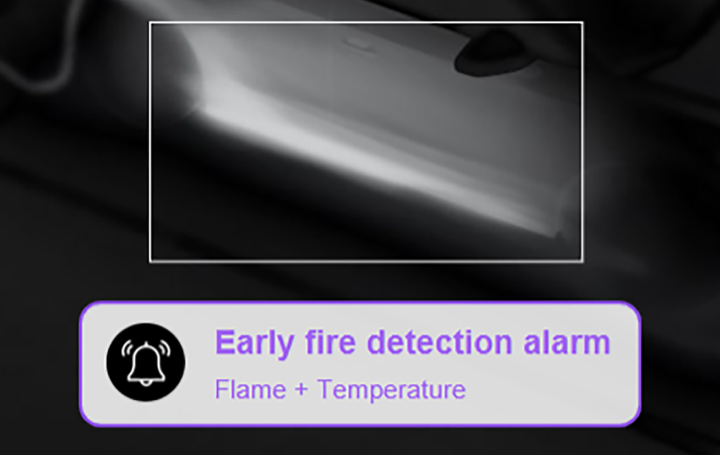

Early Fire Detection
The TNM-C2712TDR uses video analytics to detect flames through visible imaging, combined with temperature data from the thermal sensor to alert users about potential fire risks.

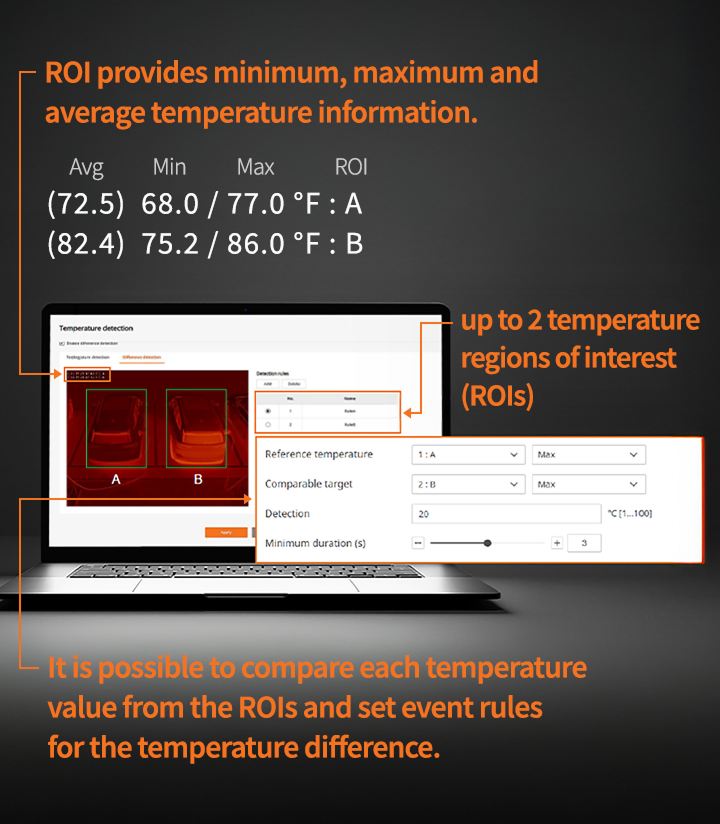

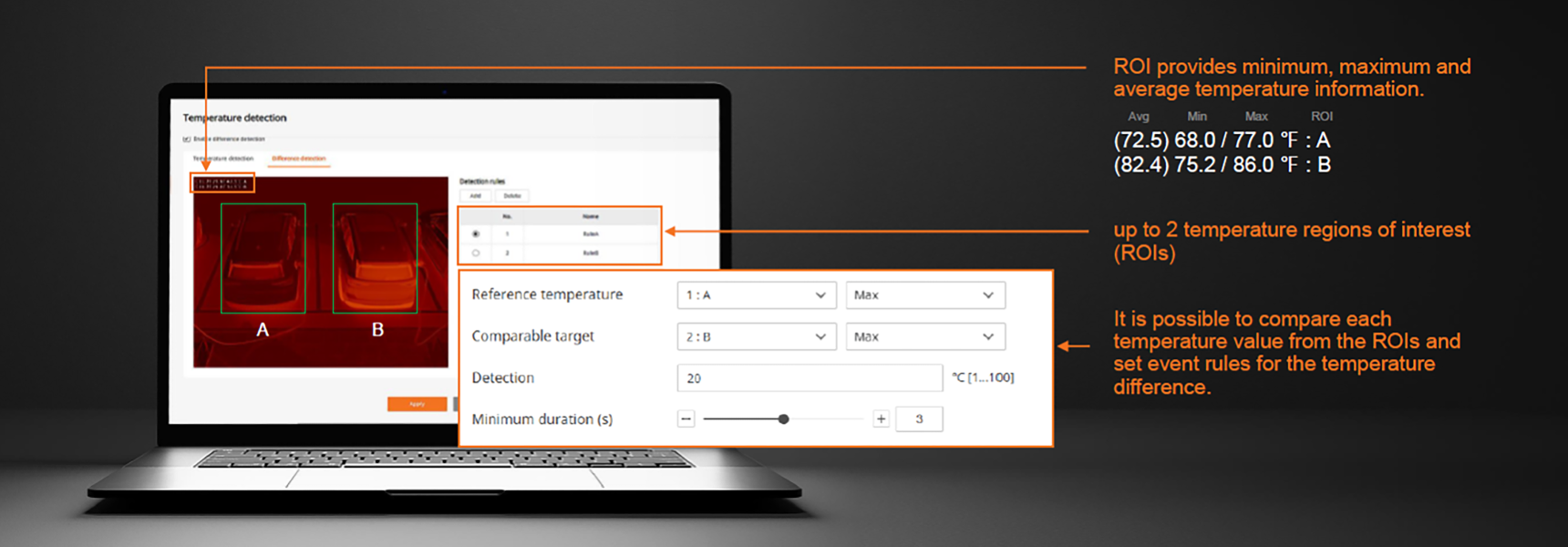

Precise Temperature Monitoring with ROI Control
These cameras support up to two Regions of Interest (ROIs) for temperature monitoring, allowing users to track the minimum, maximum, and average temperatures within each region. Event rules can be defined based on the temperature values or differences between them, providing valuable data for proactive monitoring and decision-making.

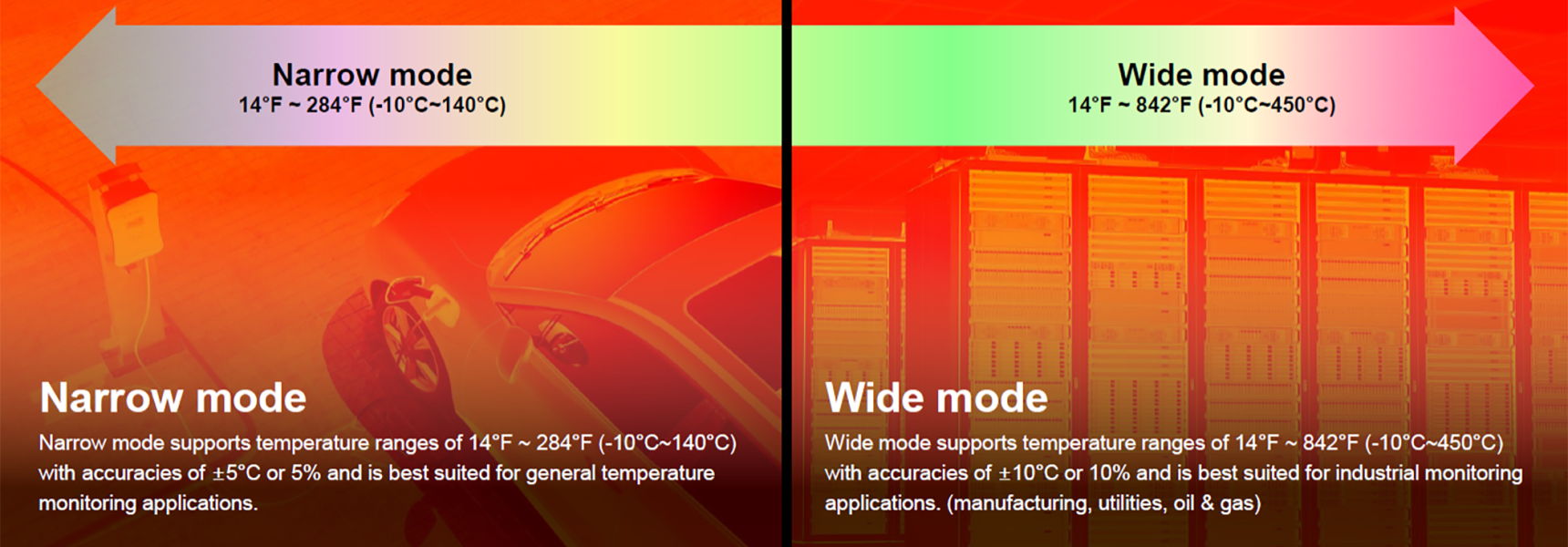

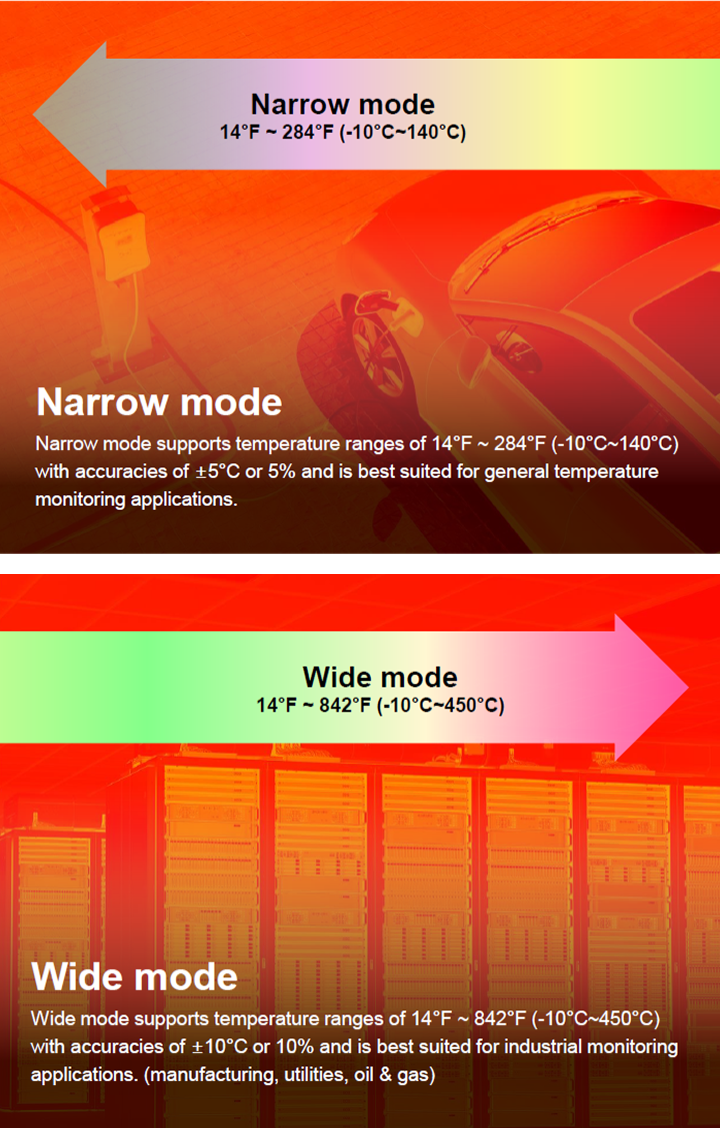

Wide Temperature Detection Range
These cameras provide temperature measurement within the range of -10°C to 450°C (14°F to 842°F). Alarm notifications are generated when ROI temperatures exceed or fall below configured thresholds, or when temperature differentials surpass defined limits.

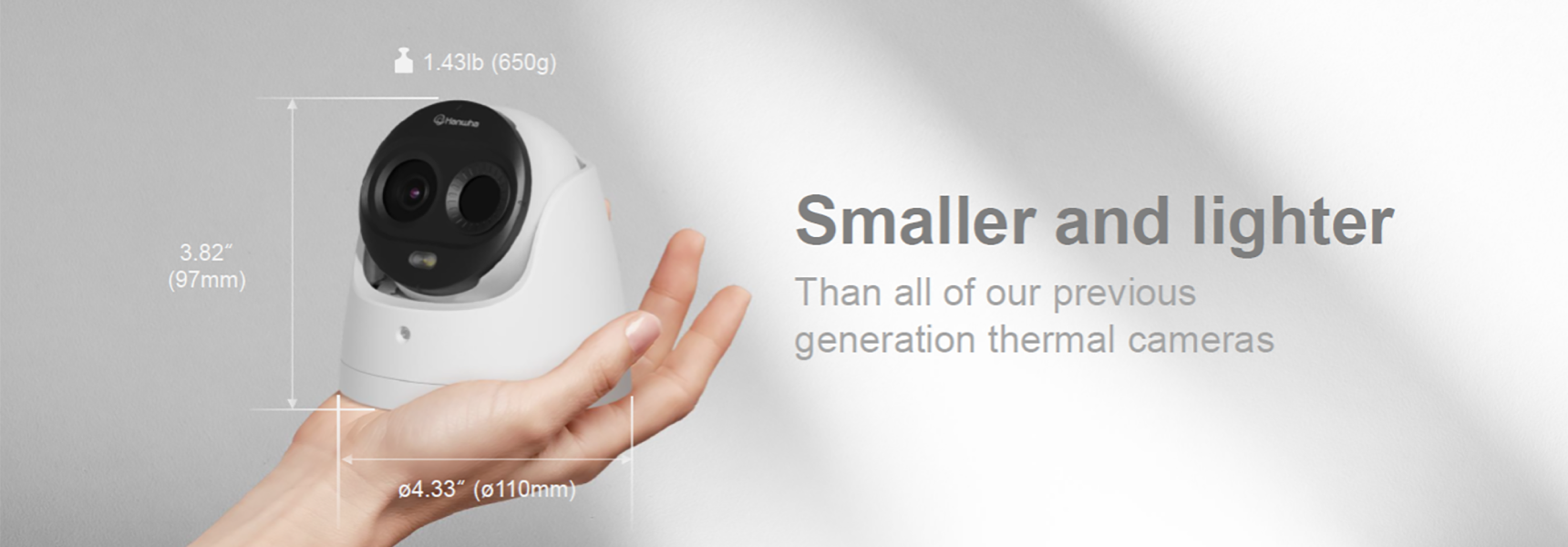

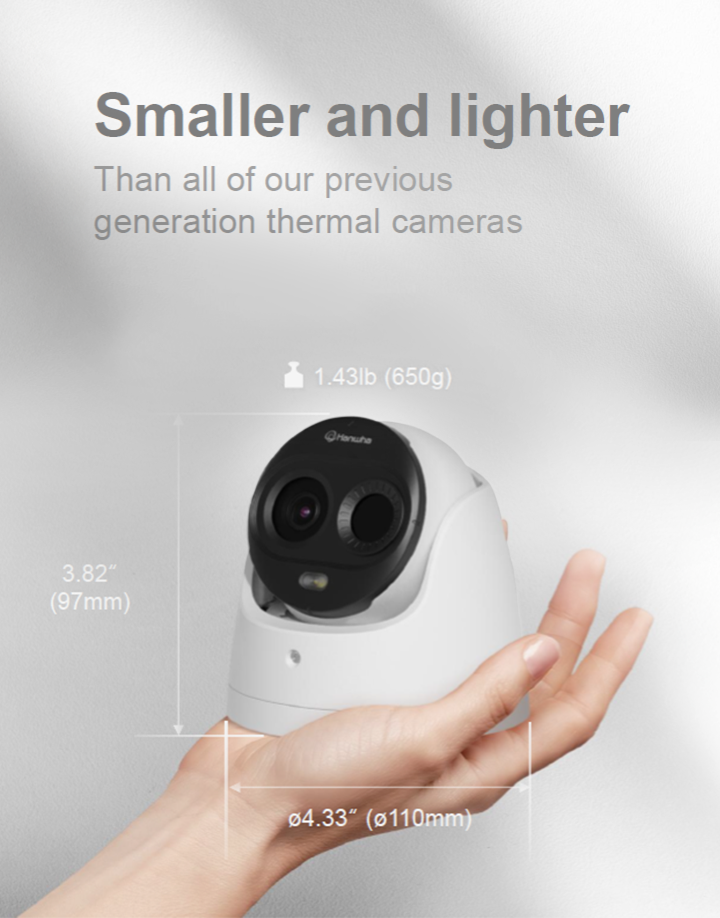

Compact and Lightweight Design
These cameras are designed to be more compact and lightweight compared to previous generations of Hanwha thermal cameras. This makes it easier to install in environments with limited space, ensuring flexibility in installation while maintaining performance and reliability.

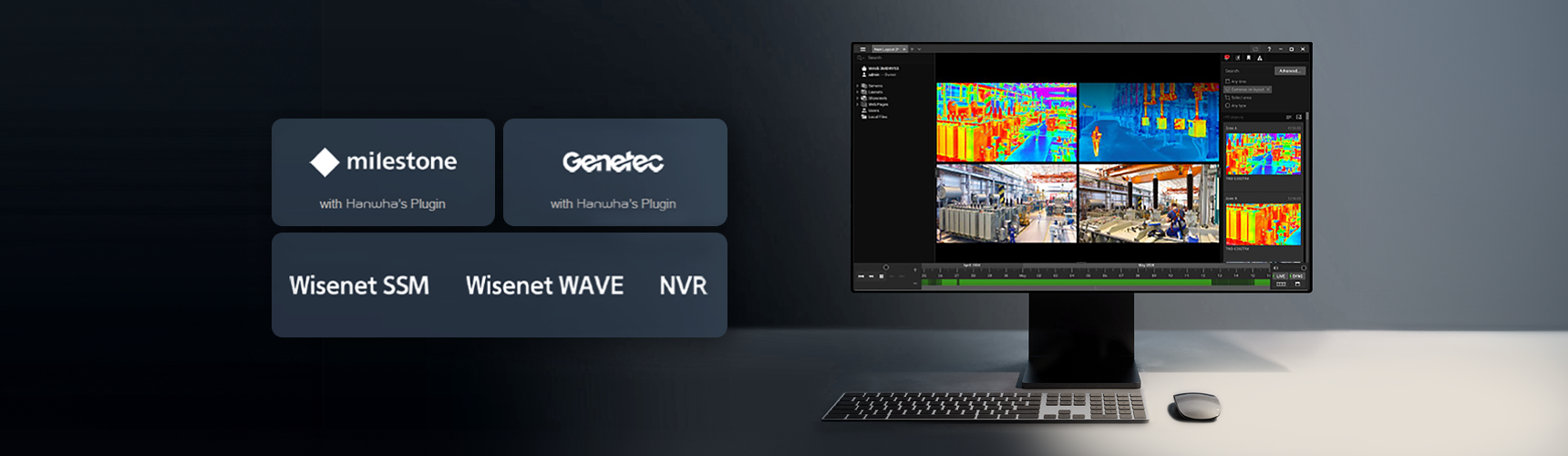

Compatibility with Various Software
The TNM-C2712TDR is compatible with a range of Video Management Software (VMS), including Milestone (with Hanwha’s plugin), Genetec (with Hanwha’s plugin), Wisenet SSM, and Wisnenet WAVE. This ensures flexibility in deployment, allowing the cameras to be easily integrated into existing security and monitoring infrastructures.
Product Specification
| Video | ||
|---|---|---|
| Imaging Device | Uncooled micro bolometer | 1/2.8" CMOS |
| Resolution |
640x480, 320x240 (Original sensor resolution: 160x120) |
2048x1536, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate |
H.265/H.264: Max. 8fps MJPEG: Max. 5fps |
H.265/H.264: Max. 30fps/25fps MJPEG: Max. 5fps |
| NETD | ＜50mK | |
| Pixel Size | 12㎛ | |
| Min. Illumination |
Color: 0.06Lux(F1.6, 1/30sec) BW: 0.06Lux(F1.6, 1/30sec) |
|
| Lens | ||
| Focal Length (Zoom Ratio) | 1.2mm fixed focal | 3.06mm fixed focal |
| Max. Aperture Ratio | F1.1 | F1.6 |
| Angular Field of View | H: 95° / V: 69° / D: 119° | H: 100° / V: 73° / D: 129° |
| Min. Object Distance | 0.15m(0.49ft) | 1.1m(3.6ft) |
| Focus Control | Fixed | Fixed |
| Pan / Tilt / Rotate | ||
| Pan / Tilt / Rotate Range | 0°~360° / 0°~70° / 0°~360° | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(Electrical) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | WDR | |
| Digital Noise Reduction | SSNR V | |
| Digital Image Stabilization | Support | |
| Motion Detection | 8ea, polygonal zones | |
| Privacy Masking | 6ea, rectangle zones - Color: Gray/Black/White |
|
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(1/5~1/20,000sec) | |
| Video Rotation | Flip, Mirror | |
| Analytics |
Temperature detection, Temperature difference detection Analytics events - Motion detection |
Analytics events based on AI engine - Early fire detection Analytics events - Tampering, Audio detection, Motion detection |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription | |
| Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback - MQTT: publication - Light alarm |
|
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | White light | |
| Color Palettes | Whitehot, Sepia, Red, Custom | |
| Radiometry | ||
| Temperature Detect Range | -10°C~450°C | |
| Temperature Accuracy | Greater of ±10°C or 10% | |
| Temperature Detection | 2 Rectangle ROI zones | |
| Additional | Spot temperature reading | |
| Network | ||
| Ethernet | Metal shielded RJ45 (10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Smart Codec | WiseStreamⅡ | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Hanwha Vision Open Platform |
|
| Security | ||
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption | |
| User authentication | Digest Authentication, Prevent brute-force attack | |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) | |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) | |
| Access Control | Access control based on IP address | |
| Data Protect | Authentication information encryption, ZIP compression encryption | |
| Audit | User Access/System/Event log management | |
| Device ID | Device Certificate(Hanwha Private Root CA3) | |
| Secure Storage | SD card pratition encrypt | |
| General | ||
| Webpage Language | English, French, German, Spanish, Italian, Simplified Chinese, Traditional Chinese, Korean, Russian, Japanese, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 1slots 512GB | |
| Memory | 2GB RAM, 512MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~95% RH(non-condensing) * Start up should be done at above -10°C |
|
| Storage Temperature / Humidity | -40°C~+60°C(-40°F to +140°F) / Less than 95% RH | |
| Certification | IP66/IP67, IK09 (except lenses in front) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE: Max 10.8W, typical 6.2W | |
| Mechanical | ||
| Color / Material | White / Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions / Weight | Ø110x97mm(ø4.33x3.82"), 650g(1.43lb) | |
| Hanging Mount (Dome) | SBP-120HMW | |
| Backbox | SBV-140BW | |
| Wall Mount | SBP-125WMW1 | |
| Pole Mount | SBD-140PMW, SBD-140PMB | |
| Tilt Mount | SBV-140TMW | |
| Gang Plate | SBD-110GP1 | |
| Certifications & Standards | ||
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
|
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
|
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK09 |
|
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/ 8PPF) | 43.5m(142.7ft) | |
| Observe (63PPM/ 19PPF) | 17.4m(57.0ft) | |
| Recognize (125PPM/ 38PPF) | 8.7m(28.5ft) | |
| Identify (250PPM/ 76PPF) | 4.3m(14.1ft) | |
