Network Cameras NEW

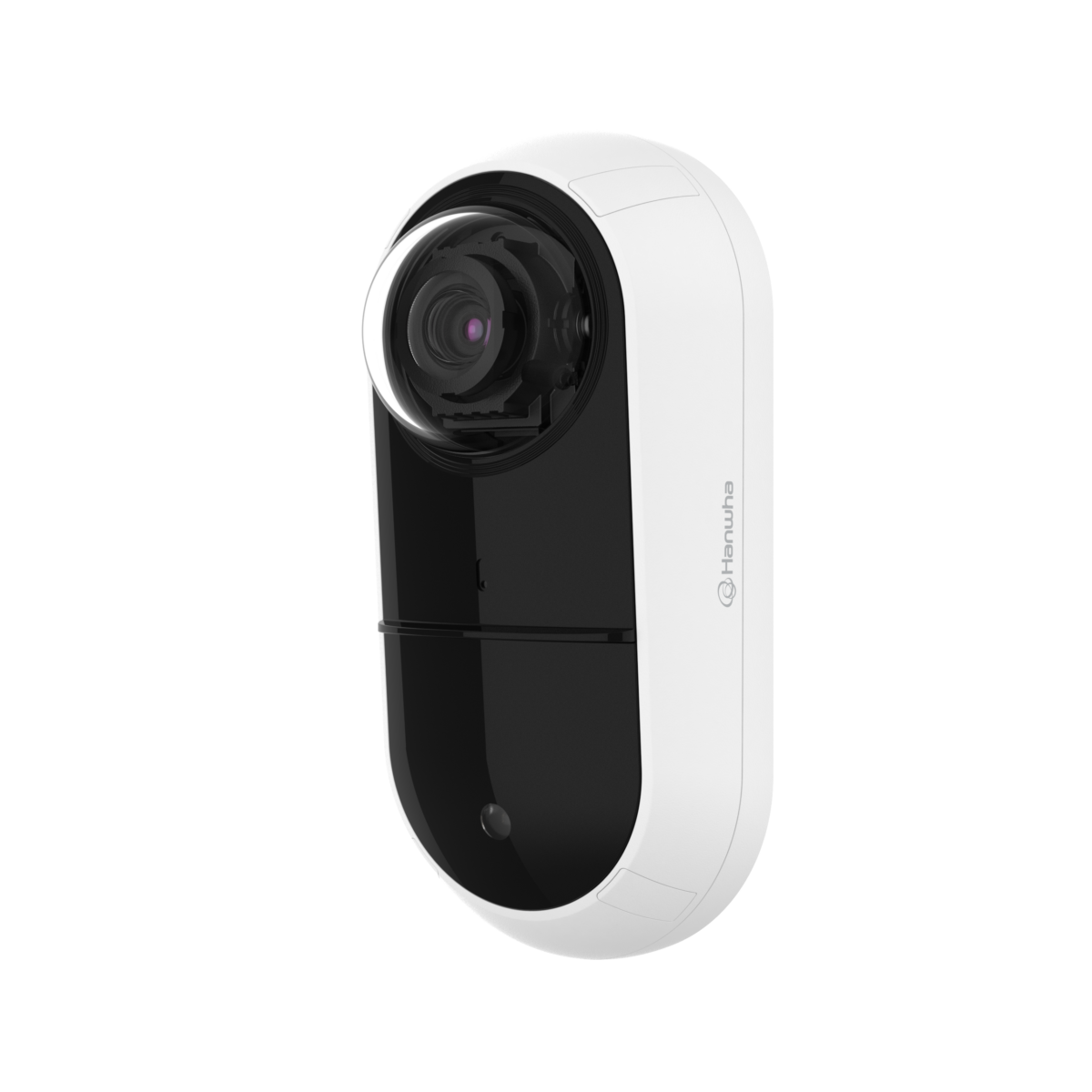

TNV-C8011RW

5MP AI IR Wall Mount Camera

Key Features
• Analytics events based on AI engine
• AI based loitering detection and line crossing detection
• 5MP Wide Panoramic View (H: 175°) with Eye level monitoring
• 15m IR Viewable Length, 25° Tilt Lens
• Compact Size & Anti Ligature Design (Rounded Edge)
• WDR 120dB, SSNR, WiseNRII (Based on AI engine)
• Business intelligence (People counting, Vehicle counting, Queue management, Heatmap)
• WiseStreamⅢ (Based on AI engine)
• Built in Microphone
• IP66, IK10

["camera","network","dome"]

  • Product availability may vary by region.
    Please contact your regional representative.
  • Hanwha Vision is formerly known as Hanwha Techwin.

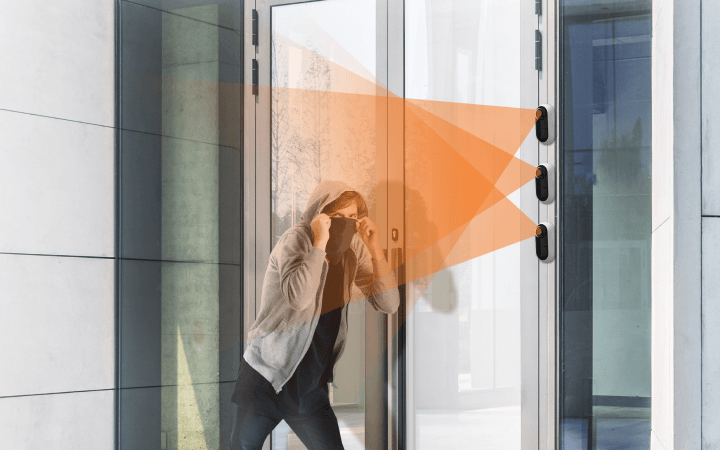

A new perspective on surveillance

The Hanwha Vision T series wall mount camera gives you an eye-level viewing angle to detect details that might be obstructed when using traditional surveillance mounting positions. The wall mount camera’s panoramic lens provides a nearly 180° field of view while capturing detailed 5MP resolution video for better object identification.

Reduce false alarms with AI technology

The Hanwha Vision T series Wall Mount camera comes equipped with AI-based object detection to generate metadata that can be used to streamline forensic search.

Get the bigger picture

Featuring sharp 5MP resolution and wide-angle panoramic viewing, the Hanwha Vision T series Wall Mount gives users a vivid view of their establishment without blind spots.

Customize your viewing angle

The wall mount camera’s lens tilt of ±25° allows you to set the perfect field
of view.

Listen up

T series wall mount cameras features a built-in microphone allowing users to hear what’s going on up close.

Product Specification

Video
Imaging Device 1/2.8" progressive 5 MP CMOS
Resolution 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps(@5MP Max. 5fps)
Min. Illumination Color: 0.038Lux(F1.6, 1/30sec, 30IRE)
BW: 0.0038Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on)
Video Out USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 1.6mm fixed focal
Max. Aperture Ratio F1.6
Angular Field of View H: 175˚ / V: 125˚ / D: 175˚
Min. Object Distance 0.3M
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range - / -25°~+25° / -
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ, WiseNRⅡ(Based on AI engine)
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, 4point quadrangle zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Classified object type: Person/Face/ Vehicle
Attributes: Vehicle(Type:car/bus/truck/motorcycle/bicycle)
Support DetectionShot
Analytics events based on AI engine
- Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit)
Analytics events
- Defocus detection, Tampering, Shock detection, Virtual area(Appear/Disappear)

* Some of the video analytics only works with people and vehicle detection
Business Intelligence Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap
Alarm Triggers Analytics, Network disconnect
Alarm Events When alarm trigger occurred
- File upload(image) : e-mail/FTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
Audio In Built-in mic only
IR Viewable Length 15m(49.21ft)
IR Wavelength long-life 850 nm IR LED
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅢ(Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 5 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Security
OS / Firmware Protect Secure boot, Signed firmware, Firmware encryption
User authentication Digest Authentication, Prevent brute-force attack
Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication HTTPS, SRTP, WSS(Websocket secure)
Access Control Access control based on IP address
Data Protect Authentication information encryption, ZIP compression encryption
Audit User Access/System/Event log management
Device ID Device Certificate(Hanwha Private Root CA)
Secure Storage SDcard partition encrypt
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 2GB RAM, 1GB Flash
Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH
Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 95% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption Max 11.5W / Typ 4.8W
Mechanical
Color / Material White / Aluminum
Hard-coated dome bubble
RAL Code RAL9003
Product Dimensions / Weight 80(W)x167(H)x57(D)mm(31.5x65.6x22.4"), 600g(1.32 lb)
Compatible Conduit hole / Gangbox Conduit hole : None
Gangbox : Single
Tilt Mount SBV-140TBW
Certifications & Standards
EMC EN 55032:2015/A11:2020
EN 50130-4:2011/A1:2014
FCC 47 CFR Part 15, Subpart B Class A
IC Regulation ICES-003 Issue 7 Class A
KS C 9832:2023
KS C 9835:2019
AS/NZS CISPR 32 Class A
VCCI CISPR 32 Class A
Safety UL 62368-1, CSA C22.2 NO. 62368-1
KC 62368-1
Environment IEC EN 60529: 1989+A1:1999+A2:2013
IEC EN 62262:2005
IEC EN 63000:2018
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 30.05m (98.59ft)
Observe (63PPM/ 19PPF) 12.02m (39.44ft)
Recognize (125PPM/ 38PPF) 6.01m (19.72ft)
Identify (250PPM/ 76PPF) 3.00m (9.84ft)
