PTZ

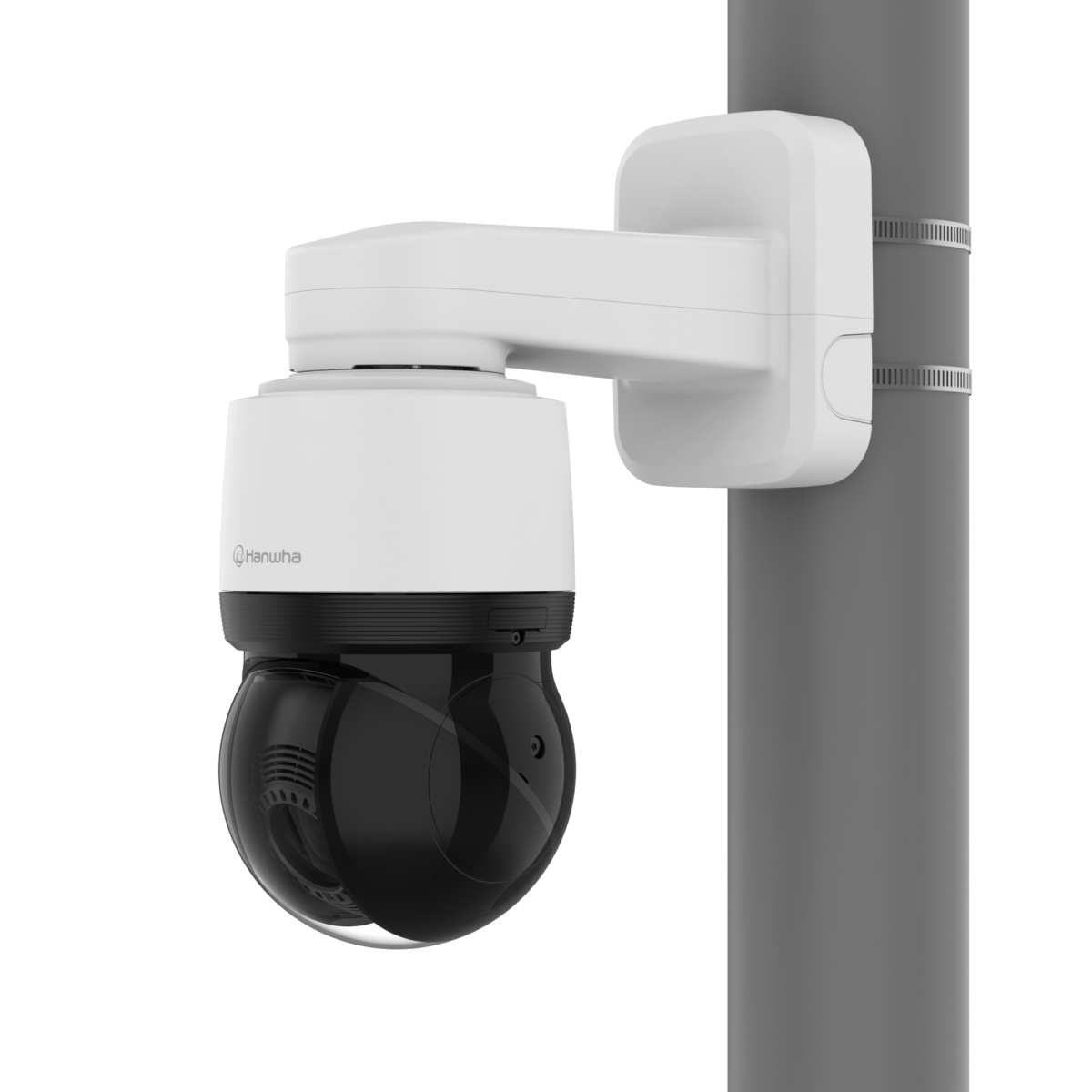

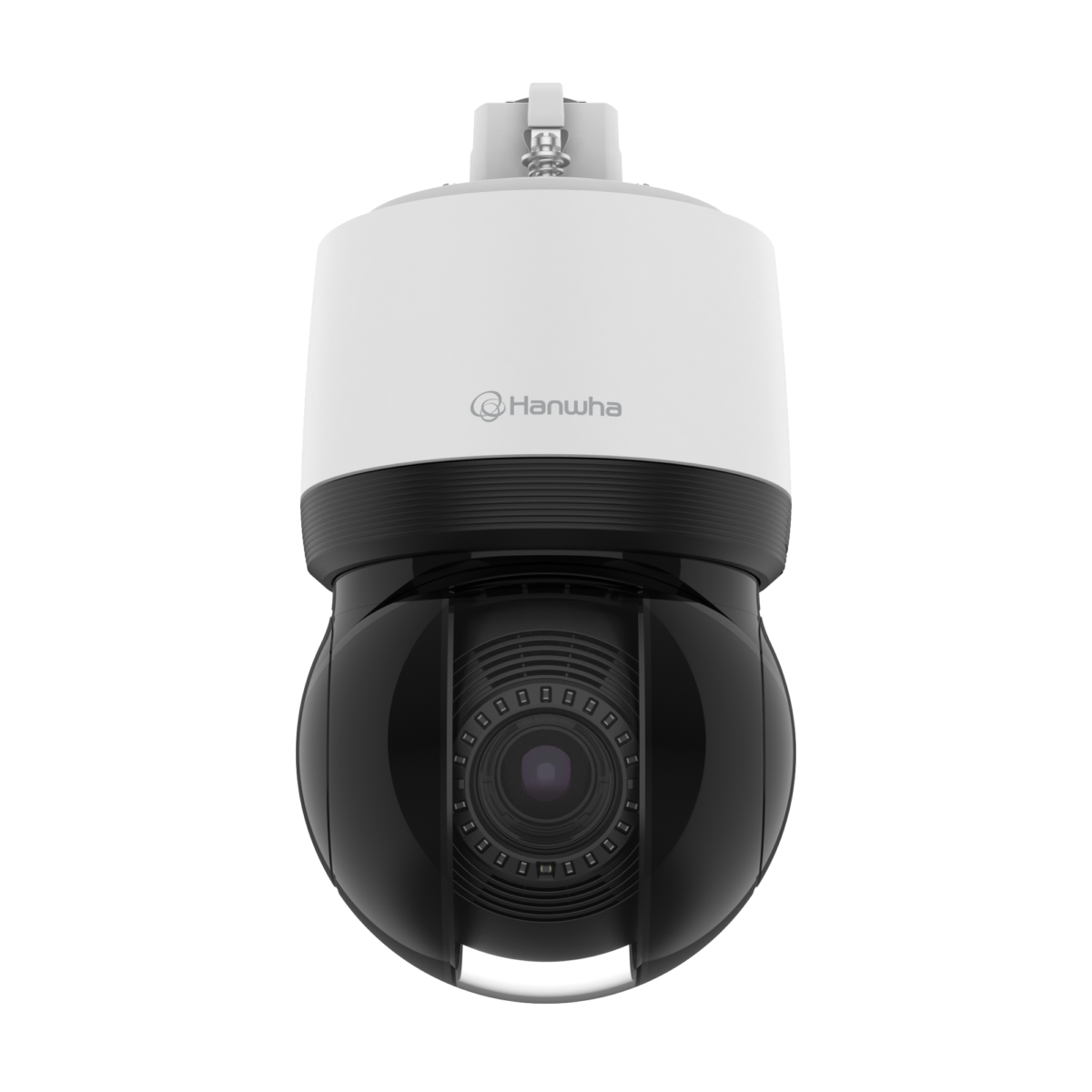

XNP-C6403

2MP 40x AI PTZ PLUS Camera

Key Features

• Max. 2MP resolution
• 4.25~170mm(40x) zoom (digital 32x, total 1280x zoom)
• Color: 0.05Lux(F1.6, 1/30sec), BW: 0.005Lux(F1.6, 1/30sec)
• Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking
• H.264, H.265, MJPEG codec, WiseStream II
• IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
• PTZ PLUS Design applied (Compact, Lighter, Simple cabling)


AI PTZ PLUS

Contact Sales Datasheet

["camera","network","ptz"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

AI based enhanced operational efficiency

With the integration of AI, real-time detection and classification of people, vehicles and face, license plate are now possible. This filters out unnecessary movements such as waving leaves, shadow or animals and therefore the operational efficiency increases when multiple objects appear. In other words, non AI cameras based on motion detection detect multiple objects as a single object but AI PTZ Plus cameras detect person individually and classify vehicles into specific types.

Upgraded object auto-following performance

One notable feature of AI PTZ PLUS camera is its auto-following supported by AI engine. Because AI PTZ Plus camera distinguishes human and vehicles, AI PTZ Plus camera constantly follows moving target object, even if there are other people or vehicles around.

Moreover, auto following does not miss target object even if the object briefly disappears, which indicates auto following does not depend on the background, such as low light and complex nocturnal settings.

Clear image up to 200m during night time, supported by built-in IR

AI PTZ Plus Cameras provide wide coverage with pan, tilt and zoom features. Beside these functions, clear view up to 200m during night time is supported by IR feature. Moreover, not only the shape of the object but also very details of objects such as letters or images can be seen from the far distance. AI PTZ Plus camera’s IR provides efficient monitoring whether the environment is dark or bright.

Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.05
BW(1/30sec, 30IRE)0.005
Lens
Focal Length (mm)4.25~170
Zoom RatioOptical40x
Digital32x
Max Aperture Ratio (F number)Wide1.6
Tele4.95
Angular Field of ViewHorizontal65.66°~1.88°
Vertical39.4°~1.09°
Min. Object Distance5m(16.4ft)
Focus ControlOneshot AF, Focus save
Lens TypeDC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan360° Endless
Tilt 90°~-20°
Pan SpeedPresetMax. 700°/sec
Manual0.024°/sec~250°/sec
Tilt SpeedPresetMax. 500°/sec
Manual0.024°/sec~250°/sec
SequencePreset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset AccuracyUp to ±0.1°, Pan/Tilt correction
Operational
Direction IndicatorSupport
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)150
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionGray, Green, Red, Blue, Black, White, Mosaic
Gain ControlOff, Max gain, Manual
White BalanceATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
Electronic ShutterModeMinimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Speed Range2~1/12,000sec
Video RotationFlip&Mirror
Alarm InterfaceOthersSupport alarm I/O via optional I/O box
Alarm TriggersAnalytics, Network disconnect, Alarm input, Time schedule, MQTT subscription
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio InSupport via optional I/O box
Audio OutSupport via optional I/O box
Water RemovalSupport(Spin Dry, Lens heater)
Auto TrackingSupport, Object auto tracking(Person/Vehicle), Target lock tracking
Analytics
Classified Object TypePerson, Face, Vehicle, License plate
AttributesVehicleType(car, bus, truck, motorcycle, bicycle)
ThumbnailDetectionShot
Analytics EventsBased on AI EngineObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
NormalTampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
Network
EthernetMetal shielded RJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecManual, WiseStreamⅢ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, NTCIP 1205
Application Programming InterfaceONVIFS, G, T, M
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageTPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
Security CertificateTPM 2.0 with FIPS 140-2 level2
General
MemoryRAM4GB
Flash512MB
Edge StorageMicro SD/SDHC/SDXCMax. 512GB x 2slot(Total 1TB)
Environmental & Electrical
Operating ConditionTemperature-40°C~+50°C(-40°F~+122°F)
Humidity0~100% RH(condensing)
Others+74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Wind Load241km/h(150mph)
EPA(Effective Projected Area)0.035㎡
Input VoltagePoE+(IEEE802.3at, Class4)
Power ConsumptionPoEMax. 25.5W, Typical 24W
Mechanical
ColorWhite, Black
MaterialAluminum, PC(Polycarbonate), Hard-coated dome
RAL CodeRAL9003, RAL9005
Product Dimensionsø158x293.3mm(6.22x11.55")
Product Weight3,200g(7.05lb)
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
EnvironmentIEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide59.5m(195.3ft)
Tele2340.4m(7678.4ft)
Observe (63PPM/ 19PPF)Wide23.8m(78.1ft)
Tele936.2m(3071.4ft)
Recognize (125PPM/ 38PPF)Wide11.9m(39.1ft)
Tele468.1m(1535.7ft)
Identify (250PPM/ 76PPF)Wide6.0m(19.5ft)
Tele234.0m(767.8ft)
