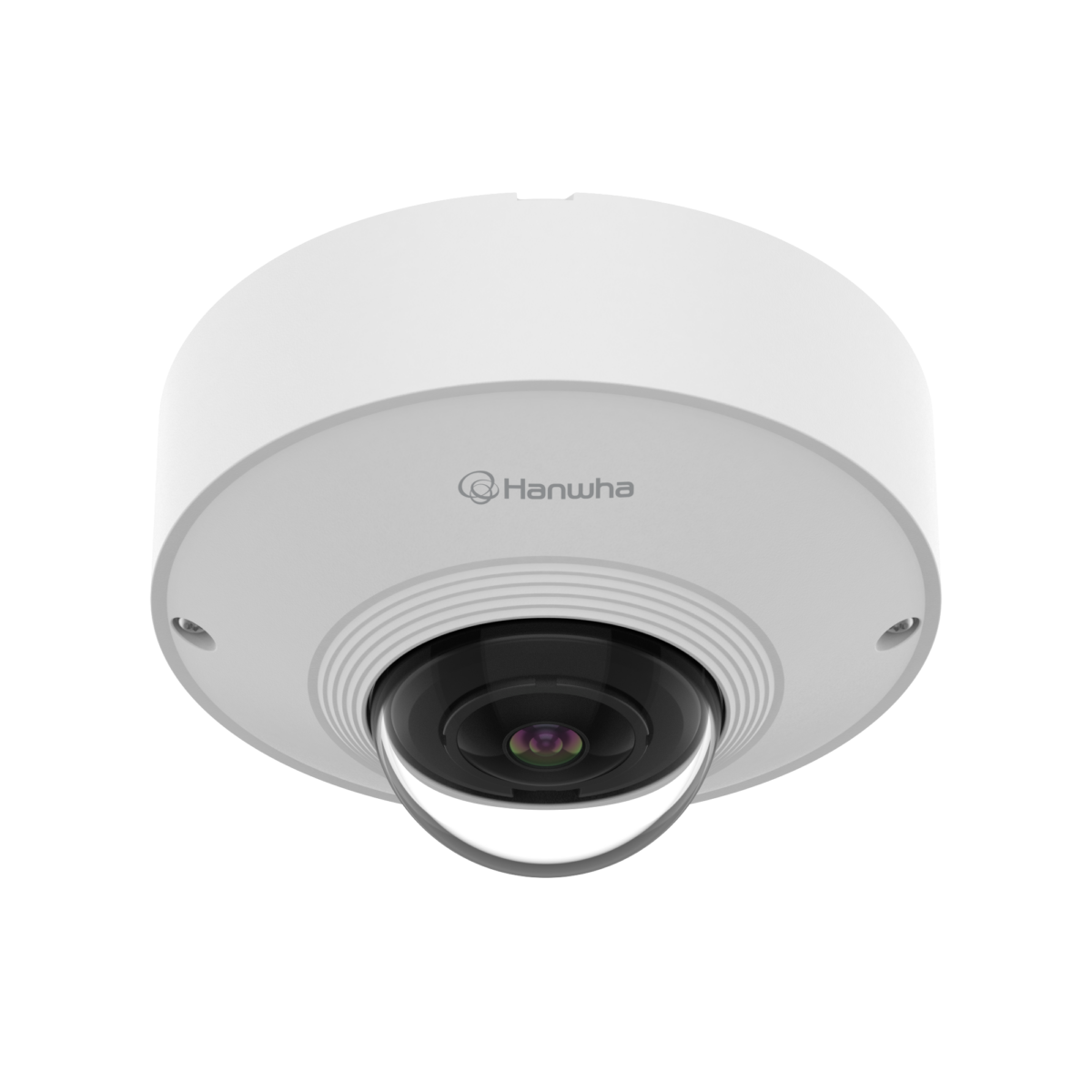

QNF-C9010V
12MP AI Fisheye Camera
• 1.76mm fixed stereo graphic type lens
• Color: 0.02Lux(F1.8, 1/30sec), BW: 0.001Lux(F1.8, 1/30sec)
• Digital Rotation
• Resolution/Framerate
- Original view: Max. 20fps@3008x3008
- Double panorama: Max. 20fps@3584x1792
- Single panorama: Max. 20fps@3584x896
- Quad view: Max. 20fps@3584x2688
- Q1/Q2/Q3/Q4(4:3): Max. 20fps@1792x1344
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅢ (Using AI engine)
• Analytics events based on AI engine
- Object detection (Person/Vehicle)
- Color Attribute, BestShot
- Motion detection, Virtual line (Crossing/Direction),
Virtual area (Loitering/Intrusion/Enter/Exit)
• IP66, IK10, NEMA4X
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.
Learn more
Seamless 360°and 180°Monitoring
The QNF-C9010 and QNF-C9010V deliver full scene coverage with a single camera—360° in ceiling-mounted mode and 180° when wall-mounted. Their stereographic fisheye lens ensures consistent clarity across the entire field of view, including image edges, for maximum situational awareness with zero blind spots.
Compact, Unobtrusive Design
With its discreet, low-profile form factor, the QNF-C9010 series blends effortlessly into any environment. Ideal for spaces with low ceilings or modern aesthetics, it enables unobtrusive installation without compromising coverage.
Color-Based Object Filtering
The QNF-C9010/C9010V cameras embed color attributes into metadata, enabling quick searches by clothing or vehicle color across nine options. This streamlines forensic investigations—e.g., searching for a “yellow vehicle” to locate a taxi in complex scenes.
Seamless VMS Integration
The QNF-C9010/C9010V AI Fisheye cameras are compatible with leading Video Management Software (VMS) platforms, including Milestone and Genetec (via Hanwha’s plugin), as well as Wisenet SSM and Wisenet WAVE. This ensures effortless integration into existing security ecosystems, enabling operators to search for AI-based object detection events and review associated video playback with ease.
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/1.6" 12MP CMOS |
| Resolution | Overview : 3008x3008, 2560x2560, 1920x1920, 1504x1504, 1280x1280, 800x800, 640x640, 480x480 Double panorama: 3584x1792, 1920x960, 1280x640, 1024x512, 640x320 Single panorama: 3584x896, 1920x480, 1280x320, 1024x256, 640x160 Quad view: 3584x2688, 2048x1536, 1792x1344, 1024x768, 768x576, 512x384 Q1/Q2/Q3/Q4(4:3): 1792x1344, 1024x768, 768x576, 512x384 |
| Max. Framerate | Original view: Max.20ps@3008x3008, Double panorama: Max.20fps@3584x1792 Single panorama: Max.20fps@3584x896 Quad view: Max.20fps@3584x2688 Q1/Q2/Q3/Q4(4:3): Max.20fps@1792x1344 MJPEG: Max.5fps |
| Min. Illumination | Color: 0.02Lux (F1.8, 1/30sec) BW: 0.001Lux (F1.8, 1/30sec) |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.76mm fixed focal |
| Max. Aperture Ratio | F1.8 |
| Angular Field of View | H: 185° / V: 185° / D: 185° |
| Min. Object Distance | 0.5m(1.64ft) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Digital Rotation |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ, WiseNRⅡ(Based on AI engine) |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 4point quadrangle zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Classified object type: Person/Vehicle Attributes: Person(Upper/lower clothes color), Vehicle(color) Support BestShot Analytics events based on AI engine - Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit/Appear/Disappear) Analytics events - Defocus detection, Tampering * Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | Based on AI engine: People counting, Queue management, Heatmap |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP/SFTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - MQTT: publication |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision Open Platform - Cloud connector application included |
| Security | |
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| Security Certificate | Secure by default |
| General | |
| Webpage Language | English, Korean, Simplified Chinese, Traditional Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) / 0~100% RH(condensing) * Start up should be done at above -30°C |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / Less than 95% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 6.7W, typical 4.8W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø120x72.3mm(ø4.7x2.85"), 583g(1.28lb) |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 |
| Compatible Models | |
| Hanging Adaptor | SBP-120HMW |
| Back Box | SBV-140BW, SBV-140WW |
| Ceiling Mount (Assy) | SBP-150CMI, SBP-300CMI, SBP-300CMW1, SBP-900CMW, SBP-300CMTW, SBP-300CMTS |
| Ceiling Mount (Single Unit) | SBP-140CMB, SBP-140CMT, SBP-180CMB, SBP-180CMS, SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P, SBP-C15H |
| Wall Mount | SBP-125WMW1, SBP-250WMW, SBP-300WMW, SBP-300WMW1, SBP-400WMW |
| Pole Mount | SBD-140PMB, SBD-140PMW, SBP-300PMW2 |
| Corner Mount | SBD-140KMB |
| Parapet Mount | SBP-156LMW1, SBP-300LMW |
| Tilt Mount | SBV-140TMW |
| Cabinet | SBP-150NBW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 36.9m(121.03ft) |
| Observe (63PPM/ 19PPF) | 14.8m(48.42ft) |
| Recognize (125PPM/ 38PPF) | 7.4m(24.21ft) |
| Identify (250PPM/ 76PPF) | 3.7m(12.10ft) |
