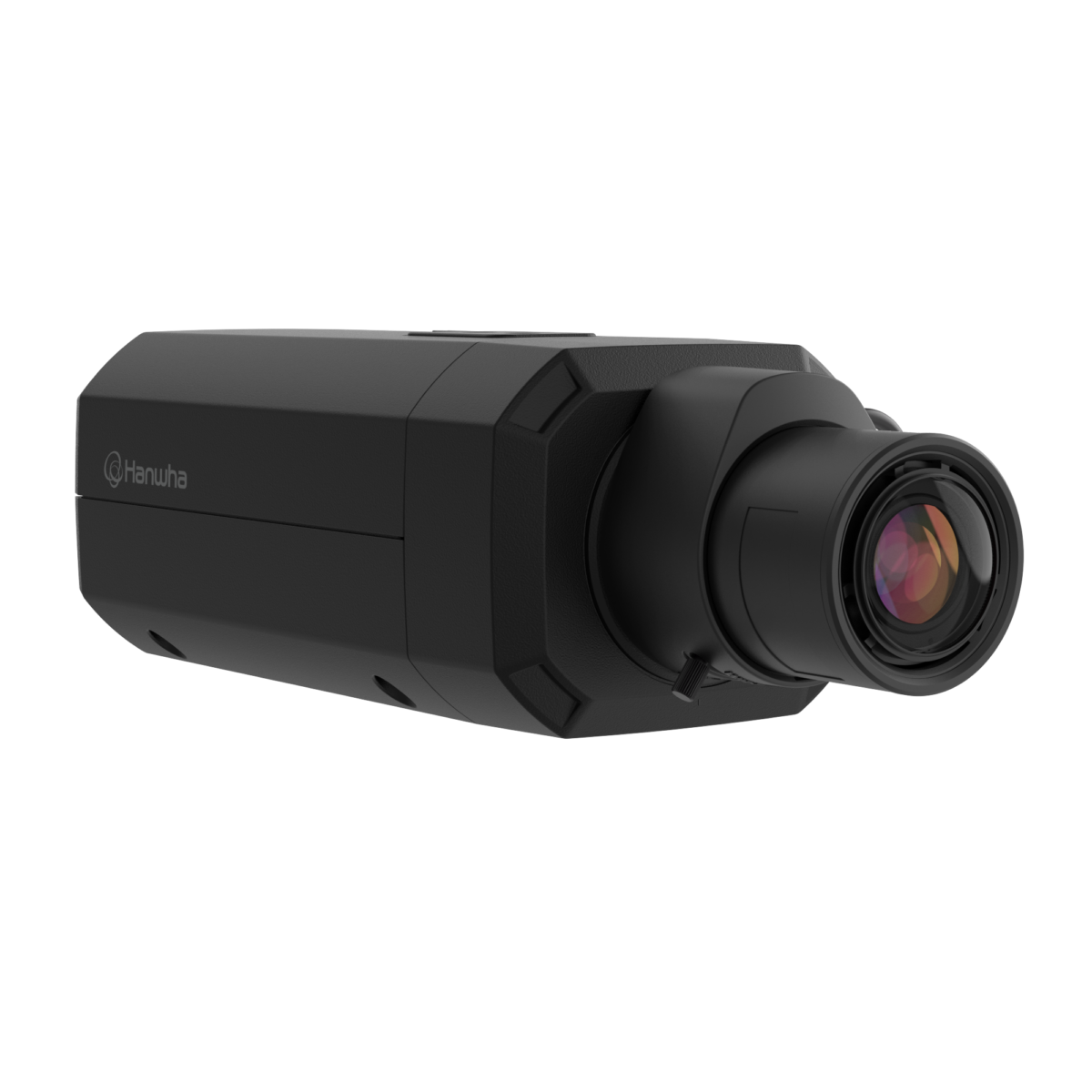

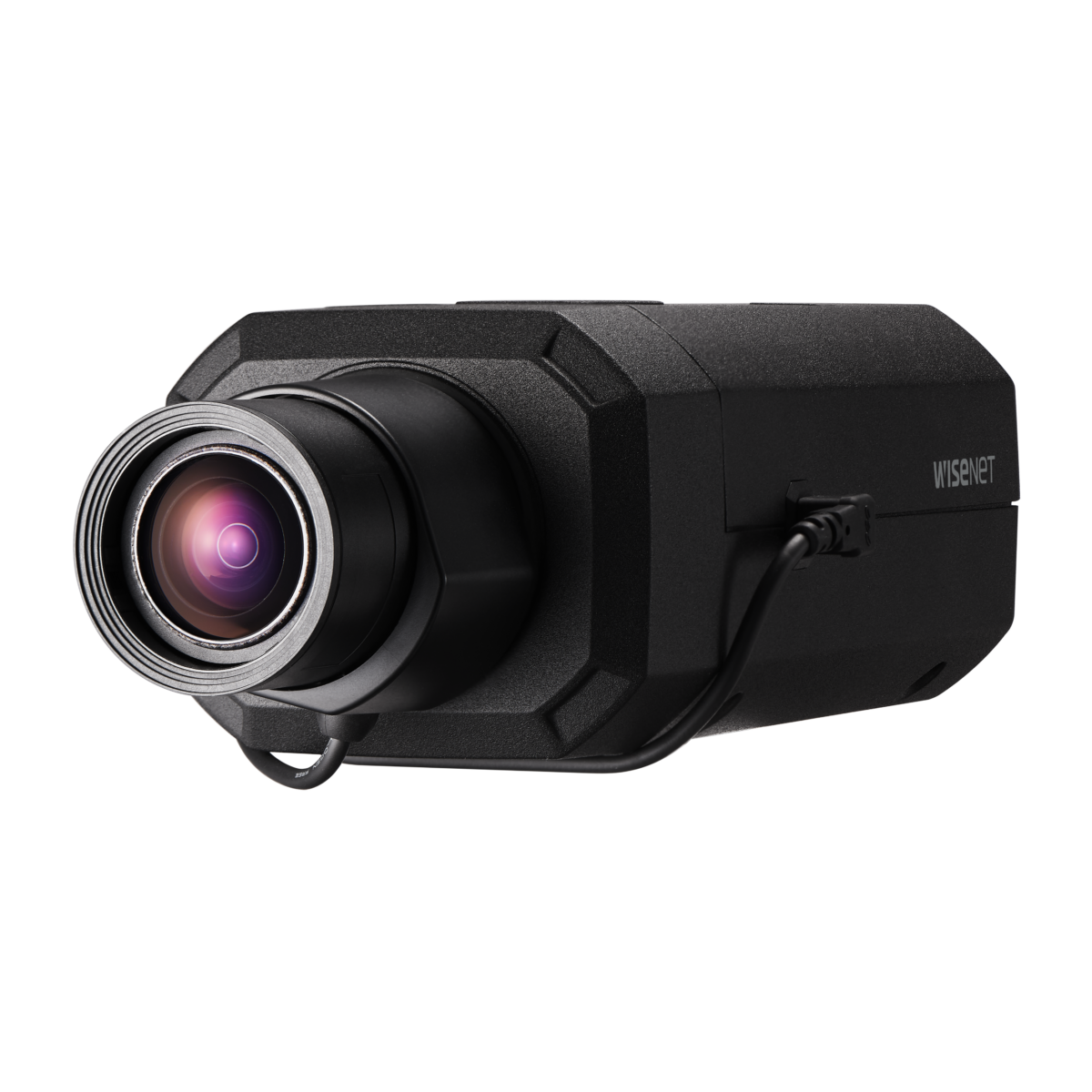

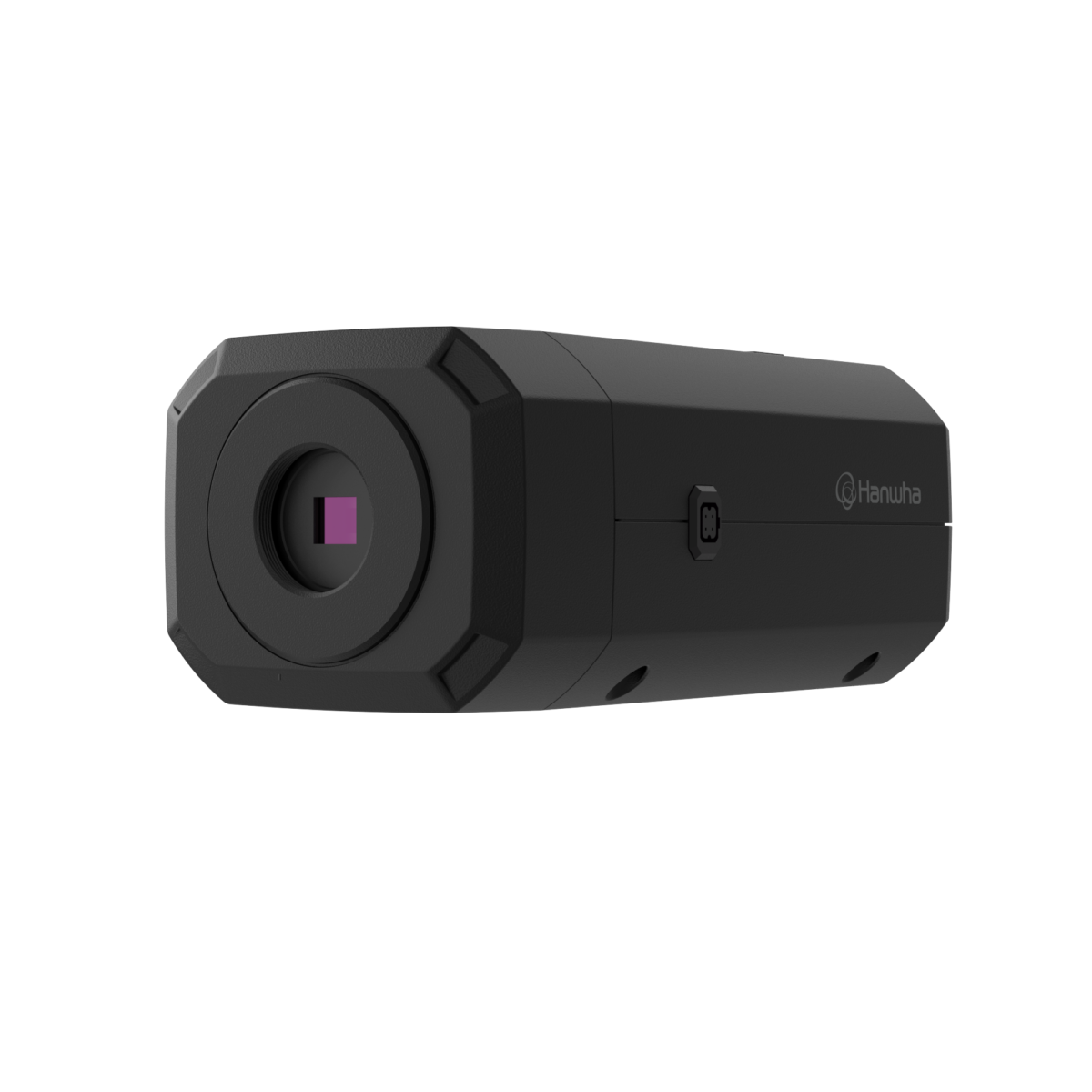

PNB-A6001

Copy a URL
Copy

2MP AI Box Camera

Key Features
• Maximum 2MP resolution, Up to 120fps
• 0.006Lux@F1.2, 1/30sec. (Color), 0.0006Lux@F1.2, 1/30sec. (B/W)
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
• Video Analytics based on AI
- Object detection and classification (Person, Face, Vehicle, License Plate)
- Face mask detection, Social distancing detection
- Attribute, BestShot
• TPM with FIPS 140-2 level2, Secure boot, Verify firmware forgery
• System requirements
- SSM v2.10.8 or later, Genetec plugin v1.0 or later, Milestone plugin v1.0.2 or later, NVR model (XRN-6410DB4/B4, XRN-3210B4)

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Mouse over image to zoom

Copy a URL
Copy

Image Download Total Image Download

PNB-A6001

2MP AI Box Camera

Key Features

• Maximum 2MP resolution, Up to 120fps
• 0.006Lux@F1.2, 1/30sec. (Color), 0.0006Lux@F1.2, 1/30sec. (B/W)
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
• Video Analytics based on AI
- Object detection and classification (Person, Face, Vehicle, License Plate)
- Face mask detection, Social distancing detection
- Attribute, BestShot
• TPM with FIPS 140-2 level2, Secure boot, Verify firmware forgery
• System requirements
- SSM v2.10.8 or later, Genetec plugin v1.0 or later, Milestone plugin v1.0.2 or later, NVR model (XRN-6410DB4/B4, XRN-3210B4)

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
PNB-A6001
Datasheet
Contact Sales
Reducing false alarm based on deep learning technology
P series AI cameras using AI algorithms filter out irrelevant movements caused by environmental changes such as waving trees, shadows, or animals. While conventional cameras detect motion based on its pixels and generate events even if users want to ignore, Deep Learning-based P series AI cameras generate event alarm only for people and vehicles, reducing false alarms for more efficient operation.
Attribute, BestShot for the forensic search
Metadata including attribute (people : age, gender, colors of top/bottom clothes, wearing glasses, Vehicle : types, colors) is sent to the backend server and used to extract information on specific situations, significantly reducing the time to search the entire video. And P series AI cameras are equipped with the BestShot feature for re-identification which ensures that only the most suitable images of classified objects are sent to the backend server.
P seires AI cameras can also quickly and accurately detect the objects with or without face mask and immediately sends out alert.
VMS Integration for forensic search applications
P series AI cameras offers integration of video management system from Milestone, Genetec using Hanwha Vision’s AI Plug-ins and Wisenet WAVE. These Plug-ins provide improved AI search on Milestone and Genetec’s video management system.

Download AI Plug-ins for Genetec and Milestone video management system here.

Compatible models
• Milestone 2019 R3 or higher, Milestone Expert or Corporate level
• Genetec Security Center 5.9.2.0 or Higher(Official announcement from Genetec DAP group)

  – Partnumber = GSC-1SDK-HANWHA-AICam

• Wisenet SSM, Wisenet WAVE

Free AI powered COVID-19 Solutions
Wisenet P series AI cameras supports free AI based COVID-19 Solutions including the Occupancy Monitoring Application, Face Mask Detection, and Social Distancing Detection.





















































Product Specification

  • Video
  • Lens
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • Video
    Imaging Device 1/2" CMOS
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
    Max. Framerate H.265/H.264: Max. 60/50fps(60Hz/50Hz, AI analytics on), Max. 120/100fps(60Hz/50Hz, AI analytics off)
    MJPEG: Max. 15fps/12fps(60Hz/50Hz)
    Min. Illumination Color: 0.006Lux(F1.2, 1/30sec,30IRE) B/W : 0.0006Lux(F1.2, 1/30sec,30IRE), 30/25fps
    Color: 0.012Lux(F1.2, 1/60sec,30IRE) B/W : 0.0012Lux(F1.2, 1/60sec,30IRE), 60/50fps
    Color: 0.024Lux(F1.2, 1/120sec,30IRE) B/W : 0.0024Lux(F1.2, 1/120sec,30IRE), 120/100fps
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focus Control Simple focus
    Lens Type DC auto iris, P iris, Manual, I-CS
    Mount Type C mount, CS mount
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, WDR, SSDR
    Wide Dynamic Range 120dB
    Digital Noise Reduction SSNR, WiseNR Ⅱ(using AI engine)
    Digital Image Stabilization Stabilization Support(built-in gyro sensor)
    Motion Detection 8ea, polygonal zones
    Privacy Masking 6ea, rectangle zones
    - Color: Gray/Green/Red/Blue/Black/White
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
    Auto prefer shutter control based on AI engine
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics Classified object type : Person/Face/Vehicle/License plate
    Attributes : Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type:car/bus/truck/motorcycle/bicycle and Color)
    Support Bestshot per object
    Analytics events based on AI engine
    - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Digital auto tracking, Social distancing detection
    Analytics events
    - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)

    *Some of the video analytics only works with people and vehicle detection
    Business Intelligence People counting, Queue management, Heatmap based on AI engine
    Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
    Alarm I/O 2 configurable I/O ports, DC 12V output(Max. 50mA)
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    Handover
    Audio playback
    Audio In Selectable(mic in/line in/Built in mic)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    Network
    Ethernet Metal shielded RJ-45(10/100/1000 BASE-T)
    Video Compression H.265/H.264: Main/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine)
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(6 users) / Multicast
    Multiple streaming(Up to 5 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Device Certificate(Hanwha Techwin Root CA)
    TPM with FIPS 140-2 level2
    Secure boot, Verify firmware forgery
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
    Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 2slots 512GB
    Memory 4096MB RAM, 512MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Input Voltage PoE+(IEEE802.3at), 12VDC
    Power Consumption PoE+: Max 17.5W, Typ 13.7W
    12VDC: Max 14W, Typ 10.6W
    Mechanical
    Color / Material Body: Black / Aluminum
    Product Dimensions / Weight 81x67x165mm(3.19x2.64x6.48"), Weight : 0.88kg(1.94lb)
  • • The latest product information / specification can be found at hanwha-security.com
    • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
