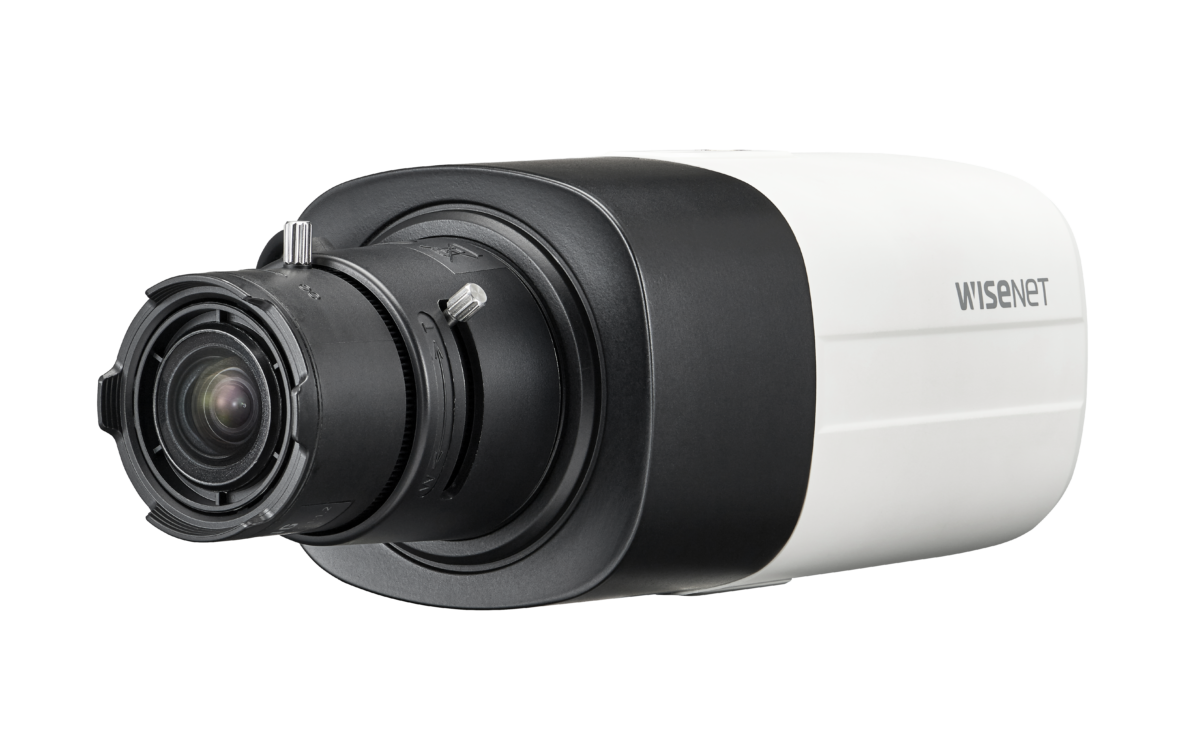

BOX

HCB-6001

1080p Analog HD camera

Key Features
• Full HD(1920 x 1080, 30fps) resolution
• 0.09Lux@F1.2(Color), 0.009Lux@F1.2(B/W)
• Day & Night(ICR), WDR(120dB)
• SSNRⅣ, Motion detection
• Transmission distance max.500m
• Easy installation (Plug & play), Dual power, RS-485
Contact Sales Datasheet

["camera","analog","analog-box"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080
Max. Framerate 30fps / 25fps(60Hz / 50Hz)
Min. Illumination Color: 0.09Lux(F1.2, 1/30sec)
BW: 0.009Lux(F1.2, 1/30sec)
Video Out BNC(AHD / TVI / CVI / CVBS Selectable)
Video Transmission Distance 500m(5C2V Coaxial Cable)
300m(5C2V Coaxial Cable)
Lens
Focus Control Simple focus, Manual
Lens Type DC auto iris

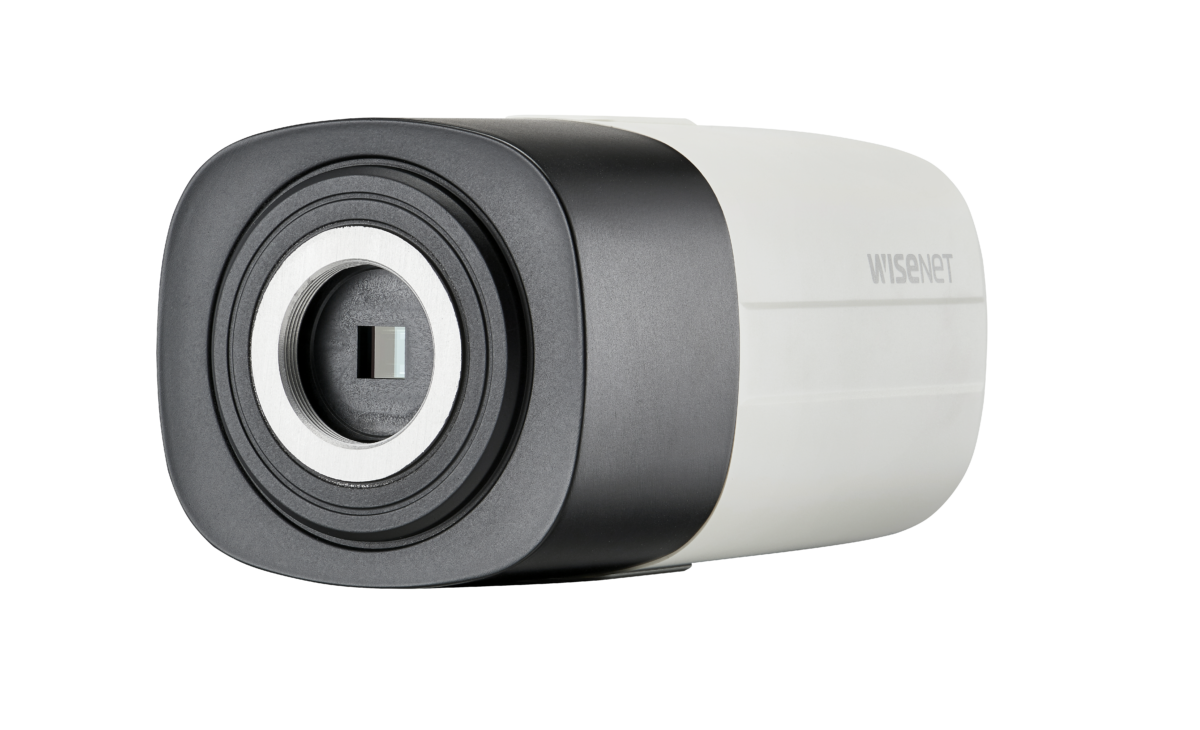

Mount Type C mount, CS mount
Operational
Camera Title Displayed up to 15 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅣ
Defog Support
Motion Detection 4ea
Privacy Masking 4ea, rectangular zones
Gain Control Low / Middle / High / Very High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1 ~ 1/12,000sec
Video Rotation H-Rev / V-Rev
Analytics Motion detection

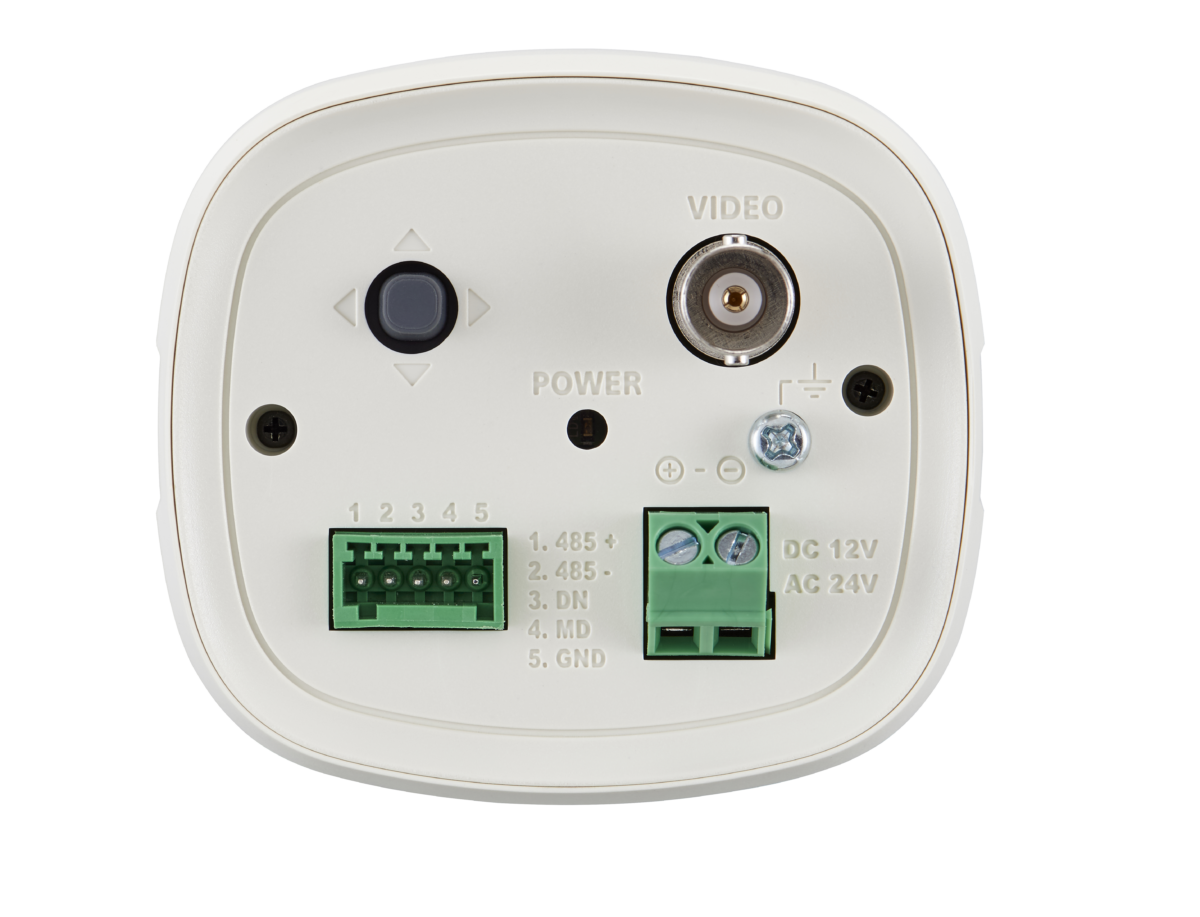

Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O MD output 1ea, External D/N 1ea
Alarm Triggers Analytics
Alarm Events Alarm output
Coaxial Protocol ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol)
CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH
Input Voltage 24VAC, 12VDC
Power Consumption Max 6W
Mechanical
Color / Material Black / Aluminum, Ivory / Plastic

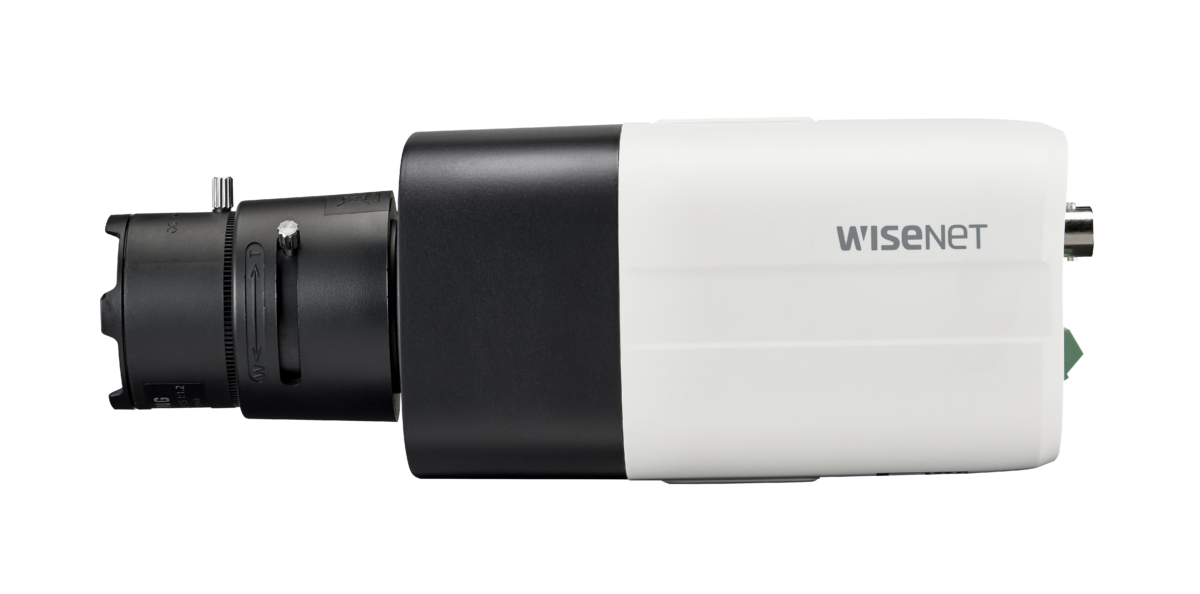

Product Dimensions / Weight 130.9(H)×73.1(V)×67.2(D)mm(5.15×2.88×2.65"), 287g(0.63 lb)
