QND-8011

Copy a URL
Copy

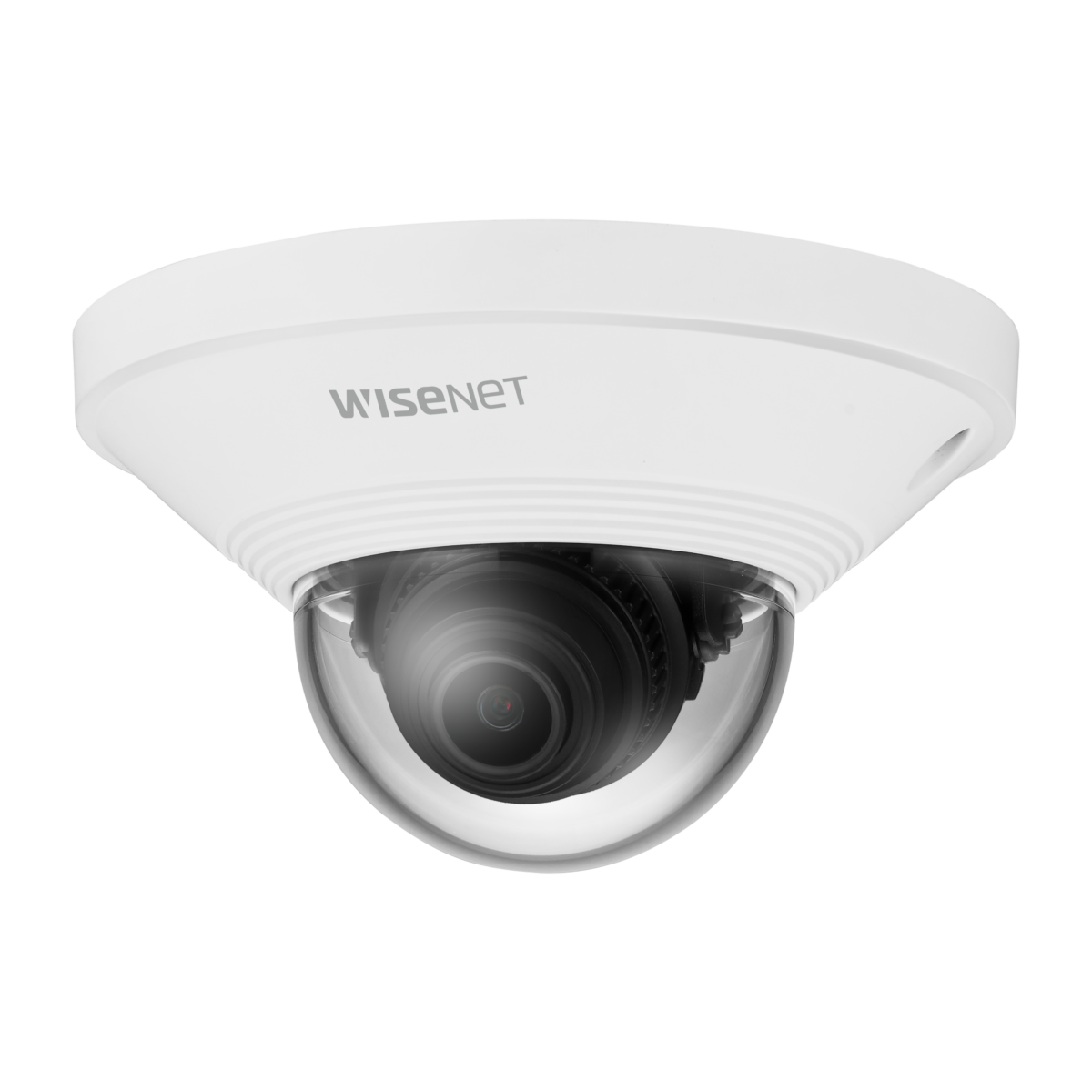

5M H.265 Dome Camera(Q mini)

Key Features
• Max. 5Megapixel (2592 x 1944) resolution
• 2.8mm fixed lens
• 0.15Lux (Color), WDR (120dB)
• Max. 30fps@5MP (H.265 / H.264)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• LDC, PoE

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Nhấp Chuột lên hình để phóng to

Copy a URL
Copy

Tải hình ảnh Tổng số hình ảnh tải xuống

QND-8011

5M H.265 Dome Camera(Q mini)

Key Features

• Max. 5Megapixel (2592 x 1944) resolution
• 2.8mm fixed lens
• 0.15Lux (Color), WDR (120dB)
• Max. 30fps@5MP (H.265 / H.264)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• LDC, PoE

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
QND-8011
Datasheet
Contact Sales
Super-compact design fits everywhere
Wisenet Q mini line-up is designed as 99mm(3.9in) super-compact sized, about 40% smaller than its predecessor. Thanks to this feature, Wisenet Q mini series perfectly blends into any environment while facilitating an effortless installation anywhere.

Business intelligence for smarter retail
Q mini cameras have a business intelligence feature such as people counting that offers retailers to help them run their stores more effectively. By integrating the cameras with ‘Retail Insight’ software, users can analyze data collected from multiple stores and gain insight for successful store operation and resource investment.

Thông số sản phẩm

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • DORI (EN62676-4 standard)
  • Video
    Imaging Device 1/2.8" CMOS
    Resolution 5MP mode : 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600,
    800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    4MP mode : 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600,
    800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 15fps (@5MP Max. 2fps)
    Min. Illumination Color: 0.15Lux(F2.0, 1/30sec)
    Video Out micro HDMI: 1080p@30/25fps(60/50Hz)
    Lens
    Focal Length (Zoom Ratio) 2.8mm fixed focal
    Max. Aperture Ratio F2.0
    Angular Field of View H: 104.4°/ V: 76.7°/ D: 136.1°
    Focus Control Fixed
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0˚~350˚ / 0˚~69˚ / 0˚~355˚
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(Electrical)
    Backlight Compensation BLC, WDR, SSDR
    Wide Dynamic Range 120dB
    Digital Noise Reduction SSNR
    Motion Detection 4ea, polygonal zones
    Privacy Masking 6ea, rectangular zones
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics Defocus detection, Motion detection, Tampering
    Business Intelligence People counting
    Alarm Triggers Analytics, Network disconnect
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Network
    Ethernet RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/High, MJPEG
    Smart Codec WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(6 users) / Multicast
    Multiple streaming(Up to 3 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
    Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
    Memory 512MB RAM, 256MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -10°C ~ +40°C(-14°F ~ +104°F) / 0~90% RH
    Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / 0~ 90% RH
    Certification IP42, IK08
    Input Voltage PoE(IEEE802.3af, Class2)
    Power Consumption PoE: Max 5.00W, typical 4.00W
    Mechanical
    Color / Material White / Plastic
    RAL Code RAL9003
    Product Dimensions / Weight Ø99.0x56.0mm(Ø3.9x2.2"), 165g(0.36 lb)
    Hanging Mount (Dome) SBP-099HMW
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) 40.2m(12.26ft)
    Observe (63PPM/ 19PPF) 16.1m(4.90ft)
    Recognize (125PPM/ 38PPF) 8.0m(2.45ft)
    Identify (250PPM/ 76PPF) 4.0m(1.23ft)
  • • The latest product information / specification can be found at hanwha-security.com
    • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
