PNM-9022V

2MP Panoramic Camera

Key Features
• Max. 2MP x 4CH
• 209° Mode, 180° Mode support
• 2.8mm fixed focal lens x 4
• H.265/H.264 : Max. 30fps
• MJPEG : Max. 30fps
• extreme WDR (120dB)
• H.265, H.264, MJPEG codec, WiseStreamII supported
• Digital PTZ Support (2CH)
• Tampering, Heatmap
• IP66, IK10, NEMA4X
Contact Sales Datasheet

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Covers wide area & supports 8.3MP stitching image
PNM-9022V provides panoramic image with 4 3MP multi-sensors. and up to 8.3MP stitching image. It offers both 180˚ and 209˚ mode, allowing users to monitor wide area with a single camera.



180˚ mode – Using wall mount for 180˚ monitoring
209˚ mode – Using pole/Corner mount for over 180 ˚ monitoring
Installation made easier again

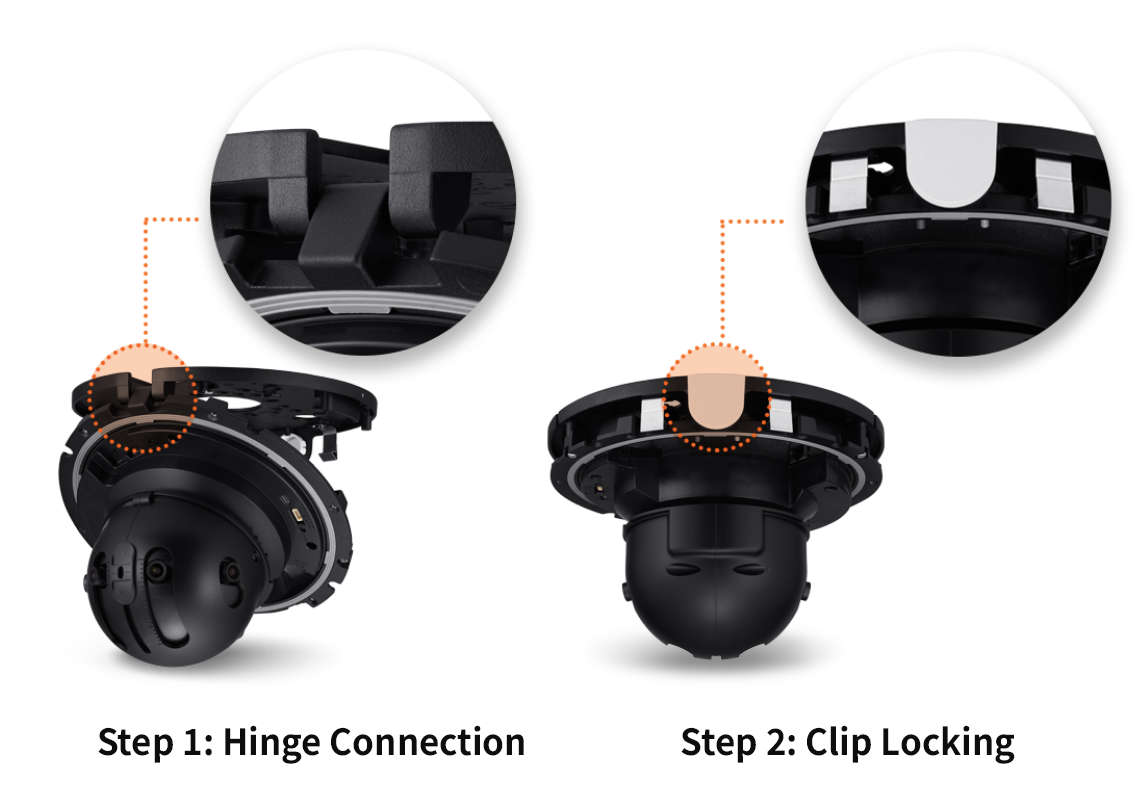

PNM-9022V adopted same structure of PNM-9030V. Simply hang the camera body on the hinge first, then push it to the plate till the clip clicks and holds the camera body. Now your hands are free!





Product Specification

Video
Imaging Device 1/2.8" CMOS x 4
Resolution [209º Mode]
4608X1800, 4032X1576, 3456X1352, 2864X1124,
2304X900, 1728X676, 1152X452, 560X224, 720x576

[180º Mode]
4096X1800, 3584X1576, 3072X1352, 2560X1124,
2048X900, 1536X676, 1024X452, 512X224, 720X576
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color : 0.1 Lux (F1.6,1/30sec)
B/W : 0.01 Lux (F1.6,1/30sec)
Video Out USB : Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 2.8mm fixed focal x 4
Max. Aperture Ratio F1.6
Angular Field of View H: 209˚, V: 83.3˚
Min. Object Distance 1.5m
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0˚~355˚ / 0˚~60˚ / -
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extreme WDR(120dB)
Digital Noise Reduction SSNRⅤ
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection
Business Intelligence Heatmap
Alarm I/O Selectable 2 port
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC recording at event triggers
Alarm output
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 1TB(512GB X 2)
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity Normal : -40°C~+55°(-40°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F)
Less than 95% RH(Non-condensing)
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10, NEMA4X
Input Voltage PoE+(IEEE802.3at, Class4), 12VDC
Power Consumption PoE+: Max 18W, Typical 10.4W
12VDC: Max 16W, Typical 9W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight Ø253x165mm(9.96"x6.5"), 3200g
Compatible Conduit hole / Gangbox 3/4"
Hanging Mount (Dome) SBP-276HMW
