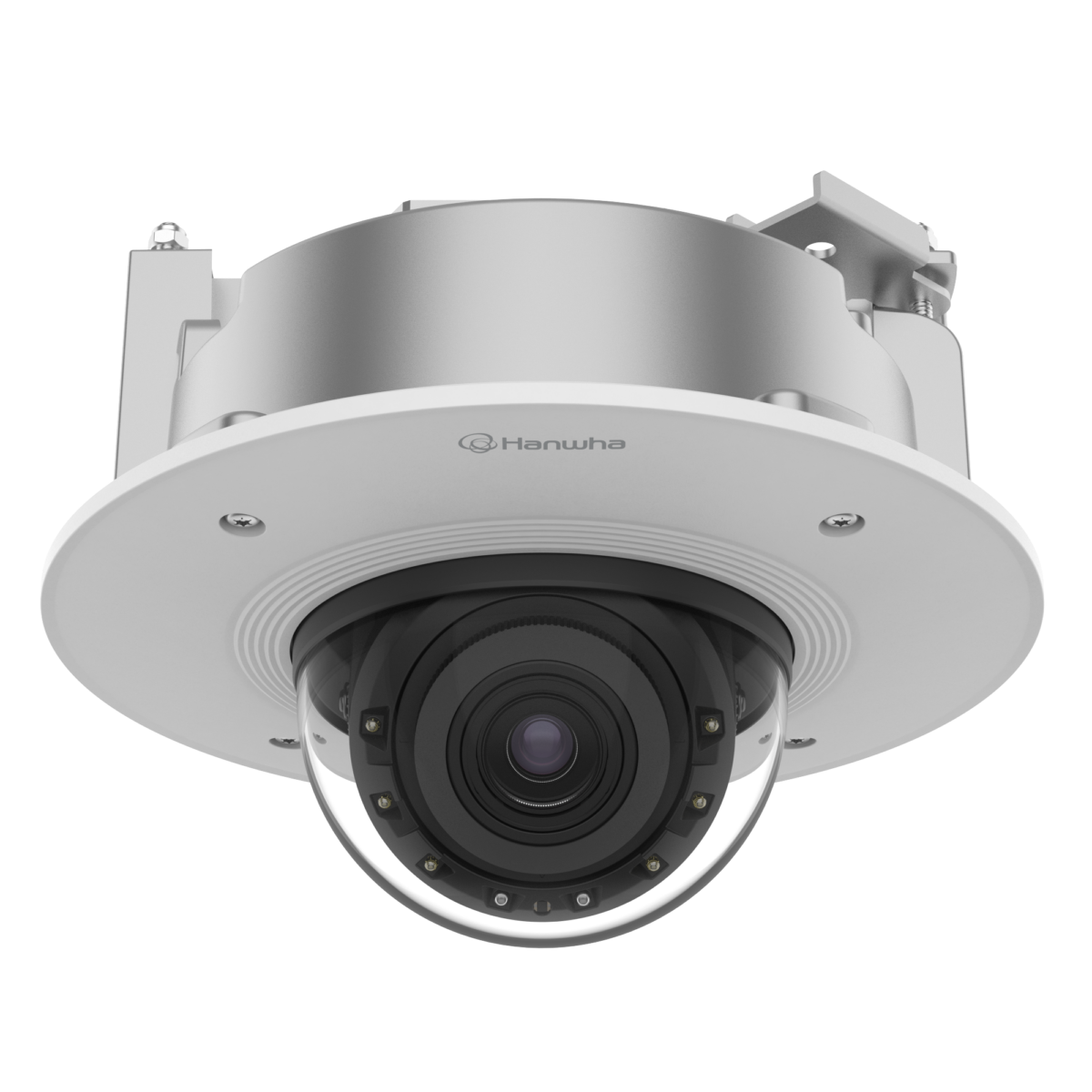

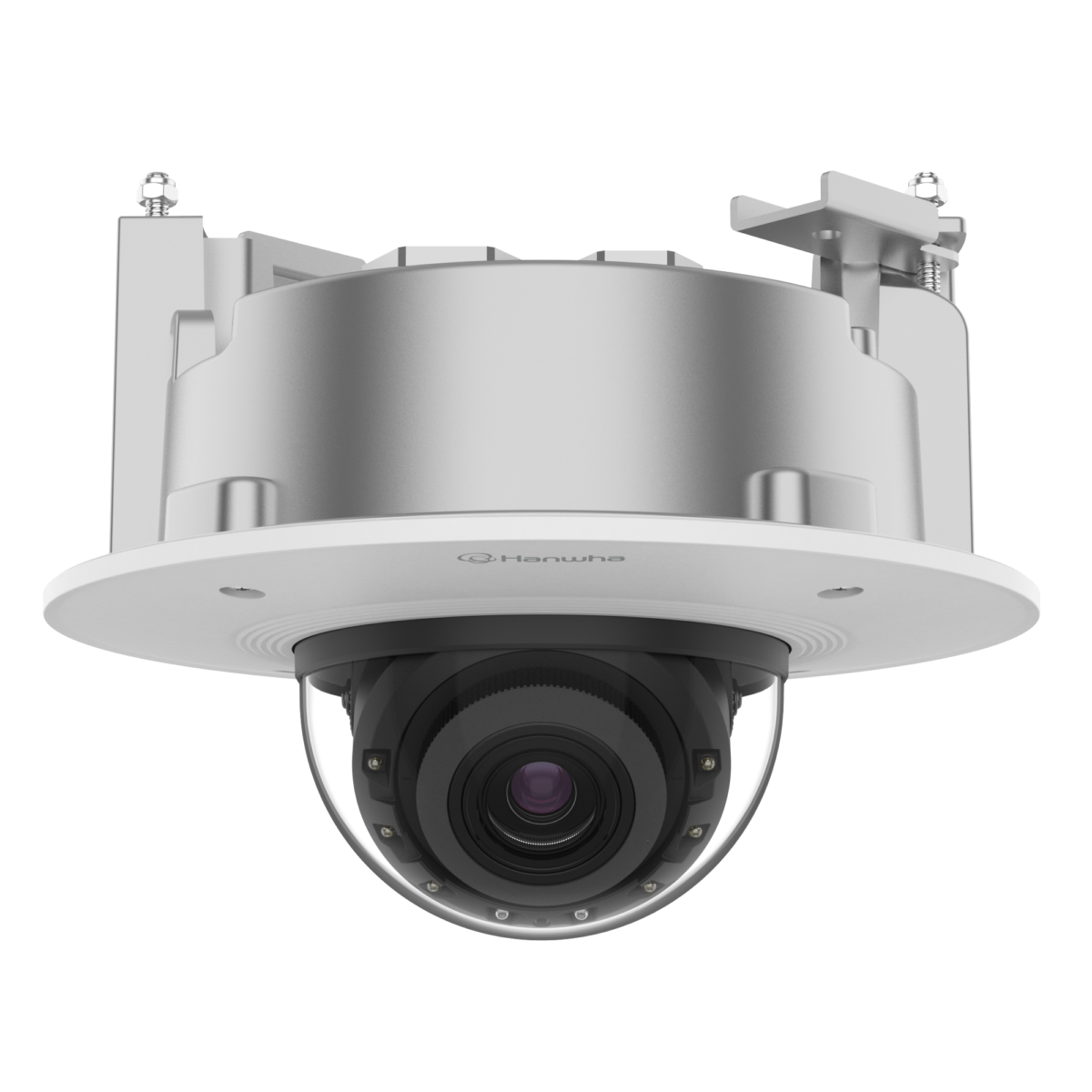

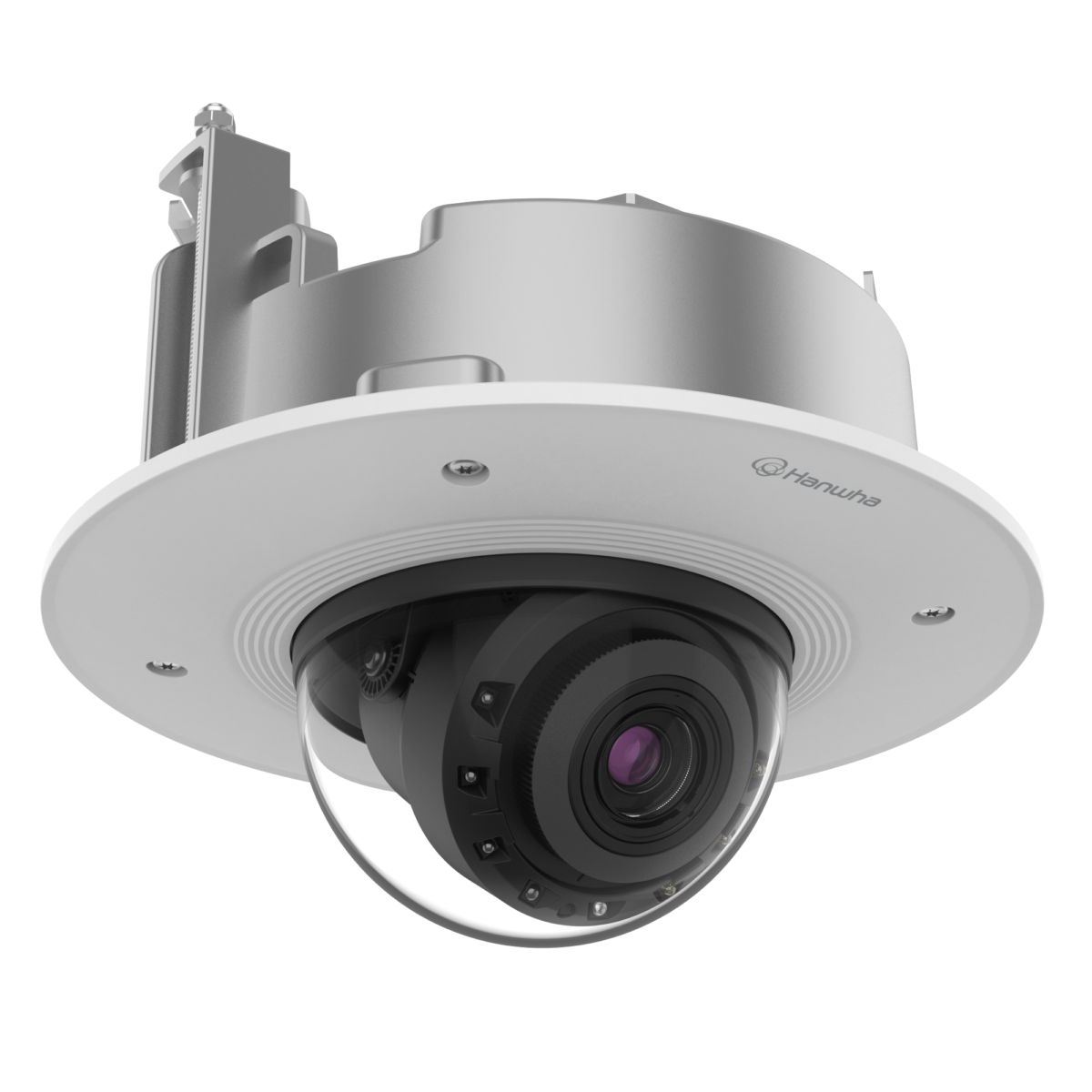

PND-A6081RF
2MP AI IR Dome Camera
Key Features
• Maximum 2MP resolution, Up to 120fps
• 0.007Lux@F1.3, 1/30sec. (Color), 0Lux (B/W, IR LED on)
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
• Video Analytics based on AI
- Object detection and classification (Person, Face, Vehicle, License Plate)
- Face mask detection, Social distancing detection
- Attribute, BestShot
• TPM with FIPS 140-2 level2, Secure boot, Verify firmware forgery
• System requirements
- SSM v2.10.8 or later, Genetec plugin v1.0 or later, Milestone plugin v1.0.2 or later, NVR model (XRN-6410DB4/B4, XRN-3210B4)
• Hard-coated dome bubble, IP52, IK10, Plenum rate
• 0.007Lux@F1.3, 1/30sec. (Color), 0Lux (B/W, IR LED on)
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
• Video Analytics based on AI
- Object detection and classification (Person, Face, Vehicle, License Plate)
- Face mask detection, Social distancing detection
- Attribute, BestShot
• TPM with FIPS 140-2 level2, Secure boot, Verify firmware forgery
• System requirements
- SSM v2.10.8 or later, Genetec plugin v1.0 or later, Milestone plugin v1.0.2 or later, NVR model (XRN-6410DB4/B4, XRN-3210B4)
• Hard-coated dome bubble, IP52, IK10, Plenum rate
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Для увеличения изображения наведите курсор мыши
PND-A6081RF
2MP AI IR Dome Camera
Key Features
• Maximum 2MP resolution, Up to 120fps
• 0.007Lux@F1.3, 1/30sec. (Color), 0Lux (B/W, IR LED on)
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
• Video Analytics based on AI
- Object detection and classification (Person, Face, Vehicle, License Plate)
- Face mask detection, Social distancing detection
- Attribute, BestShot
• TPM with FIPS 140-2 level2, Secure boot, Verify firmware forgery
• System requirements
- SSM v2.10.8 or later, Genetec plugin v1.0 or later, Milestone plugin v1.0.2 or later, NVR model (XRN-6410DB4/B4, XRN-3210B4)
• Hard-coated dome bubble, IP52, IK10, Plenum rate
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
PND-A6081RF
Reducing false alarm based on deep learning technology
P series AI cameras using AI algorithms filter out irrelevant movements caused by environmental changes such as waving trees, shadows, or animals. While conventional cameras detect motion based on its pixels and generate events even if users want to ignore, Deep Learning-based P series AI cameras generate event alarm only for people and vehicles, reducing false alarms for more efficient operation.
Attribute, BestShot for the forensic search
Metadata including attribute (people : age, gender, colors of top/bottom clothes, wearing glasses, Vehicle : types, colors) is sent to the backend server and used to extract information on specific situations, significantly reducing the time to search the entire video. And P series AI cameras are equipped with the BestShot feature for re-identification which ensures that only the most suitable images of classified objects are sent to the backend server.
P seires AI cameras can also quickly and accurately detect the objects with or without face mask and immediately sends out alert.
P seires AI cameras can also quickly and accurately detect the objects with or without face mask and immediately sends out alert.
VMS Integration for forensic search applications
P series AI cameras offers integration of video management system from Milestone, Genetec using Hanwha Vision’s AI Plug-ins and Wisenet WAVE. These Plug-ins provide improved AI search on Milestone and Genetec’s video management system.
Download AI Plug-ins for Genetec and Milestone video management system here.
Compatible models
• Milestone 2019 R3 or higher, Milestone Expert or Corporate level
• Genetec Security Center 5.9.2.0 or Higher(Official announcement from Genetec DAP group)
— Partnumber = GSC-1SDK-HANWHA-AICam
• Wisenet SSM, Wisenet WAVE
Free AI powered COVID-19 Solutions
Wisenet P series AI cameras supports free AI based COVID-19 Solutions including the Occupancy Monitoring Application, Face Mask Detection, and Social Distancing Detection.
Технические характеристики
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- Security
- General
- Environmental & Electrical
- Mechanical
- DORI (EN62676-4 standard)
-
-
Video Imaging Device 1/2" CMOS Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 Max. Framerate H.265/H.264: Max. 60/50fps(60Hz/50Hz, AI analytics on), Max. 120/100fps(60Hz/50Hz, AI analytics off)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)Min. Illumination Color: 0.007Lux(F1.3, 1/30sec, 30IRE) B/W : 0.0007Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps
Color: 0.014Lux(F1.3, 1/60sec, 30IRE) B/W : 0.0014Lux(F1.3, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps
Color: 0.028Lux(F1.3, 1/120sec,30IRE) B/W : 0.0028Lux(F1.3, 1/120sec, 30IRE), 0Lux(IR LED on), 120/100fpsVideo Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installationLens Focal Length (Zoom Ratio) 4.38~9.33mm(2.13x) motorized varifocal Max. Aperture Ratio F1.3(Wide)~F2.15(Tele) Angular Field of View H:103.1°(Wide)~44.5°(Tele) / V:54.2°(Wide)~24.9°(Tele) / D:124°(Wide)~51.1°(Tele) Min. Object Distance 0.5m(1.64ft) Focus Control Simple focus Lens Type P iris Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0˚~360˚ / -45˚~85˚ / 0˚~355˚ Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction WiseNR Ⅱ(using AI engine)
SSNRⅤDigital Image Stabilization Stabilization Support(built-in gyro sensor) Motion Detection 8ea, polygonal zones Privacy Masking 6ea, rectangle zones
- Color: Gray/Black/WhiteGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Auto prefer shutter control based on AI engineVideo Rotation Flip, Mirror, Hallway view(90˚/270˚) Analytics Classified object type: Person/Face/Vehicle/License plate
Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color)
Support BestShot per object
Analytics events based on AI engine
- Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip&Fall detection
Analytics events
- Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
Support WiseDetector for Adding custom objects
*Some of the video analytics only works with people and vehicle detectionBusiness Intelligence People/Vehicle/Crowd counting, Queue management, Heatmap based on AI engine Alarm I/O 2 configurable I/O ports, DC 12V output(Max. 50mA) Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback
- MQTT: publicationAudio In Selectable(mic in/line in) Audio Out Line out Light Type IR LED (850nm) IR Viewable Length WiseIR 40m(131.23ft) Network Ethernet Metal shielded RJ-45(10/100/1000 BASE-T) Video Compression H.265/H.264: Main/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine) Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(6 users) / Multicast
Multiple streaming(Up to 6 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT Application Programming Interface ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Wisenet open platform
- WiseAI application included(Analytic based on AI, Business intelligence)Security OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware User authentication Digest Authenticaton, Prevent brute-force attack Network authentication IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) Secure Communication HTTPS, WSS (WebSocket Secure) Access Control IP-based access control Data Protect Encryption Credentials, Encrypt compress for live recording file Audit Access / System / Event Log management Device ID Device certificate (Hanwha Techwin Root CA) Secure Storage TPM, SDcard partition encrypt Security Certificate TPM with FIPS 140-2 level 2 General Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek Edge Storage Micro SD/SDHC/SDXC 2slot Max. 512GB(256GBx2) Memory 4096MB RAM, 512MB Flash Environmental & Electrical Operating Temperature / Humidity -25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH Certification IP52, IK10, Plenum rate Input Voltage PoE+(IEEE802.3at), 12VDC Power Consumption PoE+: Max 19.50W, typical 16.00W
12VDC: Max 17.00W, typical 13.50WMechanical Color / Material White / Aluminum, Hard-coated dome bubble RAL Code RAL9003 Product Dimensions / Weight Ø205x163mm(8.07x4.92"), 1.95Kg(4.30lb) DORI (EN62676-4 standard) Detect (25PPM/ 8PPF) Wide: 30.0m(98.43ft) / Tele: 95.0m(311.82ft) Observe (63PPM/ 19PPF) Wide: 12.0m(39.37ft) / Tele: 38.0m(124.73ft) Recognize (125PPM/ 38PPF) Wide: 6.0m(19.69ft) / Tele: 19.0m(62.36ft) Identify (250PPM/ 76PPF) Wide: 3.0m(9.84ft) / Tele: 9.5m(31.18ft)
-
