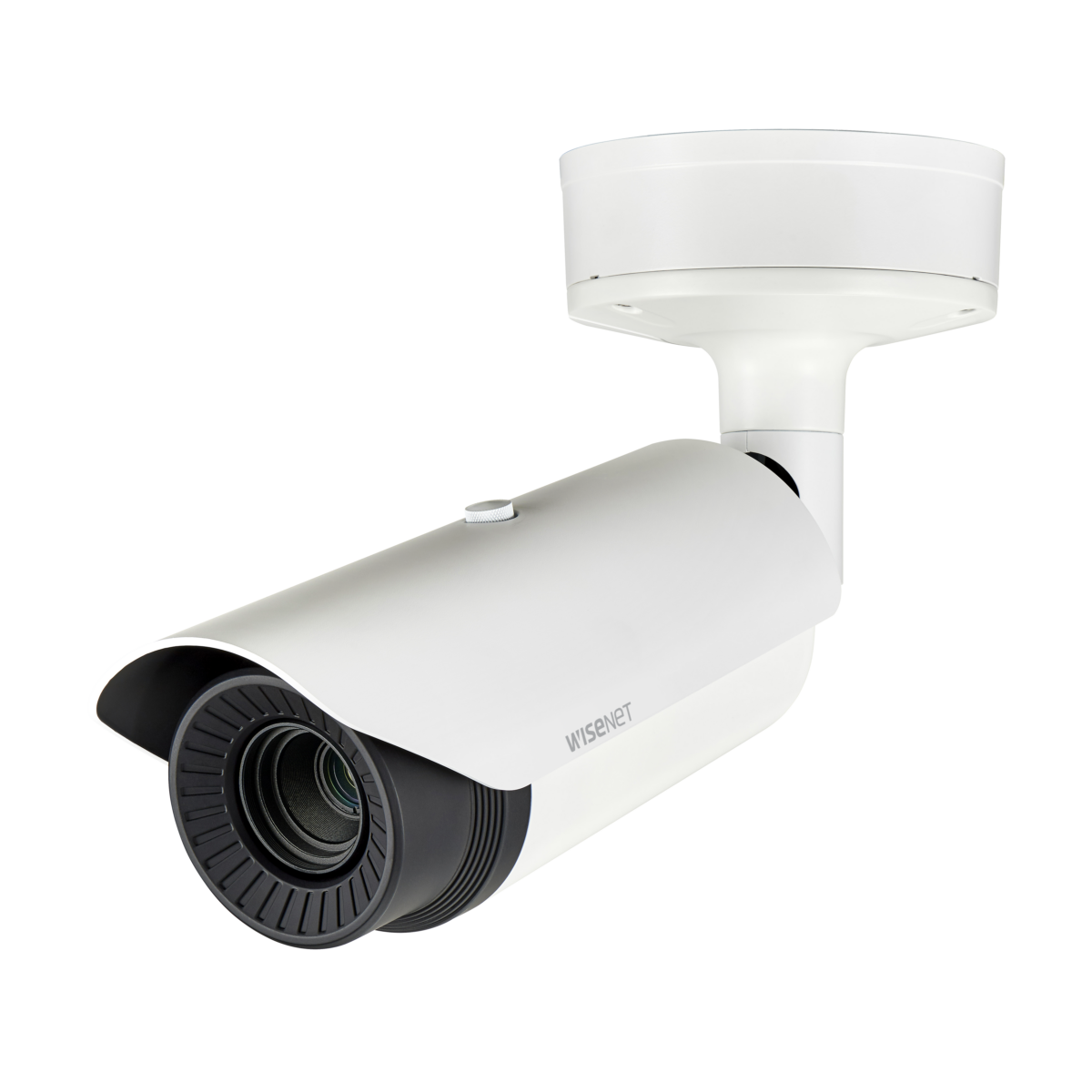

TNO-4030TR

Copy a URL
Copy

VGA H.265 сетевая радиометрическая тепловизионная камера

Key Features
• Поддержка макс. разрешения 640 x 480
• Встроенный объектив 13 мм с постоянным фокусом
• Поддержка кодеков H.265, H.264, MJPEG
• До 30 кад/с при любом разрешении (H.265/ H.264/ MJPEG)
• Обнаружение движения, передача данных на PTZ камеру, обнаружение внешнего воздействия, праздношатания
• Обнаружение направления движения, аудио, распознавание звуков по типам
• Обнаружение ударов, определение температуры, функция обзора коридоров
• Слоты для карт памяти SD/SDHC/SDXC (макс. 256 ГБ)
• Поддержка WiseStream II
• Технология PoE, 24 В перем. тока, 12 В пост. тока
• IP66, NEMA4X, IK10

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Для увеличения изображения наведите курсор мыши

Copy a URL
Copy

Загрузить изображение Загрузить все изображения

TNO-4030TR

VGA H.265 сетевая радиометрическая тепловизионная камера

Key Features

• Поддержка макс. разрешения 640 x 480
• Встроенный объектив 13 мм с постоянным фокусом
• Поддержка кодеков H.265, H.264, MJPEG
• До 30 кад/с при любом разрешении (H.265/ H.264/ MJPEG)
• Обнаружение движения, передача данных на PTZ камеру, обнаружение внешнего воздействия, праздношатания
• Обнаружение направления движения, аудио, распознавание звуков по типам
• Обнаружение ударов, определение температуры, функция обзора коридоров
• Слоты для карт памяти SD/SDHC/SDXC (макс. 256 ГБ)
• Поддержка WiseStream II
• Технология PoE, 24 В перем. тока, 12 В пост. тока
• IP66, NEMA4X, IK10

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
TNO-4030TR
Datasheet
Contact Sales

Seeing Beyond Sight

  • Max. 640 x 480 resolution support
  • H.265, H.264, MJPEG codec
  • Max. 30fps@all resolutions (H.265, H.264, MJPEG)
  • WiseStream II support
  • Video & Audio Analytics
  • Motion detection, Handover
  • SD / SDHC / SDXC memory slot (Max. 256GB)
  • IP66, NEMA4X, IK10 (TNO-4041T / 4041TR / 4040T / 4040TR / 4030T / 4030TR, TNU-4041T)

Bullet Camera

TNO-4051T TNO-4050T TNO-4041T TNO-4040T TNO-4030T
35mm fixed(F1.0) 35mm fixed(F1.0) 19mm fixed(F1.0) 19mm fixed(F1.0) 13mm fixed(F1.0)

Bullet Camera

TNO-4051T TNO-4050T TNO-4041T
35mm fixed(F1.0) 35mm fixed(F1.0) 19mm fixed(F1.0)

Positioning Camera

TNU-4051T TNU-4041T
35mm fixed(F1.0) 19mm fixed(F1.0)

Bullet Radiometric Camera

TNO-4041TR TNO-4040TR TNO-4030TR
19mm fixed(F1.0) 19mm fixed(F1.0) 13mm fixed(F1.0)

Key Features

Detect people and objects 24/7 with thermal cameras
In challenging weather(fog, smoke, rain) or lighting conditions(complete darkness, backlight), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. For accurate monitoring purposes, a professional surveillance system is required. Wisenet thermal cameras are the excellent choice : they provide high contrast images based on temperature differences between the object and background, so that users can detect incidents more easily. The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting.

Multiple color palettes
Wisenet thermal cameras provide seven different types of color palette for users to select the best image in various situations. Each color palette has a specific set of colors which change according to the temperature range of the scene.

Long detection range up to 3,157m
The main task of the thermal camera is to detect events that occur at long distances. Wisenet thermal cameras are equipped with a 35/19/13mm lens(Horizontal FoV 17˚/32˚/49˚) to detect vehicles up to 3,157m away. The camera provides an image with high color contrast according to the temperature, so it can easily distinguish objects and background from a long distance. At closer range it can recognize the type of object or identify the characteristic by capturing details.

Secure a wide variety of applications
Wisenet thermal cameras can be a powerful tool when monitoring applications where there is very little light, due to their ability to create images based on heat. Thermal cameras are especially applicable in manufacturing and industrial facilities, air and seaports, and mining areas.

Enhanced video & audio analytics
Wisenet T thermal cameras offers reliable video and audio analytics for efficient monitoring. The featured analytics improves the overall security system’s efficiency by automatically notifying users when abnormal behavior is detected.

  • Temperature change detection

    Drastic temperature changes (20 / 40 /60 /80 /100°C difference from current temperature) can be detected in advance to prevent incidents occurring.

    * An alarm will be sent when a drastic temperature change is detected for a duration of 2 minutes.

  • Virtual line

    Alarm events are automatically triggered when the camera detects the moving object crossing the virtual line.

  • Motion Detection

    An alarm is triggered when movement is detected within the defined user area.

  • Shock detection

    Shock detection protects the camera when events such as vibrations, quivers and shocks occur.

  • Sound classification

    Sound classification can help users responds immediately in dangerous situations, by classifying sounds such as gunshots, glass breaking, screams and explosions.

Improve bandwidth by up to 99% using WiseStream II
When Hanwha Techwin’s original video compression technology WiseStream II is combined with H.265 compression, the bitrate data data is reduced by up to 99% compared to current H.264 technology. The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.

Handover to PTZ
The handover feature allows a PTZ camera* to receive an alarm from a thermal camera operating on the same IP video surveillance system. Once the notification is received, the PTZ camera will zoom into the assigned camera pre-set location. With this feature, PTZ cameras support the thermal camera by providing high resolution images whenever a specific detail is required.
* XNP-6370RH/6320H/6320, PNP-9200RH

Positioning Camera

Broad thermal monitoring with positioning
The TNU-4051T / 4041T combines a thermal imaging camera and a positioning unit capable of monitoring a broad range, with its 360˚ endless pan and -90˚ to +40˚ tilt. In addition, the camera’s flexibility is increased by 300 preset positions, allowing users to save the settings for pan / tilt functions and automatically view the location desired.

Radiometric Camera

Temperature measurement to monitor incidents
The Wisenet thermal radiometric camera has added a feature to detect the temperature range of -20˚C to +130˚C. Alarms are generated and sent to users in case the temperature of three areas in the monitoring screen is above or below a defined value or the temperature increases or decreases beyond the preset range. In addition, the screen displays average/minimum/maximum temperature of the three areas for more thorough temperature measurement.

Selected temperature range displayed in vivid colors
Using hybrid color palette, the selected temperature range on currently monitored image can be displayed in vivid colors, helping users observe monitoring areas with greater ease. The temperature out of the defined range is expressed in white hot color of black and white, ensuring the camera covers the entire monitoring areas with thermal detection.

Технические характеристики

  • Video
  • Lens
  • Operational
  • Radiometry
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • Video
    Imaging Device Uncooled micro bolometer
    Resolution 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    NETD ＜50mK
    Pixel size 17㎛
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focal Length (Zoom Ratio) 13mm fixed focal
    Max. Aperture Ratio F1.0
    Angular Field of View H: 48.6° / V: 36.4 / D: 61.6°
    Min. Object Distance 5m(16.40ft)
    Focus Control Fixed
    Operational
    Camera Title Displayed up to 85 characters
    Digital Image Stabilization Support(built-in gyro sensor)
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 24ea, polygonal zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature detection, Sound classification, Shock detection
    Alarm I/O Input 1ea / Output 2ea
    Alarm Triggers Analytics, Network disconnect, Alarm input, MQTT subscription
    Alarm Events When alarm trigger occurred
    - File upload(image): e-mail/FTP
    - Notification: e-mail
    - Recording: SD/SDHC/SDXC or NAS recording at event triggers
    - Alarm output
    - Handover: PTZ preset
    - MQTT: publication
    Audio In Selectable(mic in/line in)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    Color Palettes Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
    Radiometry
    Temperature Detect Range -20°C~130°C(-4°F~266°F)
    Temperature Accuracy ±5°C(≤100°C), ±20%(>100°C)
    Temperature Detection 6 Quadrangle ROI zones, whole FoV area
    Additional Hybrid palettes, Spot temperature reading
    Network
    Ethernet RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law / G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, MQTT
    Security HTTPS(SSL) login authentication
    Digest login authentication
    IP address filtering
    User access log
    802.1X authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
    Memory 1024MB RAM, 256MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
    Certification IP66, IK10, NEMA4X
    Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC
    Power Consumption PoE: Max. 10W, typical 8.6W
    12VDC: Max. 9W, typical 7.5W
    24VAC: Max. 10.5W, typical 8.9W
    Mechanical
    Color / Material White / Aluminum
    RAL Code RAL9003
    Product Dimensions / Weight Φ101.97x401.8mm(4.01x15.82") / 3,124g(6.89lb)
