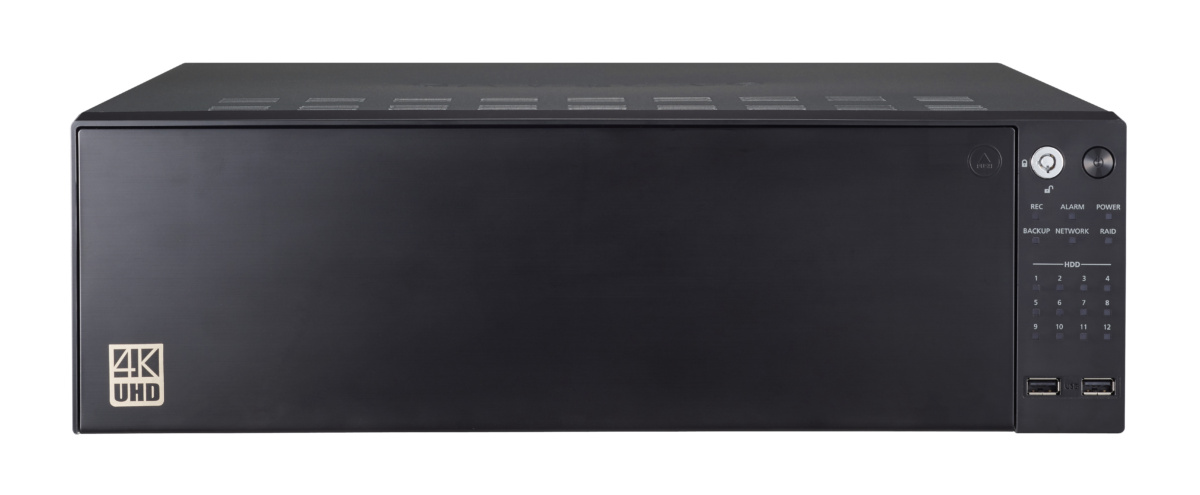

PRN-4011
توقف
64CH 12M H.265 NVR
Key Features
• Up to 64CH, Max.12megapixel resolution
• 400Mbps network camera recording
• Support 4K video out on HDMI monitor
• Support dual monitor video out
• H.265, H.264, MJPEG compression
• WiseStream support
• Max. 12 internal HDDs(96TB)
• Support RAID 5/6
• ARB&Failover(N+1) support
• 400Mbps network camera recording
• Support 4K video out on HDMI monitor
• Support dual monitor video out
• H.265, H.264, MJPEG compression
• WiseStream support
• Max. 12 internal HDDs(96TB)
• Support RAID 5/6
• ARB&Failover(N+1) support
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
توقف
PRN-4011
64CH 12M H.265 NVR
Key Features
• Up to 64CH, Max.12megapixel resolution
• 400Mbps network camera recording
• Support 4K video out on HDMI monitor
• Support dual monitor video out
• H.265, H.264, MJPEG compression
• WiseStream support
• Max. 12 internal HDDs(96TB)
• Support RAID 5/6
• ARB&Failover(N+1) support
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Product Specification
- Display
- Performance
- Network
- Functions
- Interface
- System
- Environmental
- Electrical
- Mechanical
-
-
Display Network camera Inputs Max. 64CH Resolution 12MP ~ CIF Protocols Wisenet, ONVIF Decoding Local Display [Clone Display]
HDMI: 3840 x 2160, 1920x1080, 1280x720
VGA: 1920x1080, 1280x720Resolution 12M (30fps), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps) Performance Record Compression H.265, H.264, MJPEG Recording Bandwidth Max. 400Mbps Resolution 12MP ~ CIF Mode Normal, Schedule(Continuous/Event), Event (Pre/Post) Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus) Event Action e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out Search & Play Playback Bandwidth Max. 32Mbps(16CH simultaneously) User Max. 4 Users (Local 1, Remote 3) Simultaneous playback Max. 16CH(Network)
Max. 8CH(Local Monitor)Fisheye Dewarping WEB / CMS Storage Supported HDD Up to 8TB HDD Slot 12HDD External iSCSI storage(Max. 192TB) RAID RAID-5/6(Array Size : 6-HDD x 2 Array) Backup File backup BU/Exe(GUI), JPG/AVI(Network) Function Multi channel(Upto 8CH) Play, Date-Time/Title display Network Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) DDNS Wisenet DDNS Transmission Bandwidth Max. 400Mbps Audio GUI 64 CH(network) Web G.711, G.726, AAC(16/48KHz) Audio Communication 2-Way Max Remote Users Search(3), Live Unicast(10), Multicast(20) Security IP address filtering, User access Log, 802.1x, Encryption Web viewer Supported OS Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11 Supported browser Plug-in free web viewer
- Supported Browser: Google Chrome 47, MS Edge 20
Plug-in Webviewer
- Supported MS Explore 11, Apple Safari 9 * Mac OS X onlyViewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile\nSupport SDK/CGI(SUNAPI) for integration to 3'rd party VMS Functions Camera Setup Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera WebpagePTZ Control Via GUI, Webviewer, SPC-2000 Smart phone Support Model iOS, Android Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI) Control Live(Multi-Profile Support), Playback Max. Remote Users Search(3), Live Unicast(10) Redundancy Failover N+1 ARB Yes Interface HDMI 1EA VGA 1EA Audio Out(1EA, RCA, Line) Ethernet RJ-45 4ea (LAN/WAN, 1Gbps), 1000M SFP 2ea Alarm In 4EA, Out 4EA USB 2EA(Front) Serial(Protocols) RS-232C (UPS Support)(※1) Power inlet AC 2EA System System Control Mouse, IR remocon, Web, Controller Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai Environmental Operating Temperature +0°C to +40°C(+32℉ to +104℉) Operating Humidity 20% ~ 85% RH Electrical Power Input 100 ~ 240 VAC ±10%; 50/60 Hz, 3~1.5A (Dual SMPS) Power Consumption Max. 250W (853 BTU with HDD 12ea) Mechanical Color / Material Black / Metal Dimension (WxHxD) 436.0 x 132.0 x 450.0mm (17.17" x 5.2" x 17.72") (3U) Weight 11Kg -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
