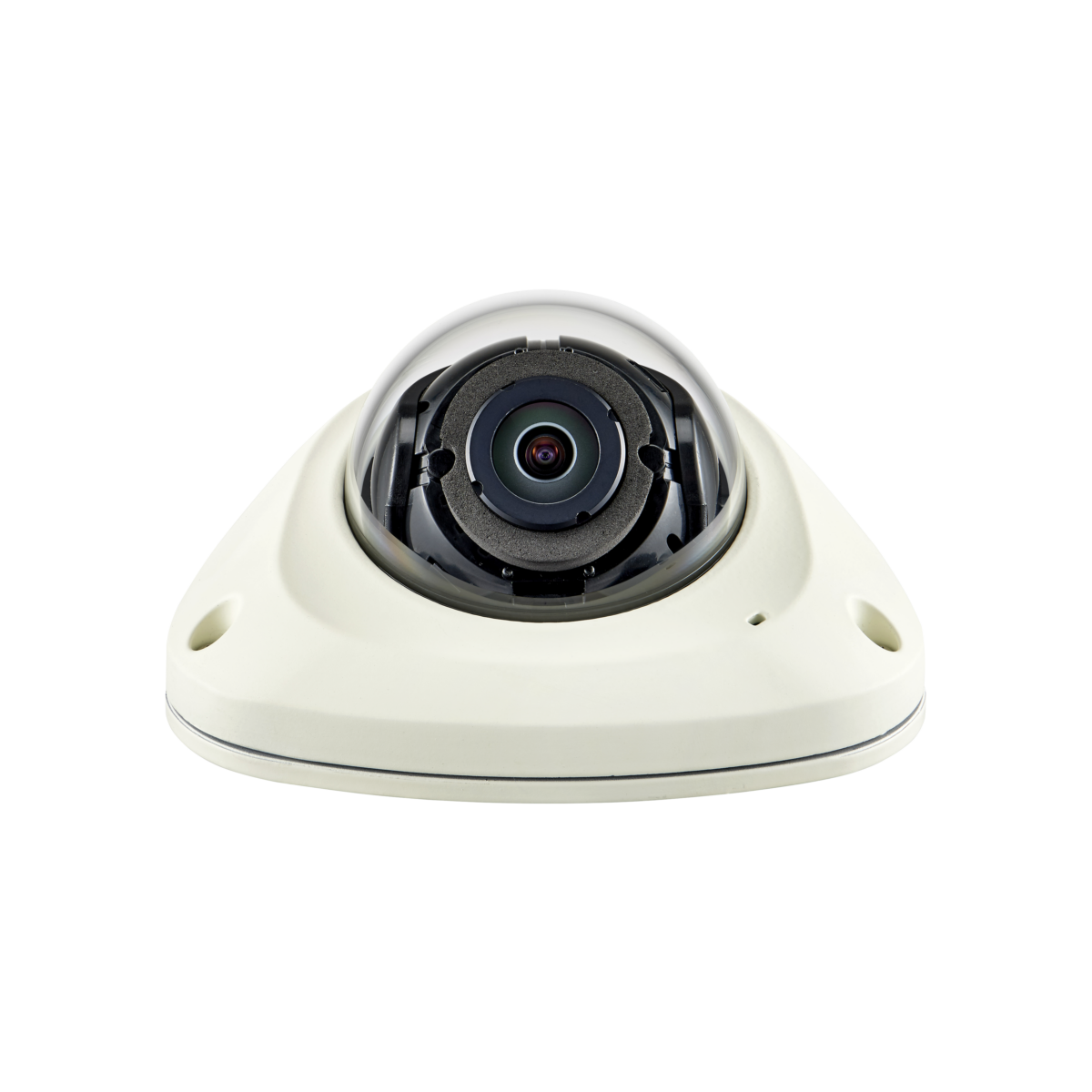

XNV-6012

Copy a URL
Copy

2M H.265 Mobile Camera

Key Features
• Max. 2Megapixel (1920 x 1080) resolution
• Max. 60fps@all resolutions (H.265 / H.264)
• 0.04Lux@F2.0 (Color), 0.04Lux@F2.0 (B/W)
• Built-in 2.4mm fixed lens
• H.265, H.264, MJPEG codec supported
• Multiple streaming
• Day & Night, WDR (150dB)
• SD/SDHC/SDXC memory slot (Max. 256GB)
• IP66, IK10, NEMA4X
• Hallway view, PoE, LDC support

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Mouse over image to zoom

Copy a URL
Copy

XNV-6012

2M H.265 Mobile Camera

Key Features

• Max. 2Megapixel (1920 x 1080) resolution
• Max. 60fps@all resolutions (H.265 / H.264)
• 0.04Lux@F2.0 (Color), 0.04Lux@F2.0 (B/W)
• Built-in 2.4mm fixed lens
• H.265, H.264, MJPEG codec supported
• Multiple streaming
• Day & Night, WDR (150dB)
• SD/SDHC/SDXC memory slot (Max. 256GB)
• IP66, IK10, NEMA4X
• Hallway view, PoE, LDC support

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Product Specification

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • DORI (EN62676-4 standard)
  • Video
    Imaging Device 1/2.8" 2MP CMOS
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.04Lux(F2.0, 1/30sec)
    BW: 0.04Lux(F2.0, 1/30sec)
    Video Out USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focal Length (Zoom Ratio) 2.4mm fixed focal
    Max. Aperture Ratio F2.0
    Angular Field of View H: 135.4˚, V: 71.2˚, D: 161.6˚
    Lens Type Fixed
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range -5~+5° / 0°~67° / -90~+90°
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(Electrical)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range 150dB
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, 4point polygonal zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
    Alarm Triggers Analytics, Network disconnect
    Alarm events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Audio In Selectable(mic in/line in/built-in mic)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    Network
    Ethernet RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming (Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
    Memory 1024MB RAM, 256MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -30°C~+55°C(-22°F ~ +131°F) / Less than 90% RH
    * Start up should be done at above -20°C
    Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
    Certification IP66, IK10, NEMA4X
    EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009
    EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014
    EN61000-4-6:2009, EN50155:2007, NEMA 4X
    Input Voltage PoE(IEEE802.3af, Class3)
    Power Consumption PoE : Max 6.5W
    Mechanical
    Color / Material Ivory / Aluminum
    Product Dimensions / Weight 98.9(W)x52.0(H)x100.0(D)mm(3.88"x2.08x3.94"), 295g(0.65 lb)
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) 15.7m(51.67ft)
    Observe (63PPM/ 19PPF) 6.3m(20.67ft)
    Recognize (125PPM/ 38PPF) 3.1m(10.33ft)
    Identify (250PPM/ 76PPF) 1.6m(5.17ft)
