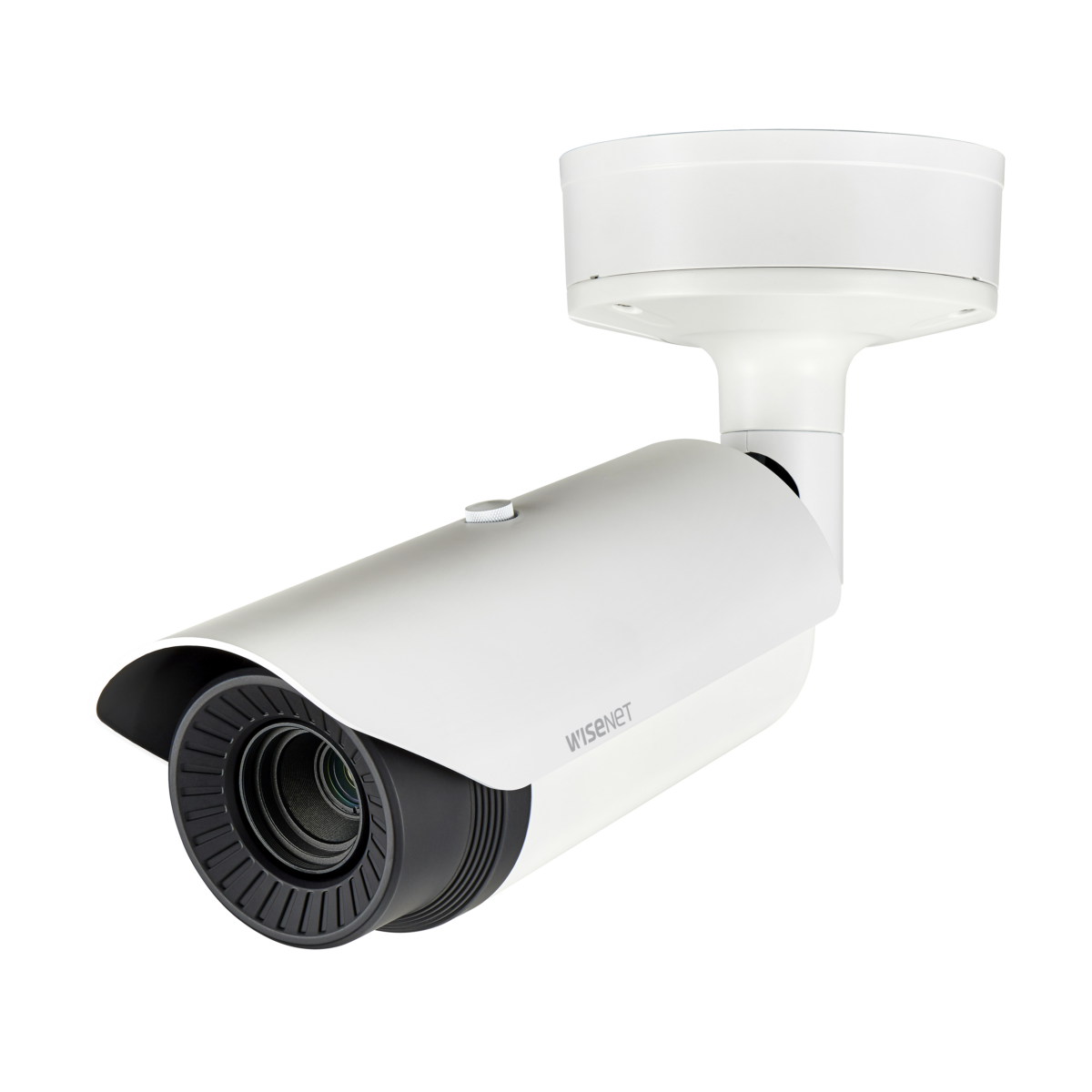

TNO-4030T
VGA H.265 Thermal Camera
Key Features
• Max. 640 x 480 resolution support
• Built-in 13mm fixed lens
• H.265, H.264, MJPEG codec
• Max. 30fps@all resolutions (H.265, H.264, MJPEG)
• Motion detection, Handover, Tampering, Loitering
• Directional detection, Audio detection
• SD / SDHC / SDXC memory slot (Max. 256GB)
• Hallway View, WiseStreamII support
• PoE, 24V AC, 12V DC
• IP66, NEMA4X, IK10
※ Bridge firmware is required to upgrade from 1.00~1.2X versions to the latest version. For more details, please refer to the [UPGRADE NOTIFICATION] or [Release Note] included with your firmware (ZIP file).
• Built-in 13mm fixed lens
• H.265, H.264, MJPEG codec
• Max. 30fps@all resolutions (H.265, H.264, MJPEG)
• Motion detection, Handover, Tampering, Loitering
• Directional detection, Audio detection
• SD / SDHC / SDXC memory slot (Max. 256GB)
• Hallway View, WiseStreamII support
• PoE, 24V AC, 12V DC
• IP66, NEMA4X, IK10
※ Bridge firmware is required to upgrade from 1.00~1.2X versions to the latest version. For more details, please refer to the [UPGRADE NOTIFICATION] or [Release Note] included with your firmware (ZIP file).
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
TNO-4030T
VGA H.265 Thermal Camera
Key Features
• Max. 640 x 480 resolution support
• Built-in 13mm fixed lens
• H.265, H.264, MJPEG codec
• Max. 30fps@all resolutions (H.265, H.264, MJPEG)
• Motion detection, Handover, Tampering, Loitering
• Directional detection, Audio detection
• SD / SDHC / SDXC memory slot (Max. 256GB)
• Hallway View, WiseStreamII support
• PoE, 24V AC, 12V DC
• IP66, NEMA4X, IK10
※ Bridge firmware is required to upgrade from 1.00~1.2X versions to the latest version. For more details, please refer to the [UPGRADE NOTIFICATION] or [Release Note] included with your firmware (ZIP file).
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
TNO-4030T
Seeing Beyond Sight
VGA Thermal network camera
- Max. 640 x 480 resolution support
- H.265, H.264, MJPEG codec
- Max. 30fps@all resolutions (H.265, H.264, MJPEG)
- WiseStream II support
- Video & Audio Analytics
- Motion detection, Handover
- SD / SDHC / SDXC memory slot (Max. 256GB)
- IP66, NEMA4X, IK10 (TNO-4041T / 4041TR / 4040T / 4040TR / 4030T / 4030TR, TNU-4041T)
Bullet Camera
 |
 |
 |
 |
 |
| TNO-4051T | TNO-4050T | TNO-4041T | TNO-4040T | TNO-4030T |
| 35mm fixed(F1.0) | 35mm fixed(F1.0) | 19mm fixed(F1.0) | 19mm fixed(F1.0) | 13mm fixed(F1.0) |
Bullet Camera
|
|
|
| TNO-4051T | TNO-4050T | TNO-4041T |
| 35mm fixed(F1.0) | 35mm fixed(F1.0) | 19mm fixed(F1.0) |
Positioning Camera
 |
 |
||
| TNU-4051T | TNU-4041T | ||
| 35mm fixed(F1.0) | 19mm fixed(F1.0) |
Bullet Radiometric Camera
 |
 |
 |
||
| TNO-4041TR | TNO-4040TR | TNO-4030TR | ||
| 19mm fixed(F1.0) | 19mm fixed(F1.0) | 13mm fixed(F1.0) |
Key Features
Detect people and objects 24/7 with thermal cameras
In challenging weather(fog, smoke, rain) or lighting conditions(complete darkness, backlight), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. For accurate monitoring purposes, a professional surveillance system is required. Wisenet thermal cameras are the excellent choice : they provide high contrast images based on temperature differences between the object and background, so that users can detect incidents more easily. The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting.
Multiple color palettes
Wisenet thermal cameras provide seven different types of color palette for users to select the best image in various situations. Each color palette has a specific set of colors which change according to the temperature range of the scene.
Long detection range up to 3,157m
The main task of the thermal camera is to detect events that occur at long distances. Wisenet thermal cameras are equipped with a 35/19/13mm lens(Horizontal FoV 17˚/32˚/49˚) to detect vehicles up to 3,157m away. The camera provides an image with high color contrast according to the temperature, so it can easily distinguish objects and background from a long distance. At closer range it can recognize the type of object or identify the characteristic by capturing details.
Secure a wide variety of applications
Wisenet thermal cameras can be a powerful tool when monitoring applications where there is very little light, due to their ability to create images based on heat. Thermal cameras are especially applicable in manufacturing and industrial facilities, air and seaports, and mining areas.
Enhanced video & audio analytics
Wisenet T thermal cameras offers reliable video and audio analytics for efficient monitoring. The featured analytics improves the overall security system’s efficiency by automatically notifying users when abnormal behavior is detected.
-
Temperature change detection
Drastic temperature changes (20 / 40 /60 /80 /100°C difference from current temperature) can be detected in advance to prevent incidents occurring.
* An alarm will be sent when a drastic temperature change is detected for a duration of 2 minutes. -
Virtual line
Alarm events are automatically triggered when the camera detects the moving object crossing the virtual line.
-
Motion Detection
An alarm is triggered when movement is detected within the defined user area.
-
Shock detection
Shock detection protects the camera when events such as vibrations, quivers and shocks occur.
-
Sound classification
Sound classification can help users responds immediately in dangerous situations, by classifying sounds such as gunshots, glass breaking, screams and explosions.
Improve bandwidth by up to 99% using WiseStream II
When Hanwha Techwin’s original video compression technology WiseStream II is combined with H.265 compression, the bitrate data data is reduced by up to 99% compared to current H.264 technology. The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.
Handover to PTZ
The handover feature allows a PTZ camera* to receive an alarm from a thermal camera operating on the same IP video surveillance system. Once the notification is received, the PTZ camera will zoom into the assigned camera pre-set location. With this feature, PTZ cameras support the thermal camera by providing high resolution images whenever a specific detail is required.
* XNP-6370RH/6320H/6320, PNP-9200RH
Positioning Camera
Broad thermal monitoring with positioning
The TNU-4051T / 4041T combines a thermal imaging camera and a positioning unit capable of monitoring a broad range, with its 360˚ endless pan and -90˚ to +40˚ tilt. In addition, the camera’s flexibility is increased by 300 preset positions, allowing users to save the settings for pan / tilt functions and automatically view the location desired.
Radiometric Camera
Temperature measurement to monitor incidents
The Wisenet thermal radiometric camera has added a feature to detect the temperature range of -20˚C to +130˚C. Alarms are generated and sent to users in case the temperature of three areas in the monitoring screen is above or below a defined value or the temperature increases or decreases beyond the preset range. In addition, the screen displays average/minimum/maximum temperature of the three areas for more thorough temperature measurement.
Selected temperature range displayed in vivid colors
Using hybrid color palette, the selected range of temperature can be displayed in vivid colors, helping users observe monitoring areas with greater ease. The temperature out of the defined range is expressed in white hot color of black and white, ensuring the camera covers the entire monitoring areas with thermal detection.
Product Specification
- Video
- Lens
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
-
-
Video Imaging Device Uncooled micro bolometer Resolution 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)NETD ＜50mK Pixel size 17㎛ Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installationLens Focal Length (Zoom Ratio) 13mm fixed focal Max. Aperture Ratio F1.0 Angular Field of View H: 48.6° / V: 36.4 / D: 61.6° Min. Object Distance 5m(16.40ft) Focus Control Fixed Operational Camera Title Displayed up to 85 characters Digital Image Stabilization Support(built-in gyro sensor) Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicVideo Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection Alarm I/O Input 1ea / Output 2ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
HandoverAudio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms Color Palettes Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, Wisenet Network Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP, SRTP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only)Edge Storage Micro SD/SDHC/SDXC 1slot 256GB Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -40°C~+60°C(-40°F~+149°F) / Less than 95% RH
* Maximum temperature : +65°C (intermittent)
* Start up should be done at above -40°CStorage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH Certification IP66, IK10, NEMA4X Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC Power Consumption PoE: Max. 10W, typical 8.6W
12VDC: Max. 9W, typical 7.5W
24VAC: Max. 10.5W, typical 8.9WMechanical Color / Material White / Aluminum RAL Code RAL9003 Product Dimensions / Weight Φ101.97x401.8mm(4.01x15.82") / 3124g(6.89 lb)
-
