Bullet

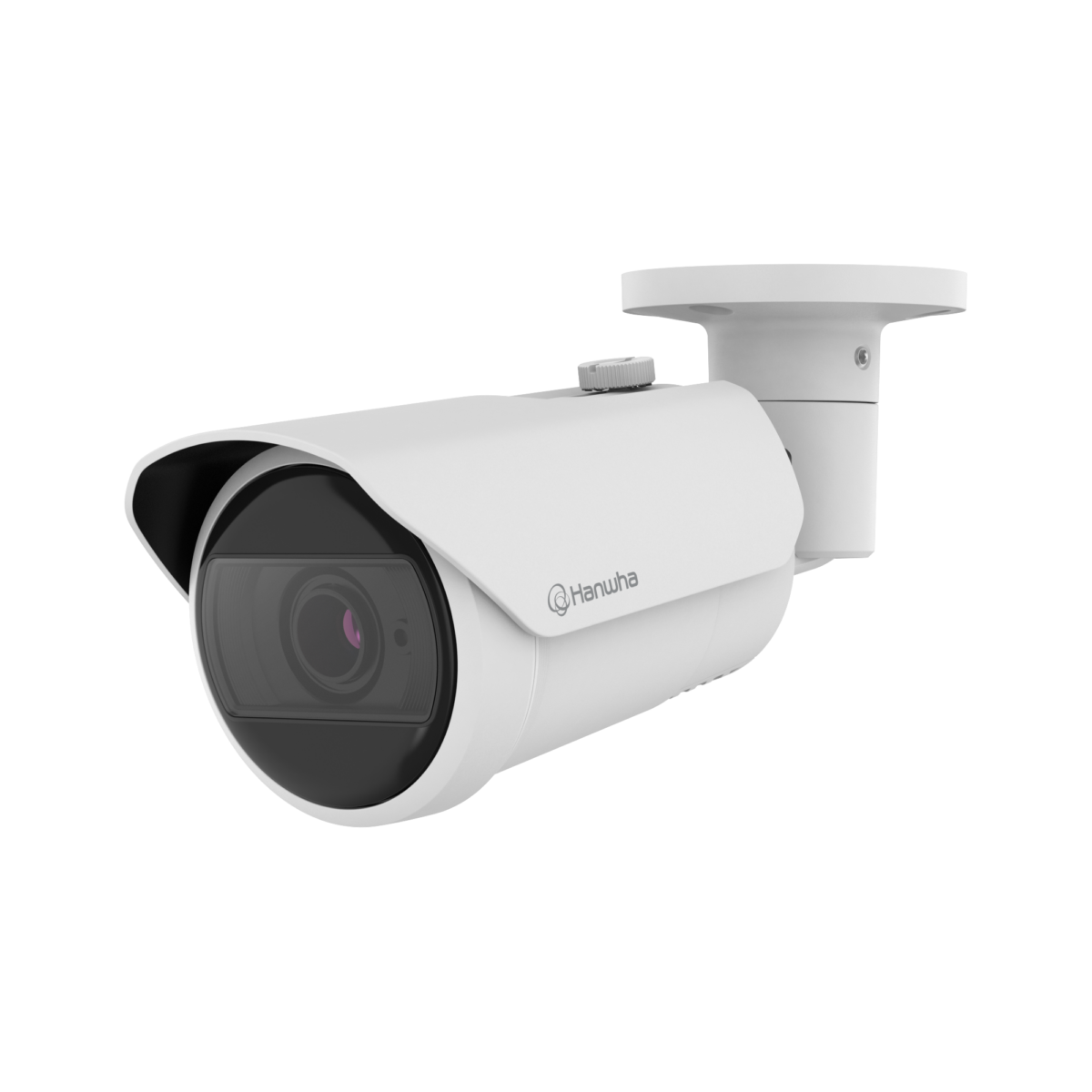

QNO-C6083R

2MP AI IR Bullet Camera

Key Features
• Max. 2MP resolution
• 3.2~10.2mm(3.2x) motorized varifocal
• Color: 0.04Lux (F1.6, 1/30sec),
BW: 0.004Lux (F1.6, 1/30sec, 30IRE)
• Maximum 30fps@2MP (H.265/H.264)
• IR viewable length 40m(131.23ft)
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅢ (Using AI engine)
• Analytics events based on AI engine (NPU) : Object detection
(Person/Vehicle - car, truck, bus, bicycle, motorcycle),
Motion detection, Virtual line(Crossing/Direction),
Virtual area(Loitering/Intrusion/Enter/Exit)
• IP66, IK10
• PoE: Max 8.9W
Contact Sales Datasheet

["camera","network","bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

QNO-C6083R is now available in 2MP

This is an AI addition to the Q series lineup that is now available in 2MP, expanding on the previous 5MP and 8MP options. This expanded lineup ensures you can choose the perfect solution for your business needs.

AI-based object detection

Q series AI cameras generate metadata on object types that is sent to the VMS/NVR, boosting search efficiency and reducing time spent locating events.

AI camera common features

WiseStreamIII

AI enhances video compression, focusing on key objects to reduce data size and bandwidth while maintaining image quality without extra hardware.

Learn more
WiseNRII

AI detects objects and adapts to reduce motion blur and noise, eliminating image blur and ghosting.

Learn more
Prefer Shutter Control

AI adjusts shutter speed for optimal noise reduction and clarity, slowing in static scenes to minimize noise and speeding up with movement to reduce blur.

Learn more

Product Specification

Video
Imaging Device 1/2.8" CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) (WDR on/off)
MJPEG: Max. 30fps(@2MP Max. 5fps)
Min. Illumination Color: 0.04Lux (F1.6, 1/30sec)
BW: 0.004Lux (F1.6, 1/30sec, 30IRE), 0Lux(IR LED on)
Video Out USB: Micro USB Type B, 1280x720 for installation
HDMI: 1080p@30/25fps (60/50Hz)
Lens
Focal Length (Zoom Ratio) 3.2~10.2mm(3.2x) motorized varifocal
Optical Zoom 3.2x
Max. Aperture Ratio F1.6(Wide)~F3.1(Tele)
Angular Field of View H: 102°(Wide)~32°(Tele)
V: 55°(Wide)~18°(Tele)
D: 119°(Wide)~36°(Tele)
Min. Object Distance 1.2m (3.93ft)
Focus Control Simple focus
Lens Type DC auto iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / -35°~70° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction WiseNRⅡ(Based on AI engine)
SSNRⅤ
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, 4point quadrangle zones
- Color: Gray/Green/Red/Blue/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/25,000sec)
prefer shutter control
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Classified object type: Person/Vehicle
Attributes: Vehicle(Type:car/bus/truck/motorcycle/bicycle)
Support DetectionShot
Analytics events based on AI engine
- Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit)
Analytics events
- Defocus detection, Tampering, Virtual area(Appear/Disappear)

* Some of the video analytics only works with people and vehicle detection
Business Intelligence Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input, MQTT subscription
Alarm events When alarm trigger occurred
- File upload(image) : e-mail/FTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- Audio clip playback
- MQTT: publication
Audio In Selectable(mic in/line in)
Audio Out Line out
Light Type IR LED (850nm)
Light Viewable Length 40m(131.23ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅢ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 5 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Hanwha Vision Open Platform
Security
OS / Firmware Protect Encrypted firmware, Secure boot, Signed firmware
User authentication Digest Authentication, Prevent brute-force attack
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure)
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage SDcard partition encrypt
Security Certificate Secure by default
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 2GB RAM, 1GB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+60°C(-40°F~+140°F)(MAX) / 0~100% RH(Condensing)
Humidity control /w Air vent
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 95% RH
Certification IP66, IK10, NEMA4X
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption PoE: Max 8.9W, typical 3.7W
Mechanical
Color / Material White / Aluminum
Bubble : Hard-coated dome
RAL Code RAL9003
Product Dimensions / Weight ø93.4x245.8mm(ø3.68x9.68"), 930g(2.05 Ib)
Compatible Conduit hole / Gangbox Conduit hole : None
Gangbox (SBO-090GP) : Single, Double, 4" Octagon (sold separately)
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment IEC/EN 63000
IEC/EN 60529 IP66, IEC/EN 62262 IK10
NEMA 250 type 4X
Compatible Models
Back Box SBO-140BW, SBO-140WW
Ceiling Mount (Single Unit) SBP-140CMT
Pole Mount SBD-140PMW
Corner Mount SBD-140KMB
Cabinet SBP-150NBW
Gang Plate SBO-090GP
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 30.5m(100.03ft) / Tele: 76.6m(251.27ft)
Observe (63PPM/ 19PPF) Wide: 12.2m(40.01ft) / Tele: 30.6m(100.51ft)
Recognize (125PPM/ 38PPF) Wide: 6.1m(20.01ft) / Tele: 15.3m(50.25ft)
Identify (250PPM/ 76PPF) Wide: 3.0m(10.00ft) / Tele: 7.7m(25.13ft)
