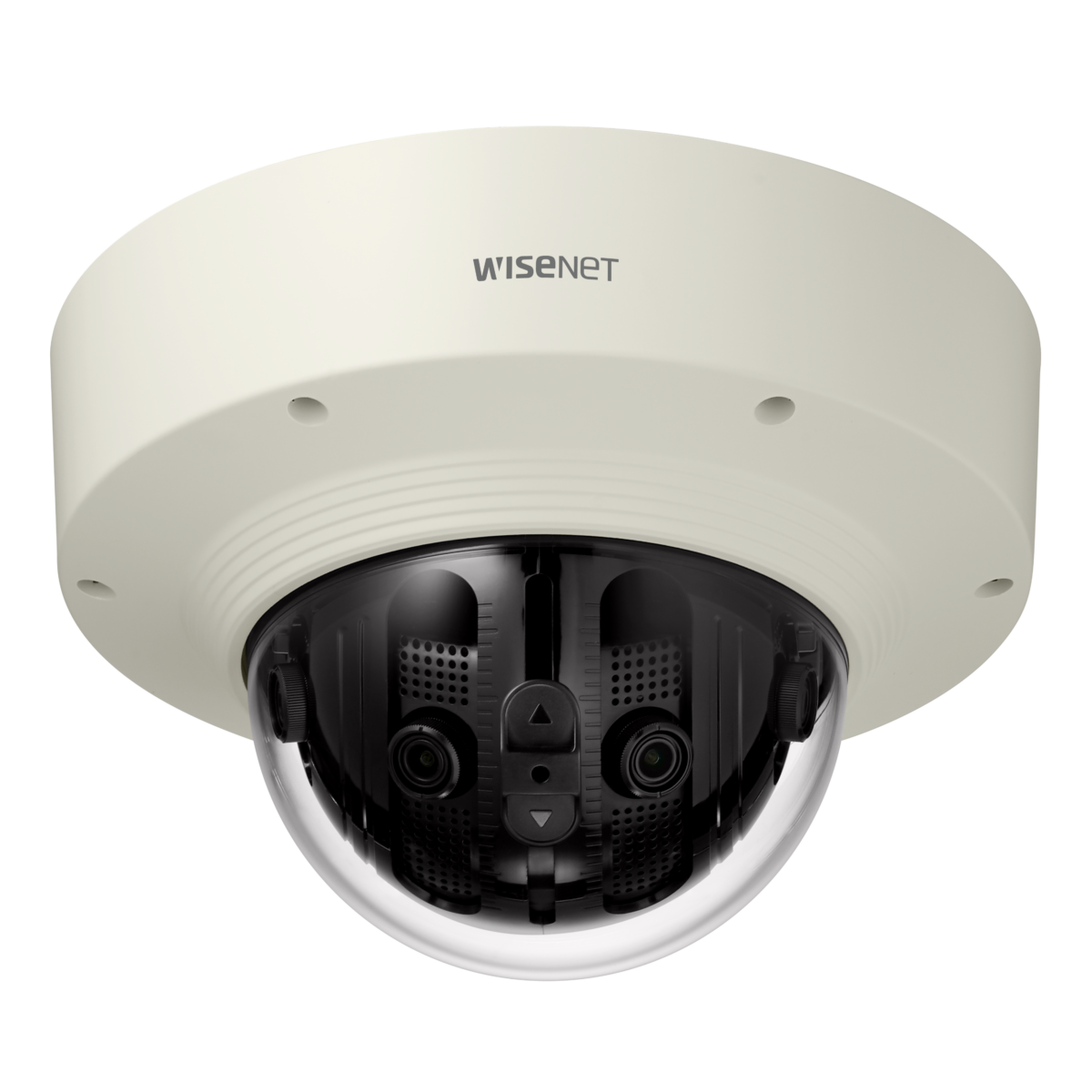

PNM-9030V
15MP Panoramic Camera
Key Features
• Max. 15MP 180°/220° panoramic stitching image
• Panoramic stitching, original, crop view channel
• H.265 / H.264 : Max. 30fps at all resolutions
• MJPEG : Max. 15fps at under 2Megapixel resolutions
• H.265, H.264, MJPEG codec, WiseStream II supported
• Tampering, Loitering, Directional detection, Virtual line, Enter / Exit
• (Dis)Appear, Audio detection,Motion detection, Handover, Sound classification, Heatmap
• microSD/SDHC/SDXC 2 slots, PoE+, IP66, IK10
• Panoramic stitching, original, crop view channel
• H.265 / H.264 : Max. 30fps at all resolutions
• MJPEG : Max. 15fps at under 2Megapixel resolutions
• H.265, H.264, MJPEG codec, WiseStream II supported
• Tampering, Loitering, Directional detection, Virtual line, Enter / Exit
• (Dis)Appear, Audio detection,Motion detection, Handover, Sound classification, Heatmap
• microSD/SDHC/SDXC 2 slots, PoE+, IP66, IK10
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Для увеличения изображения наведите курсор мыши
PNM-9030V
15MP Panoramic Camera
Key Features
• Max. 15MP 180°/220° panoramic stitching image
• Panoramic stitching, original, crop view channel
• H.265 / H.264 : Max. 30fps at all resolutions
• MJPEG : Max. 15fps at under 2Megapixel resolutions
• H.265, H.264, MJPEG codec, WiseStream II supported
• Tampering, Loitering, Directional detection, Virtual line, Enter / Exit
• (Dis)Appear, Audio detection,Motion detection, Handover, Sound classification, Heatmap
• microSD/SDHC/SDXC 2 slots, PoE+, IP66, IK10
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
PNM-9030V
Сертификат Транспортной Безопасности №969
Сертификат соответствия технических средств обеспечения транспортной безопасности требованиям к их функциональным свойствам, утвержденных постановлением Правительства Российской Федерации от 26 сентября 2016 г. № 969.
Never Miss a thing
Wisenet Premium 180˚
Panoramic Camera
PNM-9030V
Panoramic Camera
PNM-9030V
Single Panorama + Original + Crop images
PNM-9030V can simultaneously stream a total of 7CH : a single panoramic 20MP image merged from the 4 original images, 4 of the original 5MP images from each sensor, and 2 of the 2MP crop images.
180˚ and 220˚ view mode for Panorama images
The panoramic image of PNM-9030V support both 180˚ and 220˚ view modes.
ㆍThe 180° mode provides 180° horizontal and 70° vertical field of view, which maximizes the effectiveness with its vast vertical viewing angle.
ㆍThe 220° mode provides 220° horizontal and 52° vertical field of view, which can help users to monitor areas that need wider viewing angle such as corners of the building.
ㆍThe 180° mode provides 180° horizontal and 70° vertical field of view, which maximizes the effectiveness with its vast vertical viewing angle.
ㆍThe 220° mode provides 220° horizontal and 52° vertical field of view, which can help users to monitor areas that need wider viewing angle such as corners of the building.
Improve bandwidth by up to 99% using WiseStream II
When Hanwha Techwin’s original video compression technology WiseStream II is combined with H.265 compression, the bitrate data is reduced by up to 99% compared to current H.264 technology. The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.
A comprehensive range of intelligent video analytics
Wisenet P series multi-sensor cameras support a variety of exclusive video and audio analytics, providing enhanced monitoring solutions and market intelligence.
* Supported video analytics may vary depending on the camera.
Optimized for Indoor and Outdoor
Wisenet P series multi-sensor cameras are suitable to monitor even the smallest details in a wide area. They are ideal for applications such as warehouse, shopping mall entrances, train stations, parking lots, and more supporting IP66, IK10.
Технические характеристики
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
-
-
Video Imaging Device 1/2.8" 5MP CMOSx4 Resolution [180° mode]
6096x2540, 5760x2400, 5472x2280, 5184x2160, 4800x2000, 4560x1900, 4096x1704, 3840x1600, 2688x1120, 2560x1064, 2048x852, 1920x800, 1280x532, 640x264
[220° mode]
7744x1936, 6096x1524, 5760x1440, 5472x1368, 5184x1296, 4800x1200, 4560x1140, 4096x1024, 3840x960, 2688x672x 2560x640, 2048x512, 1920x480, 1280x320, 640x160Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps(60Hz/50Hz)Min. Illumination Color: 0.15Lux(F2.0, 1/30sec)
B/W: 0.01Lux (F2.0, 1/30sec)Video Out USB : Micro USB Type B, 1280x720 for installation Lens Focal Length (Zoom Ratio) 4mm Fixed Max. Aperture Ratio F2.0 Angular Field of View [180° mode] H: 180°, V: 70°
[220° mode] H: 220°, V: 52°Min. Object Distance 3m(9.84ft) Focus Control Fixed Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0°~355° / 0°~60° / - Operational Camera Title Displayed up to 75 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNRⅤ Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 16ea, rectangle zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Directional detection, Motion detection,, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Business Intelligence Heatmap Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC recording at event triggers
Alarm outputNetwork Ethernet RJ-45(10/100/1000BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Smart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(15 users) / Multicast
Multiple streaming(Up to 5 or 3 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)General Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)Edge Storage Micro SD/SDHC/SDXC 1slot 256GB Memory 8GB RAM, 4GB Flash Environmental & Electrical Operating Temperature / Humidity -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -40°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH Certification IP66, IK10 Input Voltage PoE+(IEEE802.3at, Class4), 12VDC Power Consumption PoE+: Max 25.5W
12VDC: Max 21.0WMechanical Color / Material Ivory / Aluminum Product Dimensions / Weight Ø253x165mm(9.96"x6.5"), 3200g
-
