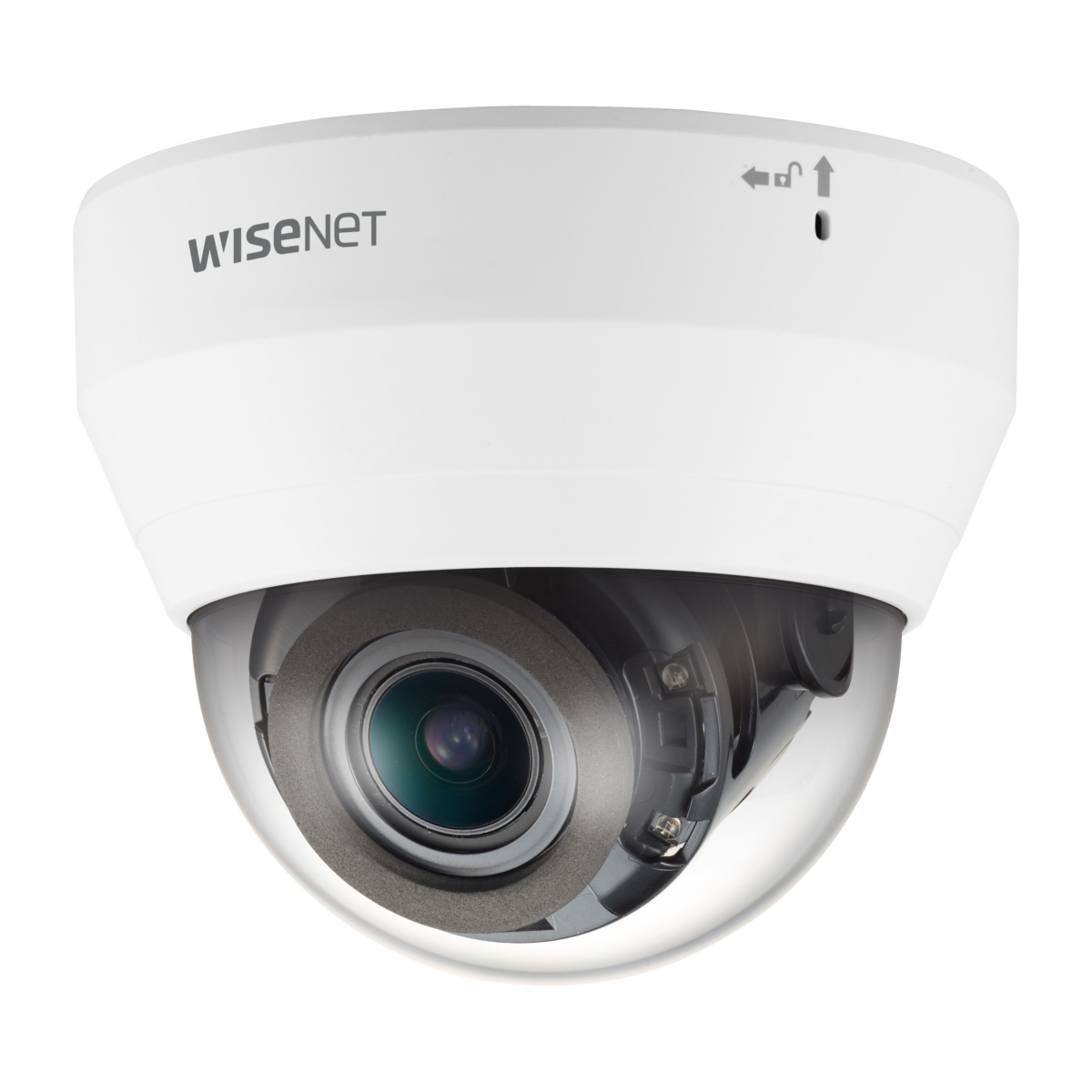

QND-6072R

Copy a URL
Copy

2МП H.265 сетевая купольная камера с ИК-подсветкой

Key Features
• Макс. разрешение 2 Мп (1920 x 1080)
• 0,03 лк (цветн.), 0 лк (Ч/Б, ИК светодиод вкл.)
• 3,2–10 мм (3,1x), вариофокальный объектив
• До 30 кад/с при 2 Мп при любом разрешении (H.265/H.264)
• Поддержка кодеков H.265, H.264, MJPEG, многоканальная передача видео
• Обнаружение движения, внешнего воздействия, расфокусировки
• Поддержка функции обзора коридоров (90°/270°) и функции коррекции искажения объектива (LDC)
• Слот для карт памяти microSD/SDHC/SDXC (макс. 128 Гб)
• Дальность видимости с ИК-подсветкой 20 м, технология PoE/12 В пост. тока

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Для увеличения изображения наведите курсор мыши

Copy a URL
Copy

Загрузить изображение Загрузить все изображения

QND-6072R

2МП H.265 сетевая купольная камера с ИК-подсветкой

Key Features

• Макс. разрешение 2 Мп (1920 x 1080)
• 0,03 лк (цветн.), 0 лк (Ч/Б, ИК светодиод вкл.)
• 3,2–10 мм (3,1x), вариофокальный объектив
• До 30 кад/с при 2 Мп при любом разрешении (H.265/H.264)
• Поддержка кодеков H.265, H.264, MJPEG, многоканальная передача видео
• Обнаружение движения, внешнего воздействия, расфокусировки
• Поддержка функции обзора коридоров (90°/270°) и функции коррекции искажения объектива (LDC)
• Слот для карт памяти microSD/SDHC/SDXC (макс. 128 Гб)
• Дальность видимости с ИК-подсветкой 20 м, технология PoE/12 В пост. тока

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
QND-6072R
Datasheet
Contact Sales
High quality cameras offering cost effective solutions
The Q series cameras are affordable products that offer essential features in creating a safe and secure environment.

High quality cameras offering cost effective solutionsHigh quality cameras offering cost effective solutions
5MP and 2MP resolutions
The Q series offers two resolutions options to give you the freedom to choose the camera that best fits your security needs. The 5MP cameras can support up to 30fps, providing real-time video with 2592 x 1944 resolution and up to 15fps of WDR performance, providing crisp and vivid monitoring.

5MP and 2MP resolutions5MP and 2MP resolutions
Enhanced video analytics
The Q series cameras are equipped with a wide range of Intelligent Video Analytics features, helping users detect different types of incidents and have full situational awareness of their facility.

Enhanced video analyticsEnhanced video analytics
Hallway view for monitoring vertical shaped areas
In a vertical shaped environment, such as a store aisle, traditional horizontal shaped cameras waste bandwidth and storage on unnecessary edges. The Hallway view creates 3 : 4 and 9 : 16 ratio video which is vertically oriented and maximizes image quality in a narrow environment.

Hallway view for monitoring vertical shaped areasHallway view for monitoring vertical shaped areas

Технические характеристики

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Network
  • Security
  • General
  • Environmental & Electrical
  • Mechanical
  • DORI (EN62676-4 standard)
  • Video
    Imaging Device 1/2.8" CMOS
    Resolution 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 15fps (@2MP Max. 4fps)
    Min. Illumination Color: 0.03Lux(F1.6, 1/30sec)
    BW: 0Lux(IR LED on)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    Lens
    Focal Length (Zoom Ratio) 3.2~10mm(3.1x) manual varifocal
    Max. Aperture Ratio F1.6(Wide)~F2.9(Tele)
    Angular Field of View H: 109°(Wide)~33°(Tele) / V: 58°(Wide)~18°(Tele) / D: 132°(Wide)~38°(Tele)
    Min. Object Distance 0.5m (1.64ft)
    Focus Control Manual
    Lens Type DC auto iris
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, WDR, SSDR
    Wide Dynamic Range 120dB
    Digital Noise Reduction SSNR
    Motion Detection 4ea, polygonal zones
    Privacy Masking 6ea, rectangular zones
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    Handover(PTZ preset)
    Audio In Built-in mic
    Light Type IR LED (850nm)
    Light Viewable Length 20m(65.62ft)
    Network
    Ethernet RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    Smart Codec WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(6 users) / Multicast
    Multiple streaming(Up to 3 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    Security
    OS / Firmware Protect Firmware encryption
    User authentication Digest Authentication, Prevent brute-force attack
    Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
    Secure Communication HTTPS, SRTP, WSS(Websocket secure)
    Access Control Access control based on IP address
    Data Protect Authentication information encryption, ZIP compression encryption
    Audit User Access/System/Event log management
    Device ID Device Certificate(Hanwha Private Root CA)
    Secure Storage SDcard partition encrypt
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
    Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
    Memory 512MB RAM, 256MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -10°C~+55°C(+14°F ~ +131°F) / 0~90% RH
    Storage Temperature / Humidity -30°C~+60°C(-22°F ~ +140°F) / 0~90% RH
    Input Voltage PoE(IEEE802.3af, Class3), 12VDC
    Power Consumption PoE: Max 7.70W, typical 6.00W
    12VDC: Max 6.50W, typical 5.10W
    Mechanical
    Color / Material White / Plastic
    RAL Code RAL9003
    Product Dimensions / Weight ø119.8x98.8mm(ø4.72x3.89"), 320g(0.71 lb)
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) Wide: 27.4m(89.85ft) / Tele: 128.8m(422.56ft)
    Observe (63PPM/ 19PPF) Wide: 11.0m(35.94ft) / Tele: 51.5m(169.02ft)
    Recognize (125PPM/ 38PPF) Wide: 5.5m(17.97ft) / Tele: 25.8m(84.51ft)
    Identify (250PPM/ 76PPF) Wide: 2.7m(8.99ft) / Tele: 12.9m(42.26ft)
