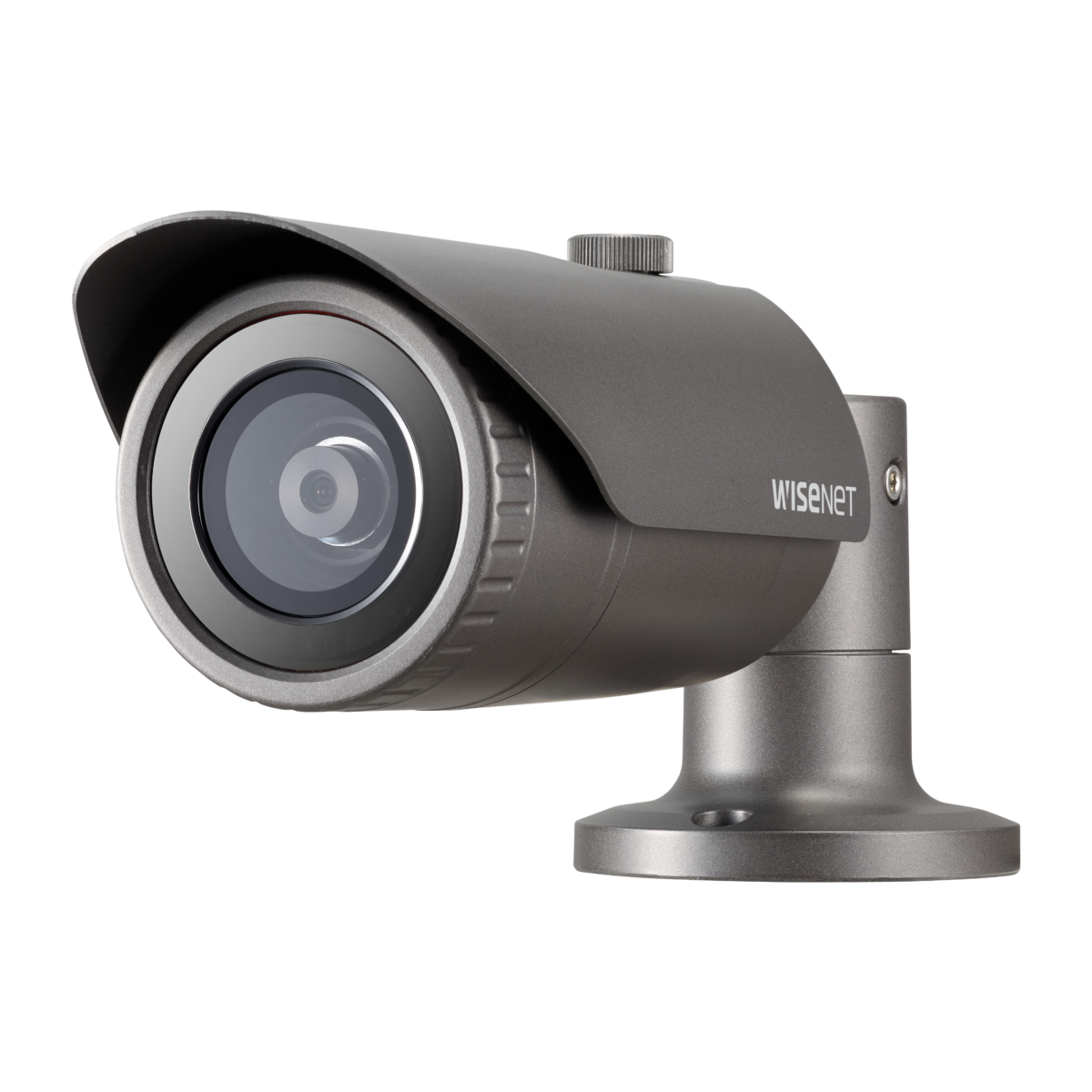

QNO-7012R

Copy a URL
Copy

4MP IR Bullet Camera

Key Features
• Maximum 4MP resolution
• Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On)
• 2.8mm fixed focal
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90°/270°), LDC support
• Micro SD/SDHC/SDXC memory slot (128GB)
• IR viewable length 20m (65.62ft)
• IP66, IK10, PoE, 12VDC

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Для увеличения изображения наведите курсор мыши

Copy a URL
Copy

Загрузить изображение Загрузить все изображения

QNO-7012R

4MP IR Bullet Camera

Key Features

• Maximum 4MP resolution
• Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On)
• 2.8mm fixed focal
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90°/270°), LDC support
• Micro SD/SDHC/SDXC memory slot (128GB)
• IR viewable length 20m (65.62ft)
• IP66, IK10, PoE, 12VDC

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
QNO-7012R
Datasheet
Contact Sales

Технические характеристики

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Network
  • Security
  • General
  • Environmental & Electrical
  • Mechanical
  • DORI (EN62676-4 standard)
  • Video
    Imaging Device 1/3" CMOS
    Resolution 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 15fps (@4MP Max. 2fps)
    Min. Illumination Color : 0.15Lux (F2.0, 1/30sec)
    B/W : 0Lux (IR LED On)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    Lens
    Focal Length (Zoom Ratio) 2.8mm fixed focal
    Max. Aperture Ratio F2.0
    Angular Field of View H: 108°, V: 60°, D: 122°
    Focus Control Fixed
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0°~360° / 0°~100° / 0°~360°
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, WDR, SSDR
    Wide Dynamic Range 120dB
    Digital Noise Reduction SSNR
    Motion Detection 4ea, polygonal zones
    Privacy Masking 6ea, rectangular zones
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum/Maximum/Anti flicker (1/5~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90°/270°)
    Analytics Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    Handover(PTZ preset)
    Audio In Selectable(mic in/line in)
    Light Type IR LED (850nm)
    Light Viewable Length 20m (65.62ft)
    Network
    Ethernet RJ-45 (10/100BASE-T)
    Video Compression H.265/H.264 : Main/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    Smart Codec Manual (5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(6 users) / Multicast
    Multiple streaming(Up to 3 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
    SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
    Application Programming Interface ONVIF Profile S/G/T, SUNAPI (HTTP API)
    Security
    OS / Firmware Protect Firmware encryption
    User authentication Digest Authentication, Prevent brute-force attack
    Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
    Secure Communication HTTPS, SRTP, WSS(Websocket secure)
    Access Control Access control based on IP address
    Data Protect Authentication information encryption, ZIP compression encryption
    Audit User Access/System/Event log management
    Device ID Device Certificate(Hanwha Private Root CA)
    Secure Storage SDcard partition encrypt
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
    Memory 512MB RAM, 256MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -40°C~+55°C (-40°F ~ +131°F) / 0~95% RH
    ＊Start up should be done at -30°C or above
    Storage Temperature / Humidity -40°C~+60°C (-40°F~+140°F) / 0~95% RH
    Certification IP66, IK10
    Input Voltage PoE(IEEE802.3af, Class3), 12VDC
    Power Consumption PoE: Max 10.7W, typical 8W
    12VDC: Max 9.1W, typical 6.8W
    Mechanical
    Color / Material Dark grey / Aluminum
    Product Dimensions / Weight ø70.0x246.0mm(ø2.76x9.69"), 700g(1.54 lb)
    Compatible Conduit hole / Gangbox Single, Double, 4"Octagon
    Backbox SBO-100B1
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) 37.5m(123.17ft)
    Observe (63PPM/ 19PPF) 15.0m(49.27ft)
    Recognize (125PPM/ 38PPF) 7.5m(24.63ft)
    Identify (250PPM/ 76PPF) 3.8m(12.32ft)
