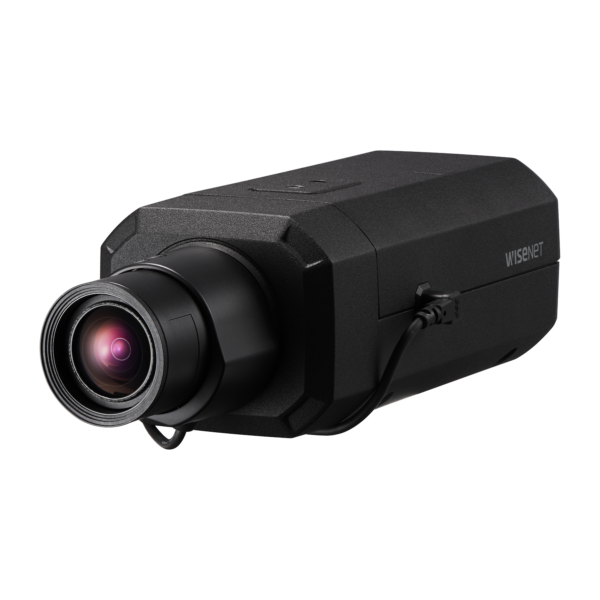

PNB-A9001LP

Copy a URL
Copy

4K Low-Mid speed LPR/ANPR Box Camera

Key Features
• Max. 4K resolution
• 0.03Lux@F1.2(Color), 0.003Lux@F1.2(B/W)
• Day & Night(ICR), WDR(120dB)
• H.265, H.264, MJPEG codec, WiseStreamⅡ
• Wisenet Road AI application (Pre-installed)
- License/Number Plate Recognition
- Make/Model/Color Recognition
- Black/White list notification
- Smart Search (LP/NP, Country, brand, model, color)

* Supported features may vary by region. Please contact your regional manager for more details.

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Для увеличения изображения наведите курсор мыши

Copy a URL
Copy

Загрузить изображение Загрузить все изображения

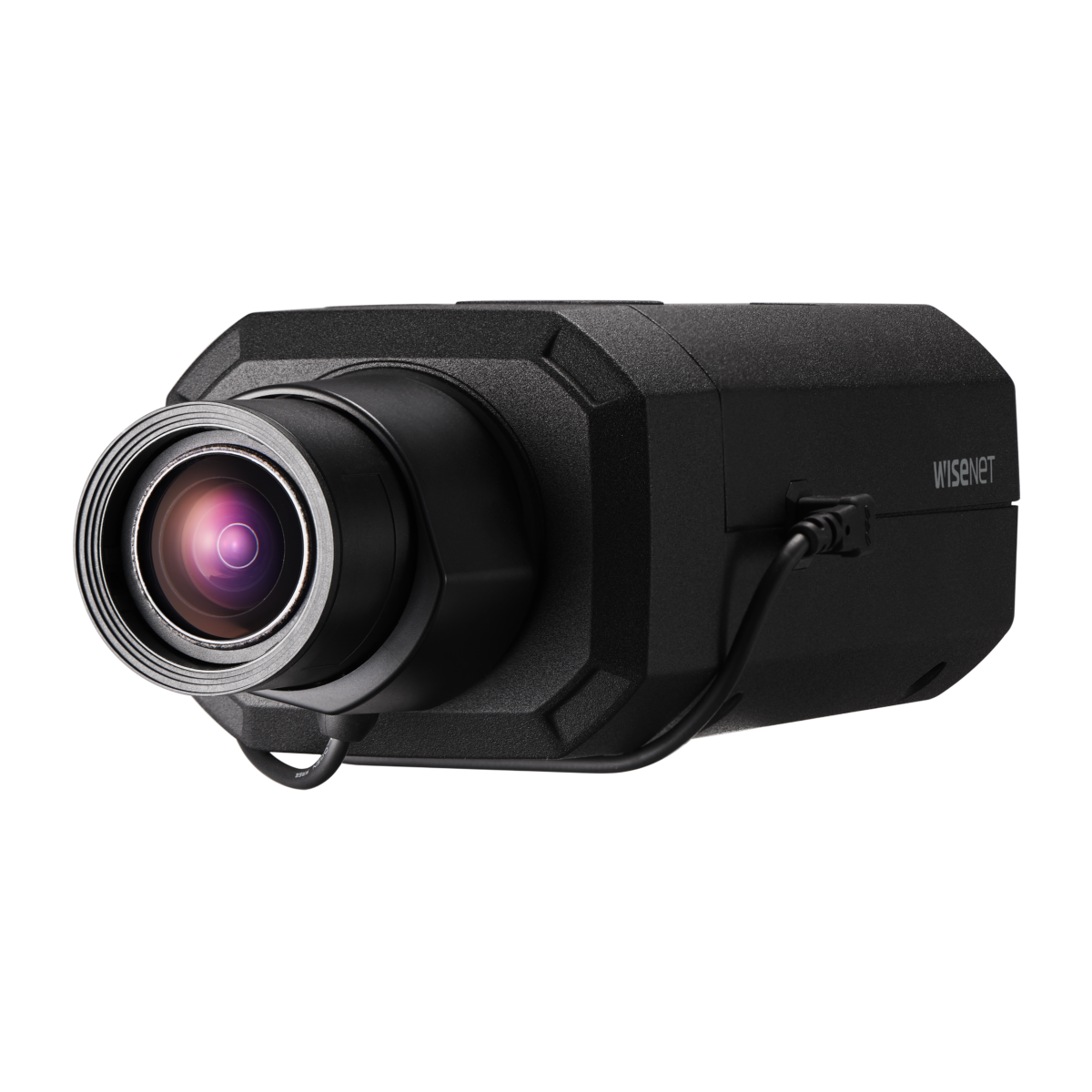

PNB-A9001LP

4K Low-Mid speed LPR/ANPR Box Camera

Key Features

• Max. 4K resolution
• 0.03Lux@F1.2(Color), 0.003Lux@F1.2(B/W)
• Day & Night(ICR), WDR(120dB)
• H.265, H.264, MJPEG codec, WiseStreamⅡ
• Wisenet Road AI application (Pre-installed)
- License/Number Plate Recognition
- Make/Model/Color Recognition
- Black/White list notification
- Smart Search (LP/NP, Country, brand, model, color)

* Supported features may vary by region. Please contact your regional manager for more details.

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
PNB-A9001LP
Datasheet
Contact Sales

Технические характеристики

  • Video
  • Lens
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • Wisenet Road AI LPR/ANPR/MMCR
  • Video
    Imaging Device 1/1.8" CMOS
    Resolution 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768,
    800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.03Lux(F1.2, 1/30sec)
    B/W : 0.003Lux(F1.2, 1/30sec)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focus Control Simple focus
    Lens Type DC auto iris, P iris, Manual, I-CS
    Mount Type C mount, CS mount
    Optional Lens CBC (3.9~10mm F1.5, E3Z3915CS/EG3Z3915FCS/EG3Z3915KCS/EG3Z3915TCS)
    CBC (9~50mm F1.5, EG6Z0915FCS/EG6Z0915KCS/EG6Z0915TCS)
    THEIA (4~10mm F1.4, SL410M/SL410A/SL410P/TL410A/TL410P)
    THEIA (12~50mm F1.8, SL1250M/SL1250A/SL1250P/TL1250A/TL1250P)
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, WDR, SSDR
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Stabilization Support(built-in gyro sensor)
    Motion Detection 8ea, polygonal zones
    Privacy Masking 6ea, rectangle zones
    - Color: Gray/Black/White
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection
    Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
    Alarm I/O Input 1ea / Output 1ea / DC 12V Power(Max. 50mA) 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    Handover
    Audio playback
    Audio In Selectable(mic in/line in/Built in mic)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    Network
    Ethernet Metal shielded RJ-45(10/100/1000 BASE-T)
    Video Compression H.265/H.264: Main/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(6 users) / Multicast
    Multiple streaming(Up to 3 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Device Certificate(Hanwha Techwin Root CA)
    Secure boot
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
    Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Pre-installed with 32GB Micro SD to support 10,000 LPR images
    Memory 4096MB RAM, 512MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Input Voltage PoE+(IEEE802.3at), 12VDC
    Power Consumption PoE+: Max 16.50W, typical 12.50W
    12VDC: Max 13.50W, typical 10.80W
    Mechanical
    Color / Material Body: Black / Aluminum
    Product Dimensions / Weight 81x67x165mm(3.19x2.64x6.48"), Weight : 0.88kg(1.94lb)
    Wisenet Road AI LPR/ANPR/MMCR
    Solution City Traffic
    Speed Description Regular Speed
    Lane Coverage Up to 2 lanes (5m/18ft Wide) (with 50mm lens & Ext. IR)
    Speed limit Up to 100kmh (65mph) (with 50mm lens & Ext. IR)
    Min. Forward Distance 16m (52ft)
    Max. Forward Distance 36m (120ft) (with 50mm lens & Ext. IR)
    Max. Horizontal Angle 25°
    Max. Vertical Angle 25°
    Horizontal Offset Up to 7m (24ft)
    Camera Height Up to 7m (24ft)
    Vehicle Recognition Make : 70+
    Model : 600+
    Color : 11
    Available Countries Albania, Armenia, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Germany, Hungary, Ireland, Iceland, Italy, Lithuania, Luxembourg, Latvia, Montenegro, North Macedonia, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovenia, Slovakia, Spain, Switzerland, Turkey, United Kingdom, United States of America, Canada, Russian Federation, Azerbaijan, Uzbekistan, Ukraine, Kyrgyzstan, Kazakhstan, Tajikistan, Georgia, Turkmenistan, Australia, New zealand, Indonesia, Vietnam, Bahrain, Kuwait, Oman, Qatar, KSA (Kingdom of Saudi Arabia), UAE, South Africa, Hongkong/Taiwan (MMCR is not available)
