PTZ

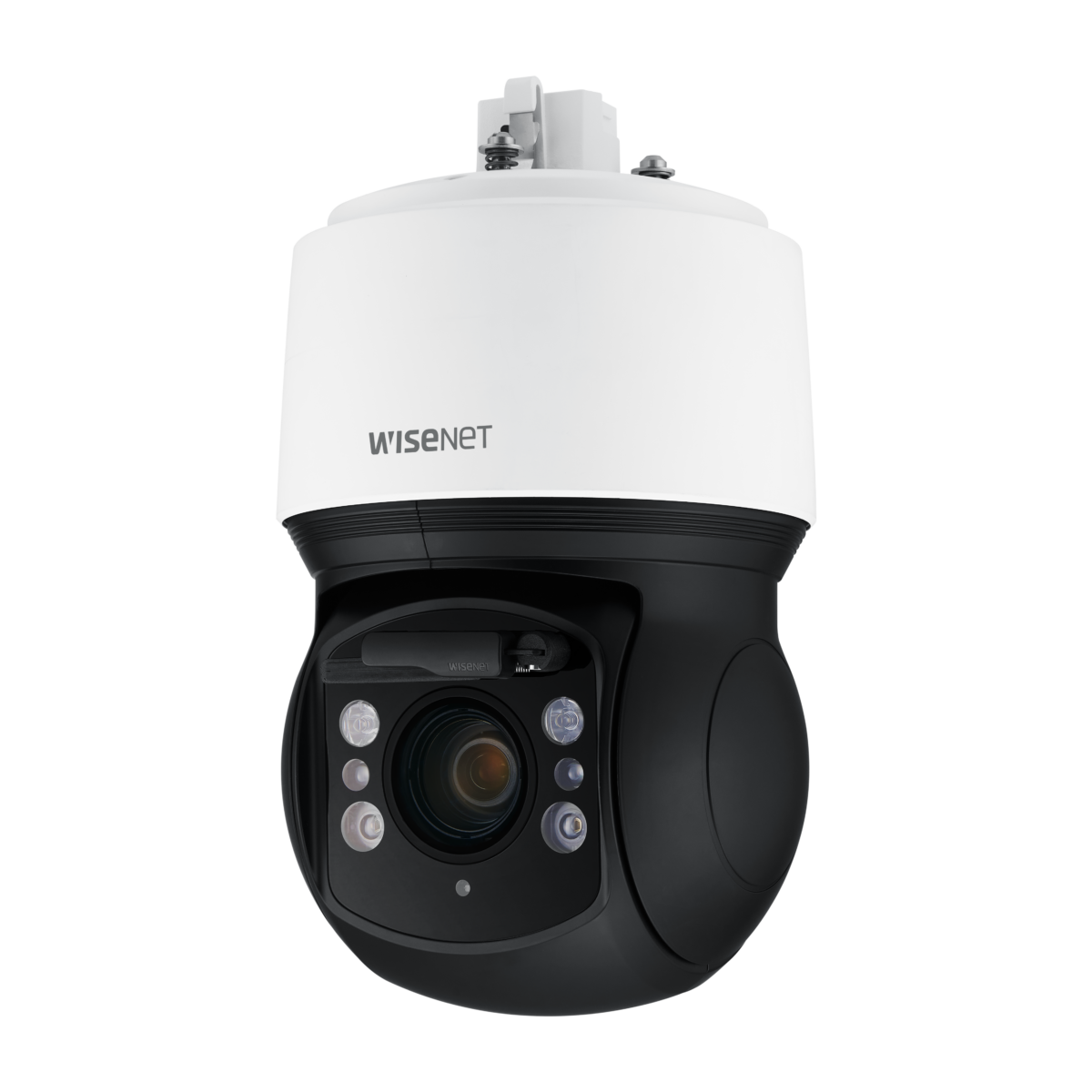

XNP-9300RW

4Kネットワーク30倍ズーム IR PTZ(ワイパー付)

Key Features

• 最大4Kの解像度
• 5~150mm(30倍)光学ズーム
• 最大IR照射距離200m
• デイナイト(ICR)、エクストリームWDR、DIS(内蔵ジャイロセンサー)
• インテリジェント分析、オブジェクトオートトラッキング(人/車両)、
ターゲットロックトラッキング
• H.264、H.265、MJPEG、WiseStream II対応
• IP66、IK10、NEMA4X
• PTZ PLUSデザインの適用(コンパクト、軽量、シンプルなケーブル接続)
• インジェクタによる SFP サポート

["camera","network","ptz"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

4Kの解像度と30倍のズーム、強力なPTZパフォーマンス
PTZ PLUSは、自社開発の4Kの30倍ズームレンズで驚異的な性能をサポートします。強力な新しいPTZのパフォーマンスを体験してください。
AIベースのオブジェクトオートトラッキング
PTZ PLUSは、AIディープラーニングアルゴリズムに基づいたオブジェクト(人や車両)のオートトラッキング(自動追跡)に対応しています。



画面上のオブジェクトを右クリックするだけで、オブジェクトをロックし、対象のオブジェクトを追跡します。(ターゲットロックトラッキング)
すべてのズーム比で最適化されたIRを提供するWISE IR
PTZ PLUSは、Wise IRを使用して完全な暗闇(最大200メートル)での監視を可能にします。すべてのズーム比でIR(赤外線)の値を最適化します。



製品の仕様

映像
映像素子Size1/2.8"
TypeCMOS
解像度2592x1944, 320x240, 1280x720, 1280x1024, 720x480, 1280x960, 1024x768, 2592x1464, 720x576, 640x360, 640x480, 800x600, 800x448, 3840x2160, 1600x1200, 1920x1080
最大フレームレートH.265/H.26430fps/25fps(60Hz/50Hz)
MJPEG30fps(@8MP Max. 5fps)
最低照度Color(1/30sec, 30IRE)0.1
BW(1/30sec, 30IRE)0.01
レンズ
Focal Length (mm)5~150
Zoom RatioOptical30x
Digital32x
最大口径比Wide1.6
Tele4.56
画角Horizontal57.42°~2.19°
Vertical33.54°~1.25°
最低被写体距離 3m(9.84ft)
フォーカス制御Oneshot AF, Focus save
レンズタイプDC auto iris
パンニング/チルト/回転
パンニング/チルト/回転範囲パンニング360° Endless
チルト90°~-20°
パンニング速度PresetMax. 500°/sec
Manual0.024°/sec~250°/sec
チルト速度PresetMax. 350°/sec
Manual0.024°/sec~250°/sec
シーケンスAuto Run, Group(6ea), Preset(300ea), Trace, Tour, Swing, Schedule
プリセット精度Up to ±0.1°, Pan/Tilt correction
カメラ機能
方向インジケーターSupport
デイナイトAuto(ICR)
逆光補正HLC, BLC, WDR, SSDR
Wide Dynamic Range (dB)120
ノイズ軽減SSNRⅤ
手振れ補正Support(built-in gyro sensor)
デフォッグSupport
モーション検知Quantity8ea
Shape8point Polygonal zones
プライバシーマスクQuantity32ea
Shape4point Quadrangle zones
Color / OptionWhite, Mosaic, Black, Green, Gray, Red, Blue
ゲイン制御Manual, Max gain
ホワイトバランスMercury, Manual, NarrowATW, Sodium, Outdoor, AWC, ATW, Indoor
電子シャッターModeMinimum, Maximum, Anti flicker
Speed Range2~1/12,000sec
映像回転Flip&Mirror
Alarm InterfaceOthersSupport alarm I/O via optional I/O box
アラームトリガーNetwork disconnect, Alarm input, Analytics
アラームイベントHandover: PTZ preset, send message by HTTP/HTTPS/TCP, Notification: e-mail, MQTT: publication, Audio clip playback, File upload(image): e-mail/FTP/SFTP, Alarm output, Recording: SD/SDHC/SDXC or NAS recording at event triggers, File upload(video clip): FTP/SFTP
音声入力Support via optional I/O box
音声出力Support via optional I/O box
Light TypeIR LED
Light Viewable LengthIRWise IR 200m(656.17ft)
IR Wavelength850nm
水切りSupport(with Wiper, Lens heater)
オートトラッキングObject auto tracking(Person/Vehicle), Target lock tracking, Support
Analytics
Analytics EventsNormalTampering, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Shock detection, Virtual line(Crossing, Direction) , Motion detection, Audio detection, Face detection, Fog detection, Sound classification
ネットワーク
イーサネットMetal shielded RJ-45(10/100BASE-T)
映像圧縮H.265/H.264: Main/Baseline/High, MJPEG
スマートコーデックWiseStreamⅡ, Manual
ビットレート制御H.265/H.264: CBR or VBR, MJPEG: VBR
ストリーミング性能UnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
プロトコルRTCP, RTP(UDP), NTCIP 1205, IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, IPv6, UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, SFTP, UPnP, CDP, LLDP, MQTT, RTSP, ICMP, SRTP(TCP, UDP Unicast)
応用インターフェイスONVIFT, G, S
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectSecure boot, Signed firmware, Encrypted firmware
User authenticationPrevent brute-force attack, Digest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationWSS(WebSocket Secure), HTTPS, SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageTPM(Trusted platform module), SDcard partition encrypt(AES-256), HTPM(Hanwha Trusted Platform Module)
Security CertificateCyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)
一般
メモリーRAM4GB
Flash512MB
SDカードMicro SD/SDHC/SDXCMax. 512GB x 2slot(Total 1TB)
動作環境/電源
動作温度/湿度Temperature-40°C~+55°C(-40°F~+131°F)
Humidity0~100% RH(condensing)
OthersHumidity control with AIR vent, +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C
保管温度/湿度Temperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
EPA(Effective Projected Area)0.048㎡
電源PoE++(IEEE802.3bt type3, Class6)
消費電力PoEMax. 42W, Typical 20W
物理的仕様
カラーBlack, White
材質Aluminum, PC(Polycarbonate)
RAL コードRAL9005, RAL9003
寸法ø184.9x318.8mm(7.28x12.55")
重量5,400g(11.90lb)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide140.2m(460ft)
Tele4018.1m(13182.6ft)
Observe (63PPM/ 19PPF)Wide56.1m(184ft)
Tele1607.2m(5273.1ft)
Recognize (125PPM/ 38PPF)Wide28.0m(92ft)
Tele803.6m(2636.5ft)
Identify (250PPM/ 76PPF)Wide14.0m(46ft)
Tele401.8m(1318.3ft)
