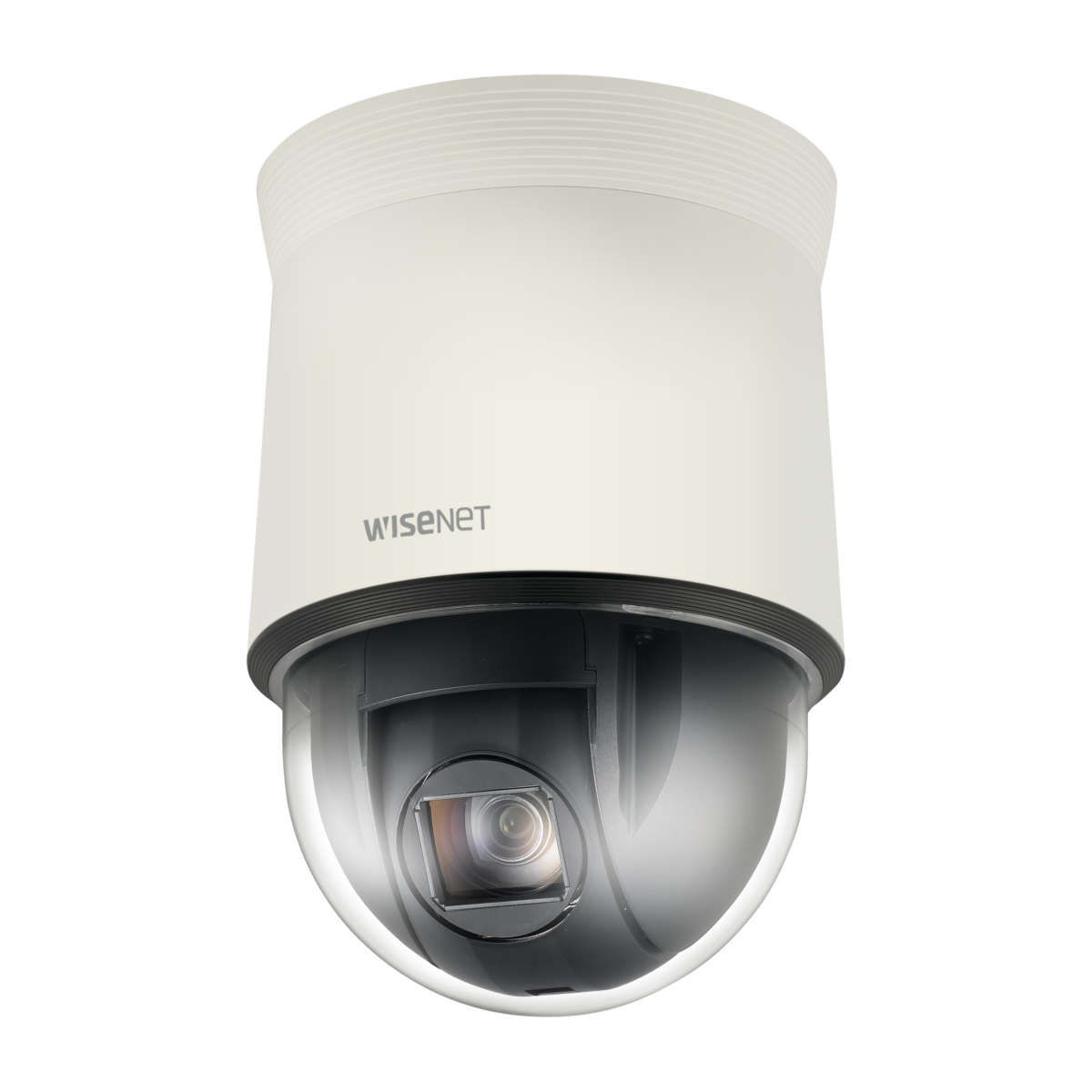

XNP-6320

Copy a URL
Copy

2M H.265 ネットワーク 32倍ズーム PTZカメラ

Key Features
• 最大2MP(1920 x 1080)の解像度
• H.265、H.264、MJPEG対応、WiseStreamII対応
• デイナイト(ICR)、WDR(150dB)
• ジャイロセンサーを内蔵したDIS
• オートトラッキング、インテリジェント分析
• メモリースロット(最大512GB)
• IP66、IK10(SHP-3701H付属)

※ Product availability may vary by region.
Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

画像にマウスを合わせると拡大されます

Copy a URL
Copy

XNP-6320

2M H.265 ネットワーク 32倍ズーム PTZカメラ

Key Features

• 最大2MP(1920 x 1080)の解像度
• H.265、H.264、MJPEG対応、WiseStreamII対応
• デイナイト(ICR)、WDR(150dB)
• ジャイロセンサーを内蔵したDIS
• オートトラッキング、インテリジェント分析
• メモリースロット(最大512GB)
• IP66、IK10(SHP-3701H付属)

※ Product availability may vary by region.
Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

製品の仕様

  • 映像
  • レンズ
  • パンニング/チルト/回転
  • カメラ機能
  • ネットワーク
  • 一般
  • 動作環境/電源
  • 物理的仕様
  • DORI (EN62676-4 standard)
  • 映像
    映像素子 1/2.8" 2MP CMOS
    解像度 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    最大フレームレート H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    最低照度 Color: 0.05Lux(F1.6, 1/30sec)
    B/W: 0.005 Lux(F1.6, 1/30sec)
    映像出力 CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    USB: Micro USB Type B, 1280x720 for installation
    レンズ
    焦点距離 4.44~142.6mm(32x) zoom
    最大口径比 F1.6(Wide)~F4.4(Tele)
    画角 H: 61.8°(Wide)~2.19°(Tele) / V: 36.2°(Wide)~1.24°(Tele)
    最低被写体距離 Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft)
    フォーカス制御 Oneshot AF
    レンズタイプ DC auto iris
    パンニング/チルト/回転
    パンニング範囲 360° Endless
    パンニング速度 Preset: 700°/sec, Manual: 0.024°/sec~200°/sec
    チルト範囲 210°(-15°~195°)
    チルト速度 Preset: 700°/sec, Manual: 0.024°/sec~200°/sec
    シーケンス Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
    プリセット精度 ±0.2°
    カメラ機能
    カメラタイトル Displayed up to 85 characters
    方向インジケーター Support
    デイナイト Auto(ICR)
    逆光補正 BLC, HLC, WDR, SSDR
    Wide Dynamic Range 150dB
    ノイズ軽減 SSNRⅤ
    手振れ補正 Support(built-in gyro sensor)
    デフォッグ Support
    モーション検知 8ea, 8point polygonal zones
    プライバシーマスク 32ea, rectangular Support
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    ゲイン制御 Low / Middle / High
    ホワイトバランス ATW / AWC / Manual / Indoor / Outdoor
    電子シャッター Minimum / Maximum / Anti flicker (2~1/12,000sec)
    映像回転 Flip, Mirror
    インテリジェントビデオ Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
    シリアル通信 RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
    アラーム入出力 Input 4ea / Output 2ea
    アラームトリガー Analytics, Network disconnect, Alarm input
    アラームイベント File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    PTZ Preset
    音声入力 Selectable(mic in/line in)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    音声出力 Line out, Max.output level: 1Vrms
    オートトラッキング Support
    ネットワーク
    イーサネット RJ-45 (10/100BASE-T)
    映像圧縮 H.265/H.264: Main/Baseline/High, MJPEG
    音声圧縮 G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    スマートコーデック Manual(5ea area), WiseStreamⅡ
    ビットレート制御 H.264/H.265: CBR or VBR
    MJPEG: VBR
    ストリーミング性能 Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
    プロトコル IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, NTCIP
    セキュリティ HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    応用インターフェイス ONVIF Profile S/G
    SUNAPI(HTTP API)
    Wisenet open platform
    一般
    ウェブビューワー言語 English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    SDカード Micro SD/SDHC/SDXC 2slot 512GB
    メモリー 1024MB RAM, 256MB Flash
    動作環境/電源
    動作温度/湿度 -10°C~+55°C(-14°F~+131°F) / Less than 90% RH
    保管温度/湿度 -30°C~+60°C(-22°F~+140°F) / Less than 90% RH
    規格認証 IP66, IK10
    電源 PoE+(IEEE802.3at, Class4), 24VAC
    消費電力 24VAC: Max 20W
    物理的仕様
    カラー/材質 Ivory / Plastic+Aluminum
    寸法/重量 ø152x218mm(5.98x8.58"), 1.7Kg(3.75 lb)
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) Wide: 64.2m(210.5ft) / Tele: 2009.0m(6591.3ft)
    Observe (63PPM/ 19PPF) Wide: 25.7m(84.2ft) / Tele: 803.6m(2636.5ft)
    Recognize (125PPM/ 38PPF) Wide: 12.8m(42.1ft) / Tele: 401.8m(1318.3ft)
    Identify (250PPM/ 76PPF) Wide: 6.4m(21.1ft) / Tele: 200.9m(659.1ft)
