PTZ NEW

TNP-A7430RW

4MP AI Ruggedized PTZ Camera

Key Features

• Max 4MP 43x
• Support optical Image Stabilization
• IP66, IP68, NEMA4X
• NEMA TS-2 (2.2.7.2-8, 2.2.8, 2.2.9)
• IR viewable length 450 m
• Wind load max.160 mph
• Operating temperature : -50 ~60°C
• Analytics events based on AI engine :
• Object detection (Person/Face/Vehicle/License plate),
• IVA (Virtual line/Area, Enter/Exit, Loitering,
Direction, Intrusion), Slip&Fall detection, Motion detection
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• extremeWDR, WiseNRⅡ(Based on AI engine),
WiseStream(Based on AI engine)
• Support Wisepower(Power monitoring, ECO mode)
• Device certificate(Hanwha Vision Root CA), Secure storage
(Secure element with FIPS 140-3 level3/CC EAL6+ certified), SBOM


Wisenet 9 WN9 Wisenet9 WN 9

Contact Sales Datasheet

["camera","network","ptz"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

Wisenet 9: Powered for Performance

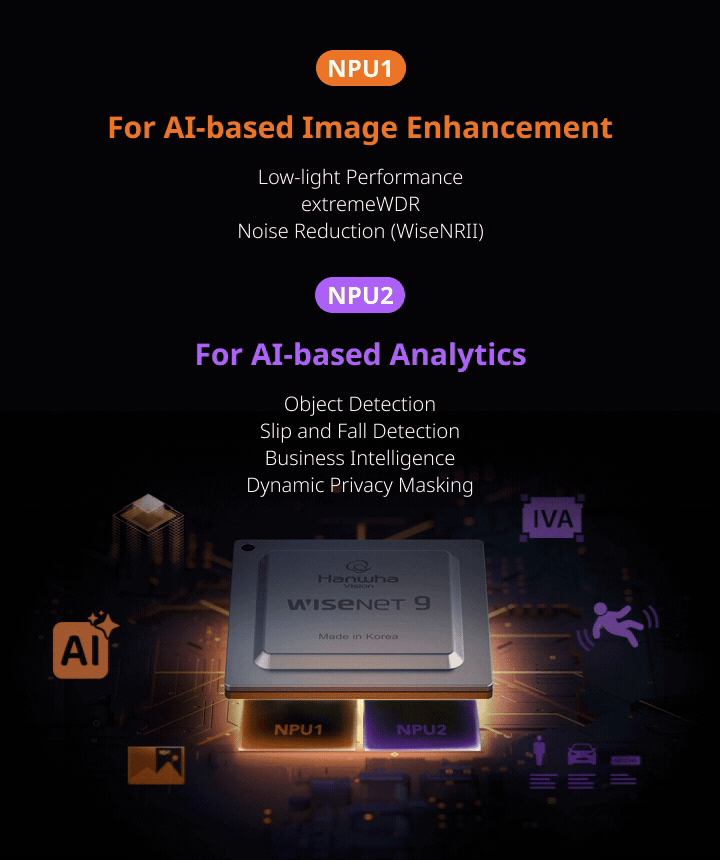

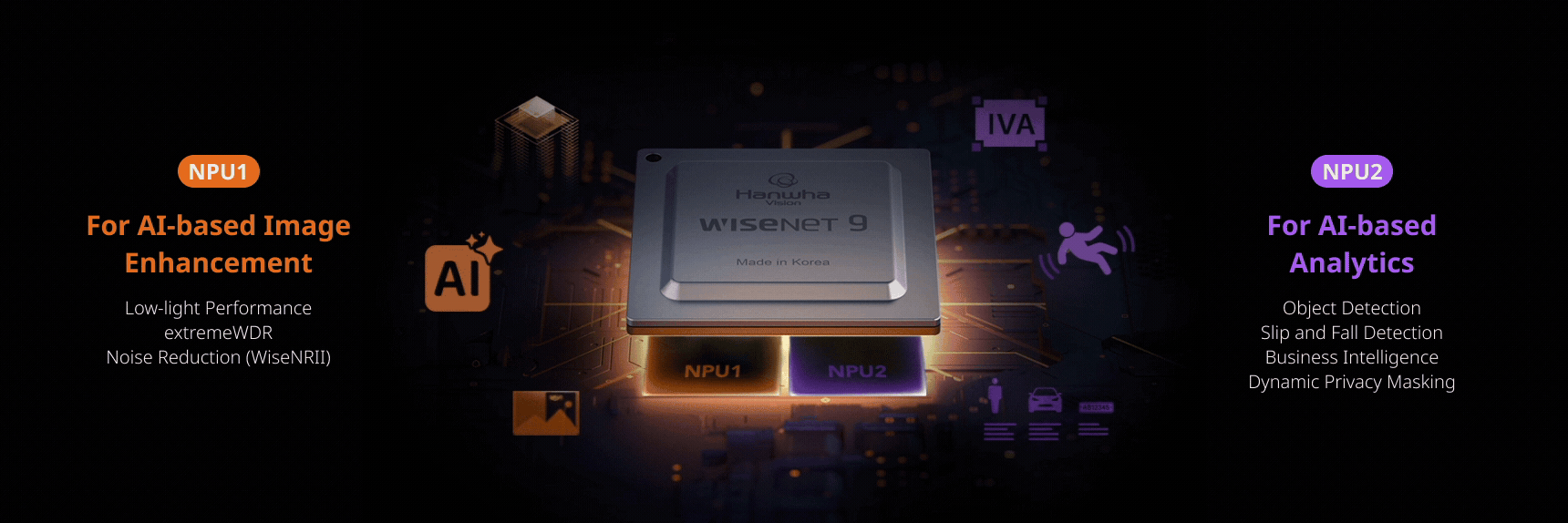

At the core of the T Ruggedized PTZ cameras is the Wisenet 9 SoC with a Dual NPU architecture. This design separates image processing and AI analytics, ensuring each operates at full capacity without interference. The result is consistently superior low-light and WDR performance alongside fast, reliable AI analytics — even under demanding workloads.
WiseStream compression further optimizes bandwidth and storage without losing detail, making it ideal for large-scale, mission-critical surveillance.

Reliability in Extreme Environment

Built for the harshest environments, the T AI Ruggedized PTZ Camera operates flawlessly from -50°C to +60°C and endures winds up to 257km/h. Its anti-icing technology and durable build ensure uninterrupted monitoring through snow, rain, or heat. Certified with IK10 and MIL-STD-810H standards, it delivers mission-critical reliability anywhere.

* The IK10 certification does not cover the window

Precision in Motion, Clarity in Action

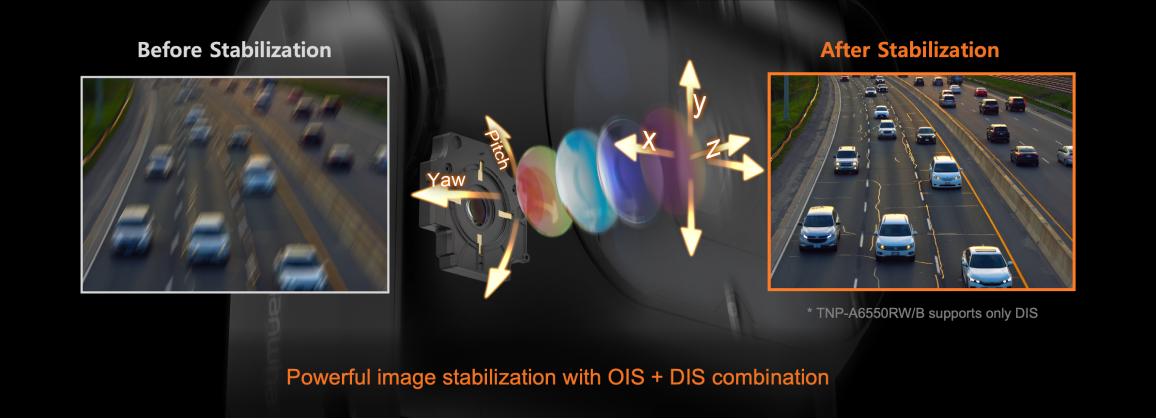

The T Ruggedized PTZ cameras capture every detail, near or far. With a 55x optical zoom and 500m IR range, they deliver clear images even in total darkness. Advanced *OIS and DIS stabilization minimize shake from wind or vibration, ensuring steady, sharp footage in any condition.

* TNP-A6550RW supports DIS only

Advanced AI for Intelligent Surveillance

TNP-A9430RW/A7430RW/A6550RW delivers more than visibility — it delivers intelligence. Unlimited Dynamic Privacy Masking keeps sensitive areas protected even during movement, while seamless auto-tracking maintains focus on targets amid larger motions or crowds. Together, these AI features boost situational awareness and operational efficiency.

Product Specification

Video
Imaging DeviceSize1/1.8"
TypeCMOS
Resolution2592x1520, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps(@4MP Max. 5fps)
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.04 Lux(F1.69, 1/30sec, 30 IRE)
BW(1/30sec, 30IRE)0.004 Lux(F1.69, IR LED Off), 0Lux (IR LED On)
Lens
Focal Length (mm)6.1~262.4
Zoom RatioOptical43
Digital1367
Max Aperture Ratio (F number)WideF1.69
TeleF4.92
Angular Field of ViewHorizontal62.5˚(Wide)~1.72˚(Tele)
Vertical38.42˚(Wide)~1.00˚(Tele)
Diagonal70.34˚(Wide)~2.02˚(Tele)
Min. Object Distance5m(16.4ft)
Focus ControlAuto, Manual, Oneshot AF, Focus save
Lens TypeP iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan360° Endless
TiltUpright: 140°(50°~-90°), Canted: 165°(75°~-90°), Inverted: 140°(90°~-50°)
Pan SpeedPresetMax. 160°/sec
Manual0.024°/sec~160°/sec
Tilt SpeedPresetMax. 160°/sec
Manual0.024°/sec~160°/sec
SequencePreset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy±0.07°
Operational
Direction IndicatorSupport
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
Optical Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionGray, Green, Red, Blue, Black, White, Mosaic
Dynamic Privacy Masking: Color / OptionGray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Gain ControlOff, Max gain, Manual
White BalanceATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
Electronic ShutterModeMinimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Speed Range2~1/30,000sec
Video RotationFlip&Mirror
Installation DirectionUpright, Inverted, Canted
Alarm InterfaceOthersSupport alarm I/O via optional I/O box
Alarm TriggersAnalytics, Network disconnect, Alarm input, Time schedule, MQTT subscription
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio InSupport via optional I/O box
Audio OutSupport via optional I/O box
Light TypeIR LED
Light Viewable LengthIR500m(1,640.42ft)
IR Wavelength850nm
Water RemovalSupport(with Wiper)
Ice RemovalWindow, Pan
Auto TrackingSupport, Object auto tracking(Person/Vehicle), Target lock tracking
Analytics
Classified Object TypePerson, Face, Vehicle, License plate
AttributesPersonUpper/Lower clothes color, Gender, Bag
VehicleType(car, bus, truck, motorcycle, bicycle), Color
FaceAge, Gender, Face mask, Glasses
ThumbnailBestShot
Analytics EventsBased on AI EngineObject detection, Virtual line(Crossing/Direction), Motion detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Auto tracking
NormalTampering, Audio detection, Shock detection
Network
EthernetRJ-45 Push-pull Connector(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecWiseStream(Based on AI engine)
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, NTCIP 1205, Syslog
Application Programming InterfaceONVIFS, G, T, M
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control, MAC-based access control, Auto logout
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256), Secure element
Supply Chain SecuritySBOM
Security CertificateSecure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
General
MemoryRAM4GB
Flash16GB eMMC
Edge StorageMicro SD/SDHC/SDXCMax. 1TB x 1slot
Edge Storage(OnCloud)Micro SD/SDHC/SDXCMax. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
Operating ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~100% RH(condensing)
Others+74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Wind LoadSustained 257km/h (160mph)
EPA(Effective Projected Area)0.095㎡
Input VoltagePoE++(IEEE802.3bt type4, Class8)
Power ConsumptionPoEMax 71W, Typical 33.2W
WisepowerPower mode, Power monitoring, ECO mode
Mechanical
ColorWhite, Black
MaterialAluminum, PC(Polycarbonate), ITO Glass
Material ManagementDeclarationRoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act)
RAL CodeRAL9003, RAL9005
Product DimensionsUpright Normal/Inverted : 293.4(W)x205.6(D)x399.9(H)mm (11.55x8.09x15.74") Upright Canted : 293.4(W)x301.9(D)x363.6.9(H)mm (11.55x11.89x14.31")
Product Weight10.5kg(9.5kg: Excluding installation part)
Certifications & Standards
EMCEN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, EN 55035
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471, IEC/EN/UL 62368-1 GS UL cUL CE FCC VCCI CB
EnvironmentIEC 60529 IP66, IEC 60529 IP68, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, MIL-STD-810H 501.7, MIL-STD-810H 502.7, MIL-STD-810H 503.7, MIL-STD-810H 505.7, MIL-STD-810H 506.6, MIL-STD-810H 507.6, MIL-STD-810H 509.7, MIL-STD-810H 510.7, MIL-STD-810H 521.4, IEC 60068-2-52:2017, NEMA TS2, 2.1.9, NEMA TS2, 2.1.10, NEMA TS2, 2.2.4, NEMA 250, 5.6, ASTM B117
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide85.4m(280.28ft)
Tele3454m(11330ft)
Observe (63PPM/ 19PPF)Wide34.2m(112.11ft)
Tele1381m(4532ft)
Recognize (125PPM/ 38PPF)Wide17.1m(56.06ft)
Tele690.7m(2266ft)
Identify (250PPM/ 76PPF)Wide8.5m(28.03ft)
Tele345.3m(1133ft)
