XNB-8000

Copy a URL
Copy

5M H.265 Box Camera

Key Features
• 0.07Lux@F1.2 (Color), 0.007Lux@F1.2 (B/W)
• Max. 30fps@all resolutions (H.265/H.264)
• DIS with built-in Gyro sensor
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification
• Motion detection, Handover
• Dual SD slots (Max. 512GB)
• WiseStream II support

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Mouse over image to zoom

Copy a URL
Copy

Image Download Total Image Download

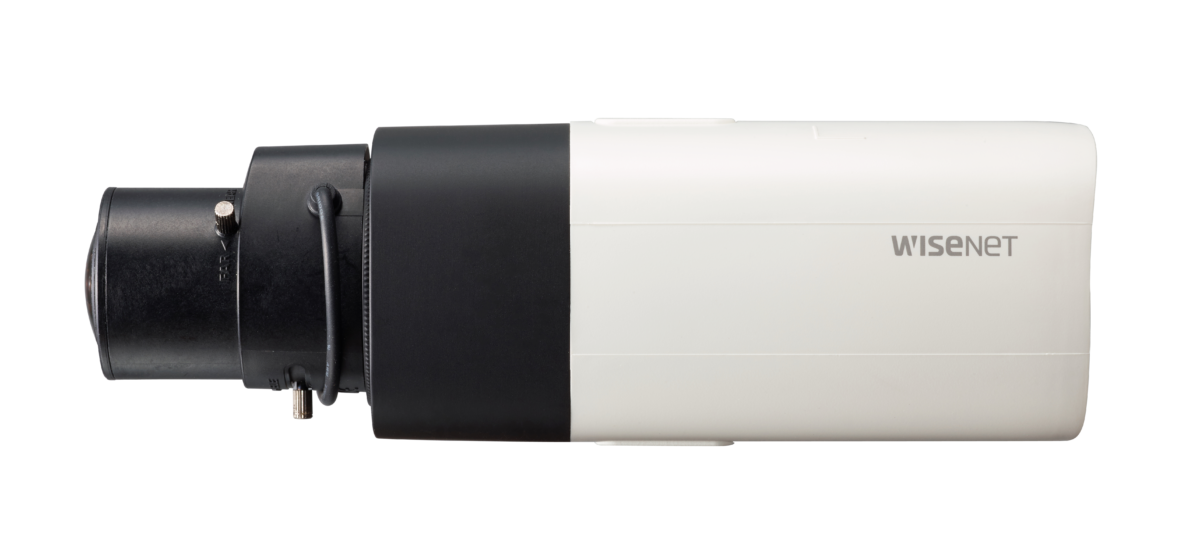

XNB-8000

5M H.265 Box Camera

Key Features

• 0.07Lux@F1.2 (Color), 0.007Lux@F1.2 (B/W)
• Max. 30fps@all resolutions (H.265/H.264)
• DIS with built-in Gyro sensor
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification
• Motion detection, Handover
• Dual SD slots (Max. 512GB)
• WiseStream II support

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
XNB-8000
Datasheet
Contact Sales

Product Specification

  • Video
  • Lens
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • Video
    Imaging Device 1/1.8" 6MP CMOS
    Resolution 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max.30fps/25fps(60Hz/50Hz)
    MJPEG: Max.30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.07Lux(F1.2, 1/30sec)
    BW: 0.007Lux(F1.2, 1/30sec)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focus Control Simple focus
    Lens Type DC auto iris, P iris
    Mount Type C mount, CS mount
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, HLC, WDR
    Wide Dynamic Range 120dB
    Digital Noise Reduction SSNRV
    Digital Image Stabilization Support(built-in gyro sensor)
    Defog Support(built-in optical filter)
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, 4point polygonal zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
    Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    Audio In Selectable(mic in/line in/built-in mic)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    Network
    Ethernet RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law / G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 8/16/32/48KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP (TCP, UDP Unicast), LLDP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
    Memory 1024MB RAM, 256MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC
    Power Consumption PoE: Max 8.50W
    12VDC: Max 7.50W
    24VAC: Max 8.50W
    Mechanical
    Color / Material Black, Ivory / Plastic
    Product Dimensions / Weight 73.1x66.6x147.8mm(2.88x2.62x5.82"), 420g(0.93 lb)
