In-ceiling

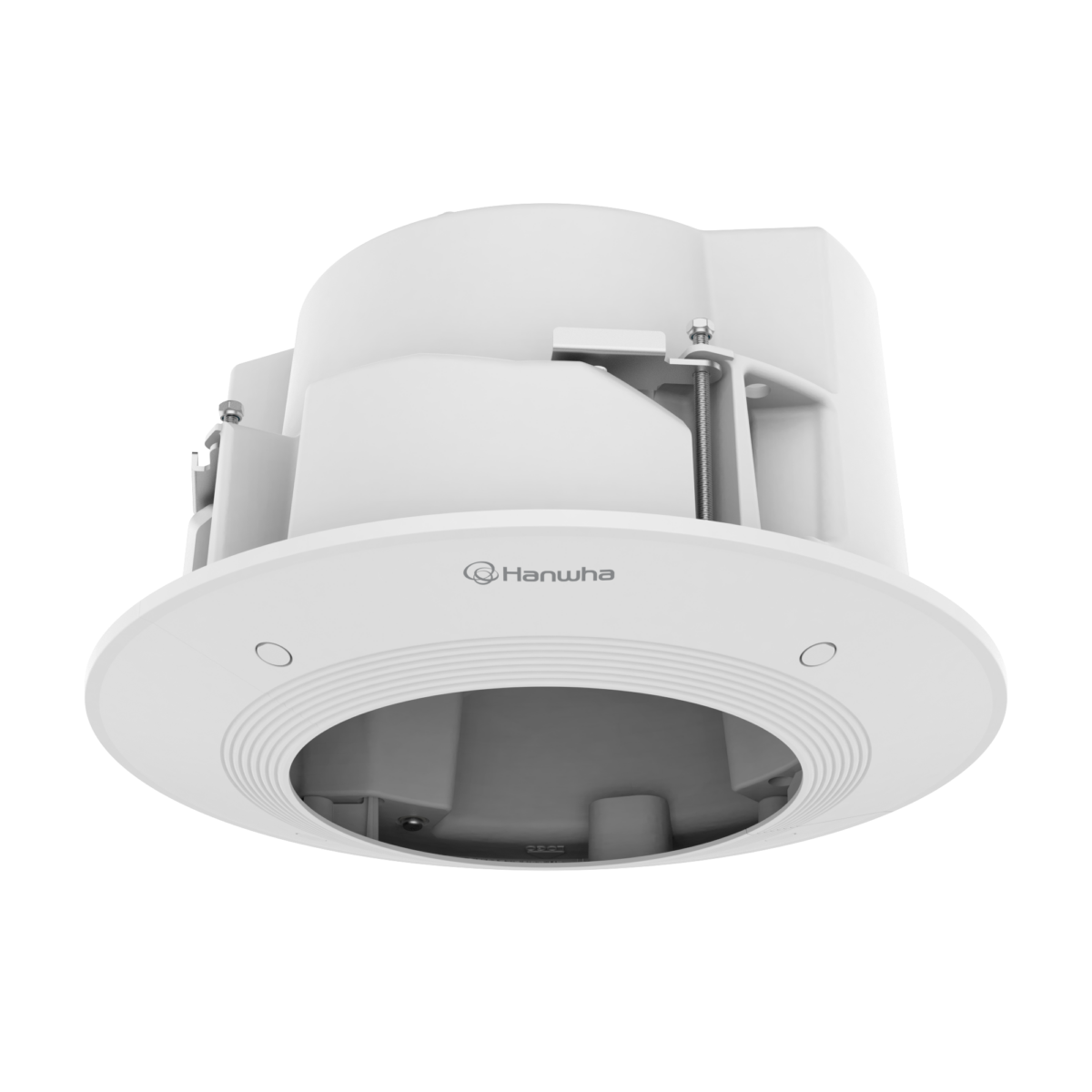

SHP-1730FPW
In-ceiling Mount
Key Features
• Color : White
• Material : Enclosure - Aluminum, Top cover - Polycarbonate(PC)
• Product dimensions / weight : ø311x188mm (ø12.24x7.40") / 2.45kg (5.40lb)
※ Ceiling hole size : ø266mm (ø10.50")
• Max. load : 7kg (15.43lb)
※ Maximum load of ceiling board : 15kg (33.10lb)
• Material : Enclosure - Aluminum, Top cover - Polycarbonate(PC)
• Product dimensions / weight : ø311x188mm (ø12.24x7.40") / 2.45kg (5.40lb)
※ Ceiling hole size : ø266mm (ø10.50")
• Max. load : 7kg (15.43lb)
※ Maximum load of ceiling board : 15kg (33.10lb)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Технические характеристики
| Mechanical | |
|---|---|
| Color | White |
| Material | Enclosure : Aluminum Top cover : Polycarbonate(PC) |
| RAL code | RAL9003 |
| Product dimensions / weight | ø311x188mm (ø12.24x7.40") / 2.45kg (5.40lb) ※ Ceiling hole size : ø266mm (ø10.50") |
| Tile thickness | 10~70mm (0.4~2.8") |
| Mount Screw size | TR20, T30 |
| Max. load | 7kg (15.43lb) ※ Maximum load of ceiling board : 15kg (33.10lb) |
| Conduit hole | 19.1mm(3/4") (M25) / 12.7mm(1/2") (M20) |
| Supported products | XNP-C7310R, XNP-C9310R |
Связанные продукты
XNP-C9310R
4K 31x AI IR PTZ Camera
XNP-C7310R
4MP 31x AI IR PTZ Camera
