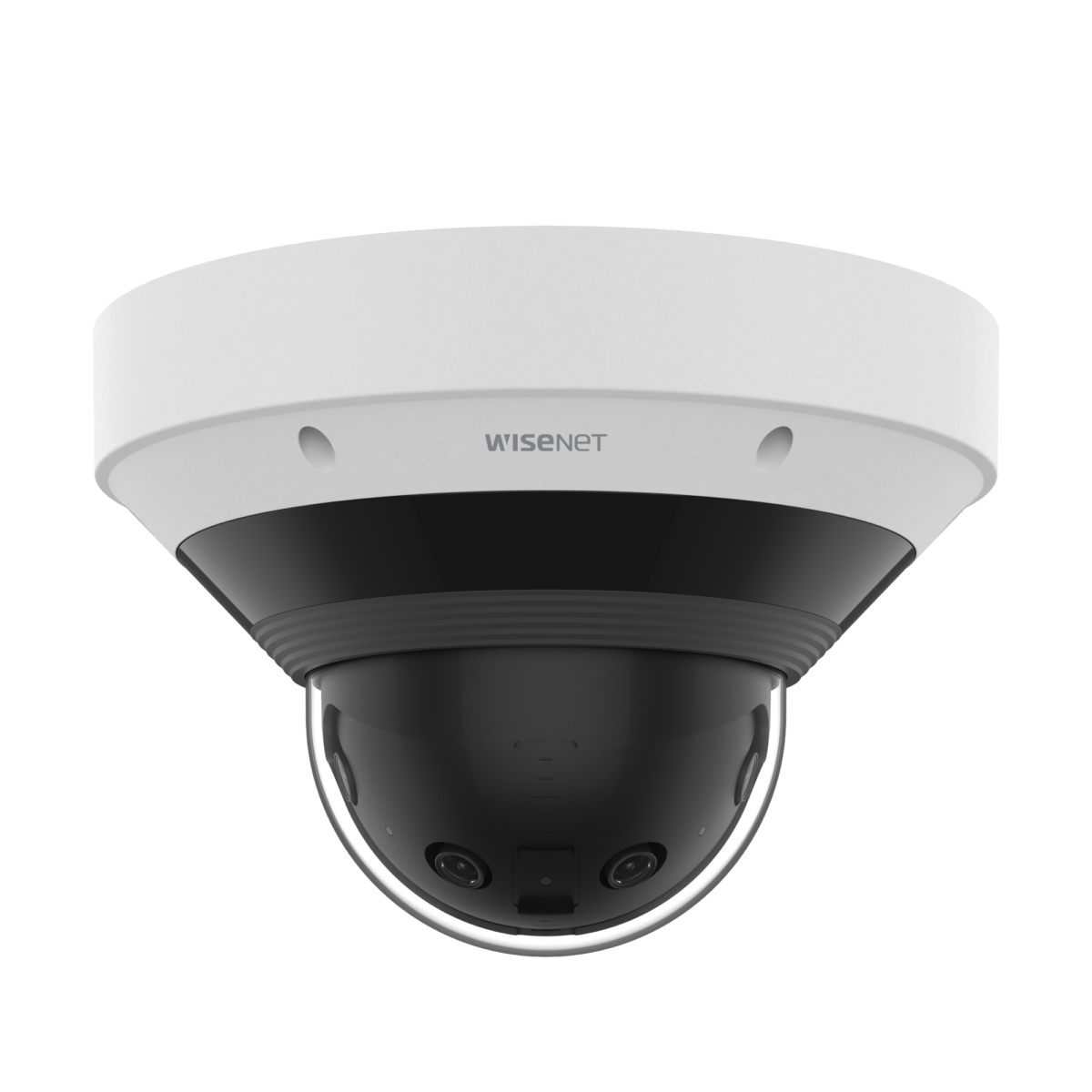

PNM-C9022RV
8MP IR Panoramic Camera
• Max. 8MP panoramic stitching image
• IR viewable length Maximum 20m (65.6ft), WiseIR
• H.265/H.264/MJPEG Max. 20fps
• H.265, H.264, MJPEG codec
• Day & Night (ICR), extremeWDR (120 dB)
• Hard-coated dome bubble
• WiseNRⅡ(Based on AI engine), WiseStreamⅢ (Based on AI engine)
• Analytics events based on AI engine : Object classification(Person/Vehicle)
• Analytics events : Defocus detection, Motion detection, Tampering, Audio detection,
Sound classification, Virtual area(Appear/Disappear)
• IP66, IK10, NEMA 250 type 4X
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.
Learn more
Wide Coverage with 4CH Panoramic Camera
PNM-C9022RV delivers a 209⁰ panoramic view, offering wide-angle panoramic monitoring and cost savings.


AI-based Video Analytics
PNM-C9022RV uses AI to detect and classify objects in real-time, improving object identification reliability. AI algorithms trigger events by distinguishing classified objects, enhancing video analytics accuracy. Users can preset AI-based detection areas with virtual line settings.


24/7 Surveillance with WiseIR
PNM-C9022RV offers four independent IR zones, providing up to 20 meters of IR range depending on the scene. This eliminates blind spots and ensures clear monitoring, even in night or low-light conditions.


Технические характеристики
Video | ||
---|---|---|
Imaging Device | Size | 1/2.8" |
Type | CMOS | |
Resolution | 2560x784, 1280x392, 3648x1152, 5120x1568 | |
Max. Framerate | H.265/H.264 | 20fps/20fps(60Hz/50Hz) |
MJPEG | 20fps | |
Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
BW(1/30sec, 30IRE) | 0.01 | |
Video Out | USB: Micro USB Type B | |
Lens | ||
Focal Length (mm) | 2.8 | |
Zoom Ratio | Optical | 4x |
Max Aperture Ratio (F number) | Wide | 2.0 |
Angular Field of View | Horizontal | 209° |
Vertical | 60° | |
Min. Object Distance | 5m(16.4ft) | |
Focus Control | Fixed | |
Lens Type | Fixed iris | |
Pan / Tilt / Rotate | ||
Pan / Tilt / Rotate Range | Pan | 0°~360° |
Tilt | 0°~65° | |
Operational | ||
Day & Night | Auto(ICR) | |
Backlight Compensation | BLC, WDR, SSDR | |
Wide Dynamic Range (dB) | 120 | |
Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
Motion Detection | Quantity | 8ea |
Shape | 8point Polygonal zones | |
Privacy Masking | Quantity | 10ea |
Shape | Rectangular zones | |
Color / Option | White, Blue, Green, Black, Red, Gray | |
Gain Control | Low, High, Middle | |
White Balance | ATW, AWC, Outdoor, Indoor, Manual | |
Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
Speed Range | 2~1/12,000sec | |
Digital PTZ | Support | |
Video Rotation | Flip, Mirror | |
Alarm Interface | In/Out | 2 configurable I/O ports |
Alarm Triggers | Time schedule, Alarm input, Network disconnect, App event, Analytics | |
Alarm Events When Alarm Trigger Occurred | Notification: e-mail, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Audio clip playback, Alarm output, File upload(image): e-mail/FTP | |
Audio In | Selectable(mic in/line in) | |
Audio Out | Line out | |
Light Type | IR LED | |
Light Viewable Length | IR | WiseIR 20m(65.62ft) 4 individual zones with Automatic/Manual level adjustment |
IR Wavelength | 850nm | |
Analytics | ||
Classified Object Type | Person, Vehicle | |
Thumbnail | BestShot | |
Analytics Events | Based on AI Engine | Virtual area(Loitering/Intrusion/Enter/Exit), Virtual line(Crossing/Direction), Object detection |
Normal | Tampering, Motion detection, Defocus detection, Audio detection, Virtual area(Appear/Disappear), Sound classification | |
Network | ||
Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
Audio Compression | G.726(ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.711 u-law /G.726 selectable, AAC-LC: 48Kbps at 16KHz | |
Smart Codec | WiseStreamⅢ, Manual | |
Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
Streaming | Unicast | Up to 20 users |
Multicast | Support | |
Multiple Streaming | Up to 3 profiles | |
Protocol | DDNS, RTP(UDP), IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, IGMP, HTTP, UPnP, LLDP, RTSP, ICMP, SRTP(TCP, UDP Unicast) | |
Application Programming Interface | ONVIF | T, M, S, G |
Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
Direct Cloud Connection | Optional (needs gateway) | |
Security | ||
OS / Firmware Protect | Signed firmware, Secure boot, Encrypted firmware | |
User authentication | Digest authentication, Prevent brute-force attack | |
Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
Secure Communication | SRTP, WSS(WebSocket Secure), HTTPS | |
Access Control | IP-based access control | |
Data Protect | Encrypt compress for live recording file export, Encryption credentials | |
Audit | Access / System / Event Log management | |
Device ID | Device certificate(Hanwha Vision Root CA) | |
Secure Storage | SDcard partition encrypt(AES-256), TPM(Trusted platform module) | |
Security Certificate | TPM 2.0 with FIPS 140-2 level2 | |
General | ||
Memory | RAM | 4GB |
Flash | 512MB | |
Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
Environmental & Electrical | ||
Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
Humidity | 0~95% RH(non-condensing) | |
Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
Humidity | 0~90% RH(non-condensing) | |
Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
Power Consumption | PoE | Max. 24.5W, typical 11.3W |
12VDC | Max. 22W, typical 10.4W | |
Power Redundance Failover | Support | |
Mechanical | ||
Color | White | |
Material | Aluminum | |
RAL Code | RAL9003 | |
Product Dimensions | ø253x170mm(9.96x6.69") | |
Product Weight | 2,900g(6.39lb) | |
Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
Compatible Gang Box | 4" Octagon, Square, Single, Double | |
Certifications & Standards | ||
EMC | ICES-3(A)/NMB-3(A), VCCI CISPR 32 Class A, FCC 47 CFR 15 Subpart B Class A, RCM AS-NZS CISPR 32 Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835 | |
Safety | IEC 62471, UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | |
Environment | NEMA 250 type 4X, IEC/EN 63000, IEC 62262 IK10, IEC 60529 IP66 | |
DORI (EN62676-4 standard) | ||
Detect (25PPM/ 8PPF) | Wide | 52.2m(171.25ft) |
Observe (63PPM/ 19PPF) | Wide | 20.9m(68.50ft) |
Recognize (125PPM/ 38PPF) | Wide | 10.4m(34.25ft) |
Identify (250PPM/ 76PPF) | Wide | 5.2m(17.13ft) |
