Купольные

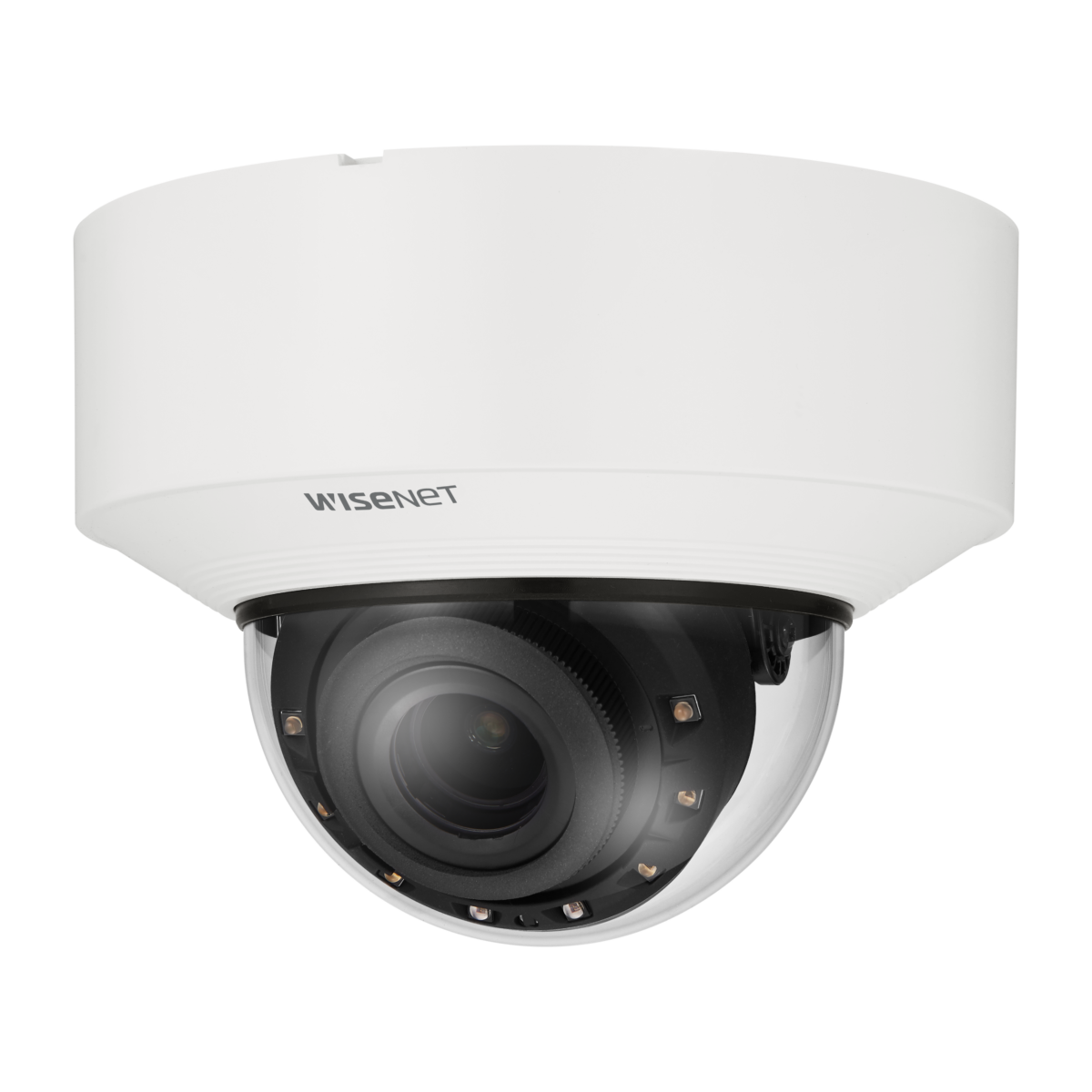

XND-C6083RV

2MP AI IR Dome Camera

Key Features

• 2MP resolution
• 2.8~12mm (4.3x) motorized varifocal
• Color: 0.01 Lux(F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
• Maximum 60 fps (H.265/H.264)
• WiseIR: IR viewable length 40 m (131.23 ft)
• Day & Night (ICR), extremeWDR (150 dB)
• Hard-coated dome bubble
• WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
• DIS with built-in Gyro sensor
• Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle/License plate),
IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion)
• Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
• IP52, IK08

Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

Reducing False alarm based on AI

The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. The cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.

AI-based object detection for operational efficiency

Metadata including information (person, face, vehicle, license plate) is sent to the backend server and used to extract information on specific events. Operators are able to search AI events on the backend server. This greatly enhances search efficiency and reduces time spent on searching events. Also it can be reducing false alarm when operators were monitoring scene.

AI-based WiseNRII and Prefer Shutter Control

WiseNRII is a new enhancement which utilizes AI to identify object movement and reduce blur in noisy, low light environments. AI-based Preferred Shutter technology automatically adjusts the shutter speed based on classified objects in motion and the lighting conditions in a scene to reduce motion blur and deliver the clearest images.

AI-based Image Optimization, WiseStreamⅢ

By utilizing the results of AI-based object detection, WiseStreamIII technology adjusts the video encoder to focus maximum video quality on the detected objects in a scene while scaling back encoding on the rest of the scene.

Технические характеристики

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.01
BW(1/30sec, 30IRE)0.001
Video OutUSB: Micro USB Type B
Lens
Focal Length (mm)2.8~12
Max Aperture Ratio (F number)Wide1.4
Tele3.6
Angular Field of ViewHorizontal120°~27°
Vertical63°~15°
Diagonal143°~32°
Min. Object Distance0.5m(1.64ft)
Focus ControlSimple focus, Manual
Lens TypeDC auto iris with hall sensor(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~360°
Tilt0°~75°
Rotate0°~355°
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)150
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionGray, Green, Red, Blue, Black, White, Mosaic
Gain ControlOff, Max gain, Manual
White BalanceATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDCSupport(Fill/stretch mode)
Electronic ShutterModeMinimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Speed Range2~1/12,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm InterfaceIn/Out2 configurable I/O ports
Alarm TriggersAnalytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio InSelectable(mic in/line in)
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIRWiseIR 40m(131.23ft)
IR Wavelength850nm
Analytics
Classified Object TypePerson, Face, Vehicle, License plate
AttributesVehicleType(car, bus, truck, motorcycle, bicycle)
ThumbnailDetectionShot
Analytics EventsBased on AI EngineObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
NormalDefocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
Business IntelligenceBased on AI EnginePeople counting, Queue management, Heatmap, Vehicle counting
Network
EthernetMetal shielded RJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart CodecManual, WiseStreamⅢ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming InterfaceONVIFS, G, T, M
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageHTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
Security CertificateCyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)
General
MemoryRAM2GB
Flash512MB
Edge StorageMicro SD/SDHC/SDXCMax. 512GB x 1slot
Environmental & Electrical
Operating ConditionTemperature-10°C~+50°C(+14°F~+122°F)
Humidity0~100% RH(condensing)
OthersHumidity control with AIR vent
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3), 12VDC
Power ConsumptionPoEMax 12.95W, typical 10.8W
12VDCMax 12.5W, typical 10.0W
Mechanical
ColorWhite
MaterialAluminum, PC(Polycarbonate), Hard-coated dome
RAL CodeRAL9003
Product Dimensionsø160x118mm(ø6.30x4.65")
Product Weight1,350g(2.98lb)
Compatible Conduit Hole12.7mm(1/2")(M20)
Compatible Gang BoxSingle, Double, 4" Octagon, Square
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
EnvironmentIEC/EN 63000, IEC 60529 IP52, IEC 62262 IK08
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide22.2m(72.74ft)
Tele159.9m(524.76ft)
Observe (63PPM/ 19PPF)Wide8.9m(29.09ft)
Tele64.0m(209.90ft)
Recognize (125PPM/ 38PPF)Wide4.4m(14.55ft)
Tele32.0m(104.95ft)
Identify (250PPM/ 76PPF)Wide2.2m(7.27ft)
Tele16.0m(52.48ft)
