Цилиндрические

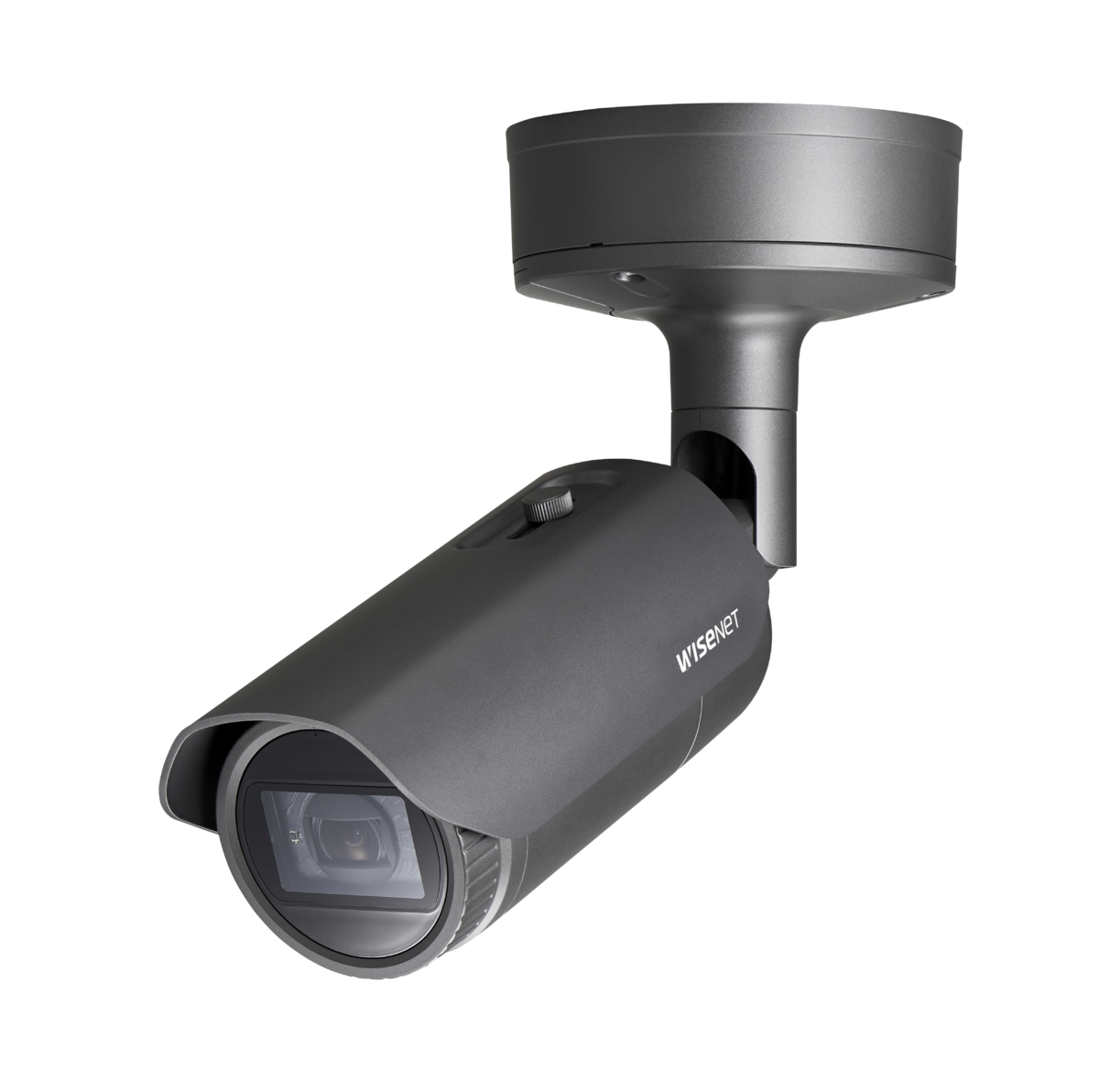

XNO-6080R

2МП H.265 сетевая цилиндрическая камера с ИК-подсветкой

Key Features

• 2,8–12 мм (4,3x) моторизованный вариофокальный объектив
• До 60 кад/с при любом разрешении (H.265/H.264)
• Дневной и ночной (с выдвижным ИК фильтром) режимы, WDR (150 дБ), функция Defog
• Обнаружение праздношатания, направления движения, тумана
• Цифровое автоматическое слежение, распознавание звуков по типам, обнаружение внешнего воздействия
• Обнаружение движения, передача данных на PTZ камеру
• Два слота для карты памяти SD (макс. 512 Гб)
• Функция обзора коридоров, поддержка WiseStream II
• Дальность видимости с ИК подсветкой 50 м, класс защиты IP67/IP66, NEMA 4X, IK10

Contact Sales Datasheet

["camera","network","bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Обзор

Сертификат Транспортной Безопасности №969
Сертификат соответствия технических средств обеспечения транспортной безопасности требованиям к их функциональным свойствам, утвержденных постановлением Правительства Российской Федерации от 26 сентября 2016 г. № 969.



Технические характеристики

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution320x240, 1280x1024, 720x480, 1280x960, 1024x768, 1920x1080, 720x576, 640x360, 640x480, 800x448, 800x600, 1280x720
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.015
BW(1/30sec, 30IRE)0.0015
Video OutUSB: Micro USB Type B, CVBS: 1.0 Vp-p / 75Ω composite for installation
Lens
Focal Length (mm)2.8~12
Zoom RatioOptical4.3x
Max Aperture Ratio (F number)Wide1.4
Tele3.6
Angular Field of ViewHorizontal119.5°~27.9°
Vertical62.8°~15.7°
Diagonal142.1°~32.0°
Min. Object Distance0.5m(1.64ft)
Focus ControlSimple focus, Manual
Lens TypeDC auto iris(IR corrected)
Operational
Day & NightAuto(ICR)
Backlight CompensationWDR, HLC, SSDR, BLC
Wide Dynamic Range (dB)150
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionGray, Mosaic, Black, White, Green, Red, Blue
Gain ControlHigh, Low, Middle
White BalanceATW, AWC, Indoor, Manual, Outdoor
LDCSupport
Electronic ShutterModeMinimum, Maximum, Anti flicker
Speed Range2~1/12,000sec
Digital PTZSupport
Video RotationMirror, Hallway view(90°/270°), Flip
Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm TriggersAlarm input, Analytics, Network disconnect
Alarm Events When Alarm Trigger OccurredRecording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, File upload(image): e-mail/FTP, Alarm output, Notification: e-mail
Audio InSelectable(mic in/line in)
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIR50m(164.04ft)
IR Wavelength850nm
Analytics
Analytics EventsNormalAudio detection, Virtual line(Crossing, Direction) , Fog detection, Sound classification, Tampering, Digital auto tracking, Defocus detection, Motion detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Face detection
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.726(ADPCM) 8KHz, G.711 8KHz, AAC-LC: 48Kbps at 16KHz
Smart CodecWiseStreamⅡ, Manual
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolDDNS, RTP(UDP), IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, IGMP, HTTP, UPnP, LLDP, RTSP, ICMP, SRTP(TCP, UDP Unicast), UDP/IP, Bonjour, DNS
Application Programming InterfaceONVIFS, G, T
OthersHanwha Vision Open Platform, SUNAPI(HTTP API)
Direct Cloud ConnectionOptional (needs gateway)
Security
OS / Firmware ProtectSigned firmware, Secure boot, Encrypted firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationWSS(WebSocket Secure), HTTPS, SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 512GB x 2slot(Total 1TB)
Environmental & Electrical
Operating ConditionTemperature-40°C~+55°C(-40°F~+131°F)
Humidity0~90% RH(non-condensing)
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input Voltage24VAC, PoE(IEEE802.3af, Class3), 12VDC
Power ConsumptionPoEMax. 12.95W
12VDCMax. 12W
24VACMax. 15W
Mechanical
ColorDark grey
MaterialAluminum
Product Dimensionsø91x368.6mm(3.85x14.51")
Product Weight2,180g(4.8lb)
Certifications & Standards
EnvironmentNEMA 250 type 4X, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10
