HRX-1635
16CH Pentabrid DVR
Key Features
• 5-in-1 16CH Pentabrid DVR
• AHD/HDTVI/HDCVI/CVBS/IP inputs
• Total 18CH(Analog Maximum 16CH and Network Maximum 18CH), up to 8MP
• H.265, H.264, MJPEG
• 8fps@8MP, 12fps@5MP, 15/12fps@4MP, 30/25fps@2MP recording
• Coaxial control
• Smart search(only Network camera)
• Up to 8 SATA HDDs(6TB/HDD)
• HDMI/VGA Dual monitor (Expand mode)
• P2P service(QR code connect)
• AHD/HDTVI/HDCVI/CVBS/IP inputs
• Total 18CH(Analog Maximum 16CH and Network Maximum 18CH), up to 8MP
• H.265, H.264, MJPEG
• 8fps@8MP, 12fps@5MP, 15/12fps@4MP, 30/25fps@2MP recording
• Coaxial control
• Smart search(only Network camera)
• Up to 8 SATA HDDs(6TB/HDD)
• HDMI/VGA Dual monitor (Expand mode)
• P2P service(QR code connect)
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
画像にマウスを合わせると拡大されます
HRX-1635
16CH Pentabrid DVR
Key Features
• 5-in-1 16CH Pentabrid DVR
• AHD/HDTVI/HDCVI/CVBS/IP inputs
• Total 18CH(Analog Maximum 16CH and Network Maximum 18CH), up to 8MP
• H.265, H.264, MJPEG
• 8fps@8MP, 12fps@5MP, 15/12fps@4MP, 30/25fps@2MP recording
• Coaxial control
• Smart search(only Network camera)
• Up to 8 SATA HDDs(6TB/HDD)
• HDMI/VGA Dual monitor (Expand mode)
• P2P service(QR code connect)
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
製品の仕様
- ディスプレイ
- パフォーマンス
- 機能
- インターフェイス
- システム
- 環境
- 電源管理
- 物理的仕様
- Network
-
-
ディスプレイ アナログカメラ 入力 16CH(1Vp-p 75ohm, BNC) 信号方式 - AHD(8MP, 5MP, 4MP, 1080p, 720p)
- HDTVI(8MP, 5MP, 4MP, 1080p, 720p)
- HDCVI(8MP, 5MP, 4MP, 1080p, 720p)
- NTSC/PALネットワークカメラ 入力 2CH (Up to 18CH) 解像度 8MP ~ CIF プロトコル SUNAPI(Wisenet), ONVIF ライブ モニター出力 1x HDMI, 1x VGA (Dual monitor)
HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720
VGA: 1920x1080, 1280x1024, 1280x720, 1024x768解像度 [Analog Camera(NTSC/PAL)]
- 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH
[Network Camera]
- Typ. 2MP(480fps)パフォーマンス 録画 圧縮方式 H.265, H.264, MJPEG 録画レート(アナログ) (Main Stream, NT/PAL) 8M 8/8fps, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, Under 960H 30/25fps/CH
(Sub Stream) 720p/CH or Higher : 640x368 Full fps, SD : upto SD Full fps
* The maximum recording frame rate depends on the frame rate of the input camera.帯域幅 Max. 128Mbps (HRX-1635) 解像度 8MP ~ CIF 録画モード Normal, Dual Stream, Schedule(Continuous/Event),
Event (Pre/Post), Bookmarkイベントトリガー Alarm Input, Video Loss
Analog Camera : Video Loss, Motion Detection, Tampering
Network Camera : Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Eventイベントアクション e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP,
SUNAPI Command, Shotdown検索/再生 再生帯域幅 Max. 32Mbps (18CH simultaneously) ユーザーアクセス数 Max. 4 users (Set 1, Remote 3) 同時再生 18CH(Local Monitor),18Ch (CMS),
4Ch (Wisenet Mobile), 1Ch(Web)Fisheye Dewarping CMS (only N/W Camera) ストレージ 対応HDD容量 Up to 6TB HDDスロット SATA 8ea(Max. 48TB) バックアップ ファイルフォーマット Set : Recorder, SEC, AVI

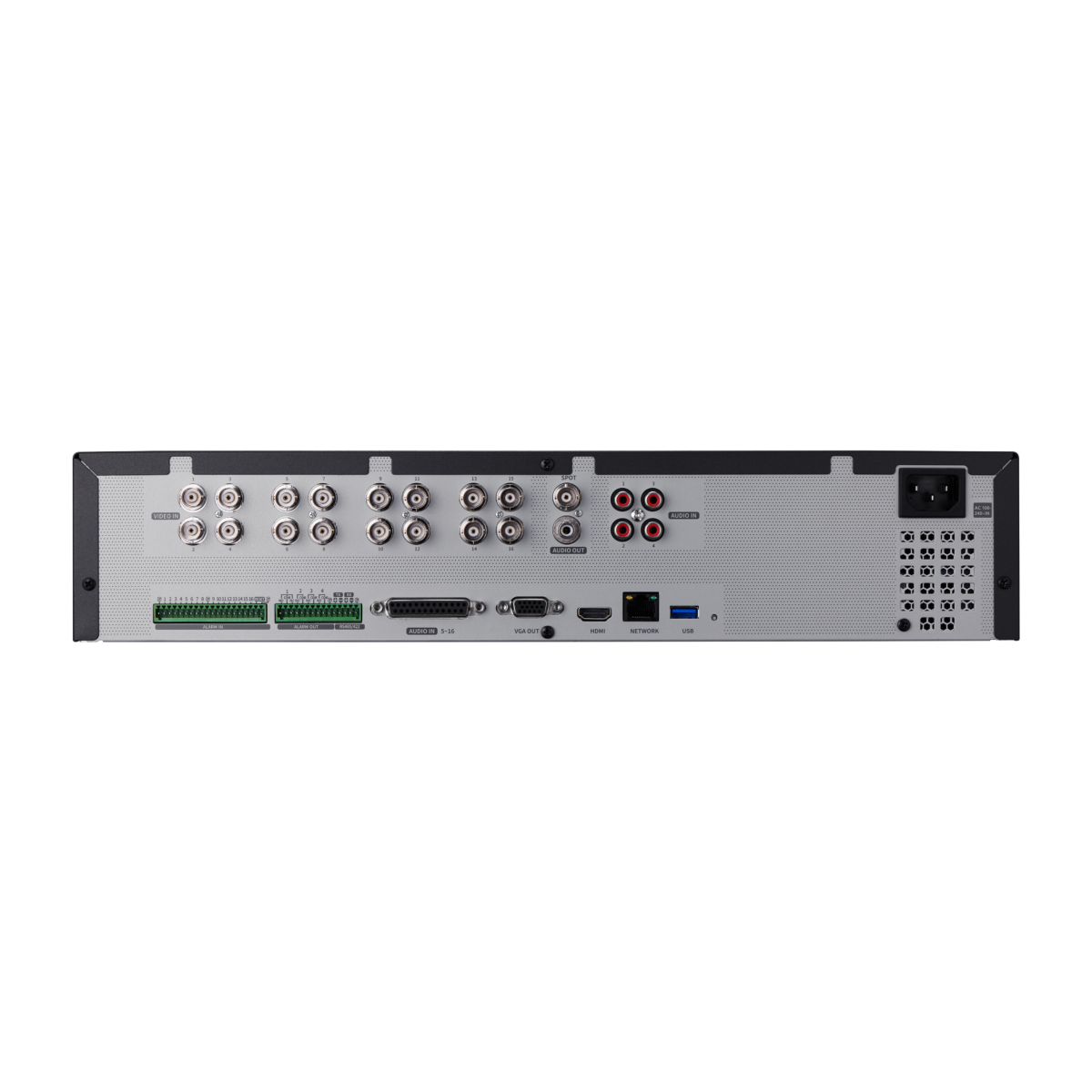

Webviewer : AVI機能 Max. 16 CH play, Date-time/title display 機能 PTZ 制御 Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller Smart phone 対応製品 iOS, Android プロトコル RTP, RTSP, HTTP, CGI(SUNAPI) 制御 Live(16ch) : Multi-Profile Support
Playback(4Ch Multi Playback, Max 2MP)
Event push最大接続ユーザー数 Search(3), Live Unicast(10) Redundancy ARB Support Easy configuration Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) Coaxial Control CVBS(Pelco-C)/AHD/CVI/TVI インターフェイス HDMI 1EA VGA 1EA BNC 16CH In / 1CH Out(Spot Output) 音声 Out(1EA, RCA, Line) イーサネット RJ-45(10/100/1000BASE-T) アラーム In 16EA, Out 4EA\n - Relay Out1(NO/NC/COM)\n - Relay Out2~4(NO/COM) USB 2EA(Front USB2.0, Rear USB 3.0)) シリアル通信(プロトコル) RS-485/422 (Samsung-T/Pelco-D/Pelco-p) * for PTZ AC電源入力部 1EA AC ( AC100V) システム System Control Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000) 言語 English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai 環境 動作温度 0°C to +40°C(+32℉ to +104℉) 動作湿度 20% ~ 85% RH 規格認証 UL, CE, FCC, KC, UKCA 電源管理 入力電源 100~240 VAC±10%, 50/60 Hz 消費電力 Max. 200W (6T HDD 8ea) 物理的仕様 カラー/材質 Black / Metal 寸法 (WxHxD) 440 x 88 x 384.8mm(17.32” x 3.46” x 15.15”) 重量 Approx. 7.70Kg (17 lb, 4TB HDD 1ea) Network プロトコル TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) DDNS Wisenet DDNS 伝送速度 - Analog Camera(NTSC/PAL)\n(Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH\n(Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : upto CIF full fps/CH\n* The maximum recording frame rate depends on the frame rate of the input camera. 伝送帯域幅 Max. 100Mbps 音声 入力/出力 16 Lline in (RCA 4 Line, Option : Audio Extension Cable) / 1Line line out 圧縮方式 G.711 (N/W Camera G.711, 726) 了解 2-Way 最大接続ユーザー数 Search(3), Live Unicast(10), Multicast(20) セキュリティ IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup)\nDevice Certificate(Hanwha Techwin Root CA) ビューワーソフトウェア SSM, Webviewer, SmartViewer, Wisenet Mobile Viewer, Wisenet Viewer -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
