レンズ

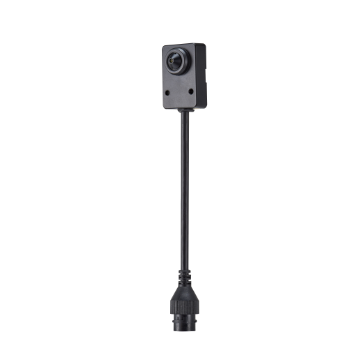

SLA-T4680V
2M Lens Module
Key Features
• Compatible with XNB-6001
• Max. 2Megapixel (1920 x 1080) resolution
• 0.06 Lux@F2.5
• 4.6mm pinhole lens
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
製品の仕様
| 映像 | ||
|---|---|---|
| 映像素子 | Size | 1/2.8" |
| Type | CMOS | |
| Effective Pixels | 1,945(H)x1,109(V) 2.16M | |
| 最低照度 | Color(1/30sec, 30IRE) | 0.06 |
| BW(1/30sec, 30IRE) | 0.06 | |
| レンズ | ||
| Focal Length (mm) | 4.6 | |
| 最大口径比 | Wide | 2.5 |
| 画角 | Horizontal | 73° |
| Vertical | 39° | |
| Diagonal | 85° | |
| マウントタイプ | RJ12 connected with main unit | |
| フォーカス制御 | Fixed | |
| 動作環境/電源 | ||
| 動作温度/湿度 | Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Humidity | Less than 90% RH | |
| 保管温度/湿度 | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | Less than 90% RH | |
| 物理的仕様 | ||
| カラー | Black | |
| 材質 | Metal, Plastic | |
| 寸法 | 30x20.2x45mm(1.18"x0.80"x1.77") | |
| 重量 | 321g (0.71 lb) | |
