AI Box

AIB-800

8CH AI Box

Key Features

• Max up to 8CH inputs
• AI functions
- Classified object type: Person/Vehicle
- Attributes: Person(Type: age, gender, color etc.)
- Attributes: Vehicle (Type: car/bus/truck/motorcycle/bicycle)
• Support BestShot
• Analytics events based on AI engine
- Motion detection, Object detection, Virtual line (Crossing/Direction),
Virtual area (Loitering/Intrusion/Enter/Exit)
- Some of the video analytics only works with people/vehicle detection
• Analytics events
- Virtual area (Appear/Disappear)
• Business Intelligence
- Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap
• Viewer Softwre: Web viewer, WAVE, SSM, Genetec, Milestone
• Support SDK/CGI(SUNAPI) for interworking with 3rd party VMS

お問い合わせ データシート

["peripherals","ai-box"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Transition to AI era with AI box

Hanwha Vision aims to offer a solution to customers who wish to join the AI era by providing a tool that can convert any ONVIF-compatible camera into an AI analytics camera. The AI Box is a cost-effective option, allowing you to upgrade your current camera to AI-enabled cameras instantly.

Simply connect up to 8 cameras for AI-powered security

Experience AI features on up to 8 cameras by simply adding an AI box to your existing system without additional construction costs or monthly recurring expenses.

Compatible with VMS

The AIB-800 integrates seamlessly with milestone, Genetec, and Hanwha Vision’s VMS (Wisenet SSM, Wisenet WAVE). It allows operators to search AI events with various attributes directly from the AI Box.

Video

製品の仕様

画面表示
ネットワークInputsMax. 8CH
解像度CIF ~ 32MP
ProtocolsSUNAPI, ONVIF
インテリジェント分析
AI functionPre-Installed EventClassified object type : Person/Vehicle, Attributes : Vehicle (Type:car/bus/truck/motorcycle/bicycle), Support Bestshot, Analytics events based on AI engine: Motion Detection*, Object detection, Virtual line* (Crossing/Direction), Virtual area* (Loitering/Intrusion/Enter/Exit), * Some of the video analytics only works with people/vehicle detection, Analytics events : Virtual area(Appear/Disappear), Business Intelligence (Based on AI engine) : People counting, Vehicle counting, Queue management, Heatmap
ネットワーク
プロトコルTCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client), SRTP
DDNSHanwha DDNS
Max Manipulated Streams80 Streams (10 Streams per 1CH)
IP VersionIPv4/v6
セキュリティIP Address Filtering, User access log, 802.1x, 暗号化, Device certificate(Hanwha Vision Root CA)
言語japanese, フランス語, ドイツ語, イタリア語, スペイン語, ロシア語, トルコ語, ポーランド語, オランダ語, チェコ語, ポルトガル語, ハンガリー語, ギリシャ語, 韓国語, 中国語, 日本語
OSWindows 11/10, macOS 10.13
Web BrowserGoogle Chrome, Microsoft Edge, Mac Safari
Viewer Softwareタイプ WebViewer, WAVE, SSM, Genetec, Milestone
CMS SupportSupport SDK/CGI(SUNAPI) for interworking with 3rd party VMS
Functions
カメラ設定登録自動, 手動
Setup Itemsカメラウェブページ

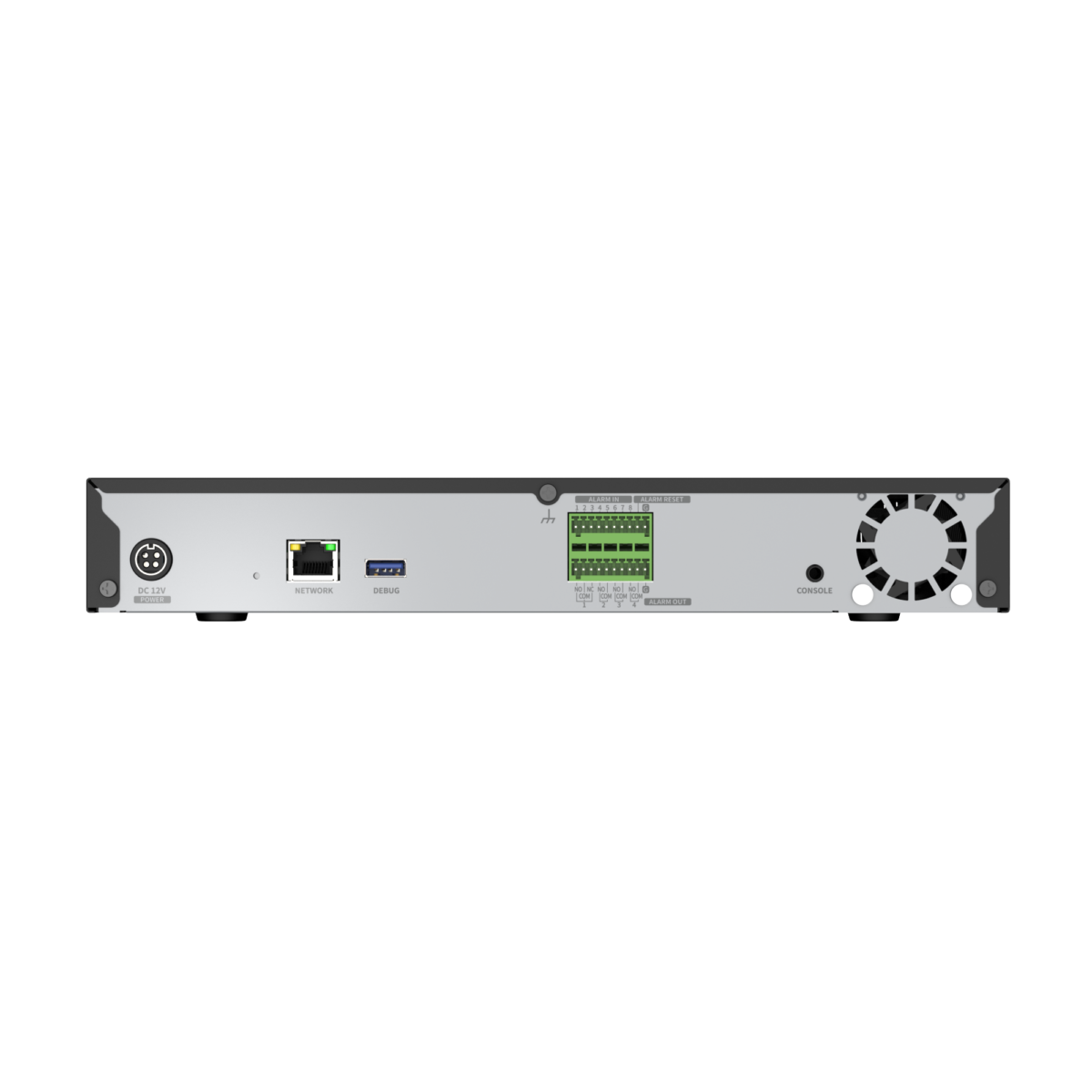

Indicator/Interface
FrontインジケーターLED(Status indicator) : Alarm(1), Power(1), Network(1)
EthernetRJ-45 1ea (1Gbps)
アラーム(1) In(8EA, Terminal Block), (2) Alarm Reset(1EA), (3) Out(4EA, Terminal Block) - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM)
USB1EA(Rear 1 x USB 3.0) for DEBUG
シリアルNot Supported (internal Debug)
リセット工場出荷時の設定に戻します。
Power CordDIN 4P 12V, 4A
システム
ログログリストMax. 3,000 (System 1,000, Access 1,000, EVENT 1,000)
CPUNVIDIA ORIN NX 8GB (SOM)
Environmental
Operating Temperature / Humidity+0°C to +40°C(+32°F to +104°F)
湿度20% ~ 85% RH
電源
電力100~240 VAC ±10%; 50/60Hz, 12V, 4A Adaptor
消費電力28W
Mechanical
Color / MaterialBlack / Metal
Dimension (WxHxD)300x47.6x240.9mm(11.81x1.87x9.48inch)
重量1.39kg
