In-ceiling

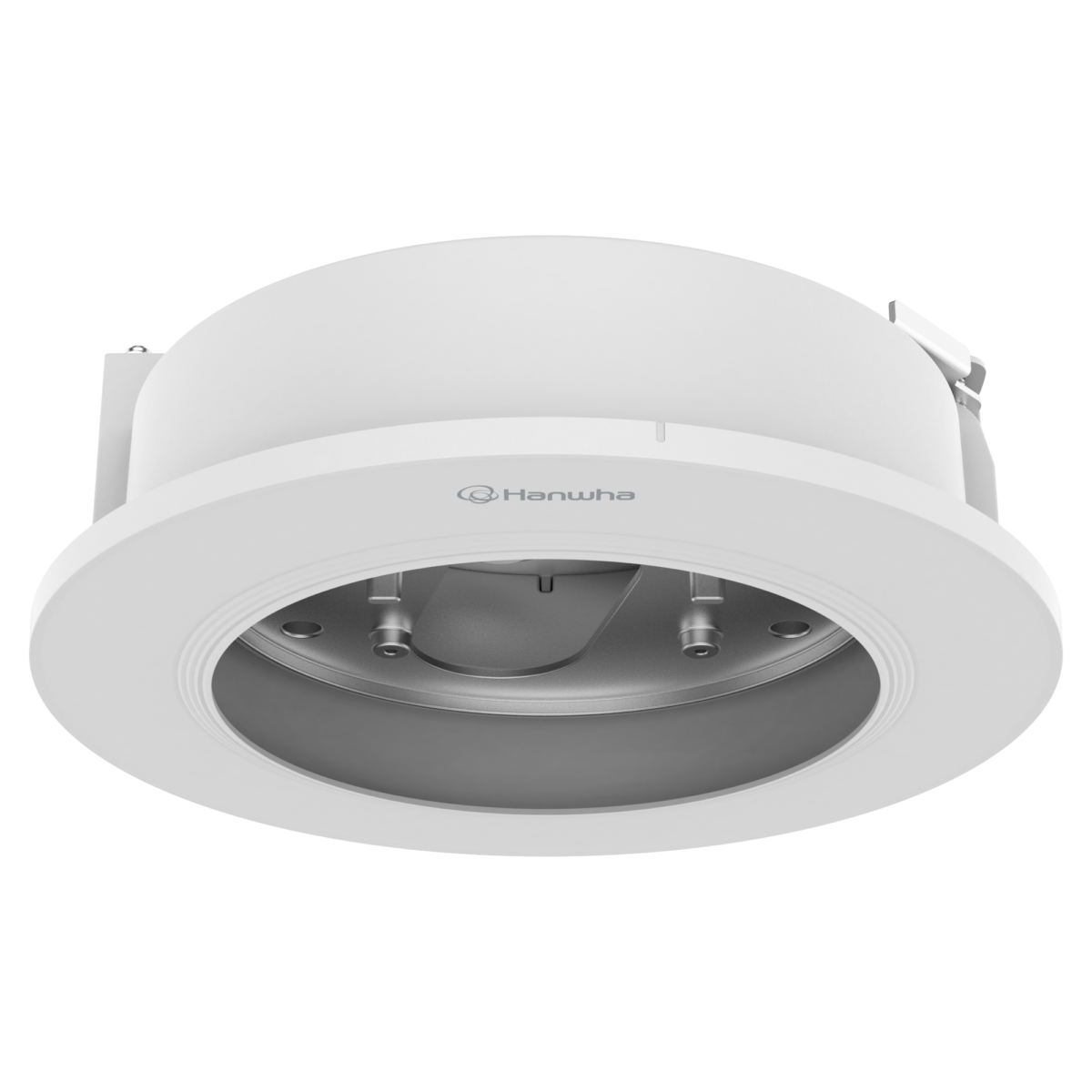

SHD-2000FPW

In-ceiling Mount

Key Features

• Material : Enclosure : Aluminum / Top cover : Polycarbonate(PC)
• Color : White
• Product dimensions / weight : ø265.1x96.8mm(ø10.44x3.81") / 1500g (3.31lb)
※ Ceiling hole size : ø240mm (ø9.45")
• Max. load : 3.5kg (7.72lb)
※ Maximum load of ceiling board : 6.5kg (13.3lb)

["installation-solution","mount","in-ceiling"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

製品の仕様

Mechanical
ColorWhite
MaterialAluminum, PC(Polycarbonate)
RAL codeRAL9003
Product dimensions / weightø265.1x96.8mm(ø10.44x3.81") / 1500g(3.31lb)
Tile thickness10~70mm(0.4~2.8")
Mount Screw sizeTR20
Max. load3.5kg(7.72lb) ※ Maximum load of ceiling board: 6.5kg(13.3lb)
Conduit hole19.1mm(3/4")(M25), 12.7mm(1.2")(M20)
Supported productsPNM-C16013RVQ ※ For further compatible models, please visit our website or use Toolbox
