Dome

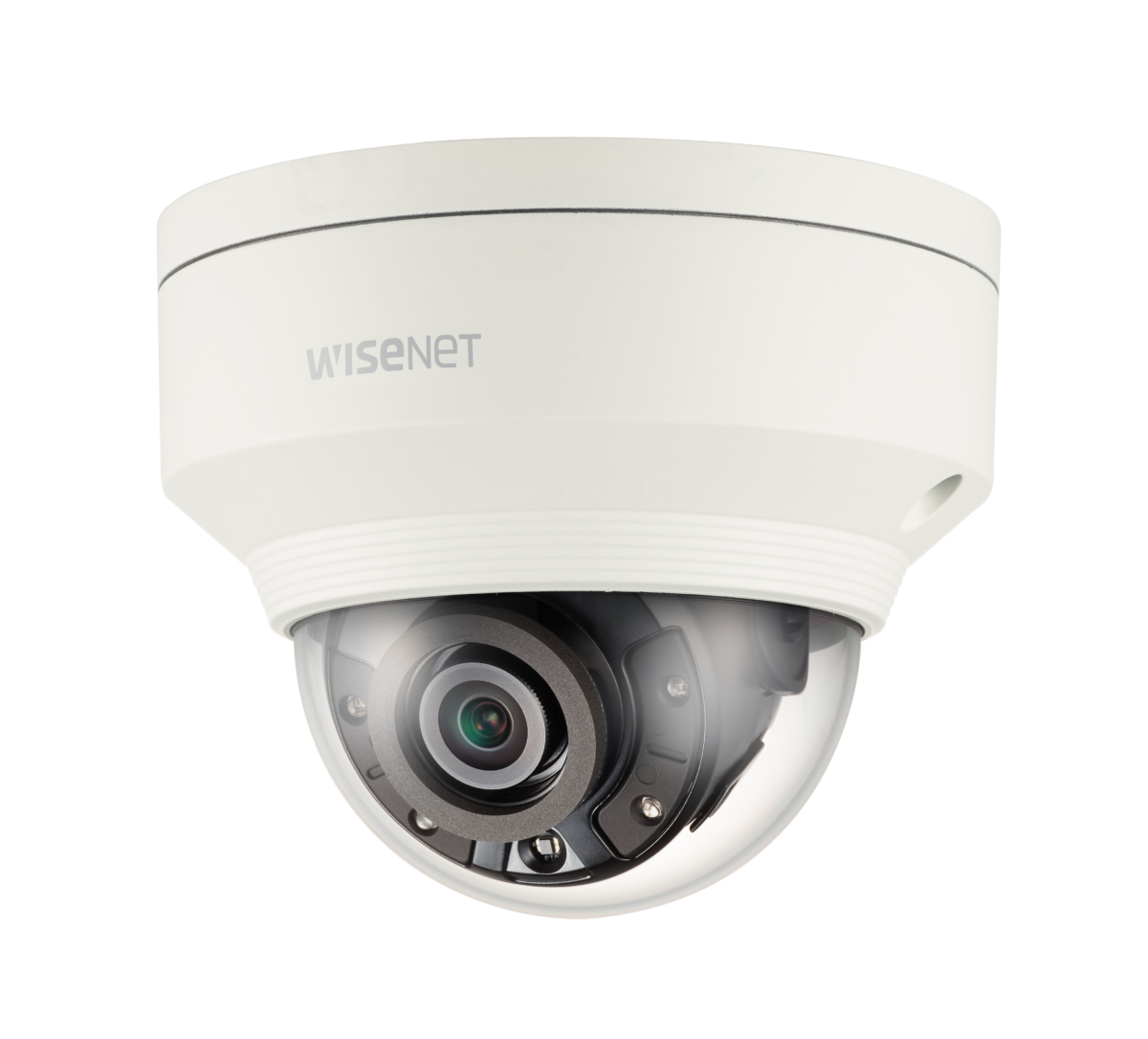

XNV-8020R
5M H.265 ネットワーク IR付 耐衝撃ドームカメラ
Key Features
• 3.7mm/4.6mm/7mm固定レンズ
• すべての解像度で最大30fps(H.265/H.264)
• H.265、H.264、MJPEG、WiseStreamII対応
• うろつき検知、方向検知、霧探知
• デジタルオートトラッキング、サウンド分類、ヒートマップ
• 人数カウント、キュー管理、いたずら検知
• モーション検知、ハンドオーバー
• 縦表示モード(ホールウェイビュー)
• IR照射距離30m、IP67/IP66、IK10
["camera","network","dome"]
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
製品の仕様
映像 | ||
---|---|---|
映像素子 | Size | 1/1.8" |
Type | CMOS | |
解像度 | 1920x1080, 1280x720, 1280x1024, 720x480, 1280x960, 1600x1200, 2560x1440, 2560x1920, 720x576, 640x360, 800x448, 800x600, 1024x768, 640x640, 320x240 | |
最大フレームレート | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
MJPEG | 30fps | |
最低照度 | Color(1/30sec, 30IRE) | 0.16 |
BW(1/30sec, 30IRE) | 0.016 | |
映像出力 | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B | |
レンズ | ||
Focal Length (mm) | 3.7 | |
最大口径比 | Wide | 1.6 |
画角 | Horizontal | 97.5° |
Vertical | 71.9° | |
Diagonal | 126.2° | |
最低被写体距離 | 0.4m(1.31ft) | |
フォーカス制御 | Fixed | |
パンニング/チルト/回転 | ||
パンニング/チルト/回転範囲 | パンニング | 0°~354° |
チルト | 0°~67° | |
回転範囲 | 0°~355° | |
カメラ機能 | ||
デイナイト | Auto(ICR) | |
逆光補正 | HLC, BLC, WDR | |
Wide Dynamic Range (dB) | 120 | |
ノイズ軽減 | SSNRⅤ | |
手振れ補正 | Support(built-in gyro sensor) | |
デフォッグ | Support | |
モーション検知 | Quantity | 8ea |
Shape | 8point Polygonal zones | |
プライバシーマスク | Quantity | 32ea |
Shape | Polygonal zones | |
Color / Option | Mosaic, Blue, Gray, Red, Black, White, Green | |
ゲイン制御 | High, Low, Middle | |
ホワイトバランス | AWC, Manual, ATW, Indoor, Outdoor | |
LDC | Support | |
電子シャッター | Mode | Minimum, Maximum, Anti flicker |
Speed Range | 2~1/12,000sec | |
映像回転 | Flip, Hallway view(90°/270°), Mirror | |
Alarm Interface | In/Out | Input 1ea, Output 1ea |
アラームトリガー | Alarm input, Analytics, Network disconnect | |
アラームイベント | Notification: e-mail, File upload(image): e-mail/FTP, Alarm output, Recording: SD/SDHC/SDXC or NAS recording at event triggers | |
音声入力 | Selectable(mic in/line in) | |
音声出力 | Line out | |
Light Type | IR LED | |
Light Viewable Length | IR | 30m(98.43ft) |
IR Wavelength | 850nm | |
Analytics | ||
Analytics Events | Normal | Face detection, Audio detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Fog detection, Sound classification, Tampering, Digital auto tracking, Defocus detection, Motion detection, Virtual line(Crossing, Direction) |
Business Intelligence | Normal | People counting, Queue management, Heatmap |
ネットワーク | ||
イーサネット | RJ-45(10/100BASE-T) | |
映像圧縮 | H.265/H.264: Main/Baseline/High, MJPEG | |
音声圧縮 | AAC-LC: 48Kbps at 16KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.711 u-law /G.726 selectable, G.726(ADPCM) 8KHz, G.711 8KHz | |
スマートコーデック | WiseStreamⅡ, Manual | |
ビットレート制御 | H.265/H.264: CBR or VBR, MJPEG: VBR | |
ストリーミング性能 | Unicast | Up to 20 users |
Multicast | Support | |
Multiple Streaming | Up to 10 profiles | |
プロトコル | NTP, TCP/IP, ARP, DHCP, IPv4, HTTPS, FTP, PPPoE, RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, UPnP, RTSP, ICMP, RTCP, IPv6, PIM-SM, UDP/IP, Bonjour, RTP(UDP), DNS, SNMPv1/v2c/v3(MIB-2) | |
応用インターフェイス | ONVIF | G, S |
Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
Direct Cloud Connection | Optional (needs gateway) | |
Security | ||
User authentication | Digest authentication | |
Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
Secure Communication | HTTPS | |
Access Control | IP-based access control | |
Audit | Access / System / Event Log management | |
一般 | ||
メモリー | RAM | 1GB |
Flash | 256MB | |
SDカード | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
動作環境/電源 | ||
動作温度/湿度 | Temperature | -30°C~+55°C(-22°F~+131°F) |
Humidity | 0~90% RH(non-condensing) | |
保管温度/湿度 | Temperature | -50°C~+60°C(-58°F~+140°F) |
Humidity | 0~90% RH(non-condensing) | |
電源 | PoE(IEEE802.3af, Class3), 12VDC | |
消費電力 | PoE | Max. 9W |
12VDC | Max. 8W | |
物理的仕様 | ||
カラー | Ivory | |
材質 | Aluminum | |
寸法 | ø120.0x97.5mm(4.72x3.84") | |
重量 | 615g(1.36lb) | |
Certifications & Standards | ||
Environment | IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10 |
