Dome

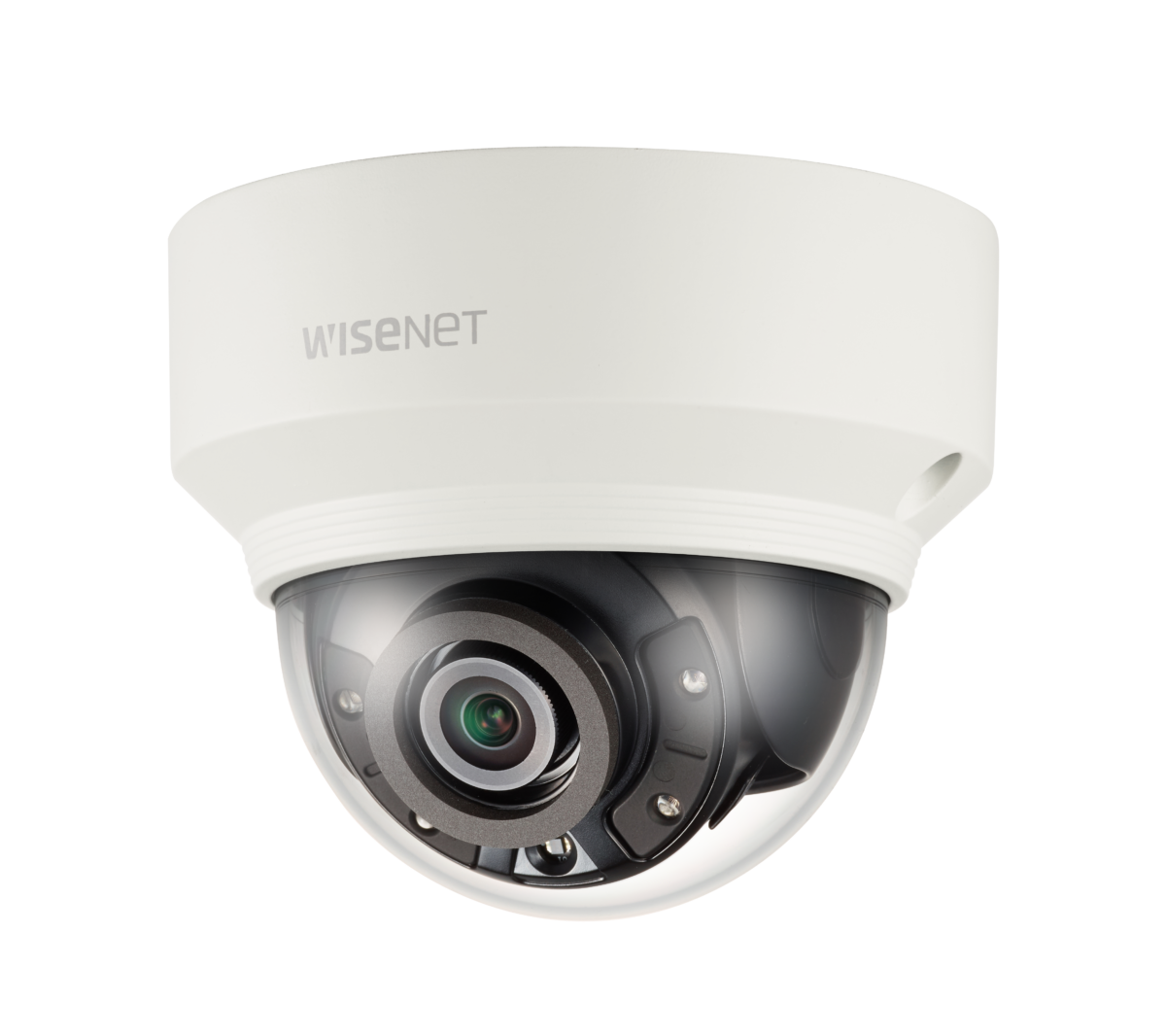

XND-6020R
2M H.265 ネットワーク IR付 ドームカメラ
Key Features
• 4mm固定レンズ
• すべての解像度で最大60fps(H.265/H.264)
• H.265、H.264、MJPEG、WiseStreamII対応
• デイナイト(ICR)、WDR(150dB)、曇り止め
• うろつき検知、方向検知、霧探知、いたずら検知
• 音声検出、デジタルオートトラッキング、サウンド分類
• ヒートマップ、人数カウント、キュー管理
• ハンドオーバー
• microSD/SDHC/SDXCメモリースロット(最大512GB)
["camera","network","dome"]
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
製品の仕様
映像 | ||
---|---|---|
映像素子 | Size | 1/2.8" |
Type | CMOS | |
解像度 | 320x240, 1280x720, 1280x1024, 720x480, 1280x960, 1024x768, 1920x1080, 720x576, 640x360, 640x480, 800x600, 800x448 | |
最大フレームレート | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
MJPEG | 30fps | |
最低照度 | Color(1/30sec, 30IRE) | 0.015 |
BW(1/30sec, 30IRE) | 0.0015 | |
映像出力 | USB: Micro USB Type B, CVBS: 1.0 Vp-p / 75Ω composite for installation | |
レンズ | ||
Focal Length (mm) | 4 | |
最大口径比 | Wide | 1.4 |
画角 | Horizontal | 88.6° |
Vertical | 47.5° | |
Diagonal | 104.8° | |
最低被写体距離 | 0.4m(1.31ft) | |
レンズタイプ | Fixed iris | |
パンニング/チルト/回転 | ||
パンニング/チルト/回転範囲 | パンニング | 0°~354° |
チルト | 0°~67° | |
回転範囲 | 0°~355° | |
カメラ機能 | ||
デイナイト | Auto(ICR) | |
逆光補正 | HLC, BLC, SSDR, WDR | |
Wide Dynamic Range (dB) | 150 | |
ノイズ軽減 | SSNRⅤ | |
手振れ補正 | Support | |
デフォッグ | Support | |
モーション検知 | Quantity | 8ea |
Shape | 8point Polygonal zones | |
プライバシーマスク | Quantity | 32ea |
Shape | Polygonal zones | |
Color / Option | Gray, White, Black, Blue, Green, Mosaic, Red | |
ゲイン制御 | Low, High, Middle | |
ホワイトバランス | AWC, Manual, Outdoor, Indoor, ATW | |
LDC | Support | |
電子シャッター | Mode | Anti flicker, Minimum, Maximum |
Speed Range | 2~1/12,000sec | |
映像回転 | Flip, Hallway view(90°/270°), Mirror | |
Alarm Interface | In/Out | Input 1ea, Output 1ea |
アラームトリガー | Network disconnect, Analytics, Alarm input | |
アラームイベント | Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, File upload(image): e-mail/FTP, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP | |
音声入力 | Selectable(mic in/line in) | |
音声出力 | Line out | |
Light Type | IR LED | |
Light Viewable Length | IR | 30m(98.42ft) |
IR Wavelength | 850nm | |
オートトラッキング | Support | |
Analytics | ||
Analytics Events | Normal | Fog detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Defocus detection, Digital auto tracking, Virtual line(Crossing, Direction) , Sound classification, Tampering, Motion detection, Face detection, Audio detection |
Business Intelligence | Normal | Heatmap, Queue management, People counting |
ネットワーク | ||
イーサネット | RJ-45(10/100BASE-T) | |
映像圧縮 | H.265/H.264: Main/Baseline/High, MJPEG | |
音声圧縮 | AAC-LC: 48Kbps at 16KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.711 u-law /G.726 selectable, G.726(ADPCM) 8KHz, G.711 8KHz | |
スマートコーデック | WiseStreamⅡ, Manual | |
ビットレート制御 | H.265/H.264: CBR or VBR, MJPEG: VBR | |
ストリーミング性能 | Unicast | Up to 20 users |
Multicast | Support | |
Multiple Streaming | Up to 10 profiles | |
プロトコル | SMTP, RTP(UDP), PIM-SM, IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, UDP/IP, Bonjour, SSL/TLS, QoS, DDNS, IGMP, HTTP, UPnP, LLDP, RTSP, ICMP, SRTP(TCP, UDP Unicast), DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP) | |
応用インターフェイス | ONVIF | G, T, S |
Others | Hanwha Vision Open Platform, SUNAPI(HTTP API) | |
Security | ||
OS / Firmware Protect | Encrypted firmware, Signed firmware, Secure boot | |
User authentication | Digest authentication | |
Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
Secure Communication | SRTP, HTTPS, WSS(WebSocket Secure) | |
Access Control | IP-based access control | |
Data Protect | Encrypt compress for live recording file export, Encryption credentials | |
Audit | Access / System / Event Log management | |
Secure Storage | SDcard partition encrypt(AES-256) | |
一般 | ||
メモリー | RAM | 1GB |
Flash | 256MB | |
SDカード | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
動作環境/電源 | ||
動作温度/湿度 | Temperature | -10°C~+55°C(+14°F~+131°F) |
Humidity | 0~90% RH(non-condensing) | |
保管温度/湿度 | Temperature | -50°C~+60°C(-58°F~+140°F) |
Humidity | 0~90% RH(non-condensing) | |
電源 | 12VDC, PoE(IEEE802.3af, Class3) | |
消費電力 | PoE | Max 9W |
12VDC | Max 8W | |
物理的仕様 | ||
カラー | Ivory | |
材質 | Aluminum | |
寸法 | Ø110x90mm(4.33x3.54") | |
重量 | 380g(0.84lb) | |
Certifications & Standards | ||
Environment | IEC 62262 IK08 |
