Dome

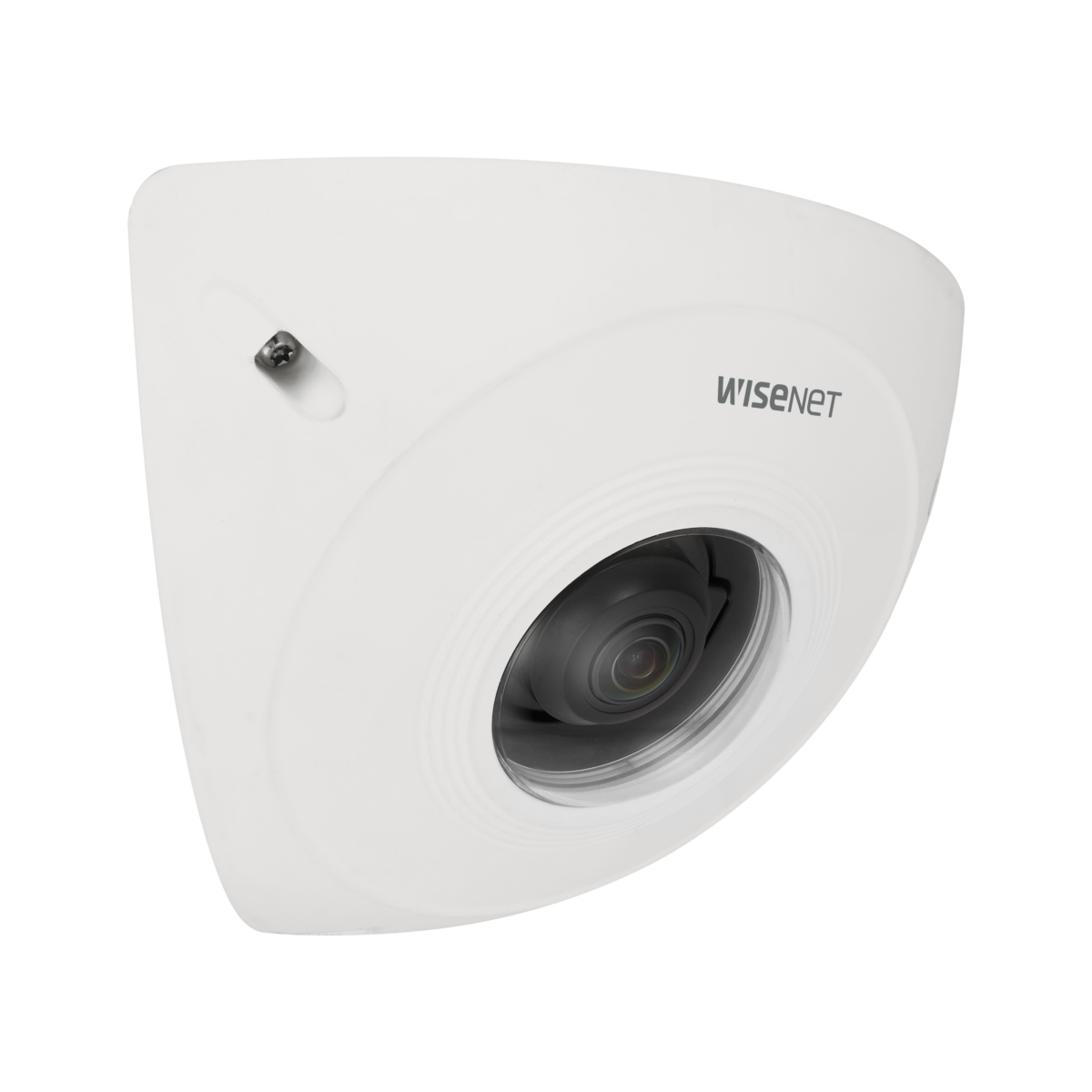

TNV-8011C

5MP Corner Mount Camera

Key Features

• Maximum 5MP resolution
• Maximum 30fps @ all resolutions (H.265/H.264/MJPEG)
• 0.1lux@F2.3(Color), 0.02lux@F2.3(B/W)
• 2.3mm fixed focal
• Anti-ligature design for corrections and behavioral health facilities
• Day & Night Auto(ICR), WDR (120dB)
• Defocus detection, Tampering, Audio detection
• Micro SD/SDHC/SDXC memory slot (128GB)
• Hallway view, WiseStream II support
• PoE, IP66, IP6K9K, IK10

お問い合わせ データシート

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Compact & Anti-ligature design and wide FoV
With the dimension of 170(W)x165(H)x78.8(D)mm(6.69×6.49×3.10″) and the weight of 830g(1.83lb), TNV-8011C offers a wide FoV (H: 131° / V: 93.4° / D: 174°), making it suitable for SMB and limited space monitoring. And its anti-ligature design makes it also applicable for corrections and behavioral health facilities.





製品の仕様

映像
Imaging Deviceサイズ1/2.8"
タイプ CMOS
解像度2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. FramerateH.265/H.26430fps/25fps(60Hz/50Hz)
MJPEG15fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.1
BW(1/30sec, 30IRE)0.02
Video OutCVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
レンズ
Focal Length (mm)2.3
Max Aperture Ratio (F number)Wide2.3
視野角度Horizontal131°
Vertical93.4°
Diagonal174°
Focus ControlFixed
技能
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionSSNR
Digital Image Stabilizationサポート
曇り除去サポート
モーション検知Quantity4ea
Shape8point Polygonal zones
Privacy MaskingQuantity6ea
ShapeRectangular zones
ゲイン制御低, 中, 高
ホワイトバランスATW, AWC, 手動, 室内, 屋外, Mercury, Sodium
LDCサポート
Electronic Shutterモード最小, 最大, アンチフリッカー
Speed Range2~1/12,000sec
ビデオ回転FLIPモード, ミラー, Hallway view(90°/270°)
Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm Triggers分析, ネットワーク切断, アラーム入力
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, アラーム出力
オーディオ入力Selectable(mic in/line in)
オーディオ出力Line out
分析
分析イベント通常焦点ぼけ検知, モーション検知, タンパリング, 音声検出, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
ネットワーク
EthernetRJ-45(10/100BASE-T)
映像圧縮H.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps
Smart codec手動, WiseStreamⅡ
ビットレートコントロールH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicast最大 6ユーザー
マルチキャストサポート
Multiple Streaming最大 3プロファイル
プロトコルIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), PIM-SM
Application Programming Interfaceその他SUNAPI(HTTP API), Hanwha Vision Open Platform
セキュリティ
OS / Firmware ProtectEncrypted firmware
ユーザー認証ダイジェスト認証
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationHTTPS, SRTP
Access ControlIP-based access control
AuditAccess / System / Event Log management
デバイスIDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256)
一般
メモリRAM512MB
フラッシュ256MB
Edge StorageMicro SD/SDHC/SDXCMax. 128GB x 1slot
Environmental & Electrical
動作条件温度-10°C~+55°C(+14°F~+131°F)
湿度0~95% RH(non-condensing)
保管条件温度-50°C~+60°C(-58°F~+140°F)
湿度0~95% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class2)
消費電力PoEMax 6.49W, typical 4.6W
Mechanical
カラー白
材料アルミニウム
RAL CodeRAL9003
Product Dimensions170(W)x165(H)x78.8(D)mm(6.69x6.49x3.10")
Product Weight830g(1.83lb)
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A
環境IEC/EN 63000, IEC 60529 IP66, ISO 20653 IP6K9K, IEC 62262 IK10
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide23.6m(77.51ft)
Observe (63PPM/ 19PPF)Wide9.4m(31.00ft)
Recognize (125PPM/ 38PPF)Wide4.7m(15.50ft)
Identify (250PPM/ 76PPF)Wide2.4m(7.75ft)

• The latest product information / specification can be found at hanwha-security.com
_x000D_
• Design and specifications are subject to change without notice.
_x000D_
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
