Bullet

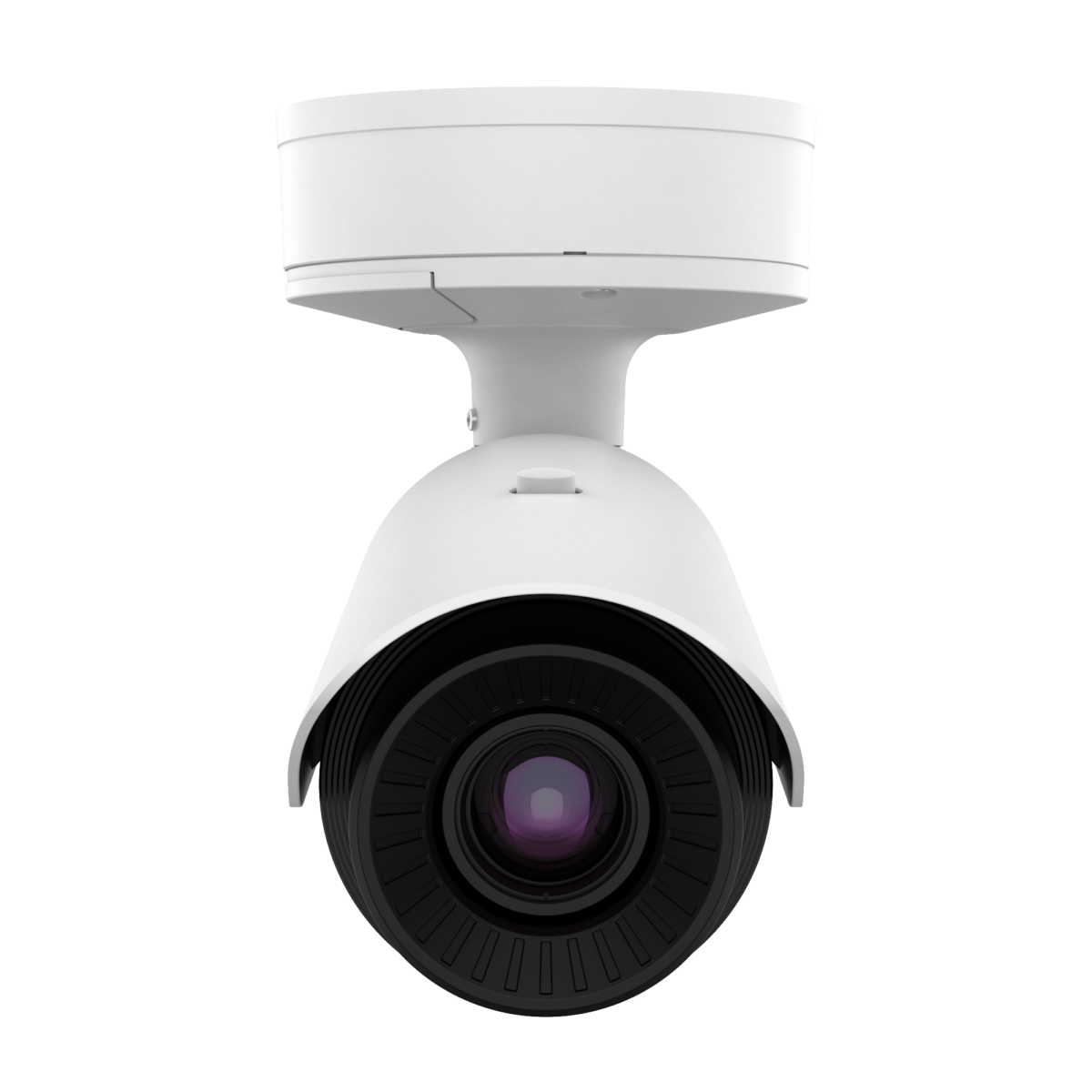

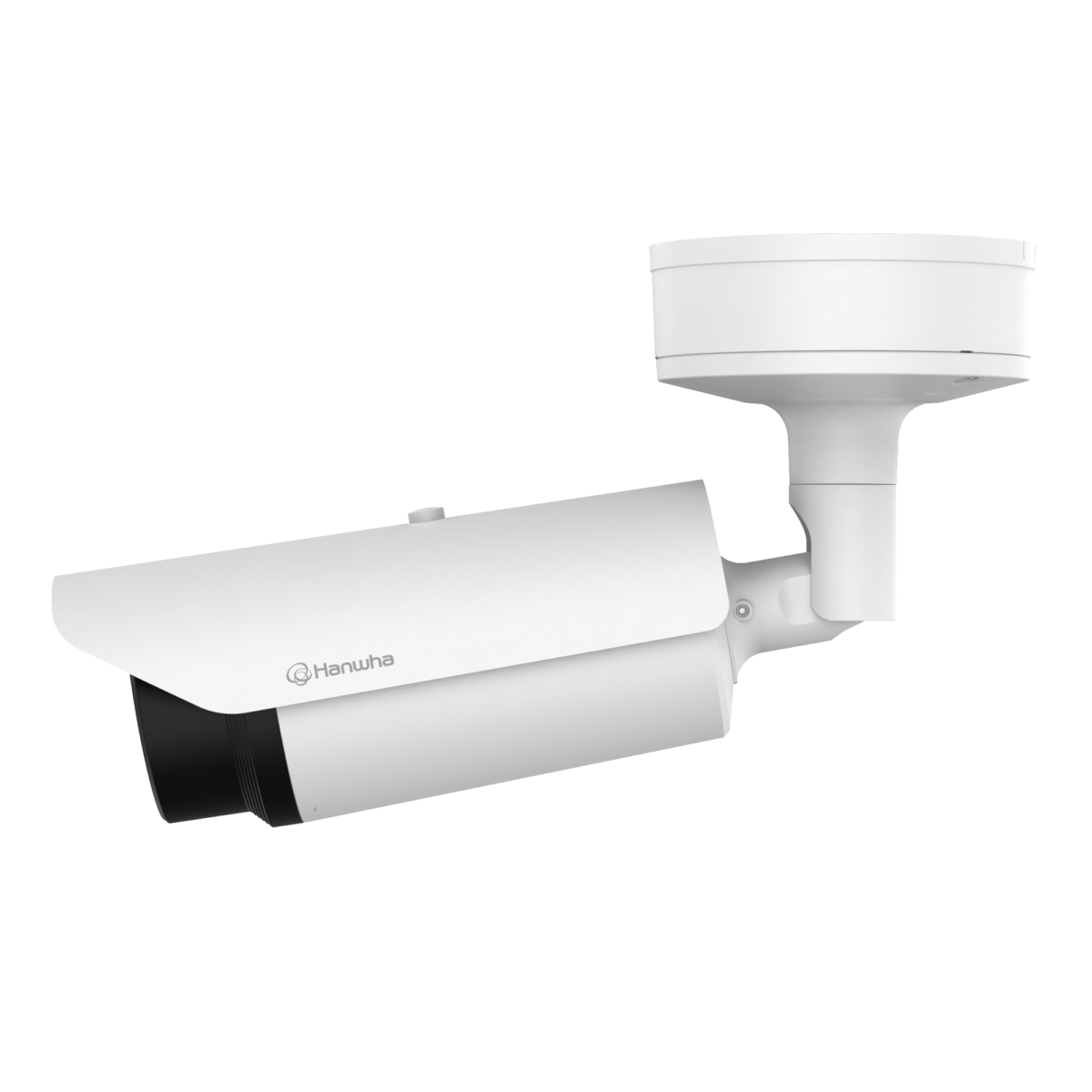

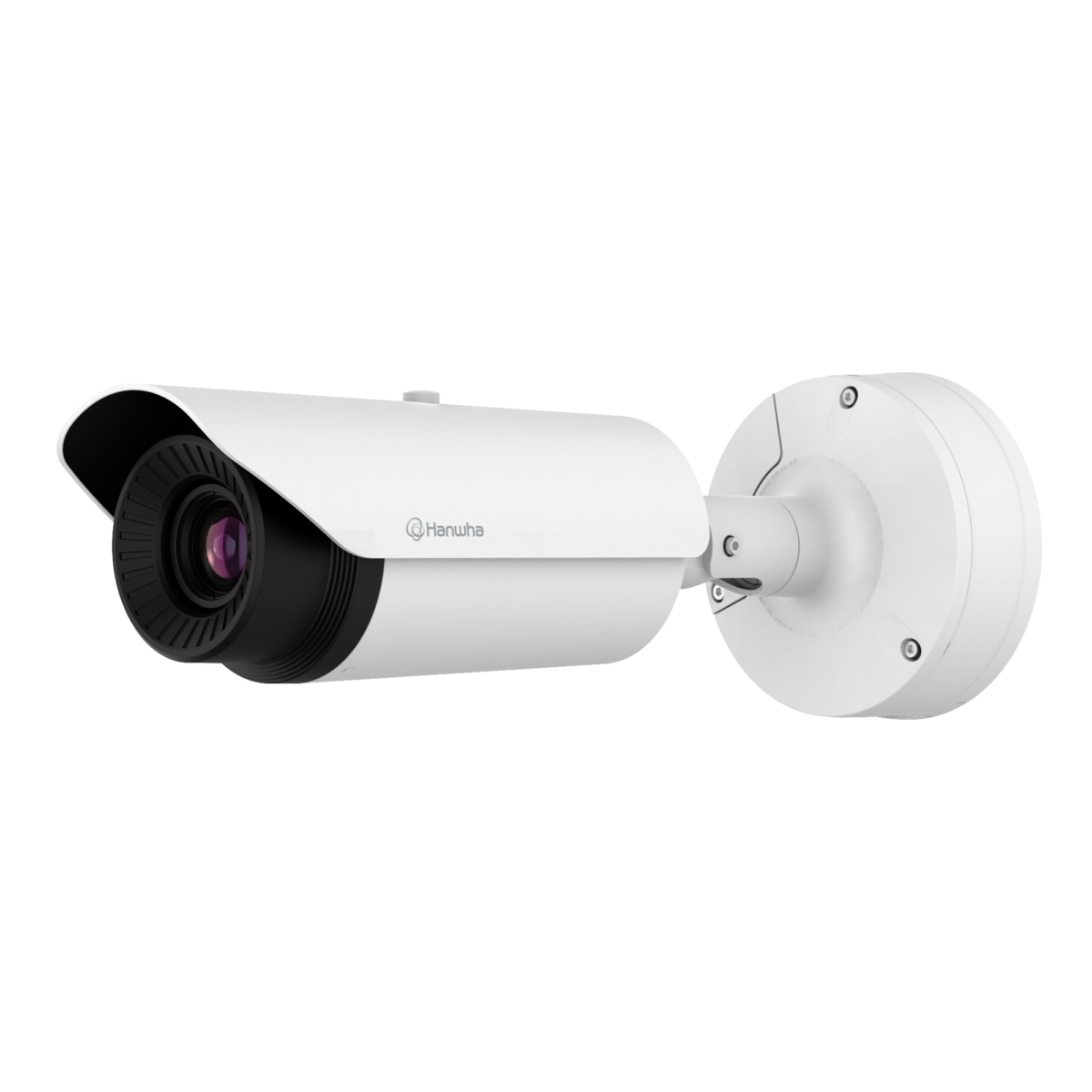

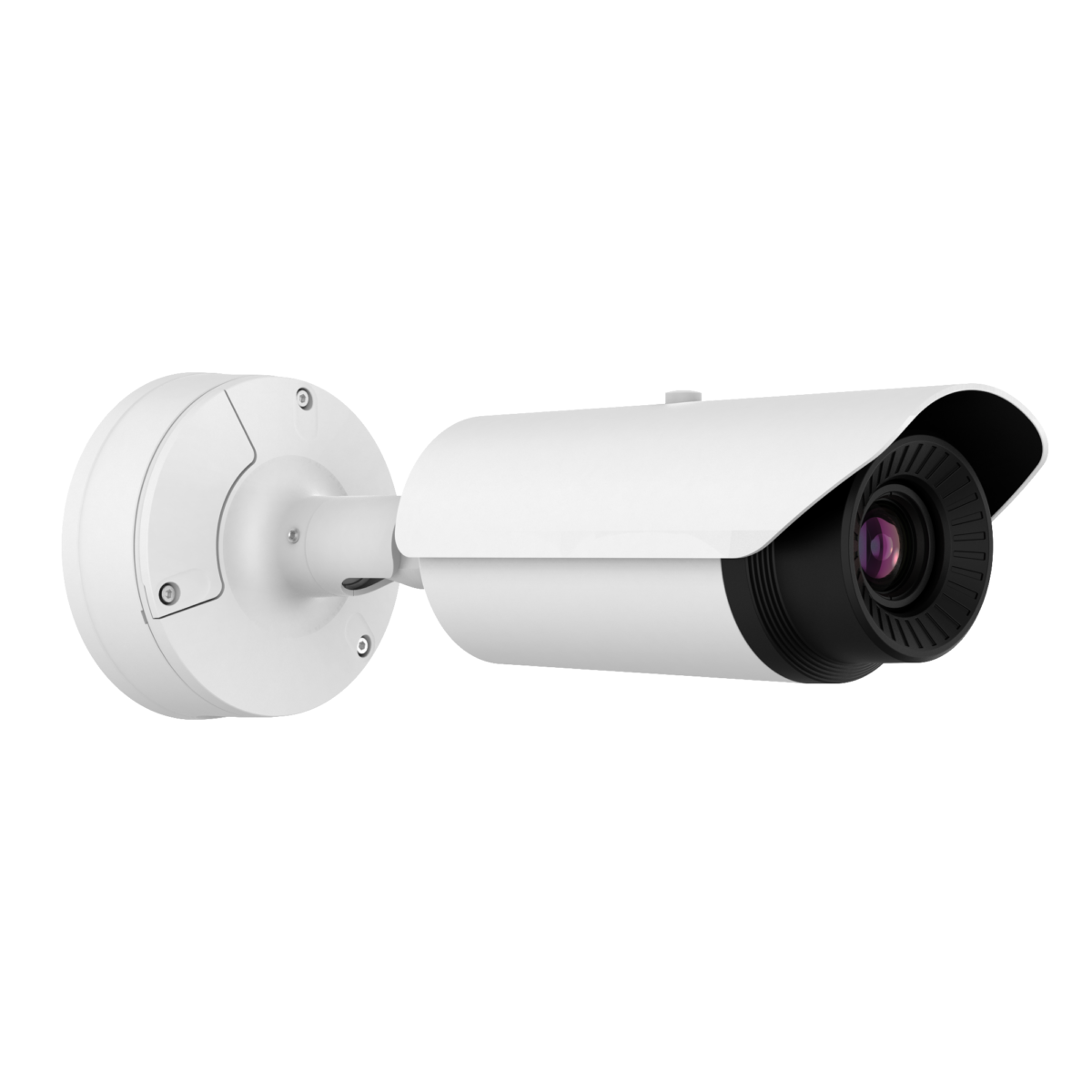

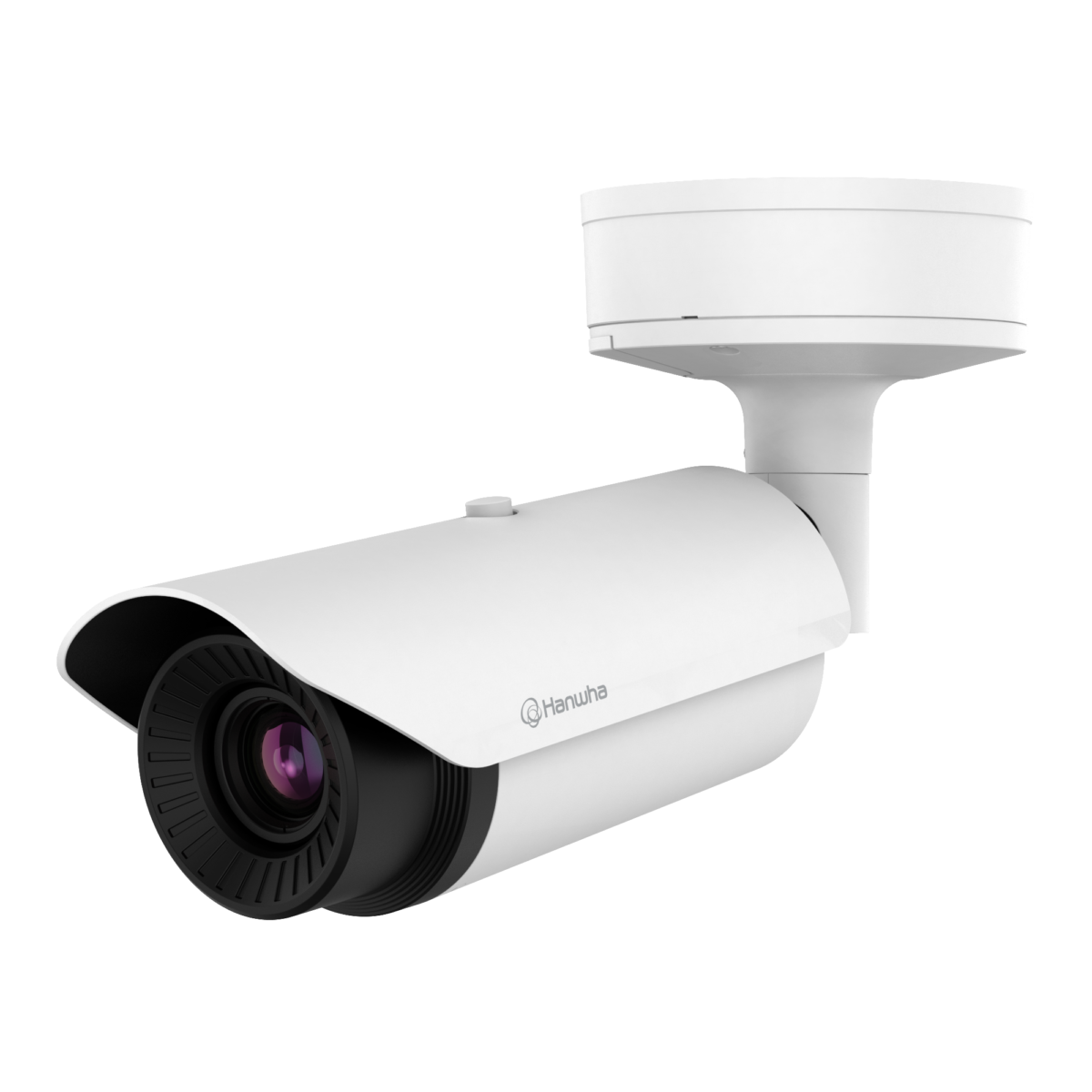

TNO-3050T

QVGA Thermal Camera

Key Features

• Max. 320 x 240 resolution support
• Horizontal 6.3°, Vertical 4.7° field of view
• H.265, H.264, MJPEG codec
• Max. 30fps@all resolutions (H.265, H.264, MJPEG)
• Motion detection, Handover, Tampering, Loitering
• Directional detection, Audio detection, Shock detection
• Micro SD / SDHC / SDXC memory slot (Max. 256GB)
• Hallway View, WiseStreamII support
• PoE, 24VAC, 12VDC
• IP66, NEMA4X

お問い合わせ データシート

["camera","network","bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Detect people and objects 24/7 with thermal cameras
In challenging weather(fog, smoke, rain) or lighting conditions(complete darkness, backlight), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. For accurate monitoring purposes, a professional surveillance system is required. Wisenet thermal cameras are the excellent choice : they provide high contrast images based on temperature differences between the object and background, so that users can detect incidents more easily. The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting.

Multiple color palettes
Wisenet thermal cameras provide seven different types of color palette for users to select the best image in various situations. Each color palette has a specific set of colors which change according to the temperature range of the scene.

Secure a wide variety of applications
Wisenet thermal cameras can be a powerful tool when monitoring applications where there is very little light, due to their ability to create images based on heat. Thermal cameras are especially applicable in manufacturing and industrial facilities, air and seaports, and mining areas.



製品の仕様

映像
Imaging Deviceタイプ Uncooled micro bolometer (320x240)
解像度320x240
Max. FramerateH.265/H.26430fps/25fps(60Hz/50Hz)
MJPEG30fps
Spectral Range8~14㎛
NETD≤60mK
Pixel Size12㎛
Video OutCVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B
レンズ
Focal Length (mm)35
Max Aperture Ratio (F number)Wide1.0
視野角度Horizontal6.3°
Vertical4.7°
Diagonal7.8°
iFoV0.34mRad
Min. Object Distance51m(167.32ft)
Focus ControlFixed
技能
Digital Image StabilizationSupport(built-in gyro sensor)
モーション検知Quantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
ShapePolygonal zones
Color / Option灰色, 緑, Red, 青, 黒, 白, モザイク
ビデオ回転FLIPモード, ミラー, Hallway view(90°/270°)
Alarm InterfaceIn/OutInput 1ea, Output 2ea
Alarm Triggers分析, ネットワーク切断, アラーム入力
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, アラーム出力, Handover: PTZ preset
オーディオ入力Selectable(mic in/line in)
オーディオ出力Line out
Color PallettesWhitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
分析
分析イベント通常モーション検知, タンパリング, 音声検出, サウンド分類, 衝撃検知, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , 温度検知
ネットワーク
EthernetRJ-45(10/100BASE-T)
映像圧縮H.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart codec手動, WiseStreamⅡ
ビットレートコントロールH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicast最大 20ユーザー
マルチキャストサポート
Multiple Streaming最大 10プロファイル
プロトコルIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast)
Application Programming InterfaceONVIFs, G, T
その他SUNAPI(HTTP API), Hanwha Vision Open Platform
セキュリティ
OS / Firmware ProtectEncrypted firmware
ユーザー認証ダイジェスト認証
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials
AuditAccess / System / Event Log management
デバイスIDDevice certificate(Hanwha Vision Root CA)
一般
メモリRAM1GB
フラッシュ256MB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 1slot
Environmental & Electrical
動作条件温度-40°C~+60°C(-40°F~+140°F)
湿度0~90% RH(non-condensing)
保管条件温度-50°C~+60°C(-58°F~+140°F)
湿度0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3), 24VAC, 12VDC
消費電力PoEMax. 8.7W, typical 7.5W
12VDCMax. 7.8W, typical 6.7W
24VACMax. 9.2W, typical 8.0W
Mechanical
カラー白
材料アルミニウム
RAL CodeRAL9003
Product Dimensionsø147.51x401.3mm(5.81x15.79")
Product Weight2742g(6.05lb)
Certifications & Standards
環境IEC 60529 IP66, NEMA 250 type 4X
