Bullet 生産中止

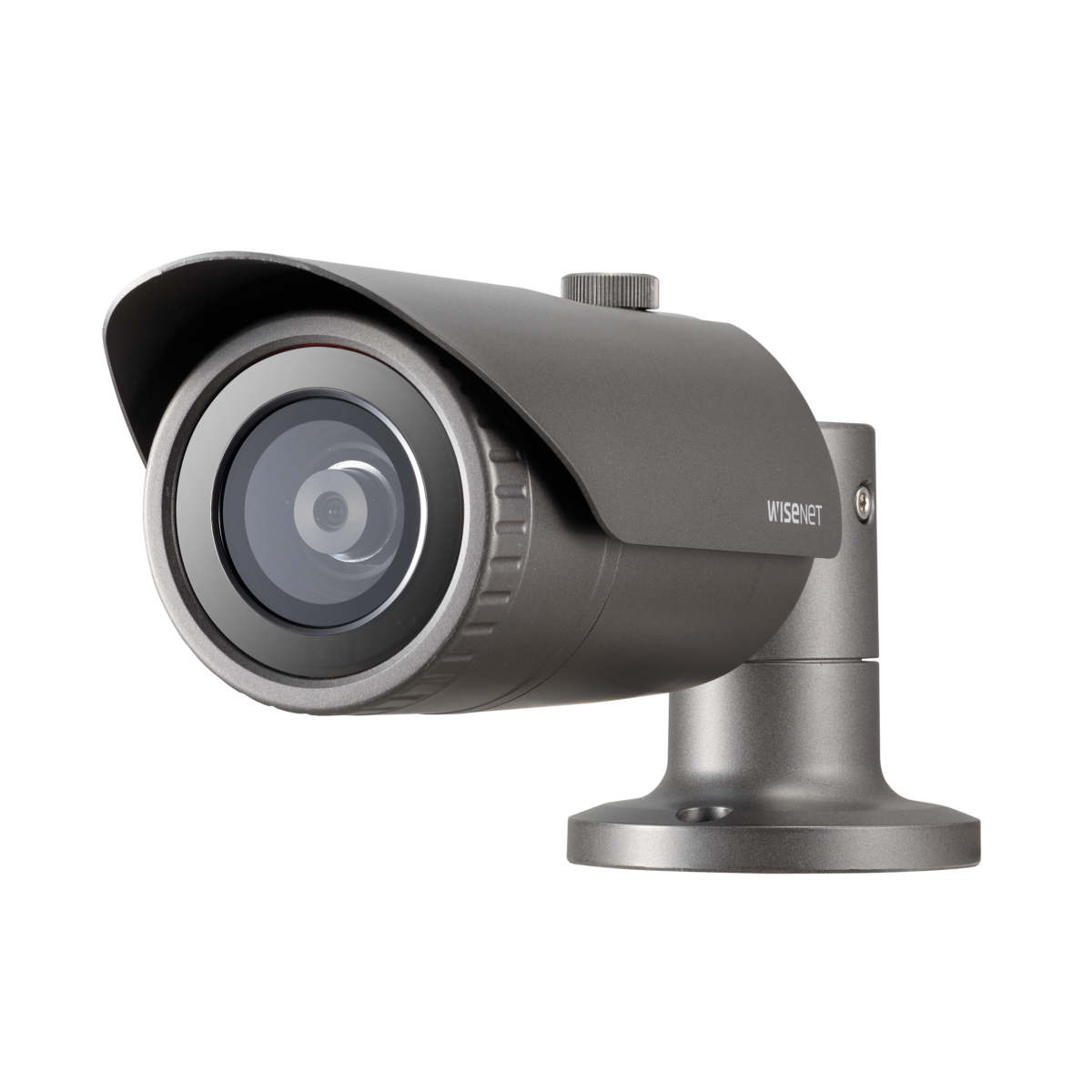

QNO-7010R

4M H.265 IR Bullet Camera

Key Features
• Max. 4M resolution
• Built-in 2.8mm fixed lens
• Max. 20fps@4M, Max. 30fps@under 2M (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• microSD (128GB) memory slot, PoE / 12V DC
• IR viewable length 20m
• Hallway view, WiseStream support, IP66, IK10
• LDC support (Lens Distortion Correction)
お問い合わせ データシート

["camera","network","bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Compact cameras
with essential qualities

Affordable product line offers professional qualities ideal
for securing small to medium sized applications

Wisenet-Q-Series-Hero Wisenet-Q-Series-Hero

Wisenet-Q-Series-Camera

  • 2Megapixel and 4Megapixel resolution
  • Framerate Max. 20fps@4M, 30fps@2M
  • Hallway view, Lens Distortion Correction
  • True WDR (120dB)
  • IP66/IK10 for Outdoor cameras
  • H.265, H.264, MJPEG
  • Motion and Defocus detection, Tampering
  • WiseStream
  • Edge storage
  • Compact design

Improved bandwidth efficiency with WiseStream, H.265

Improved bandwidth efficiency with WiseStream, H.265

WiseStream, the advanced compression technology can reduce bandwidth by 50% by using dynamic technologies. And when combined with H.265, the bandwidth efficiency can be improved up to 75% compared to the current H.264 technology.

Defocus detection

Defocus detection

Defocus detection helps recognizing images that are out of focus and significantly improves efficiency. Users can also adjust the optimal focus remotely via network (4MP Varifocal product), reducing the installation time of the camera.

Various lens options

Fixed Lens

Varifocal Lens

Even with backlight, Wisenet’s cutting-edge WDR technology addresses a limitation found in conventional WDR cameras while producing clear and vivid images. WDR improves the accuracy of an image by resolving the difference in brightness.

The 2.8 ~ 12mm varifocal lens, created by Hanwha Techwin’s own advanced technology, supports True H : 109.7° (Wide) ~ 26.0° (Tele) with more flexibility in field of view.
Demo Video
Demo Video

Hallway View for monitoring vertical shaped areas

Hallway View for monitoring vertical shaped areas

In a vertical shaped environment, traditional horizontal shaped videos focus on unnecessary edges of the area causing bandwidth and storage waste. The Hallway view creates 3 : 4 and 9 : 16 ratio image which is vertically oriented and maximizes image quality in a narrow environment.

Minimize image distortion by Lens Distortion Correction

Minimize image distortion by Lens Distortion Correction

Lens Distortion is typically shown in video on the straight lines near to edges of a image making the straight lines look curved outward. With Lens Distortion Correction technology imperfections in images are easily removed.

Perfect for small to medium sized applications

Perfect for small to medium sized applications

By using the Wisenet Q series cameras along with NVRs, create a perfect solution for small to medium sized applications and save installation cost and time.

製品の仕様

映像
映像素子 1/3" 4MP CMOS
解像度 2592x1520, 2560x1440, 2304x1296, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
最大フレームレート H.265/H.264: Max. 20fps@4MP, Max. 30fps/25fps(60Hz/50Hz) 2MP, all resolution,
MJPEG: Max 15fps/12fps(60Hz/50Hz)
最低照度 Color: 0.5Lux(F2.2, 1/30sec)
BW: 0Lux(IR LED on)
レンズ
焦点距離 2.8mm fixed focal
最大口径比 F2.2
画角 H: 110.0° / V: 63.0° / D: 128.0°
フォーカス制御 Fixed
カメラ機能
カメラタイトル Displayed up to 20 characters per line(Max.5 lines)
デイナイト Auto(ICR)
逆光補正 BLC, WDR, SSDR
Wide Dynamic Range 120dB
ノイズ軽減 SSNR
モーション検知 4ea, polygonal zones
プライバシーマスク 6ea, rectangular zones
ゲイン制御 Low / Middle / High
ホワイトバランス ATW / AWC / Manual / Indoor / Outdoor
LDC(レンズ歪曲補正) Support
電子シャッター Minimum / Maximum / Anti flicker
映像回転 Flip, Mirror, Hallway view(90°/270°)
インテリジェントビデオ Defocus detection, Motion detection, Tampering
アラーム入出力 Input 1ea / Output 1ea
アラームトリガー Analytics, Network disconnect, Alarm input
アラームイベント File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
音声入力 Line in
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
IR 照射距離 20m(65.62ft)
ネットワーク
イーサネット RJ-45(10/100BASE-T)
映像圧縮 H.265/H.264, MJPEG
音声圧縮 G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
スマートコーデック WiseStreamⅠ
ビットレート制御 H.264/H.265: CBR or VBR
MJPEG: VBR
ストリーミング性能 Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
プロトコル IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
セキュリティ HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
応用インターフェイス ONVIF Profile S/G
SUNAPI(HTTP API)
一般
ウェブビューワー Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only)
SDカード Micro SD/SDHC/SDXC 1slot 128GB
メモリー 512MB RAM, 256MB Flash
動作環境/電源
動作温度/湿度 -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -20°C
保管温度/湿度 -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
規格認証 IP66, IK10
電源 PoE(IEEE802.3af, Class3), 12VDC
消費電力 PoE: Max 7.00W
12VDC: Max 6.00W
物理的仕様
カラー/材質 Dark grey / Aluminum
寸法/重量 Ø70.0x246.0mm(Ø2.76x9.69"), 730g(1.61 lb)
データシート

製品デモ映像

Wisenet Q Series 4M Fixed lens Demo
