Dome

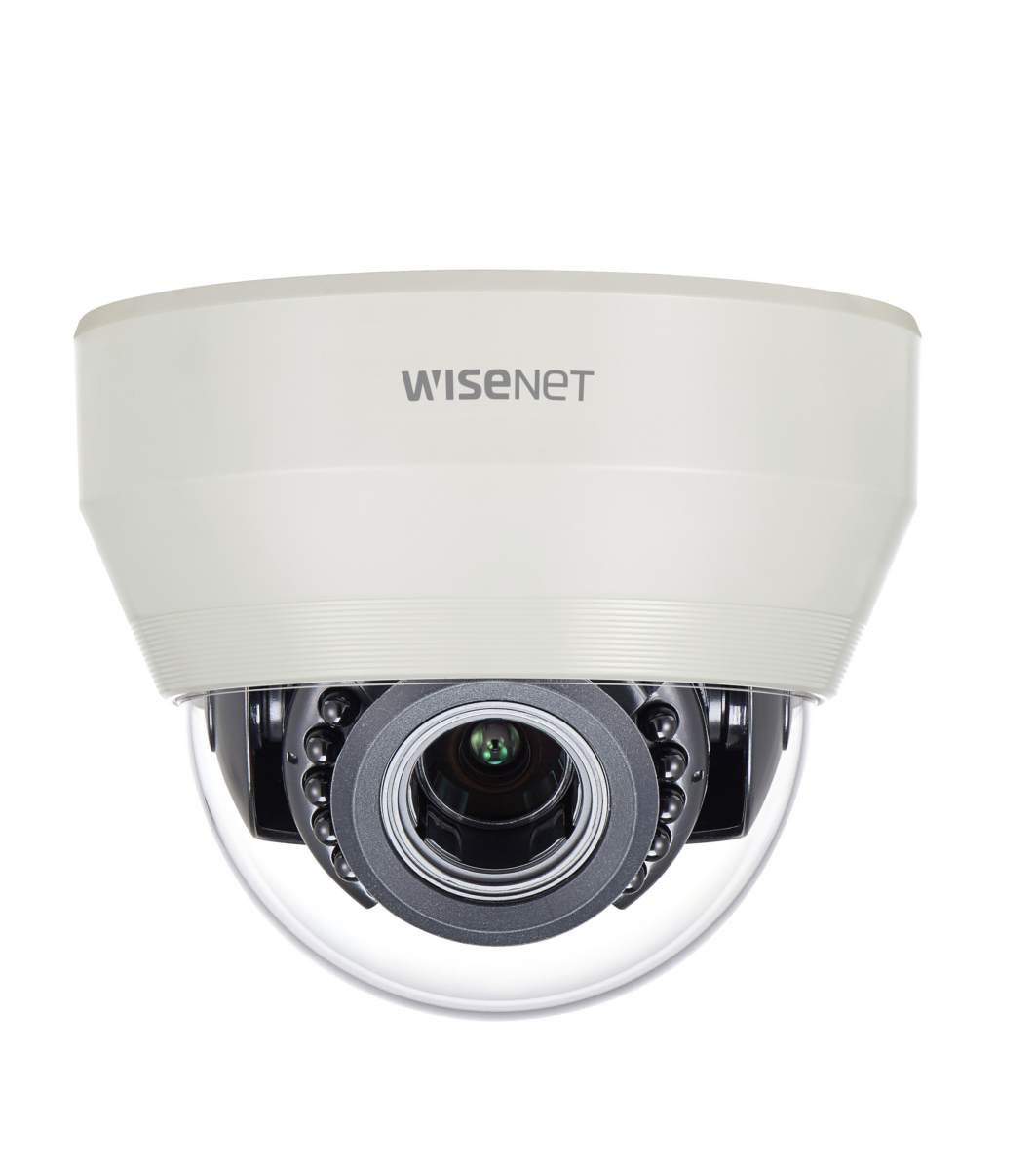

SCD-6085R

2MP Analog HD IR Dome Camera

Key Features

• Full HD (1,920 x 1,080 30fps) resolution
• 0.11Lux (Color), 0Lux (B/W : IR LED on)
• 3.2 ~ 10mm (3.1x) varifocal lens
• Day & Night (ICR), Motion detection
• IR viewable length 20m (65.62ft)
• Transmission distance max. 500m

["camera","analog","analog-dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

製品の仕様

映像
Imaging Deviceサイズ1/2.8"
タイプ CMOS
解像度1920x1080
Max. Framerate(NTSC/PAL)30fps/25fps
Min. IlluminationColor(1/30sec, 30IRE)0.11
BW(1/30sec, 30IRE)0.011
Video OutBNC: AHD
Video Transmission Distance500m(5C2V Coaxial Cable)
レンズ
Focal Length (mm)3.2~10
Optical Zoom Ratio3.1x
Max Aperture Ratio (F number)Wide1.6
視野角度Horizontal110.2°~32°
Vertical55.4°~18°
Diagonal128.4°~36.6°
Min. Object Distance0.5m(1.64ft)
Focus Control手動
Lens TypeDC auto iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0° ~ 350°
Tilt0° ~ 67°
回転0° ~ 355°
技能
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC , DWDR
Digital Noise ReductionSSNRⅣ
曇り除去サポート
モーション検知Quantity4ea
Privacy MaskingQuantity8ea
ShapeRectangular zones
ゲイン制御低, 中, 高, 最高
ホワイトバランスなし, AWC, 手動, 室内, 屋外
Electronic ShutterSpeed Range1~1/12,000sec
ビデオ回転FLIPモード, ミラー, Hallway view(90°/270°)
Alarm InterfaceIn/OutOutput 1ea
Alarm Triggers分析
Alarm Events When Alarm Trigger Occurredアラーム出力
IR Viewable Length20m (65.62ft)
Coaxial ProtocolACP, CVBS
分析
分析イベント通常モーション検知
Environmental & Electrical
動作条件温度-10°C~+55°C(+14°F~+131°F)
湿度0~90% RH(non-condensing)
Input Voltage24VAC, 12VDC
消費電力12VDC0.45A
24VAC0.46A
Mechanical
カラーIvory
材料PC(Polycarbonate)
Product DimensionsØ119.8 x 98.5mm (Ø4.72" x 3.88")
Product Weight320g(0.70lb)
