QRN-430S
4CH Network Video Recorder
Caratteristiche principali
- Up to 4CH 8MP resolution
- H.265, H.264, MJPEG codec
- 40Mbps network camera recording
- Plug & play by 4 PoE port
- Max. 1 HDD (Up to 6TB)
- HDMI output
- P2P service (QR code)
※ La disponibilità del prodotto può variare a seconda della regione, si prega di contattare il rappresentante regionale.
Specifiche
Display
| Telecamera di rete | Ingressi | Max. 4CH |
| Risoluzione | 8MP ~ CIF | |
| Protocolli | SUNAPI, ONVIF | |
| Decodifica | Display locale | HDMI |
| Display multischermo | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4 | |
| Risoluzione | [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps) |
Performance
| Sistema operativo | Integrato | Linux |
| Registrazione | Compressione | H.265, H.264, MJPEG |
| Larghezza di banda di registrazione | Max. 40Mbps | |
| Risoluzione | 8MP ~ CIF | |
| Modalità | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Attivazione evento | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event | |
| Azione evento | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Cerca e Riproduci | Larghezza di banda di riproduzione | Max. 32Mbps |
| Utente | Max. 4 Users (Local 1, Remote 3) | |
| Riproduzione simultanea | Max. 16CH(Local 4CH, Remote 4CH per user) | |
| Dewarping Fisheye | CMS | |
| Modalità | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Risoluzione | CIF ~ 8MP | |
| Controllo riproduzione | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Archiviazione | HDD supportato | Up to 6TB |
| Slot HDD | SATA 1ea(Max 6TB) | |
| Backup | Backup dei file | BU/Exe(GUI), JPG/AVI(Network) |
| Funzione | Multi channel(Up to 4CH) Play, Date-Time/Title display |
Rete
| Protocollo | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Audio | Ingresso/Uscita | 4 CH(network) |
| Compressione | G.711, G.726, AAC(16/48KHz) | |
| Comunicazione audio | 2-Way | |
| Numero max. utenti da remoto | Search(3), Live Unicast(10), Multicast(20) | |
| Visualizzatore web | Sistema operativo supportato | Windows 10, macOS 10.13 |
| Browser supportato | Google Chrome, Microsoft Edge, Mac Safari | |
| Software di visualizzazione | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS | |
Funzione
| Configurazione telecamera | Registro | Auto, Manual |
| Articolo | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Controllo | Via GUI, Webviewer |
| Preimpostato | 300 Presets | |
| Smartphone | Modello supporto | iOS, Android |
| Supporto del protocollo | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Controllo | Live 4CH(Multi-Profile Support), Playback 4CH | |
| Max. Utenti da remoto | Search(3), Live Unicast(10) | |
| Ridondanza | Failover | N+1 |
| ARB | Support | |
| Configurazione semplice | P2P(QR code) | |

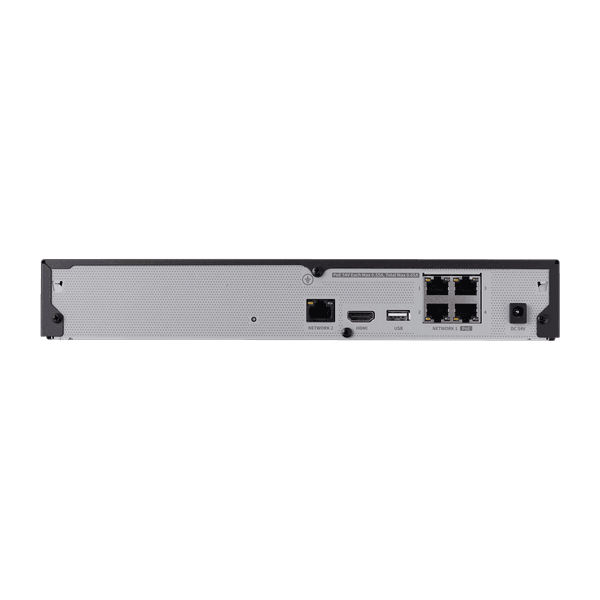

Interfaccia
| Anteriore | Indicatore | Power, Record, Network |
| Archiviazione | OK | |
| Reset | Support | |
| HDMI | 1EA 3840x2160 30Hz | |
| Ethernet | PoE RJ-45(LAN, 10/100) 4ea, RJ-45 1ea (WAN, 10/100) | |
| USB | 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0) | |
| Ingresso alimentazione | DC Adaptor | |
Sistema
| Registro | Elenco registro | Max. 100,000 (System Log, Event Log each) |
| Controllo del sistema | Mouse, Web | |
| Lingua | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
Certificazioni
| Temperatura di esercizio | 0°C to +40°C(32℉ to 104℉) | |
| Umidità di esercizio | 20% ~ 85% RH | |
Elettrico
| Ingresso alimentazione | 100 ~ 240 VAC ±10%, 50/60Hz | |
| Consumo energetico | Max. 52W(1HDD, PoE On) | |
| Budget PoE | 35W | |
Meccanico
| Colore / Materiale | Black / Metal | |
| Dimensioni | 300.0 x 47.1 x 208.4 mm (11.81 x 1.85 x 8.20 inch) | |
| Peso | 1.03Kg(2.27lb) | |
Display
| Telecamera di rete | Ingressi | Max. 4CH |
| Risoluzione | 8MP ~ CIF | |
| Protocolli | SUNAPI, ONVIF | |
| Decodifica | Display locale | HDMI |
| Display multischermo | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4 | |
| Risoluzione | [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps) |
Performance
| Sistema operativo | Integrato | Linux |
| Registrazione | Compressione | H.265, H.264, MJPEG |
| Larghezza di banda di registrazione | Max. 40Mbps | |
| Risoluzione | 8MP ~ CIF | |
| Modalità | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Attivazione evento | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event | |
| Azione evento | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Cerca e Riproduci | Larghezza di banda di riproduzione | Max. 32Mbps |
| Utente | Max. 4 Users (Local 1, Remote 3) | |
| Riproduzione simultanea | Max. 16CH(Local 4CH, Remote 4CH per user) | |
| Dewarping Fisheye | CMS | |
| Modalità | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Risoluzione | CIF ~ 8MP | |
| Controllo riproduzione | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Archiviazione | HDD supportato | Up to 6TB |
| Slot HDD | SATA 1ea(Max 6TB) | |
| Backup | Backup dei file | BU/Exe(GUI), JPG/AVI(Network) |
| Funzione | Multi channel(Up to 4CH) Play, Date-Time/Title display |
Rete
| Protocollo | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Audio | Ingresso/Uscita | 4 CH(network) |
| Compressione | G.711, G.726, AAC(16/48KHz) | |
| Comunicazione audio | 2-Way | |
| Numero max. utenti da remoto | Search(3), Live Unicast(10), Multicast(20) | |
| Visualizzatore web | Sistema operativo supportato | Windows 10, macOS 10.13 |
| Browser supportato | Google Chrome, Microsoft Edge, Mac Safari | |
| Software di visualizzazione | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS | |
Funzione
| Configurazione telecamera | Registro | Auto, Manual |
| Articolo | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Controllo | Via GUI, Webviewer |
| Preimpostato | 300 Presets | |
| Smartphone | Modello supporto | iOS, Android |
| Supporto del protocollo | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Controllo | Live 4CH(Multi-Profile Support), Playback 4CH | |
| Max. Utenti da remoto | Search(3), Live Unicast(10) | |
| Ridondanza | Failover | N+1 |
| ARB | Support | |
| Configurazione semplice | P2P(QR code) | |
Interfaccia
| Anteriore | Indicatore | Power, Record, Network |
| Archiviazione | OK | |
| Reset | Support | |
| HDMI | 1EA 3840x2160 30Hz | |
| Ethernet | PoE RJ-45(LAN, 10/100) 4ea, RJ-45 1ea (WAN, 10/100) | |
| USB | 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0) | |
| Ingresso alimentazione | DC Adaptor | |
Sistema
| Registro | Elenco registro | Max. 100,000 (System Log, Event Log each) |
| Controllo del sistema | Mouse, Web | |
| Lingua | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
Certificazioni
| Temperatura di esercizio | 0°C to +40°C(32℉ to 104℉) | |
| Umidità di esercizio | 20% ~ 85% RH | |
Elettrico
| Ingresso alimentazione | 100 ~ 240 VAC ±10%, 50/60Hz | |
| Consumo energetico | Max. 52W(1HDD, PoE On) | |
| Budget PoE | 35W | |
Meccanico
| Colore / Materiale | Black / Metal | |
| Dimensioni | 300.0 x 47.1 x 208.4 mm (11.81 x 1.85 x 8.20 inch) | |
| Peso | 1.03Kg(2.27lb) | |
