TNU-6324ER

Name: TNU-6324ER — 2M Explosion-proof IR Camera
Brand: Hanwha Vision
SKU: TNU-6324ER-ru

2M Explosion-proof IR Camera

2MP

Image Resolution

4.44~142.6mm

Focal Length

200m

IR Length

IP67, IK10

Rated

Основные характеристики

• H: 64.66°(Wide)~2.29°(Tele) / V: 38.08°(Wide)~1.30°(Tele)
• Max. 60fps/50fps(60Hz/50Hz)@2MP (H.265, H.264)
• H.265, H.264, MJPEG codec, WiseStream II
• IR viewable length 200m
• Day & Night (Auto ICR), WDR (120dB)
• Pan/Tilt : 0.1˚/sec ~40˚/sec, Endless rotation, Preset (300ea)
• Explosion-proof certificate: IECEx, ATEX, KCs, KC, CE/UKCA
• Stainless 316L, Built-in wiper

※ Наличие продукта может варьироваться в зависимости от региона, пожалуйста, свяжитесь с вашим региональным представителем.

Reliable in any Environment

Built for hazardous environments, certified to IECEx, ATEX, and KCs standards. Its 316L stainless housing, built-in wiper, and IP67/IK10 ratings provide robust protection against extreme weather, impacts, and corrosive conditions.

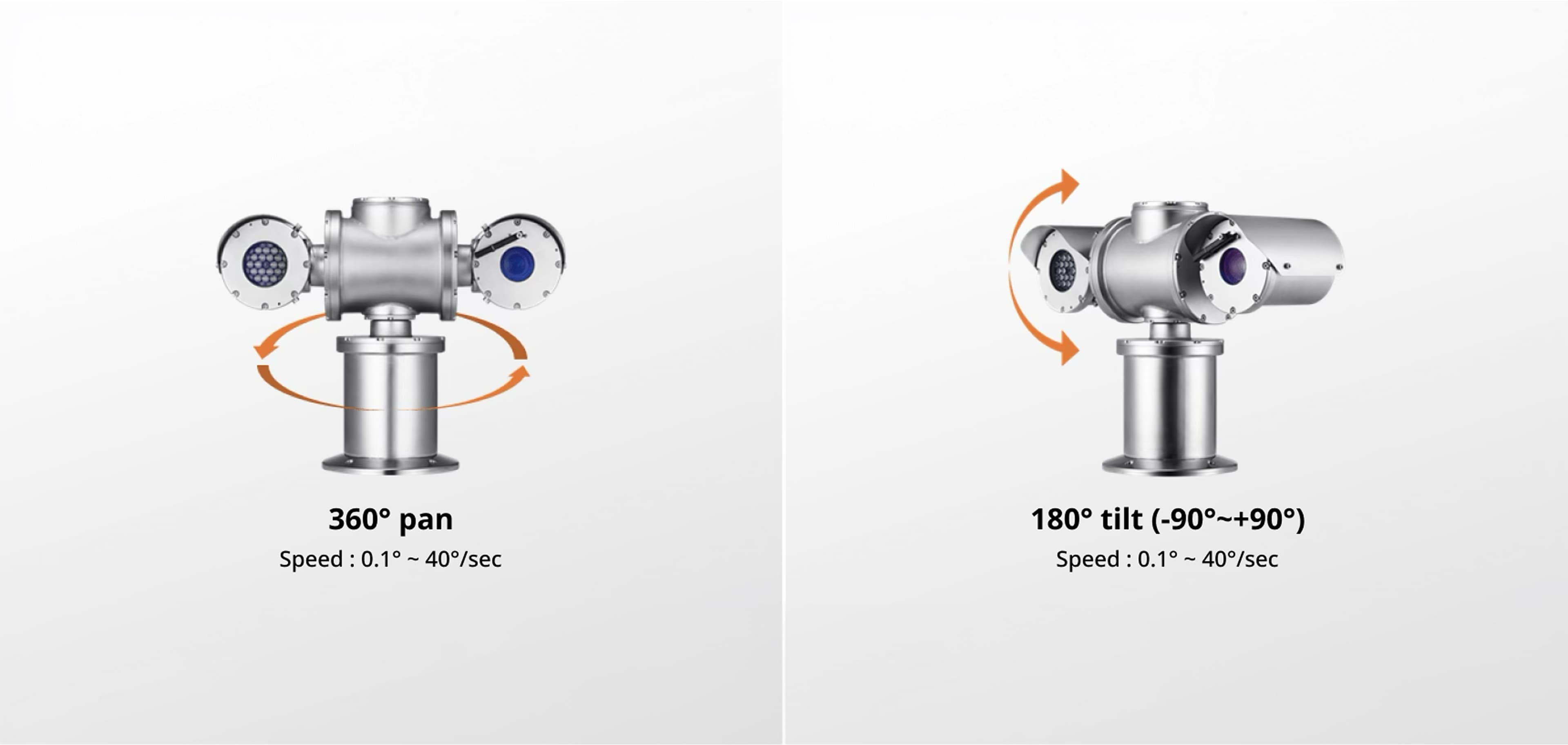

Total Control for your Needs

Offers 360° pan and 180° tilt for complete coverage, eliminating blind spots. With 300 presets, including swing, group, tour, and auto-run, movement is easily customizable.

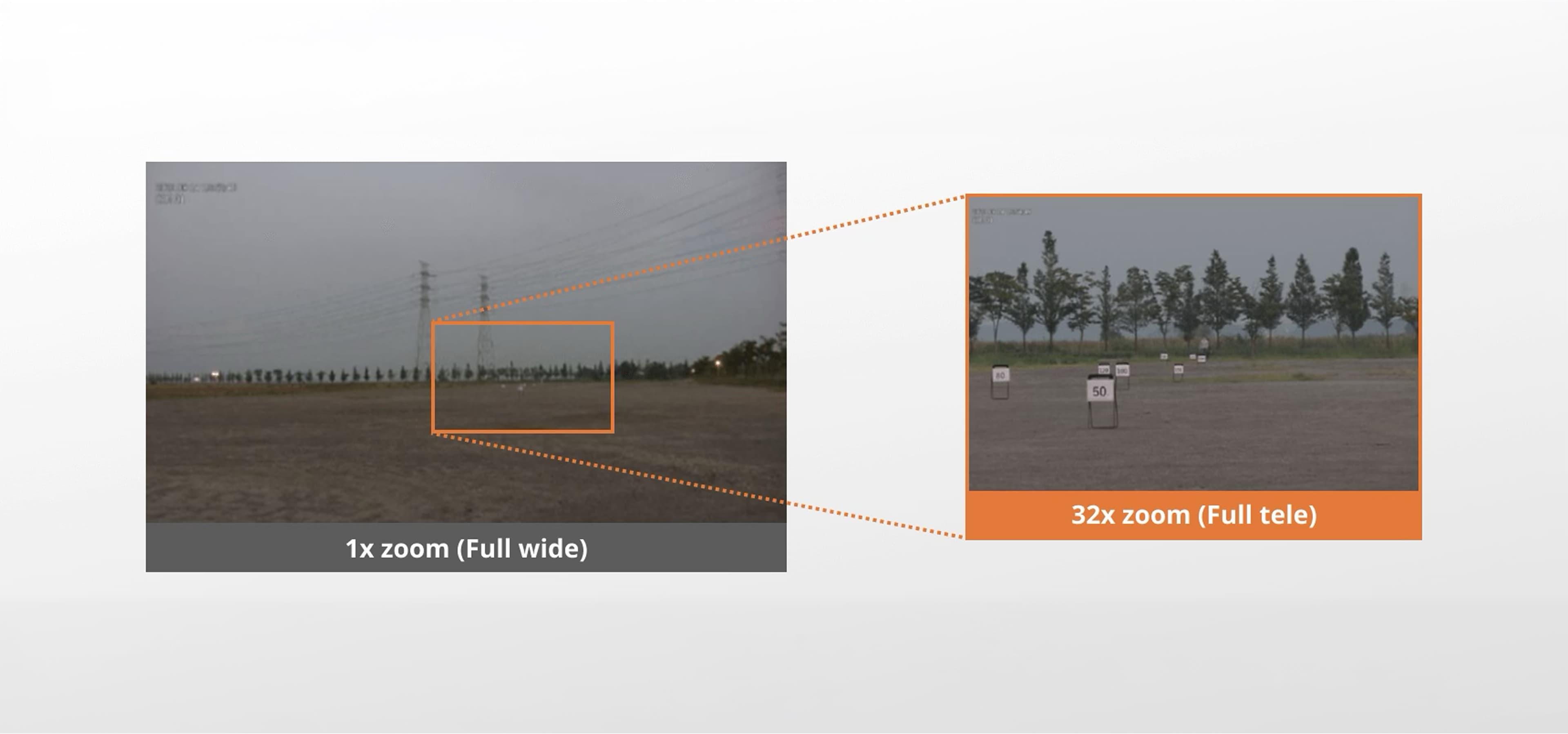

Capture Critical Details, Near or Far

Offers 2MP resolution with a 32x optical zoom (4.4–142.6 mm), enabling detailed close-ups and long-range surveillance without losing image quality.

See Clearly in Complete Darkness

Enhance nighttime surveillance with the TNU-6324ER’s built-in long-range IR, providing clear visibility at distances of up to 200 m of clear monitoring even in low- or no-light conditions.

Характеристики

Video

Imaging Device	Size	1/2.8"
Imaging Device	Type	CMOS
Resolution		1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate	H.265/H.264	60fps/50fps(60Hz/50Hz)
Max. Framerate	MJPEG	30fps
Min. Illumination (Lux)	Color(1/30sec, 30IRE)	0.05
Min. Illumination (Lux)	BW(1/30sec, 30IRE)	0.005

Video

Imaging Device	Size	1/2.8"
Imaging Device	Type	CMOS
Resolution		1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate	H.265/H.264	60fps/50fps(60Hz/50Hz)
Max. Framerate	MJPEG	30fps
Min. Illumination (Lux)	Color(1/30sec, 30IRE)	0.05
Min. Illumination (Lux)	BW(1/30sec, 30IRE)	0.005

Lens

Focal Length (mm)		4.44~142.6
Zoom Ratio	Optical	32x
Max Aperture Ratio (F number)	Wide	1.6
Max Aperture Ratio (F number)	Tele	4.4
Angular Field of View	Horizontal	61.8°~2.19°
Angular Field of View	Vertical	36.2°~1.24°
Min. Object Distance		1.5m(4.92ft)
Focus Control		Oneshot AF
Lens Type		DC auto iris

Pan / Tilt / Rotate

Pan / Tilt / Rotate Range	Pan	360° Endless
Pan / Tilt / Rotate Range	Tilt	180°(-90° ~90°)
Pan Speed	Manual	0.5°/sec ~80°/sec
Tilt Speed	Manual	0.1°/sec~60°/sec
Sequence		Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy		±0.25°

Operational

Direction Indicator		Support
Day & Night		Auto(ICR)
Backlight Compensation		BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)		120
Digital Noise Reduction		SSNRⅤ
Digital Image Stabilization		Support
Defog		Support
Motion Detection	Quantity	8ea
	Shape	8point Polygonal zones
Gain Control		Low, Middle, High
White Balance		ATW, AWC, Manual, Indoor, Outdoor
Electronic Shutter	Mode	Minimum, Maximum, Anti flicker
	Speed Range	1~1/12,000sec
Alarm Interface	In/Out	Input 1ea, Output 1ea
Alarm Triggers		Analytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger Occurred		File upload(image): e-mail/FTP, Notification: e-mail, Alarm output, Handover: PTZ preset, NAS recording at event triggers
Light Type		IR LED
Light Viewable Length	IR	200m(656.17ft)
IR Wavelength		850nm
Water Removal		Support(with Wiper)

Analytics

Analytics Events

Normal

Motion detection, Tampering, Fog detection, Face detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)

Network

Ethernet		RJ-45(10/100BASE-T)
Video Compression		H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec		Manual, WiseStreamⅡ
Bitrate Control		H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming	Unicast	Up to 20 users
	Multicast	Support
	Multiple Streaming	Up to 10 profiles
Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, PIM-SM
Application Programming Interface	ONVIF	S, G, T
	Others	SUNAPI(HTTP API), Hanwha Vision Open Platform

Security

OS / Firmware Protect		Encrypted firmware
User authentication		Digest authentication
Network authentication		IEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure Communication		HTTPS
Access Control		IP-based access control
Audit		Access / System / Event Log management

General

Memory	RAM	1GB
Memory	Flash	256MB

Environmental & Electrical

Operating Condition	Temperature	-40°C~+60°C(-40°F~+140°F)
Operating Condition	Humidity	0~95% RH(non-condensing)
Storage Condition	Temperature	-30°C~+60°C(-22°F~+140°F)
Storage Condition	Humidity	0~95% RH(non-condensing)
Input Voltage		110VAC, 220VAC
Power Consumption	110VAC	1.7A, MaX. 120W

Mechanical

Color		Silver
Material		Stainless(STS316L)
Product Dimensions		611(W)x438(H)x235(D)mm(24.06x17.24x9.25")
Product Weight		36kg(79.37lb)

Certifications & Standards

Environment

IEC 60529 IP67, IEC 62262 IK10, ATEX II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db, IECEx Ex db IIC T6 Gb, Ex tb IIIC T80°C Db, KCs

Загрузки

Просмотр выбора (0)

DataSheets

	Категория	Имя файла	Последнее обновление
	DataSheet	DataSheet_TNU-6324ER_20260921_RU_115643.pdf	2026-09-21

Руководства

	Категория	Имя файла	Последнее обновление
	Manuals	Manuals_TNU-6324ER,TNU-6324E_240829_RU.pdf	2026-09-21

САПР

	Категория	Имя файла	Последнее обновление
	CAD	CAD_TNU-6324ER_20250703_Common.pdf	2026-09-21
	CAD	CAD_TNU-6324ER_20250703_Common.dwg	2026-09-21

Сертификация

Категория	Имя файла	Последнее обновление
Certification	Certification_TNU-6324ER,TNU-6324E_241015_EN_UKEX.pdf	2026-09-21
Certification	Certification_TNU-6324ER_240412_EN_IK10.pdf	2026-09-21
Certification	Certification_TNU-6324ER_240411_EN_EMC_CE.pdf	2026-09-21
Certification	Certification_TNU-6324ER_240411_EN_DoC_CE.pdf	2026-09-21
Certification	Certification_TNU-6324ER,TNU-6324E_240712_EN_IECEx.pdf	2026-09-21
Certification	Certification_TNU-6324ER,TNU-6324E_240903_EN_ATEX.pdf	2026-09-21

A&E Document

	Категория	Имя файла	Последнее обновление
	A&E Document	AE-Document_TNU-6324ER_241115_EN.docx	2026-09-21

Краткое руководство

	Категория	Имя файла	Последнее обновление
	Quick Guide	Quick Guide_TNU-6324ER,TNU-6324E_250708_RU.pdf	2026-09-21

OpenSourceLicense

	Категория	Имя файла	Последнее обновление
	OpenSourceLicense	OpenSourceLicense_TNU-6324ETNU-6324ER_240117_EN.txt	2026-09-21

Firmware

	Категория	Имя файла	Последнее обновление
	Firmware	TNU-6324ER_2.23.01_20251215_R130.zip	2025-12-19
	Firmware	TNU-6324ER_2.23.00_20251001_R120.zip	2025-10-22
