DOME

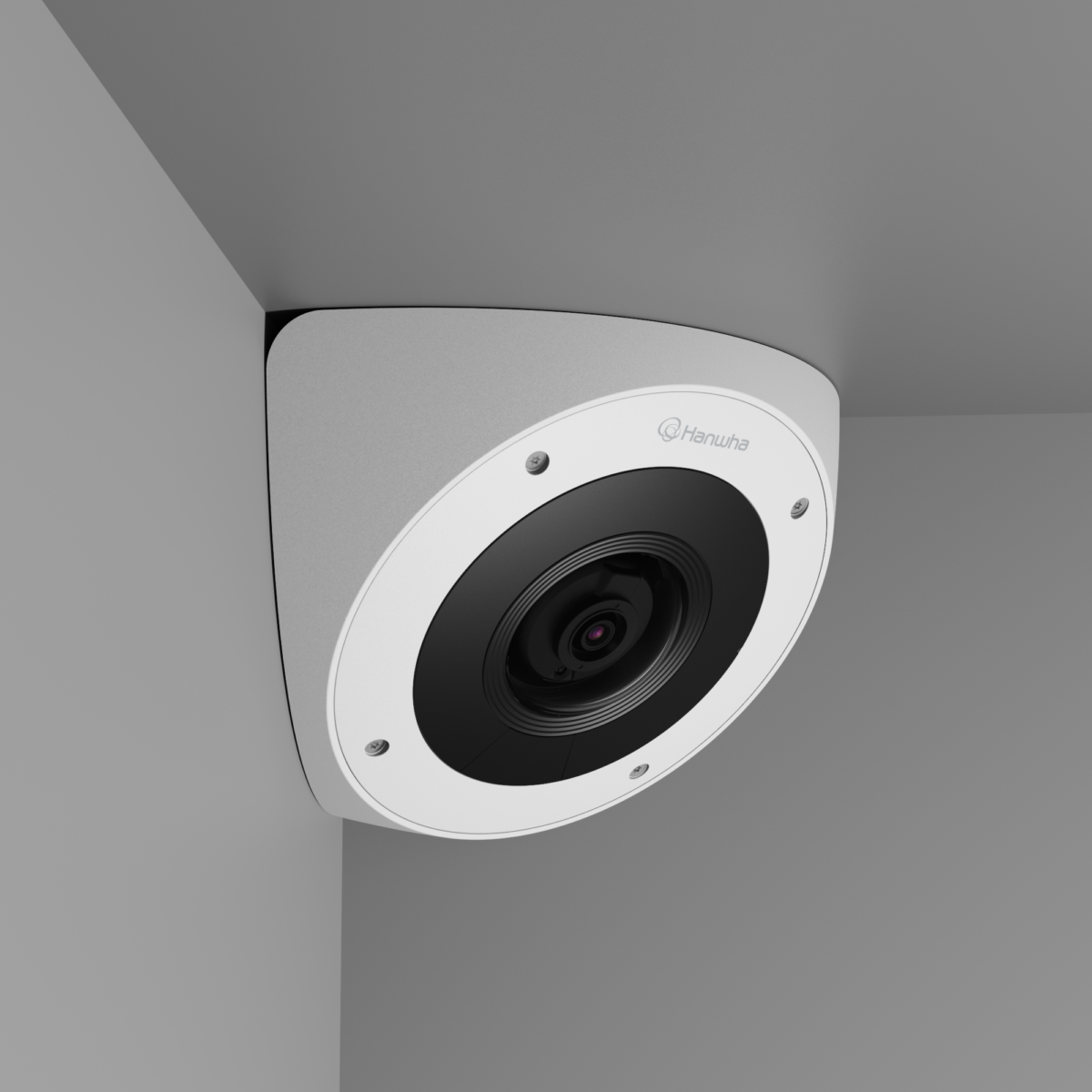

TNV-7011RC
3MP Corner Mount Camera
Key Features
• Maximum 3MP (2048 x 1536) resolution
• Maximum 30fps @ all resolutions (H.265/H.264/MJPEG)
• 0.3 lux @ F2.0 (Color), 0 lux @ F2.0 (B/W)
• Built-in 2.8mm fixed lens
• Anti-ligature design for corrections and behavioral health facilities
• Day & Night, WDR (120dB)
• Video & audio analytics, Shock detection
• microSD/SDHC/SDXC memory slot (256GB)
• Hallway view, WiseStream II support
• PoE, DC 12V, IK10+
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Tổng quan
Compact & Anti-ligature design and wide FoV
With the dimension of Ø295.5×113.5mm(11.6×4.47″) and the weight of 2.1kg (4.63lb), TNV-7011RC offers a wide FoV (H: 102° / V: 75° / D: 129°), making it suitable for SMB and limited space monitoring. And its anti-ligature design makes it also applicable for corrections and behavioral health facilities.
Thông số sản phẩm
| Video | ||
|---|---|---|
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 1280x720, 1280x1024, 720x480, 1280x960, 1024x768, 1920x1080, 720x576, 640x360, 640x480, 800x448, 2048x1536, 1600x1200, 800x600, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps |
| MJPEG | 30fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.3 |
| BW(1/30sec, 30IRE) | 0.03 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation | |
| Lens | ||
| Focal Length (mm) | 2.8 | |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 102° |
| Vertical | 75° | |
| Diagonal | 129° | |
| Min. Object Distance | 0.4m(1.31ft) | |
| Focus Control | Manual | |
| Pan / Tilt / Rotate | ||
| Pan / Tilt / Rotate Range | Tilt | 30°~60° |
| Operational | ||
| Day & Night | Auto(ICR) | |
| Backlight Compensation | HLC, WDR, BLC, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | Polygonal zones | |
| Color / Option | Green, Mosaic, Black, Red, Blue, White, Gray | |
| Gain Control | Middle, Low, High | |
| White Balance | Manual, Outdoor, ATW, Indoor, AWC | |
| LDC | Support | |
| Electronic Shutter | Mode | Maximum, Minimum, Anti flicker |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Mirror, Hallway view(90°/270°), Flip | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Alarm input, Network disconnect, Analytics | |
| Alarm Events When Alarm Trigger Occurred | Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, File upload(image): e-mail/FTP, Handover: PTZ preset, Alarm output | |
| Audio In | Built-in mic, Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 10m(32.8ft) |
| IR Wavelength | 940nm | |
| Analytics | ||
| Analytics Events | Normal | Sound classification, Motion detection, Tampering, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Defocus detection, Shock detection, Virtual line(Crossing, Direction) , Fog detection, Face detection, Audio detection |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, AAC-LC: 48Kbps at 16KHz, G.726(ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| Smart Codec | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | TCP/IP, ARP, DHCP, RTCP, IPv6, FTP, IPv4, SRTP(TCP, UDP Unicast), HTTPS, PIM-SM, NTP, QoS, SMTP, DDNS, IGMP, HTTP, UPnP, RTSP, ICMP, RTP(UDP), UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), PPPoE, RTP(TCP), SSL/TLS | |
| Application Programming Interface | ONVIF | S, T, G |
| Others | Hanwha Vision Open Platform, SUNAPI(HTTP API) | |
| Direct Cloud Connection | Optional (needs gateway) | |
| Security | ||
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Audit | Access / System / Event Log management | |
| General | ||
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
| Environmental & Electrical | ||
| Operating Condition | Temperature | -10°C~+55°C(+14°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | 12VDC, PoE(IEEE802.3af, Class2) | |
| Power Consumption | PoE | Max 12W, typical 10.1W |
| 12VDC | Max 11W, typical 8.6W | |
| Mechanical | ||
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | Ø295.5x113.5mm(11.6x4.47") | |
| Product Weight | 2.1kg(4.63lb) | |
| Certifications & Standards | ||
| Environment | IEC 60529 IP66, ISO 20653 IP6K9K, IEC 62262 IK10+ | |
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/ 8PPF) | Wide | 33.2m(108.82ft) |
| Observe (63PPM/ 19PPF) | Wide | 13.3m(43.53ft) |
| Recognize (125PPM/ 38PPF) | Wide | 6.6m(21.76ft) |
| Identify (250PPM/ 76PPF) | Wide | 3.3m(10.88ft) |
