TNM-C3620TDR
Bi-spectrum AI Radiometric Camera QVGA thermal / 2MP visible
Key Features
-
-
- Thermal: 320 x 240 (uncooled) @ 30fps <50mK (NETD), built-in 4.7mm thermal fixed lens (HFoV: 50°),
- Visible: 2MP @ 30fps, built-in 4mm fixed lens (HFoV: 87.6°)
- Triple triple codec H.265/H.264/MJPEG with Wisestream II and WiseStream III (based on AI engine) support
- WDR 150dB
- AI object detection (visible): Person/Face, Detection Shot
- Analytics events based on AI engine (visible): Virtual line (Crossing/ Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Motion detection, Audio detection, Virtual area(Appear/Disappear)
- Alarm events: Image upload (e-mail/FTP), Notification (e-mail), Recording (edge/NAS), Alarm output, Handover (PTZ preset), Send message by HTTP/ HTTPS/TCP message), Audio clip playback, MQTT (publication)
- Radiometric: whole FoV area or up 6 user programmable quadrangle ROIs, Temperature detection range from -20°C to 130°C (-4°F to 266°F)
- FIPS 140-2, Level 2
- 1x micro SD card (256GB x1)
- PoE+/12VDC
- This product is subject to the Thermal agreement
-
※ Product availability may vary by region, please contact your regional representative.
Proactive Thermal Safety with AI
By monitoring visible and thermal streams simultaneously, AI proactively detects fire risks, equipment failures, and safety gaps in real time.
Unparalleled Temperature Detection
Unparalleled Temperature Detection Offers the market's widest temperature detection range, monitoring from -20°C up to 130°C.
Ideal for Discreet Indoor Use

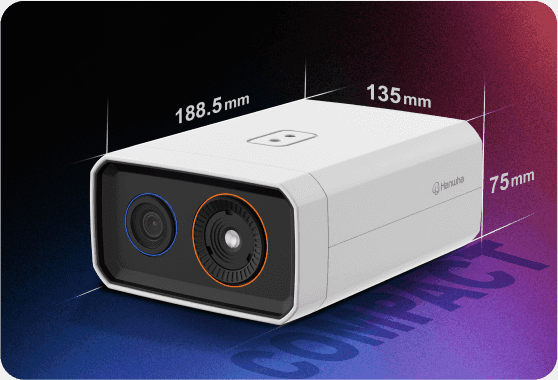

Compact and lightweight design makes it ideal for discreet installation in areas with limited space (ceiling and wall mount options available).
Customizable event notifications and data analytics
Build up to 6 regions of interest using custom, quadrangle shapes and trigger events based on temperature readings.
Efficient SCADA Integration via MQTT
Easily integrate with SCADA systems via MQTT, ensuring efficient data exchange with minimal network impact and simplified management.
