NHP-P100
IP Controller
Key Features
- Supports 1 door
- 1 Wiegand/OSDP reader port (supports up to 2 OSDP readers)
- 3 supervised inputs
- Up to 2 unsupervised OSDP flex inputs
- 1 Form-C wet relay output with dry/12VDC/24VDC power selector
- Built-in tamper monitoring
- 1 dedicated RJ-45 10/100 PoE+ Ethernet port
- Onboard power monitoring with memory retention
- Supports up to 50,000 cardholders
- 250,000 offline event cache
- Secure operation with TLS 1.3 and AES-256 encryption
- Power: PoE+, 12-24VDC
- Current draw: 480mA on PoE+
- Dimensions: 7.24" × 7.24" × 1.67" (184mm × 184mm × 42.5mm)
※ Product availability may vary by region, please contact your regional representative.
Real-Time Monitoring
The NHP-P100 sees your entire system, respond to alarms and keep an eye on critical doors in one intuitive cloud dashboard.
Direct-to-cloud communications
The NHP-P100 connects directly to the cloud, with no need for extra hardware or an on-site bridge.
Deploy without Limits
The NHP-P100 supports single-site and multi-site deployments with industry-leading Wavelynx card readers, Wiegand, and OSDP-compatible devices.

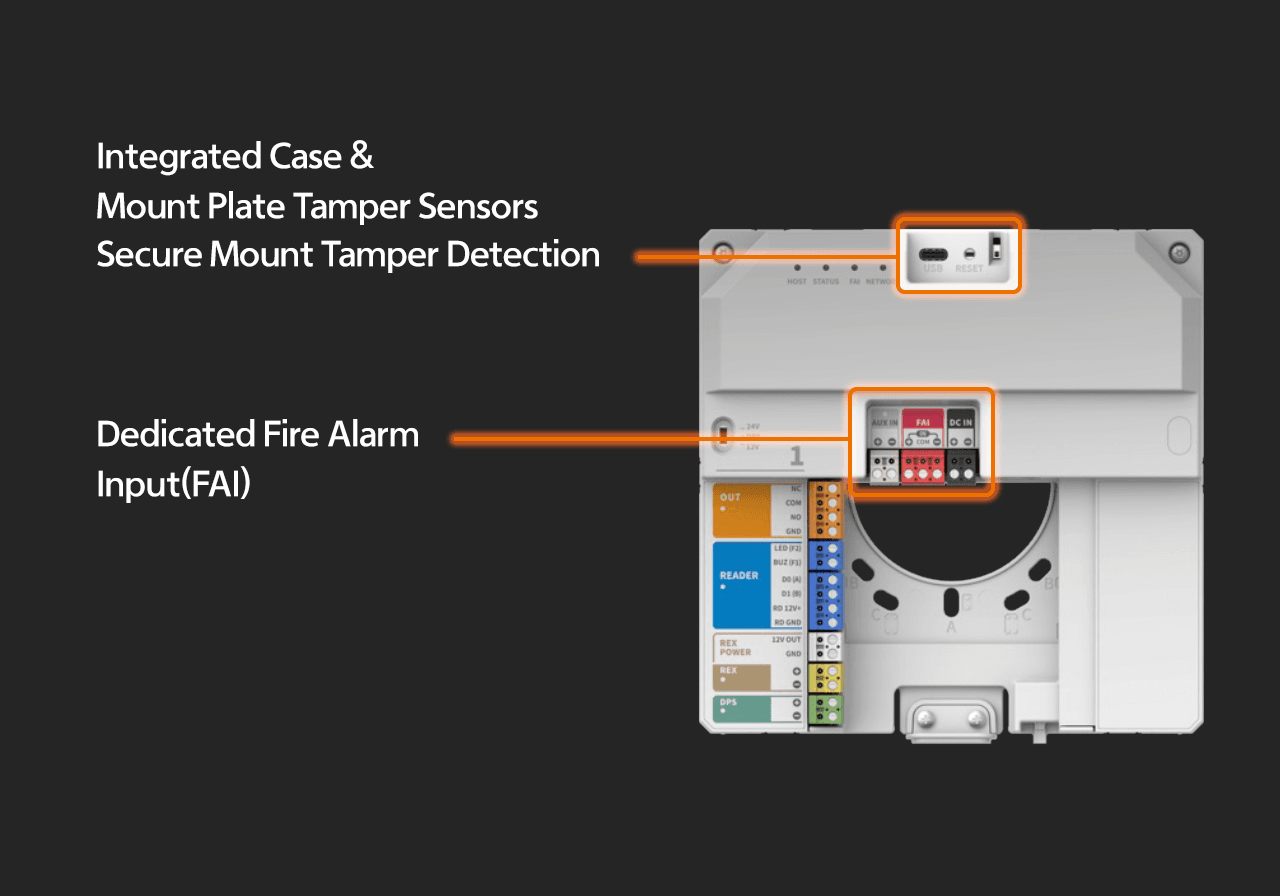

Hardware Integrity & Safety Integration
Ensure total site integrity with Integrated Case and Mount Tamper sensors for physical hardware protection, paired with a dedicated Fire Alarm Input (FAI) for automated emergency egress.
