Купольные

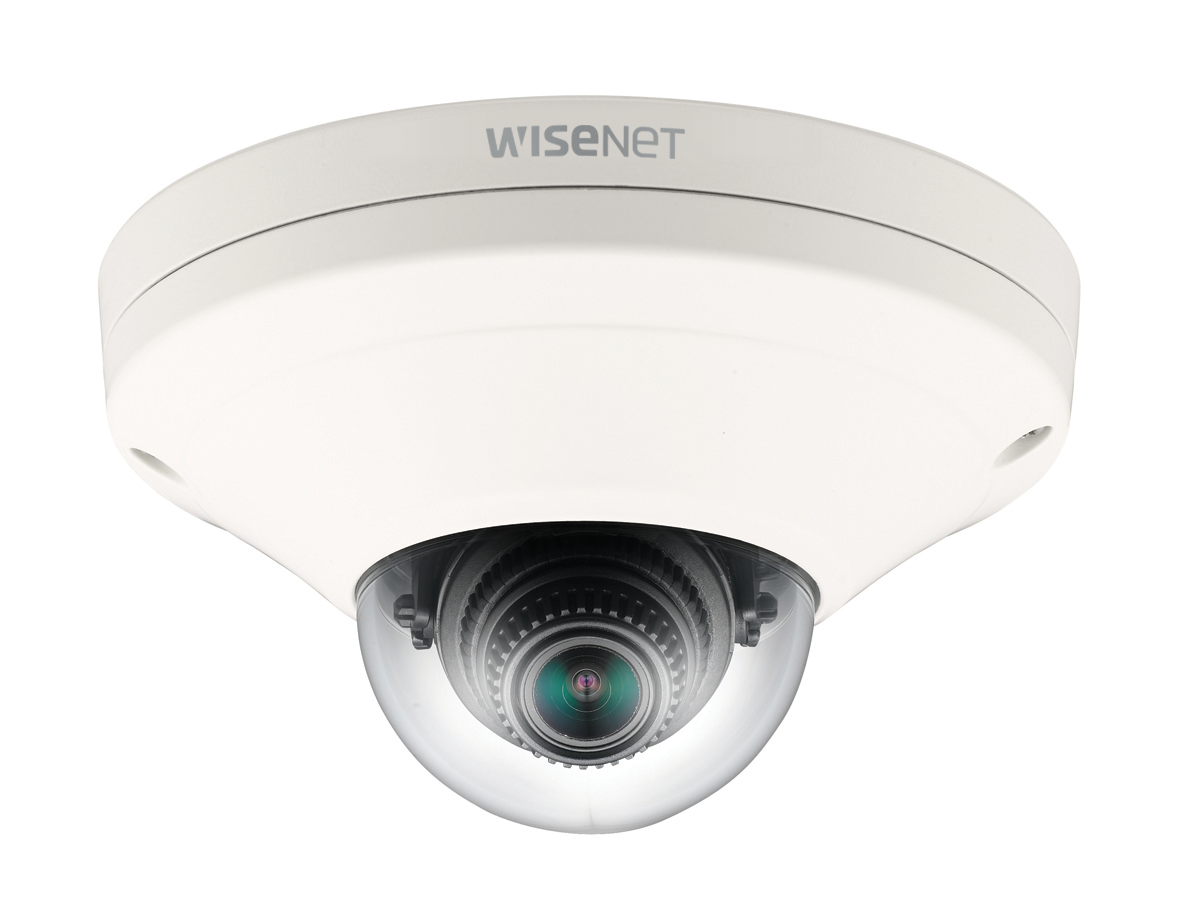

XNV-6011

2МП H.265 сетевая купольная камера

Key Features

• Встроенный объектив 2,8 мм с постоянным фокусом, до 60 кад/с (H.265 / H.264)
• WDR (150 дБ), функция Defog
• Обнаружение праздношатания, направления движения, тумана
• Обнаружение расфокусировки, цифровое автоматическое слежение, тепловая карта
• Подсчет людей, управление очередями, обнаружение внешнего воздействия
• Обнаружение движения, передача данных на PTZ камеру
• Слот для карт памяти microSD/SDHC/SDXC (макс. 256 Гб)
• Функция обзора коридоров, WiseStreamII, IP66, IK10, NEMA4X

Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Технические характеристики

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.055
BW(1/30sec, 30IRE)0.055
Video OutCVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B
Lens
Focal Length (mm)2.8
Max Aperture Ratio (F number)Wide2.0
Angular Field of ViewHorizontal112°
Vertical62°
Diagonal130°
Min. Object Distance0.2m(0.66ft)
Lens TypeFixed iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~353°
Tilt0°~59°
Rotate0°~353°
Operational
Day & NightAuto(Electrical)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)150
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionGray, Green, Red, Blue, Black, White, Mosaic
Gain ControlLow, Middle, High
White BalanceATW, AWC, Manual, Indoor, Outdoor
LDCSupport
Electronic ShutterModeMinimum, Maximum, Anti flicker
Speed Range2~1/12,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm TriggersAnalytics, Network disconnect
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP
Analytics
Analytics EventsNormalDefocus detection, Motion detection, Tampering, Fog detection, Face detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking
Business IntelligenceNormalPeople counting, Queue management, Heatmap
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecManual, WiseStreamⅡ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM
Application Programming InterfaceONVIFS, G, T
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationHTTPS, SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 1slot
Environmental & Electrical
Operating ConditionTemperature-30°C~+55°C(-22°F~+131°F)
Humidity0~90% RH(non-condensing)
OthersStart up should be done at above -20°C
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3)
Power ConsumptionPoEMax. 6.5W
Mechanical
ColorIvory
MaterialMetal
Product Dimensionsø112.8x63.7mm(4.44x2.51")
Product Weight420g(0.93lb)
Certifications & Standards
EnvironmentIEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide25.9m(84.98ft)
Observe (63PPM/ 19PPF)Wide10.4m(33.99ft)
Recognize (125PPM/ 38PPF)Wide5.2m(17.00ft)
Identify (250PPM/ 76PPF)Wide2.6m(8.50ft)
