Optics & Imaging

Hanwha Vision's Optics and Imaging technology transforms security cameras to deliver clear and reliable images in any situation.

Optics & Imaging

Hanwha Vision's optical and imaging technologies incorporate features such as Wide Dynamic Range (WDR), thermal imaging, image stabilization, and WiseIR.
These capabilities are progressively enhanced with the introduction of new products.

extremeWDR with Scene Analysis Technology

extremeWDR

Hanwha Vision’s improved multi-frame WDR technology lets you take full advantage of image contrast to see detailed objects clearly even in environments with strong backlight conditions

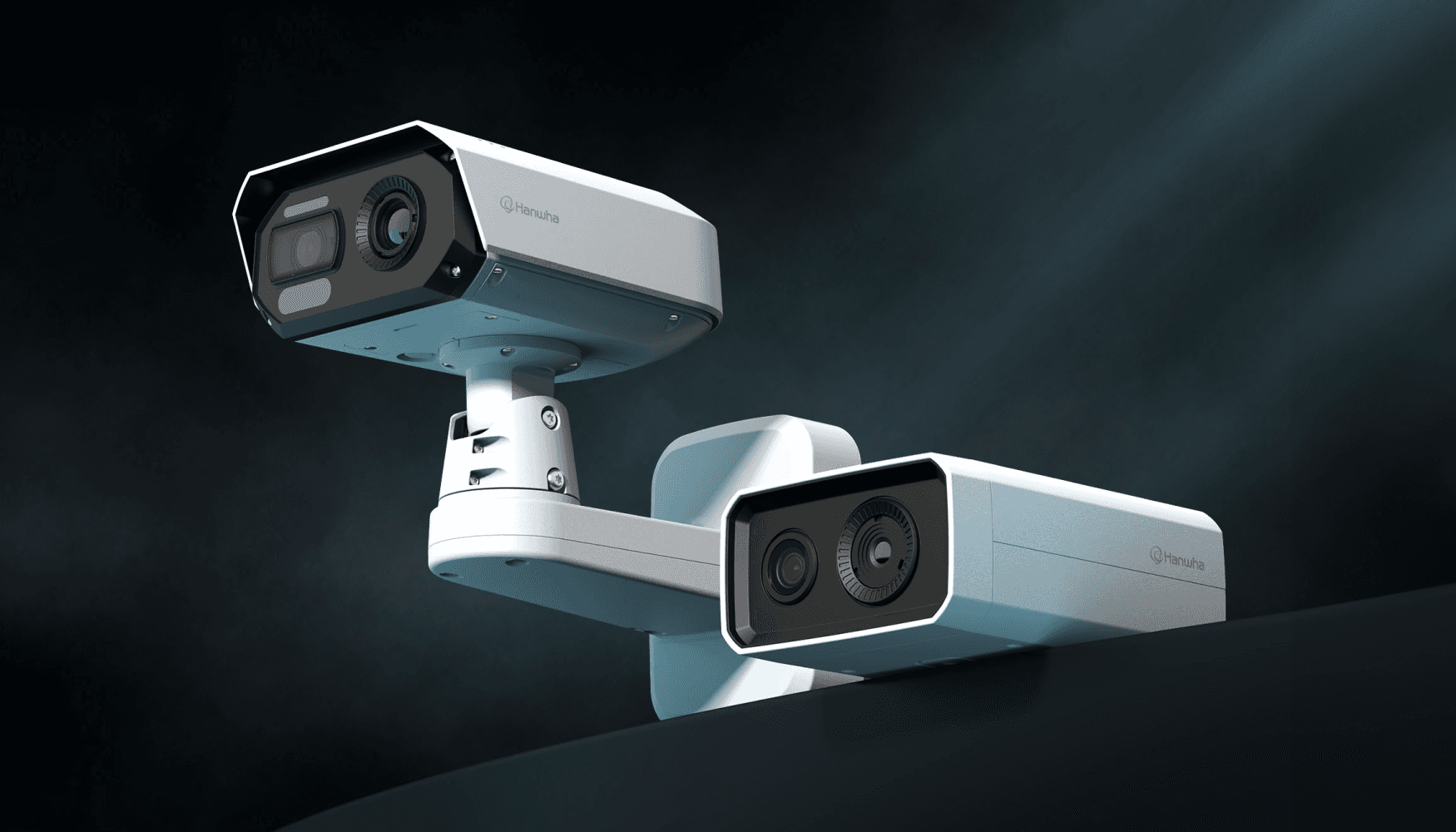

Thermal and radiometric camera devices

Hanwha Vision thermal and radiometric camera devices identify objects at distances of up to 1.9miles (3157m) away in all weather conditions and can monitor facility temperatures for signs of danger with temperature change detection analytics.

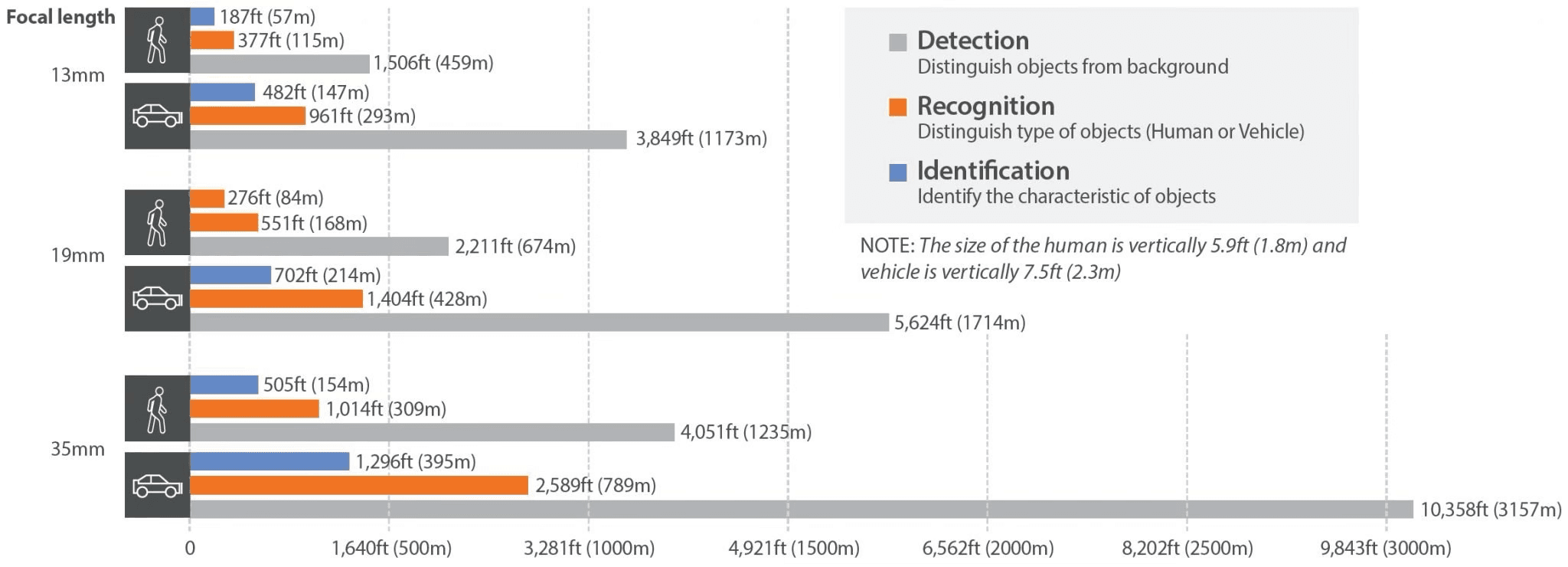

Object detection distances

Thermal and radiometric camera devices

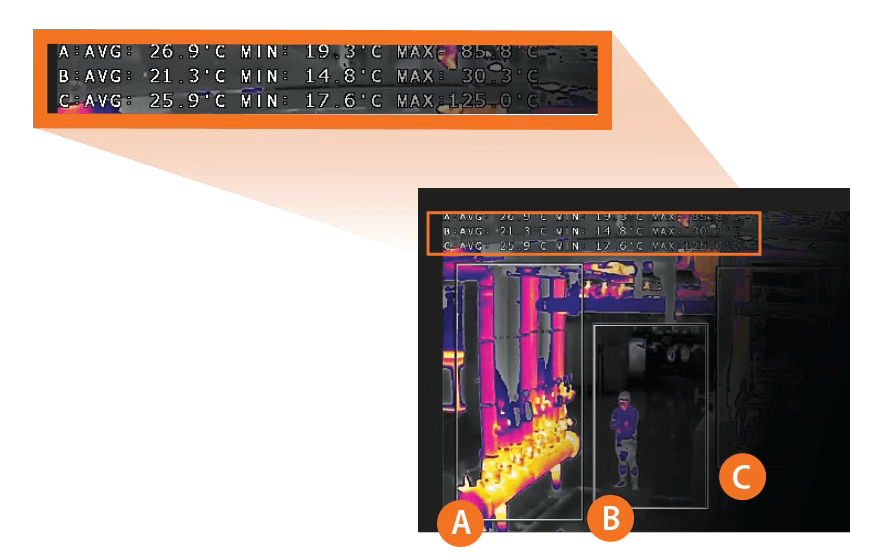

Enhance personnel safety and give warning to potential hazards in industrial settings with custom temperature monitoring zones

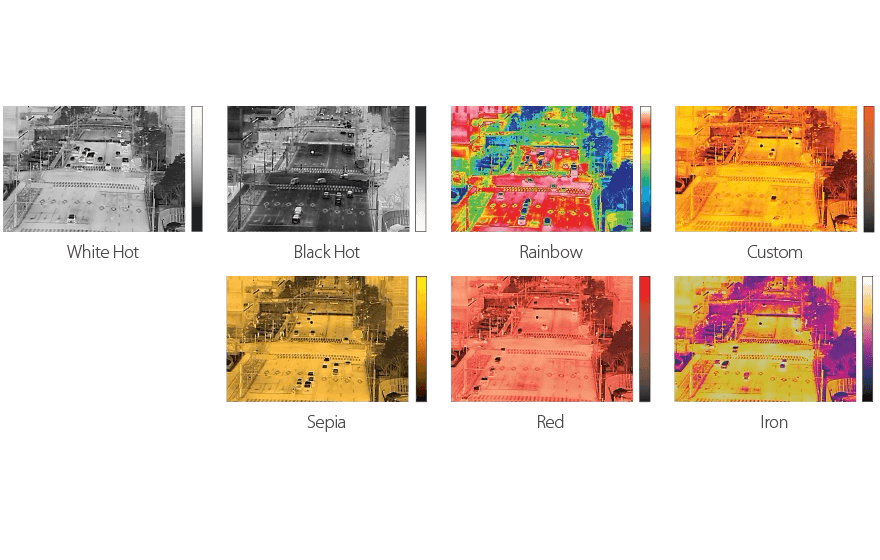

Multiple color palettes

Seven color palettes are provided, allowing users to select the best image when monitoring a multitude of environments.

Related Product

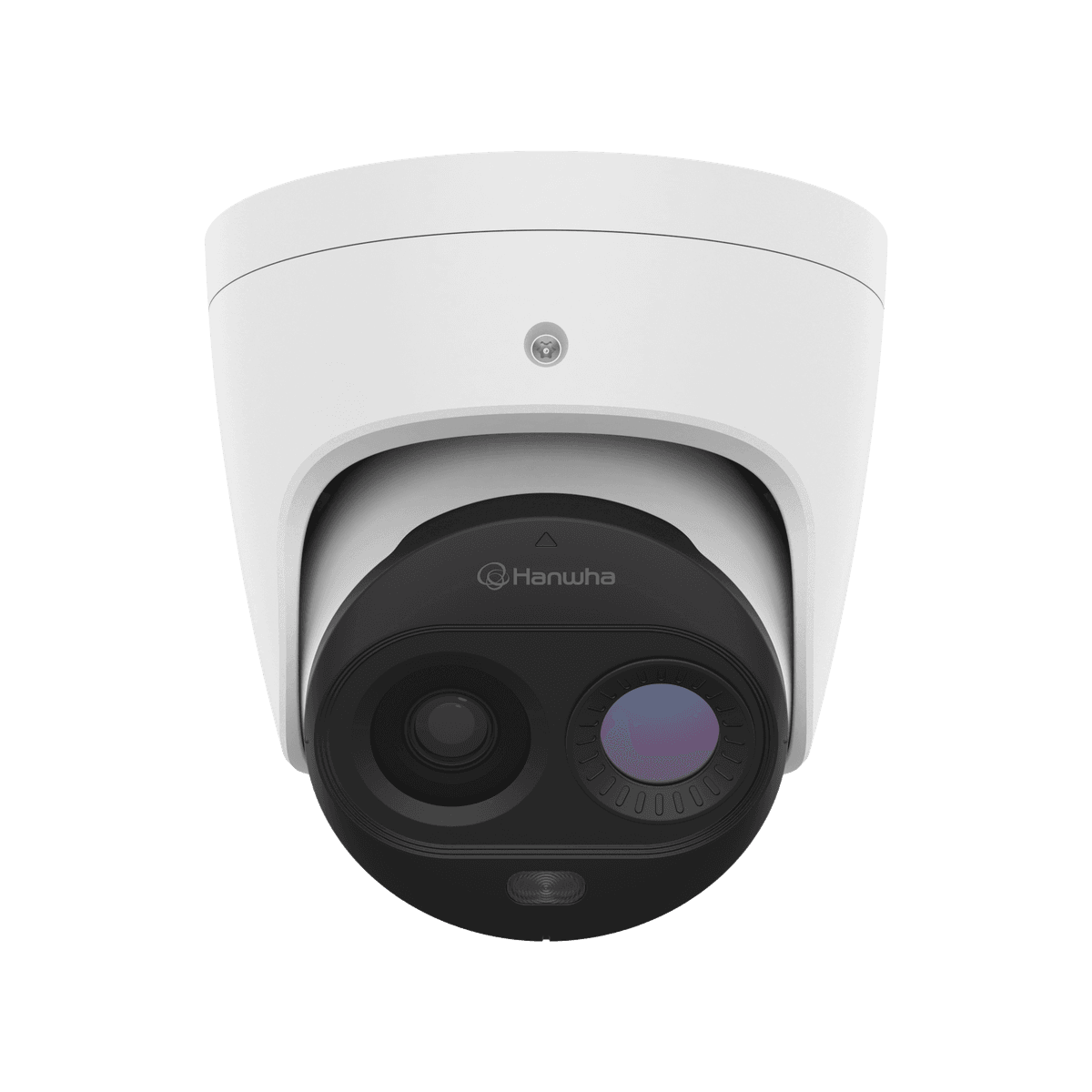

TNM-C2722TDR

Early Fire Detection Bi-spectrum Thermal Camera

TNM-C2712TDR

Early Fire Detection Bi-spectrum Thermal Camera

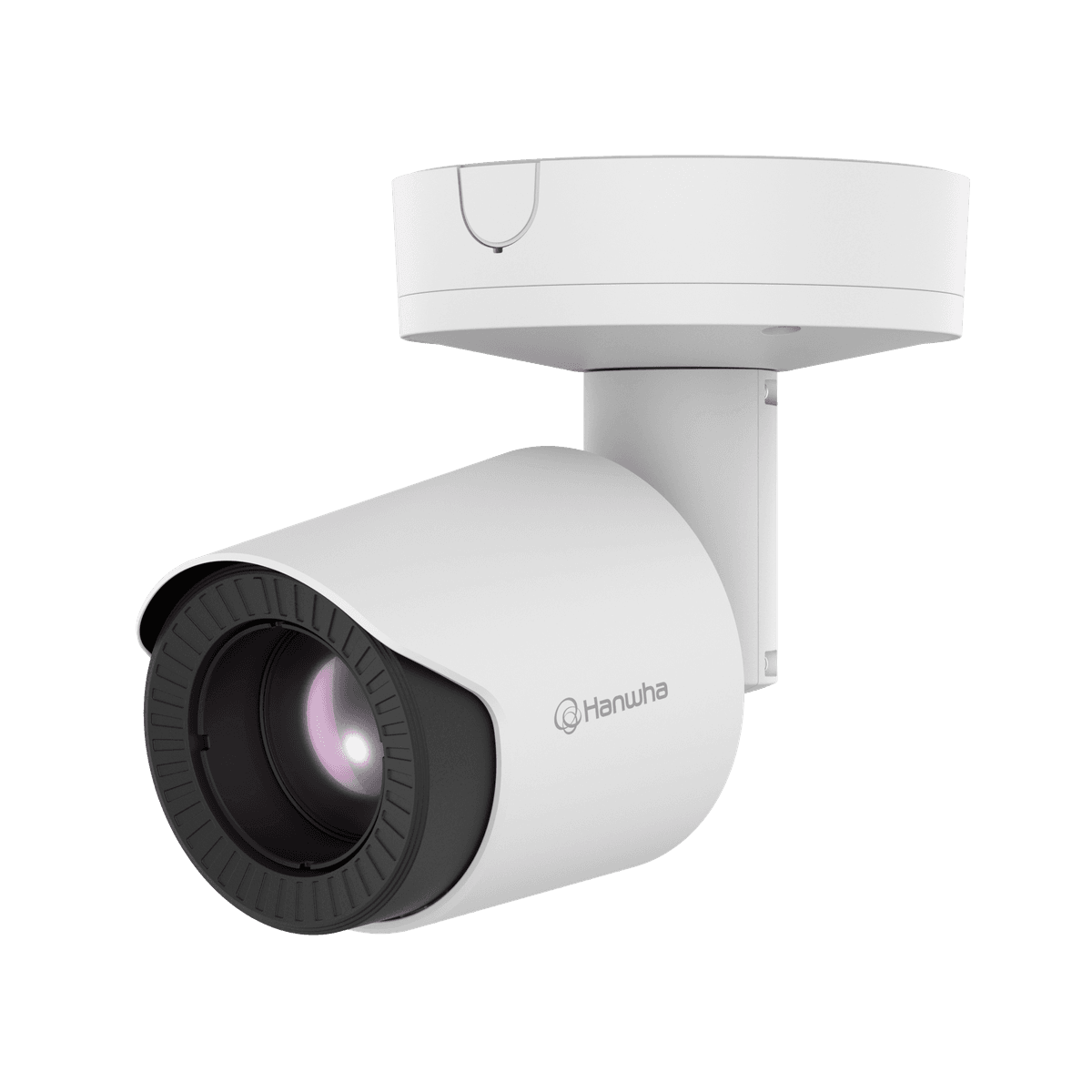

TNO-C3080T

QVGA AI Tele lens Thermal Camera

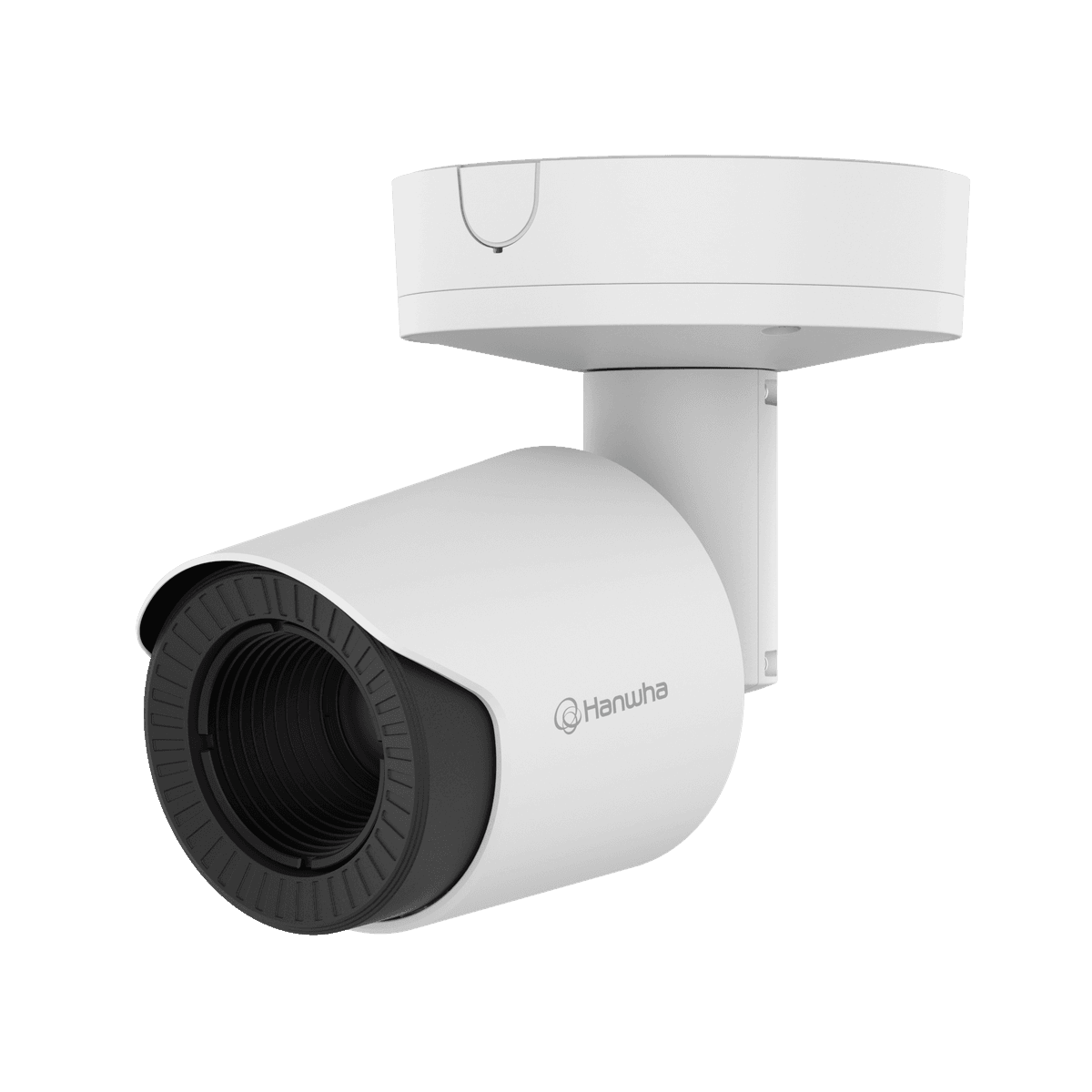

TNO-C3062T

QVGA AI Tele lens Thermal Camera

Imaging Stabilization

Hanwha Vision’s advanced image stabilization minimizes motion blur from wind or vibration. Using Digital Image Stabilization (DIS) and Optical Image Stabilization (OIS), the camera automatically corrects footage to deliver clear, steady images.

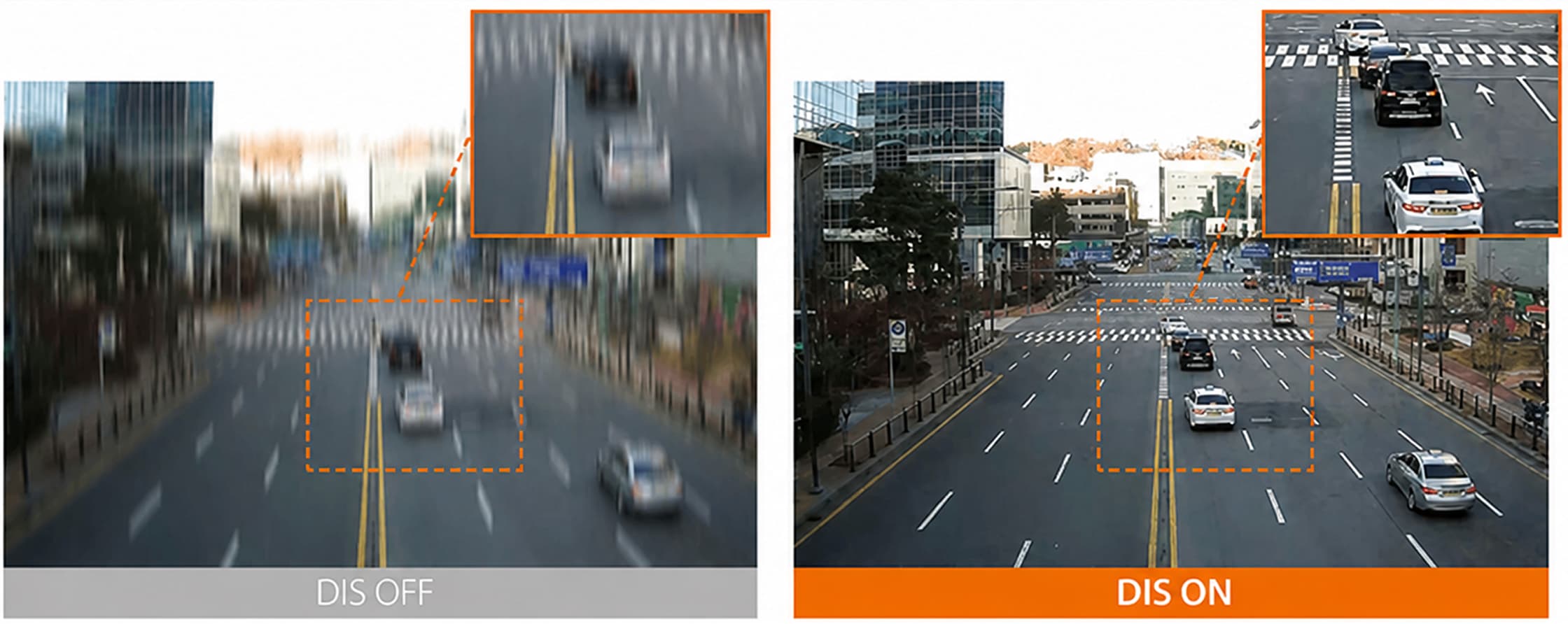

DIS (Digital Image Stabilization)

Hanwha Vision's DIS technology analyzes captured video through software to provide stable images. By cropping the footage during analysis, it may result in a narrower field of view. This approach proves effective for cameras installed at height, where minor pole vibrations occur, or when using telephoto lenses for long-range detection, as small camera movements significantly impact video quality. Product specifications list DIS and DIS with Gyro options to identify applicable models.

DIS without built-in gyroscope sensor

Employs pure digital analysis of video frames to track and correct motion, achieving clear and stable images without a gyroscope.

DIS with built-in gyroscope sensor

The gyroscope detects angular velocity and vibration in real time, feeding data to the DIS algorithm for precise corrections, particularly in windy or vibrating environments.

This content requires cookie consent to load.Open in new tab

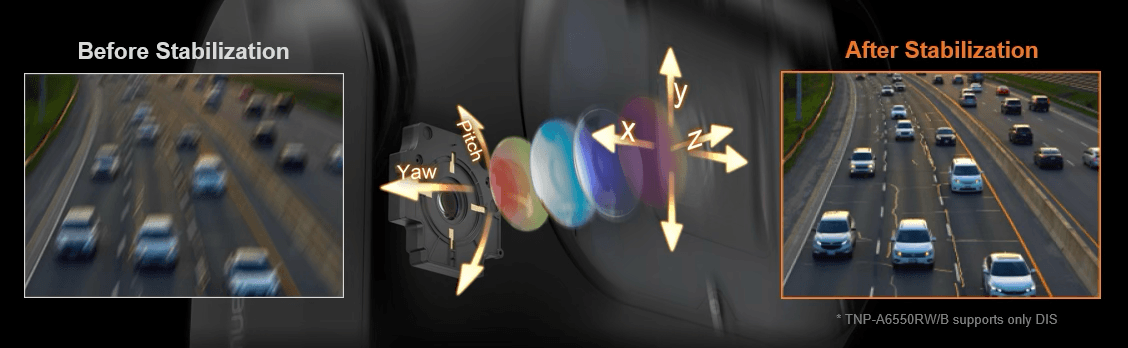

OIS(Optical Image Stabilization) with Lens

Hanwha Vision's OIS technology mechanically adjusts the lens optical path to compensate for shake. A gyroscope senses camera movement and shifts the lens or sensor in the opposite direction to stabilize the image. This method excels in low-light conditions with minimal image quality degradation.

Related Product

TNP-A9430RW

8MP AI Ruggedized PTZ Camera

TNP-A7430RW

4MP AI Ruggedized PTZ Camera

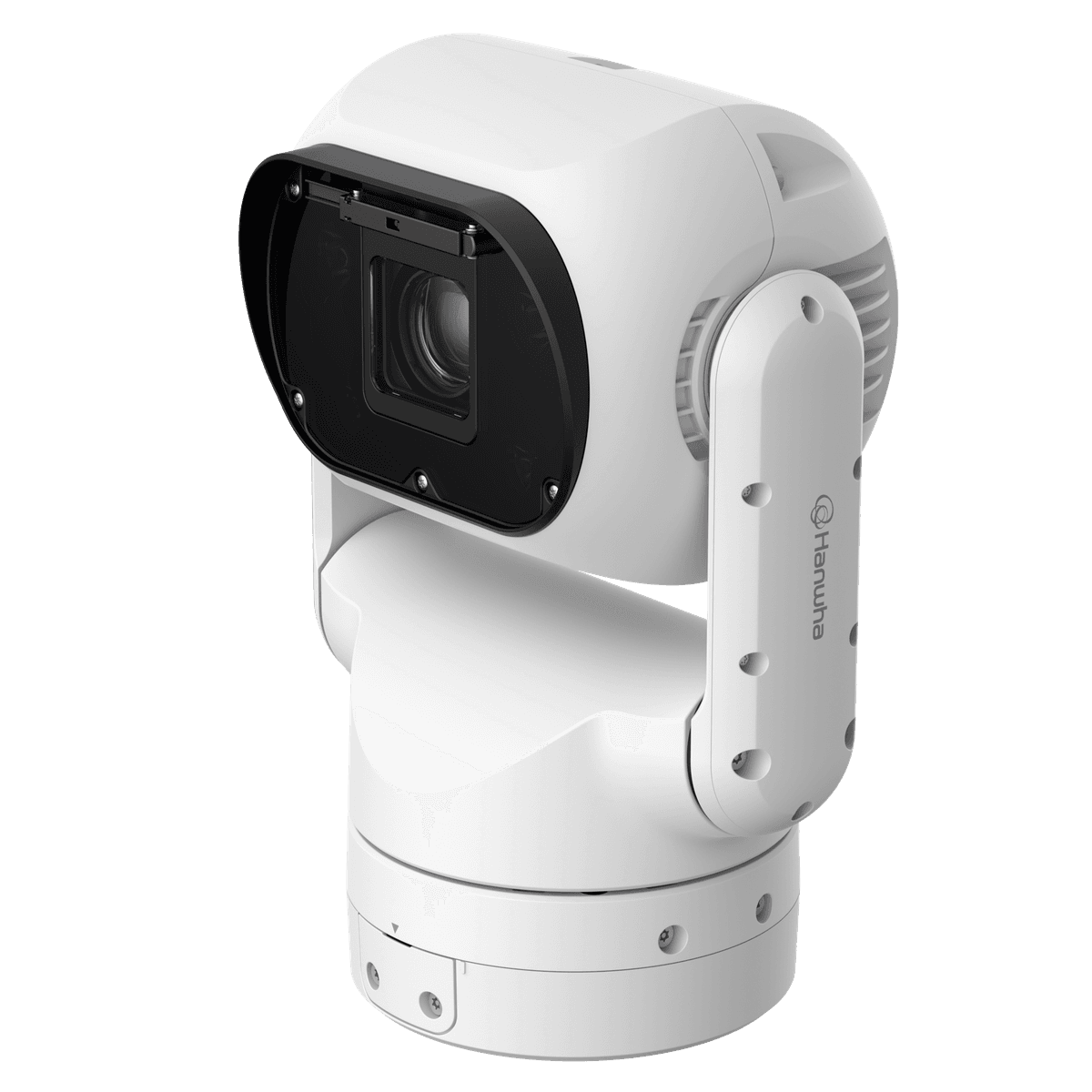

TNP-A6550RW

2MP AI Ruggedized PTZ Camera

WiseIR

Hanwha Vision’s WiseIR technology combines advanced circuitry and image processing to deliver clearer and more efficient nighttime images under low-light conditions.

Intelligent IR for low-light conditions

Hanwha Vision’s WiseIR simultaneously uses three methods of control over camera IR LED output to reduce overexposure and halo effects in low- and no-light environments

Adaptive IR

In varifocal and zoom models, Adaptive IR selectively activates wide-angle IR LEDs for short focal lengths and narrow-angle LEDs for longer distances, optimizing coverage and eliminating dark edge areas.

For PTRZ cameras with adjustable lens positions, independent external IR LED banks activate only those aligned with the lens direction, ensuring efficient long-range IR illumination.

Dynamic Current Control

As objects approach the camera, reflected IR light can cause overexposure; reducing IR LED power via dimming technology—through frequency-adjusted integrated current—prevents image saturation. In varifocal or zoom models, during focal shifts, current allocation balances power between narrow- and wide-angle LEDs. In PTRZ models, current redistributes dynamically as the lens moves between IR banks, ensuring consistent and effective illumination in the viewed direction.

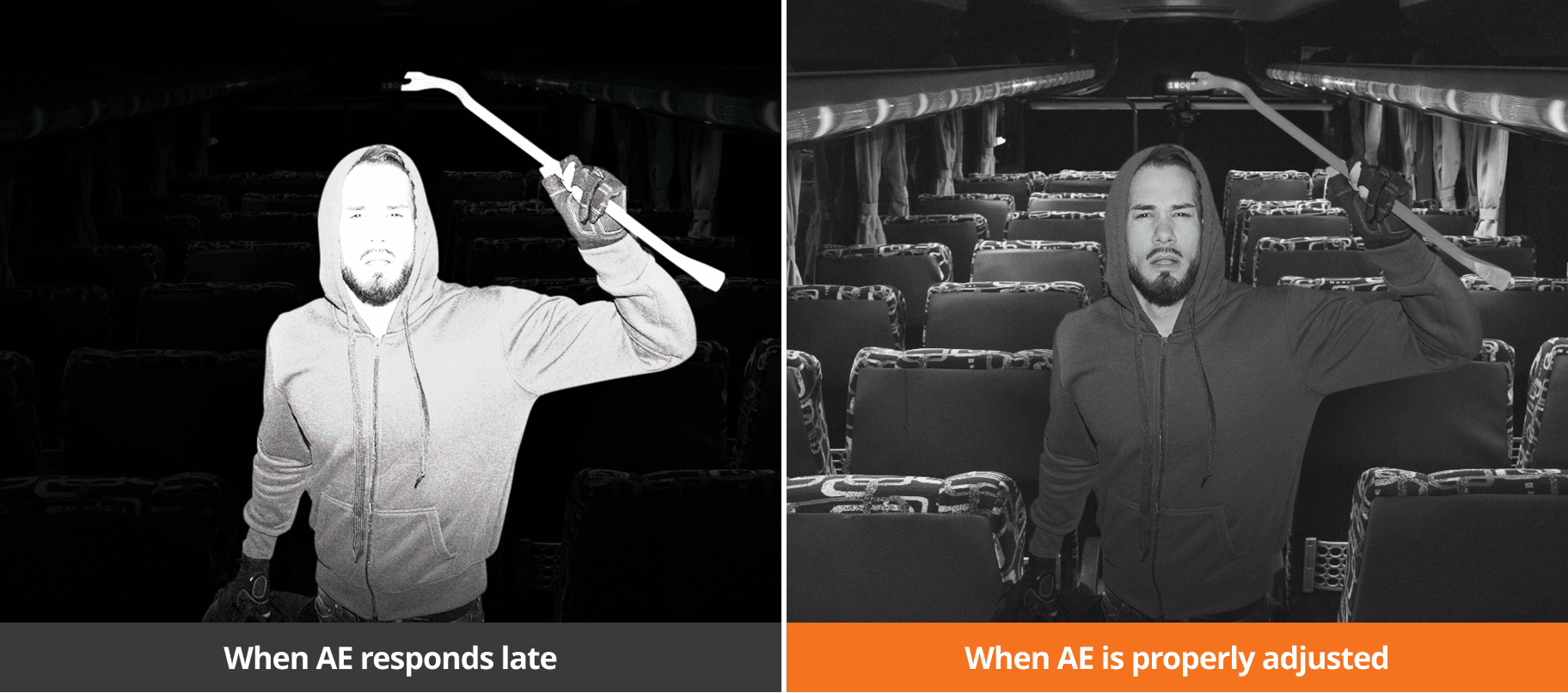

AE (Automatic Exposure)

When current control proves insufficient during object proximity changes, AE maintains target brightness by automatically adjusting exposure parameters—shutter speed, iris, and analog/digital gain—based on frame brightness comparisons.
